Android Question Changing selector icon in Spinner

[Javier Campo Martinez]

Hi guys !!!!
I'm trying to change the Spinner's selector icon in my project, modifying the Manifest.

I'm doing this:

<resources>
    <style name="LightTheme" parent="@android:style/Theme.Material.Light">
        <item name="android:colorPrimary">@color/actionbar</item>
        <item name="android:colorPrimaryDark">@color/statusbar</item>
        <item name="android:textColorPrimary">@color/textColorPrimary</item>
        <item name="android:navigationBarColor">@color/navigationBar</item>
        <item name="android:buttonStyle">@style/miBoton</item>
        <item name="android:textViewStyle">@style/miTexto</item>
        <item name="android:spinnerStyle">@style/miComboBox</item>
    </style>
    ...
    <style name="miComboBox" parent="@android:style/Theme">
        <item name="android:clickable">true</item>
        <item name="android:textColor">#959494</item>
        <item name="android:textStyle">normal</item>
        <item name="android:scrollbarAlwaysDrawVerticalTrack">true</item>
        <item name="android:dropDownSelector">@android:color/black</item>
        <item name="android:background">@drawable/gradient_spinner</item>
        <item name="android:gravity">left</item>
        <item name="android:layout_height">wrap_content</item>
    </style>
    ...
</resources>

and I obtain the following :

I need the spinner's selector icon appears as it's shown below:

What else do i need to specify in the manifesto?

Thanks in advance !!!!



[Erel]

I need the spinner's selector icon appears as it's shown below:

This is how the default spinner looks. You don't need to do anything special. Remove all the custom styles.



[Johan Hormaza]

I'm trying to change the Spinner's selector icon in my project, modifying the Manifest.

Ese es el predeterminado de android mi yave



[Javier Campo Martinez]

Ese es el predeterminado de android mi yave

Ese "llave" es típicamente barranquillero.
For those who don't speak spanish, "llave" = "dude"(USA), "mate" (UK)
Best regards,



[Johan Hormaza]

Ese "llave" es típicamente barranquillero

jejeje claro que es Barranquillero



[Javier Campo Martinez]

Hi guys/mates/llaves
This is how i resolved my issue.

Android Manifesto

...
<resources>
    ...
    <style name="miComboBox" parent="android:Widget.Spinner">
        <item name="android:clickable">true</item>
        <item name="android:textColor">@color/textColorPrimary</item>
        <item name="android:textStyle">normal</item>
        <item name="android:background">@drawable/background_spinner</item>
    </style>
    ...
</resources>
...

@drawable/background_spinner maps the file "background_spinner.xml" which must be copied to the folder "Objects\res\drawable"
Here is the contents of "background_spinner.xml"

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item>
        <layer-list>
            <item>
                <shape>
                    <gradient android:angle="90" android:endColor="@android:color/transparent" android:startColor="@android:color/transparent" android:type="linear" />
                    <stroke android:color="#c0c0c0" />
                    <corners android:radius="0dp" />
                    <padding android:bottom="3dp" android:left="3dp" android:right="3dp" android:top="3dp" />
                </shape>
            </item>
            <item android:right="2dp">
                <bitmap android:gravity="center_vertical|right" android:src="@drawable/gradient_spinner" />
            </item>
        </layer-list>
    </item>
</selector>

And that's the result:



Additionally, I reduced the image size to 32x32 pixels.

Finally, don't forget to mark the folder "drawable" as Read-Only once you add the resources (xml files and images) .... if you don't do it, the Big Bad Wolf will come to eat that files, when generating the application.

Hope it helps someone.

Best regards,



[Johan Hormaza]

Hi guys/mates/llaves
This is how i resolved my issue.

Android Manifesto

...
<resources>
    ...
    <style name="miComboBox" parent="android:Widget.Spinner">
        <item name="android:clickable">true</item>
        <item name="android:textColor">@color/textColorPrimary</item>
        <item name="android:textStyle">normal</item>
        <item name="android:background">@drawable/background_spinner</item>
    </style>
    ...
</resources>
...

@drawable/background_spinner maps the file "background_spinner.xml" which must be copied to the folder "Objects\res\drawable"
Here is the contents of "background_spinner.xml"

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item>
        <layer-list>
            <item>
                <shape>
                    <gradient android:angle="90" android:endColor="@android:color/transparent" android:startColor="@android:color/transparent" android:type="linear" />
                    <stroke android:color="#c0c0c0" />
                    <corners android:radius="0dp" />
                    <padding android:bottom="3dp" android:left="3dp" android:right="3dp" android:top="3dp" />
                </shape>
            </item>
            <item android:right="2dp">
                <bitmap android:gravity="center_vertical|right" android:src="@drawable/gradient_spinner" />
            </item>
        </layer-list>
    </item>
</selector>

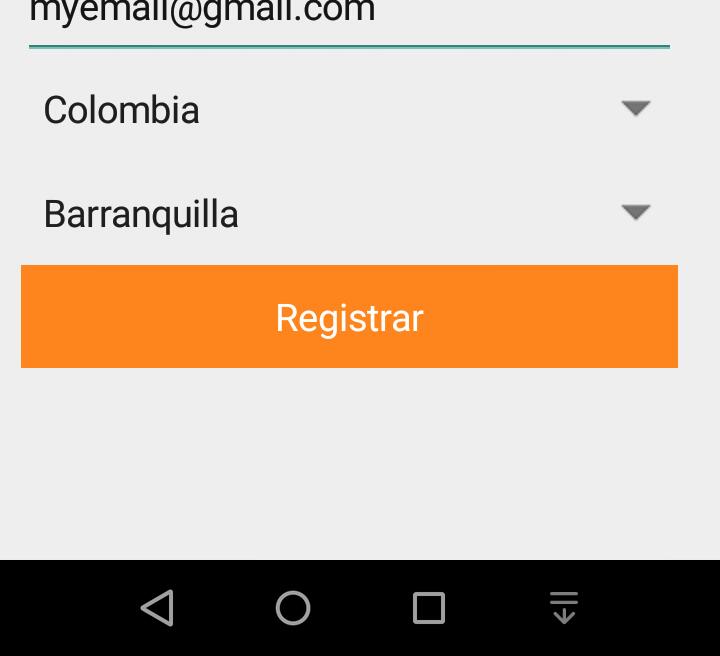

And that's the result:

View attachment 68253

Additionally, I reduced the image size to 32x32 pixels.

Finally, don't forget to mark the folder "drawable" as Read-Only once you add the resources (xml files and images) .... if you don't do it, the Big Bad Wolf will come to eat that files, when generating the application.

Hope it helps someone.

Best regards,

I think it was not necessary to do all that, because the Spinners come like this by default



[Javier Campo Martinez]

I think it was not necessary to do all that, because the Spinners come like this by default

It depends of the Android Theme, because the base theme I choosed is Theme.Material.Light and the spinner didn't show the dropdown icon with this base theme.

Best regards,
