B4R Tutorial Connecting two Arduinos with rWire library

Discussion in 'B4R Tutorials' started by Erel, Apr 12, 2016.

  1. Erel

    Erel Administrator Staff Member Licensed User

    [​IMG]

    The rWire supports communication with other I2C/TWI devices.

    One device acts as the master and the other devices act as slaves.
    Each slave has a unique address between 8 to 127.

    You can see the relevant pins here: https://www.arduino.cc/en/Reference/Wire

    The master can send data to any slave. The slaves prepare data for the master.

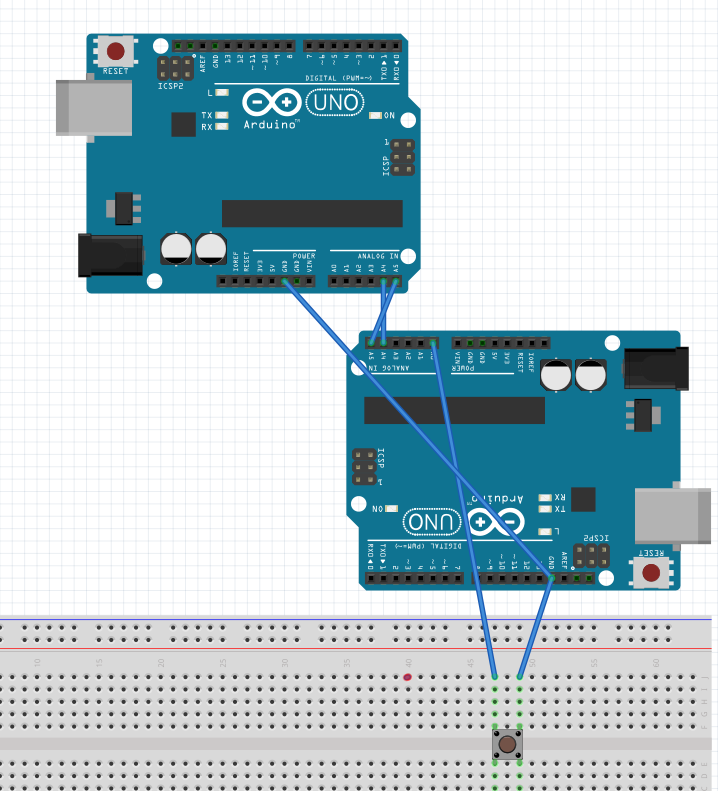

    In this example we connect two Arduinos. The master will read the state of the the button which is connected to the slave board.

    You can run two instances of B4R. One for the slave and one for the master.

    This is the slave code:
    Code:
    Sub Process_Globals

    Public Serial1 As Serial

    Private slave As WireSlave

    Private btn As Pin

    Private const SLAVE_ADDRESS As Byte = 8
    End Sub

    Private Sub AppStart
       Serial1.Initialize(
    115200)

    Log("AppStart")
       slave.Initialize(SLAVE_ADDRESS,
    "Slave_NewData")
       btn.Initialize(btn.A0, btn.MODE_INPUT_PULLUP)
       btn.AddListener(
    "Btn_StateChanged")
    End Sub

    Sub Btn_StateChanged (State As Boolean)

    Dim b(1As Byte

    'It will be False when button is down
       If State Then b(0) = 0 Else b(0) = 1
       slave.SetDataForMaster(b)
    '<-- it will only be read when the master calls RequestFrom
    End Sub

    Sub Slave_NewData (Data() As Byte)

    Log("Received from master: ", Data)
    End Sub
    The master code:
    Code:
    Sub Process_Globals

    Public Serial1 As Serial

    Private timer1 As Timer

    Private master As WireMaster

    Private const SLAVE_ADDRESS As Byte = 8

    Private led13 As Pin
    End Sub

    Private Sub AppStart
       Serial1.Initialize(
    115200)

    Log("AppStart")
       master.Initialize
       led13.Initialize(
    13, led13.MODE_OUTPUT)
       led13.DigitalWrite(
    True)
       timer1.Initialize(
    "Timer1_Tick"10)
       timer1.Enabled =
    True
    End Sub

    Sub Timer1_Tick
       master.WriteTo(SLAVE_ADDRESS,
    NumberFormat(Millis, 00).GetBytes)

    Dim b() As Byte = master.RequestFrom(SLAVE_ADDRESS, 1)

    If b.Length = 1 Then

    Dim state As Boolean

    If b(0) = 0 Then state = False Else state = True
         led13.DigitalWrite(state)

    End If
    End Sub

    Beja, GMan and Johan Hormaza like this.
  2. janderkan

    janderkan Active Member Licensed User

    In the Master code you have

    Code:
    Dim b() As Byte = master.RequestFrom(SLAVE_ADDRESS, 1)

    If b.Length = 1 Then
    but if you request 1 byte, 1 byte is always received so no need to test the length.
    Is this an error or is there a way to set

    Code:
    slave.SetDataForMaster(NULL'<-- it will only be read when the master calls RequestFrom

  3. Erel

    Erel Administrator Staff Member Licensed User

    There is no harm in testing the returned array length.

    janderkan likes this.
  4. janderkan

    janderkan Active Member Licensed User

    Problem is:
    If you request 4 bytes, 4 bytes are returned. Even if only 1 byte are sent.
    So the length of the returned bytes are always the same as the requested length.

  5. Erel

    Erel Administrator Staff Member Licensed User

    I don't see any problem here.

  6. janderkan

    janderkan Active Member Licensed User

    Documentation say:
    This will return the data prepared by the slave with the call to SetDataForMaster.
    Note that the returned array length might be smaller than the requested length.

    Problem is that it always return the requested length, even if the prepared data are smaller.

    If you prepare 1 byte (0x20) and you request 4 bytes, function returns 4 bytes (0x20,0xff,0xff,0xff)

  7. Erel

    Erel Administrator Staff Member Licensed User

    This is how the native API behaves.

    Beja and janderkan like this.
