Android Question Convert image to black and white

[angel_]

I use the following code from @klaus to convert an image to black and white but some definition is missing around the edges of the image to black, is there any way to improve it?

[B4X] Documentation Booklets

The B4X documentation booklets are available in PDF format, Download Link. All files are included in the zip file in the link above, pdf booklets and all the source code. You can also download all the source code for al booklets, SourceCode. These booklets cover the four B4X platforms. Some...

www.b4x.com

Public Sub BlackAndWhite (Image As B4XBitmap, Threshold As Int) As B4XBitmap
    Private x, y, Mean, BWCol As Int
    Private col0, col1 As ARGBColor
    Private bmcImage, bmcResult As BitmapCreator

    bmcImage.Initialize(Image.Width, Image.Height)
    bmcImage.CopyPixelsFromBitmap(Image)
    bmcResult.Initialize(Image.Width, Image.Height)

    For y = 0 To Image.Height -1
        For x = 0 To Image.Width -1
            bmcImage.GetARGB(x, y, col0)
'            col1.a = col0.a
            Mean = (col0.r + col0.g + col0.b) / 3
            If Mean > Threshold Then
                BWCol = 255
            Else
                BWCol = 0
            End If
            col1.a = 255
            col1.r = BWCol
            col1.g = BWCol
            col1.b = BWCol
            bmcResult.SetARGB(x, y, col1)
        Next
    Next
    Return bmcResult.Bitmap
End Sub



[klaus]

I tested your project on my Samsung Galaxy S10.
It does not look that bad.
My be it is the anti-aliasing, but this cannot be removed.



[angel_]

Yes, it is true it does not look bad but I would like to improve it a little



[klaus]

What exactly do you want to improve ?
Do you have a screenshot ?



[angel_]

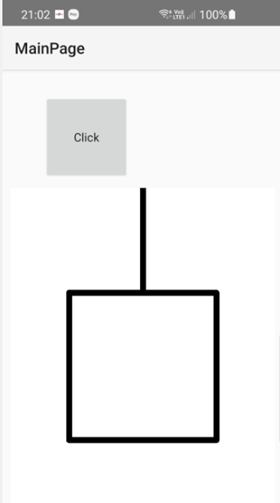

It is a loss of definition at the edges of the lines, they appear slightly pixelated, it is also slightly noticeable when there are texts



[klaus]

I think that the original images have anti-aliasing.
Then, part of the lighter pixels are converted to black and the others to white depending on the threshold.
Can you check if, the lighter pixels, the alpha value is lower than 255.
If yes, try eventually to keep the original alpha value by commenting col1.a = 255.



[emexes]

It is a loss of definition at the edges of the lines, they appear slightly pixelated, it is also slightly noticeable when there are texts

Does your use-case allow grayscale?

Also, I have a vague recollection that in analog television the HSV <==> RGB conversion weights green more heavily than red and blue.

Perhaps in digital television too, if the video compression is anything like JPEG where similar conversions occur.



[klaus]

I played a bit more with your problem.
I saw that you have modified the original conversion routine.
I tried with the original routine and I get a gray background, and was surprised why, even with alpha = 0.
I noticed that you use and B4XImageView.
I tried to replace it by an ImageView, which gives better results.
Set the background color to white and use the original routine.



[Johan Schoeman]

Thread 'Image - 17 different ways of Converting RGB Images to Grayscale' https://www.b4x.com/android/forum/t...-of-converting-rgb-images-to-grayscale.44316/



[Johan Schoeman]

Thread 'Otsu Thresholding - binarization of images' https://www.b4x.com/android/forum/threads/otsu-thresholding-binarization-of-images.44406/



[Johan Schoeman]

Thread 'Image - Enhancing Image Contrast by means of Histogram Equalization and Histogram Stretching' https://www.b4x.com/android/forum/t...-equalization-and-histogram-stretching.44297/



[angel_]

Thanks i will try it



[angel_]

I have used a mix of @klaus code and Erel grayscale (from B4XBitmapEffects) and it works great:

BlackAndWhite(pnl.Snapshot, 200)

Public Sub BlackAndWhite (Image As B4XBitmap, Threshold As Int) As B4XBitmap
    Private x, y, Mean, BWCol As Int
    Private col0, col1 As ARGBColor
    Private bmcImage, bmcResult As BitmapCreator

    bmcImage.Initialize(Image.Width, Image.Height)
    bmcImage.CopyPixelsFromBitmap(Image)
    bmcResult.Initialize(Image.Width, Image.Height)

    For y = 0 To Image.Height -1
        For x = 0 To Image.Width -1
            bmcImage.GetARGB(x, y, col0)
            Mean = (col0.r + col0.g + col0.b) / 3
            If Mean > Threshold Then
                BWCol = 255
            Else If Mean > 0.75 * Threshold Then
                BWCol = col0.r * 0.21 + col0.g * 0.72 + 0.07 * col0.b
            Else
                BWCol = 0
            End If
            col1.r = BWCol
            col1.g = BWCol
            col1.b = BWCol
            col1.a = 255
            bmcResult.SetARGB(x, y, col1)
        Next
    Next
    Return bmcResult.Bitmap
End Sub



[angel_]

Does your use-case allow grayscale?

No, the gray scale did not work in this case, thank you
