Share My Creation Cubic Spline Curve Fit

Hi,

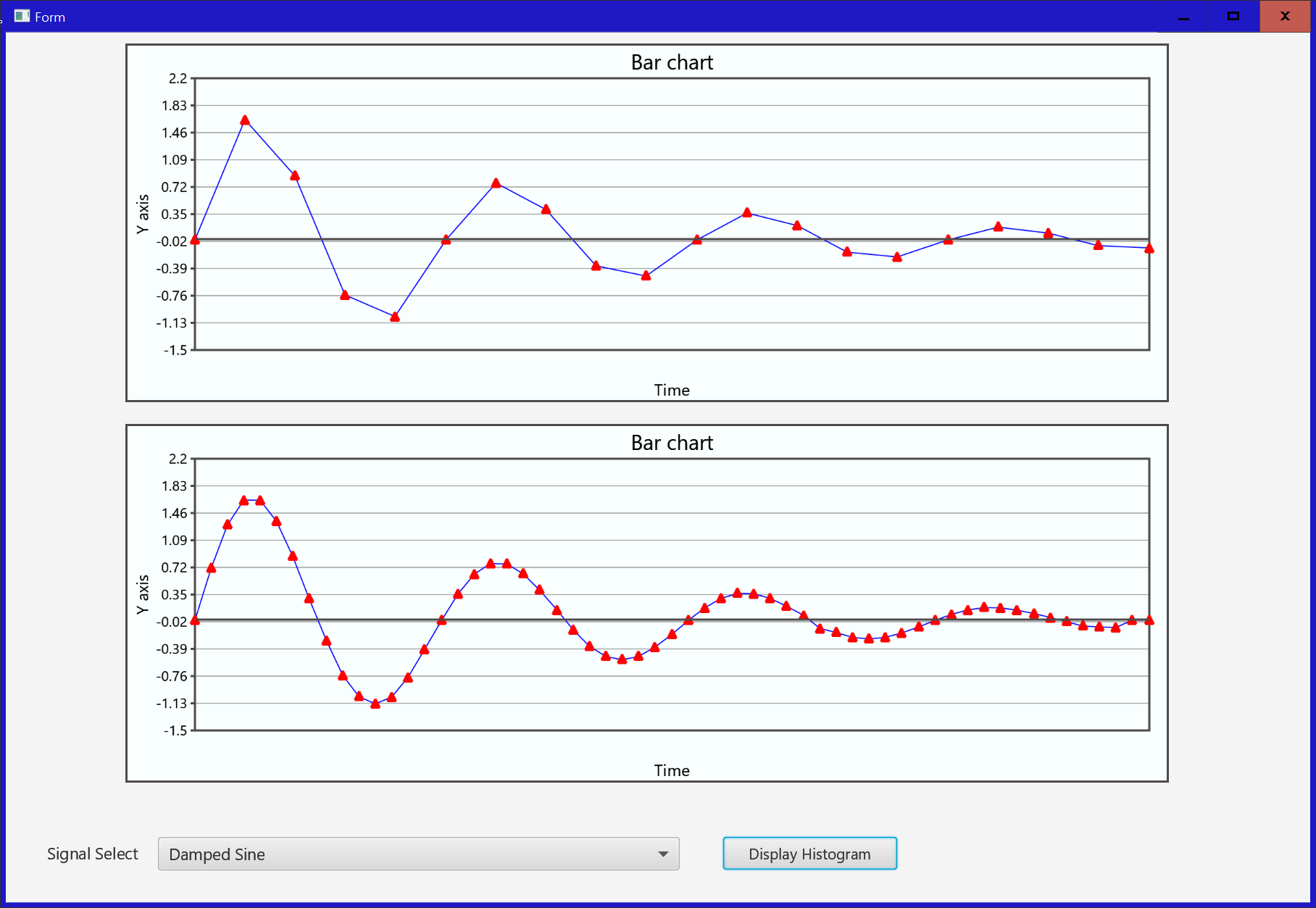

Please find attached a demo program that implements a natural cubic spline for curve fitting. I converted the code form a c program published on the following web site.

Cubic Spline C Programs

I have only implemented the equidistant algorithm that assumes that the vector has a fixed "sample period"

I might get around to the variable distance algorithm at some time, but it's easy to download and convert to B4x if you need a more general version.

I am using it to interpolate ten minute weather data to five minutes to match some other 5 minute data I have. I could have used a linear interpolation, but I've always wanted to have a crack at splines as they are generally better than poly curve fits for the sort of data I am processing.

Enjoy

Best regards
Rob



Attachments

  • splineTest_001.zip
    6.4 KB · Views: 128
