iOS Question CustomListView resizing problems

Discussion in 'iOS Questions' started by jhagerup, Jul 27, 2015.

  1. jhagerup

    jhagerup Member Licensed User

    I'm trying to present some header - detail data using clv, but have a (couple of) sizing problems.
    When stepping through code (clv.add) every things looks nearly OK, i.e. the and width of the header and detail labels are the same, the height of the header is too small, the height of the details are too small, but seems to respect the multiline setting.
    But in the end everything is a mess. The headers are OK (apart from the height), but the width of the details are changed, the heights of the panels are nearly OK, but the multiline label is no longer multiline.

    Replacing the "original" multiline labels in code can solve the multiline problem, but is this nessesary and what about the widths and heights.

    Any suggestions ?

    Samplecode attached.


    Attached Files:

  2. Erel

    Erel Administrator Staff Member Licensed User

    You need to call clv.SetSize in Page_Resize event.

  3. jhagerup

    jhagerup Member Licensed User

    I've tried that, but it makes no difference.

  4. Erel

    Erel Administrator Staff Member Licensed User

    This code will help you get started:
    Code:
    Sub Process_Globals

    'These global variables will be declared once when the application starts.
       'Public variables can be accessed from all modules.
       Public App As Application

    Public NavControl As NavigationController

    Private Page1 As Page

    Private clvType1 As CustomListView

    Private lHeaderTid As Label

    Private lHeaderAktivitet As Label

    Private lHeaderSted As Label


    Private lDetailTid As Label

    Private lDetailAktivitet As Label

    Private lDetailSted As Label

    Private ItemHeight As Double = 40

    End Sub

    Private Sub Application_Start (Nav As NavigationController)
       NavControl = Nav
       Page1.Initialize(
    "Page1")
       Page1.Title =
    "Page 1"
       Page1.RootPanel.Color =
    Colors.White
       Page1.RootPanel.LoadLayout(
    "infopagetype1")
       clvType1.Initialize(Me,
    "clvType1"100%X)
       Page1.RootPanel.AddView(clvType1.AsView,
    0, ItemHeight, 100%x100%y - ItemHeight)
       NavControl.ShowPage(Page1)


    Dim p As Panel
       p.Initialize(
    "")
       p.Color =
    Colors.White
       p.SetLayoutAnimated(
    0000100%x, ItemHeight)
       p.LoadLayout(
    "infoDetailType1")

    Dim s As StringBuilder
       s.Initialize
       s.Append(
    "OK")
       lDetailTid.Text= s
       lDetailAktivitet.Text = s
       lDetailSted.Text =
    "test"
       clvType1.Add(p, ItemHeight,
    "")

    For i=1 To 3

    Dim p As Panel
         p.Initialize(
    "")
         p.Color =
    Colors.White
         p.SetLayoutAnimated(
    0000100%x, ItemHeight)
         p.LoadLayout(
    "infoDetailType1")

    Dim s As StringBuilder
         s.Initialize

    For j=i To 4
           s.Append(
    "text - ")

    Next
         lDetailTid.Text= s
         lDetailAktivitet.Text = s
         lDetailSted.Text =
    "text"
         clvType1.Add(p, ItemHeight,
    "")

    Next
    End Sub

    Private Sub Page1_Resize(Width As Int, height As Int)
       clvType1.SetSize(Width, height - ItemHeight)
    End Sub

  5. jhagerup

    jhagerup Member Licensed User

    Thanks Erel. I appriciate your help (and B4x) very much.

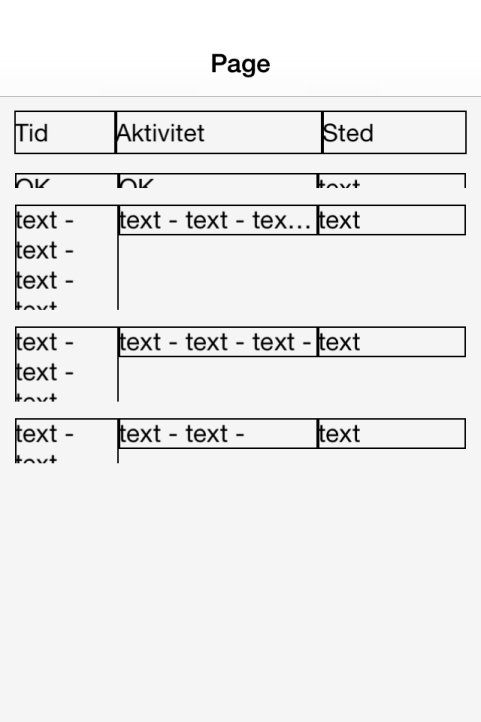

    But I'm still far from my goal. Your code produces this (erel.png), but I'm trying to achieve something like this (jan.png).
    To do that I replaced the clvType1.add(p, ItemHeight, "") with clvType1.add(replacePanel(s), panelHeight, "").

    Code:
    Sub replacePanel(s As StringAs Panel

    Dim tempPanel As Panel
        tempPanel.Initialize(
    "")
        tempPanel.LoadLayout(
    "infoDetailType1")

    Dim h As Double

    Dim p As Panel
        p.Initialize(
    "")

    Dim lDT As Label
        lDT.Initialize(
    "")
        lDT.SetBorder(
    1,Colors.Black,0)
        lDT.Top=lDetailTid.Top
        lDT.Width=lDetailTid.Width
        lDT.Multiline=
    True
        lDT.Font = lDetailTid.Font
        lDT.text=s
        lDT.SizeToFit


    Dim lDA As Label
        lDA.Initialize(
    "")
        lDA.SetBorder(
    1,Colors.Black,0)
        lDA.Top=lDetailAktivitet.Top
        lDA.Width=lDetailAktivitet.Width
    '    lDA.Multiline=True
        lDA.Font = lDetailAktivitet.Font
        lDA.text=s
        lDA.SizeToFit


    Dim lDS As Label
        lDS.Initialize(
    "")
        lDS.SetBorder(
    1,Colors.Black,0)
        lDS.Top=lDetailSted.Top
        lDS.Width=lDetailSted.Width
        lDS.Multiline=
    True
        lDS.Font = lDetailSted.Font
        lDS.text=
    "text"
        lDS.SizeToFit

        p.AddView(lDT,lDetailTid.Left,lDetailTid.Top,lDetailTid.Width,lDT.height)
        h=lDT.height
        p.AddView(lDA,lDetailAktivitet.Left,lDetailAktivitet.Top,lDetailAktivitet.Width,lDA.height)
        h=
    Max(h,lDA.height)
        p.AddView(lDS,lDetailSted.Left,lDetailSted.Top,lDetailSted.Width,lDS.height)
        h=
    Max(h,lDS.height)
        panelHeight = h

    Return p

    End Sub
    Is this the only way to do it ?
    And, as you can see I can't find the right height (panelHeight) and have a little problem with the widths (sizeToFit changes the fontSize)


    Attached Files:

    • erel.png
      File size:
      30.2 KB
      Views:
      42
    • jan.png
      File size:
      36.3 KB
      Views:
      43
  6. Erel

    Erel Administrator Staff Member Licensed User

    Don't use SizeToFit.

    Instead make sure that you add CRLF to your strings and then measure the height with s.ToString.MeasureHeight.

  7. jhagerup

    jhagerup Member Licensed User

    Do you really mean that I have to do a "manual" wrapping ?
    In that case I miss the StringUtils.MeasureMultiLineTextHeight from B4A ;-)
    And I assume that the replacePanel is the "right" way.

  8. Erel

    Erel Administrator Staff Member Licensed User

    Actually lbl.SizeToFit can work. Try to set "handle resize events" to false in the layout file.

  9. jhagerup

    jhagerup Member Licensed User

    It doesn't seem to make any difference, so I think I'll settle with adding 2/3 fontSize. Dirty, but it looks OK.

    Once again, Thanks for your help

  10. jhagerup

    jhagerup Member Licensed User

    Erel.
    I believe that I now have solved all my problems with resizing - my own, of cause.
    SizeToFit works as expected.
    But my (hopefully) last problem took som time to figure out. I needed horizontal scroll, but clv.SetSize didn't work as expected. So, after "playing" with ScrollView I think that I found a bug in SetSize:
    sv.SetLayoutAnimated(0, 0, sv.Left, sv.Top, width, height) should be:
    sv.SetLayoutAnimated(0, 0, sv.Left, sv.Top, sv.width, height)
    If ScrollView width is the same as ContentWith there is nothing to scroll.

    And thanks for the new Designer in B4j. A major improvement that will save a lot of time ;-)

  11. Erel

    Erel Administrator Staff Member Licensed User

    I don't think that it is a bug. The developer is allowed to change the ScrollView width.

  12. jhagerup

    jhagerup Member Licensed User

    Well, you will have to modify the code in CustomListView to change the ScrollView width. "Normal" developpers shouldn't have to do that. They would expect that horizontal scrolling is possible.
    Consider the following:

    Code:
    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'Public variables can be accessed from all modules.
        Public App As Application

    Public NavControl As NavigationController

    Private Page1 As Page

    Private clv As CustomListView

    Private contentWidth As Int = 0

    Private ItemHeight As Double = 40

    End Sub

    Private Sub Application_Start (Nav As NavigationController)
        NavControl = Nav
        Page1.Initialize(
    "Page1")
        Page1.RootPanel.Color =
    Colors.White
        clv.Initialize(Me,
    "clv"100%X)
        Page1.RootPanel.AddView(clv.AsView,
    00100%x100%y)
        NavControl.ShowPage(Page1)

    Dim p As Panel
        p.Initialize(
    "")

    For i = 1 To 3

    Dim l As Label
            l.Initialize(
    "")
            l.Text =
    "Label # " & i
            l.Width =
    100%x/2
            p.AddView(l, contentWidth,
    0, l.Width, ItemHeight)
            contentWidth = contentWidth + l.Width

    Next
        clv.Add(p, ItemHeight,
    "")
    End Sub

    Private Sub Page1_Resize(Width As Int, height As Int)
        clv.SetSize(contentWidth,
    100%y)
    End Sub
    Wouldn't you expect to able to scroll to see all 3 labels ?

  13. Erel

    Erel Administrator Staff Member Licensed User

    B4i CustomListView is designed to behave in the same way that B4A CustomListView behaves. It offers a vertical scrolling list.

    However as the code is quite simple, developers can easily take it and modify it as needed.
