Android Question Designer issues

[marcel]

I have the following designer code:

'All variants script
AutoScaleAll

Panel1.SetLeftAndRight(0,100%x)
Panel1.SetTopAndBottom(80dip,90%y)

pnlFeedback.SetLeftAndRight(10%x,90%x)
pnlFeedback.Bottom=Panel1.Bottom
pnlFeedback.Height=80dip

btnUP.Top=2dip
btnUP.Left=2dip
btnUP.Height=pnlFeedback.Height-4dip
btnUP.Width=btnUP.Height

btnDown.Top=2dip
btnDown.Right=pnlFeedback.Right-5dip
btnDown.Height=pnlFeedback.Height-4dip
btnDown.Width=btnDown.Height

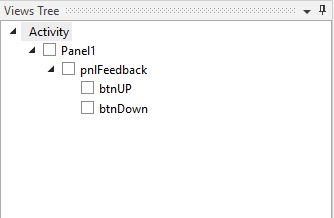

What do I wrong, See attachments for design pictures. The feedback panel is not on the bottom. The button right is not to the right panel side minus 5 dip.



[lemonisdead]

Hello,
have you tried to assign them the width and height before their positions ?



[marcel]

Yes, Also. Seems some difference but still not the correct result.



[klaus]

This is wrong: btnDown.Right=pnlFeedback.Right-5dip
You must replace it by:
btnDown.Right=pnlFeedback.Width-2dip
pnlFeedback.Right is the Right coordinate of pnlFeedback in Panel1 !
You must position btnDown according to the width of pnlFeedback.



[marcel]

Thanks. And why is this not working:

pnlFeedback.Bottom=Panel1.Bottom

Basically the bottom of the feedback pannel should be equal to the bottom of the panel1.

but pnlFeedback.Bottom=100%y
is.



[klaus]

Basically the bottom of the feedback pannel should be equal to the bottom of the panel1.

No, it's the same as with Right and Width.

You should replace this code;

pnlFeedback.SetLeftAndRight(10%x,90%x)
pnlFeedback.Bottom=Panel1.Bottom
pnlFeedback.Height=80dip

by this one:

pnlFeedback.SetLeftAndRight(10%x,90%x)
pnlFeedback.Height=80dip
pnlFeedback.Bottom=Panel1.Height

You must set the pnlFeedback.Height property before the Bottom property.
And set the the pnlFeedback.Bottom property to the Panel1.Height property.



[marcel]

Aha, I need to go back to the designers guide.
