Designer Scripts Issue

[grant1842]

Hi all I have the panel1 height and width set to fill the screen .

I am trying to get this to display properly in portrait and landscape. And on my 10in Cruz T410.

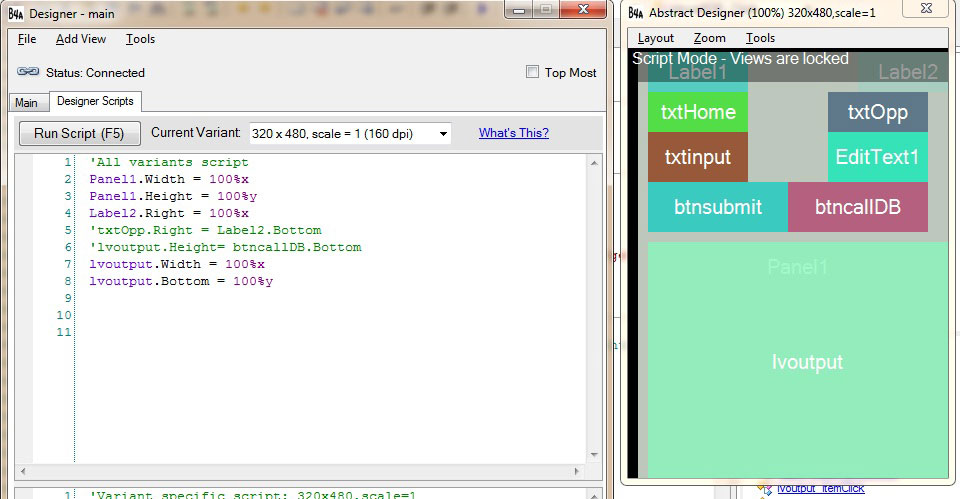

'All variants script
Panel1.Width = 100%x
Panel1.Height = 100%y
Label2.Right = 100%x
'txtOpp.Right = Label2.Bottom
'lvoutput.Height= btncallDB.Bottom
lvoutput.Width = 100%x
lvoutput.Bottom = 100%y

I can not seem to get things to display proberly.
1. I need label11 to be top left.
2. Label2 to be top right.
3. txtHome to be top left under label1.
4. txtOpp to be top right under label2.
5. txtinput to be top left under txtHome.
6. EditText1 to be top right under txtOpp.
7. btnSubmit te be topleft under txtinput.
8. btncallDfB top right under EditText1.
9. Lvoutput needs to fill all space from below btnSumit and btncalDb
I hace been looking at the tutorial here

But haveing lots of problems.
Thanks for your time and help to help me learn this Designer Scripts.



[Erel]

Can you upload your bal file (it is located in the Files folder)?



[grant1842]

Thanks again .For the help.



[Erel]

I think that what confuses you is that Panel1 Left property is not 0.
So when you set Panel1.Width to 100%x, the right side of the panel is not visible.

You should instead use:
Panel1.SetLeftAndRight(0, 100%x)

I actually recommend you to get rid of this panel. I don't think that it is really needed here.
