Android Code Snippet Draw arc with rounded line cap

Using ABExtDrawing lib by @alwaysbusy to draw arc with rounded cap. Android and this lib provides sweep gradient. However the sweep starts from 3:00 direction so may need rotation for certain angles.
Erel has one based on BitmapCreator which is nice as it is B4X, this one is B4A only (B4J version here). Hope it is still useful for someone to make progress bar or knob control view.

B4X:
Sub Globals
    Dim Aed As ABExtDrawing
    Dim Cv As Canvas
    Dim Arc As ABRectF
    Dim Apt As ABPath
    Dim Apa As ABPaint
    Private Panel1 As Panel
End Sub

Sub Activity_Create(FirstTime As Boolean)
    Activity.LoadLayout("Layout")
    Cv.Initialize(Panel1)
    Arc.Initialize(100,100,Panel1.Width-100, Panel1.Width-100)
    Apt.Initialize
    Apt.arcTo(Arc, 30, 260)
    Apa.Initialize
    Apa.SetAntiAlias(True)
    Apa.SetStrokeWidth(80)
    Dim c(2) As Int
    c(0) = Colors.Yellow
    c(1) = Colors.Red
    Apa.SetSweepGradient(1, Panel1.Width/2.0, Panel1.Width/2.0, c, Null)
    Apa.DoShaderSingle(1)
    Apa.SetStrokeCap(Apa.Cap_ROUND)
    Apa.SetStyle(Apa.Style_STROKE)
    Aed.drawPath(Cv, Apt, Apa)
End Sub

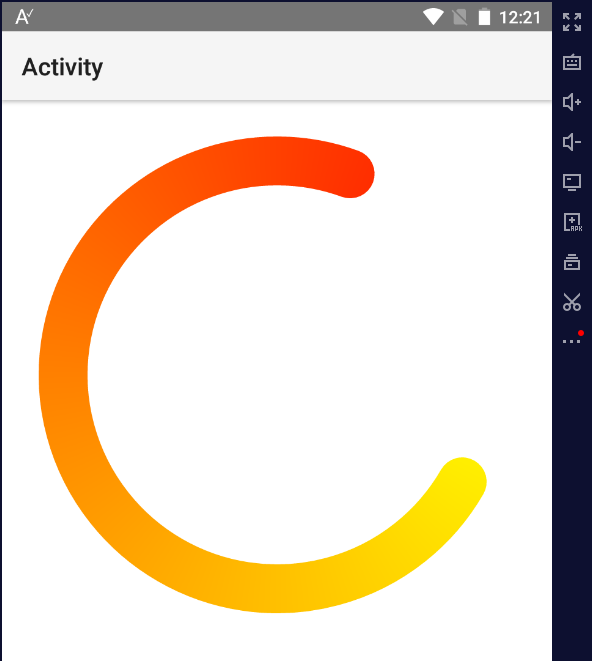

屏幕截图 2022-09-21 203316.png
