C/C++ Question Error accessing B4XLib Process Global Type Declaration

[rwblinn]

In the B4X Library GPRMC to be used for B4R declared a Type, like

Sub Process_Globals
    Type TDate (Stamp As Double, Day As Int, Month As Int, Year As Int)
    Public DateStamp As TDate

When using the b4xlib in a B4R program, the type members are not visible with error:

Main - 56: Unknown type: TDate<br />Are you missing a library reference?

The b4xlib object is declared as

Private gpsRMC As GPRMC

Expected accessing the Type as

gpsRMC.DateStamp.Day ...

All members are visible, except the Type ones.

Any hint how to access the type members?

NOTE: When using the library BAS file as a module, the type is accessible.



[Erel]

Can you upload the b4xlib file?



[rwblinn]

Can you upload the b4xlib file?

As the issue is resolved, the library will be added to the forum B4R Libraries.



[Erel]

The b4xlib object is declared as

You don't need to declare anything. The code from the b4xlib is added to your project exactly like any other code.



[rwblinn]

Thanks for testing and the hint.

Found out following:

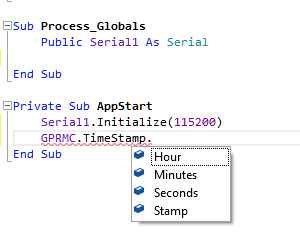

rGPRMC.b4xlib in ..\B4R Additional Libraries folder = GPRMC.TimeStamp.Hour ... visible.
rGPRMC.b4xlib in ..\B4R Additional Libraries folder\rGPRMC = GPRMC.TimeStamp.Hour ... NOT visible.

So have moved rGPRMC.b4xlib from its subfolder ..\B4R Additional Libraries folder\rGPRMC\ to ..\B4R Additional Libraries folder and it works.



[Erel]

Yes, it should be in the main folder.
