Java Question Error in BA4 when creating a new library

PABLO2013

PABLO2013

Well-Known Member
Licensed User
Longtime User
Greetings, I have an error trying to implement a new B4A library, if I could help create the initialization part and correct this error that I place in the image, thanks


B4X:
package com.floor;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.DashPathEffect;
import android.graphics.Paint;
import android.graphics.Paint.Style;
import android.graphics.Path;
import android.graphics.Point;
import android.graphics.RectF;
import android.os.Environment;
import android.util.Log;
import android.view.View;
import anywheresoftware.b4a.BA;
import anywheresoftware.b4a.BA.DependsOn;


import java.io.BufferedReader;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.FileReader;
import java.io.IOException;
import java.lang.reflect.Array;
//import com.floor.SaveASCII;;


@BA.Version(1.0F)
@BA.ShortName("Floor")
//@DependsOn(values={"draw"})

public class DrawGrid
  extends View
{
  private static final boolean D = false;
  private static final String TAG = "WizPlanCore.DrawGrid";
  static int canvasSpace = 0;
  static int countLine = 0;
  static int countPoint = 0;
  static int countText = 0;
  static int countUndo = 0;
  static int countUndoDelete = 0;
  static int countUndoSelect = 0;
  static int countUndoSelectText = 0;
  static int cx = 0;
  static int cy = 0;
  static int gridColor = 0;
  static int gridPixel = 30;
  static int[][] lineArray;
  static int lineColor = 0;
  static int lineSize = 0;
  static final int maxLine = 10000;
  static final int maxPoint = 100;
  static final int maxText = 100;
  static final int maxUndo = 100;
  static int moveX = 0;
  static int moveY = 0;
  static int[][] pointArray;
  static final int recordLenght = 9;
  static int startX = 0;
  static int startY = 0;
  public static int[][] textArray;
  static final int textRecordLenght = 9;
  static int textSize;
  static String[] textStringArray;
  static int[] undoHistory;
  static int[] undoTrimPoint;
  static boolean visibleDimensionLayer;
  static boolean visibleMeasuredDimension;
  static boolean visibleTextLayer = true;
  static boolean visibleUnmeasuredDimension;
  static int zoomLevel;
  int height = 0;
  public int width = 0;

  static
  {
    canvasSpace = 10;
    countLine = 0;
    countPoint = 0;
    countText = 0;
    countUndo = 0;
    countUndoDelete = -1;
    countUndoSelect = 1;
    countUndoSelectText = 1;
    undoTrimPoint = new int[4];
    startX = 0;
    startY = 0;
    moveX = 0;
    moveY = 0;
    zoomLevel = 1;
    gridColor = -11776948;
    lineColor = -1;
    lineSize = 0;
    textSize = 14;
    int[] arrayOfInt1 = { 10000, 9 };
    lineArray = (int[][])Array.newInstance(Integer.TYPE, arrayOfInt1);
    int[] arrayOfInt2 = { 100, 3 };
    pointArray = (int[][])Array.newInstance(Integer.TYPE, arrayOfInt2);
    int[] arrayOfInt3 = { 100, 9 };
    textArray = (int[][])Array.newInstance(Integer.TYPE, arrayOfInt3);
    textStringArray = new String[100];
    undoHistory = new int[100];
    cx = 0;
    cy = 0;
    visibleDimensionLayer = false;
    visibleMeasuredDimension = false;
    visibleUnmeasuredDimension = false;
  }

public DrawGrid(Context paramContext)
  {
    super(paramContext);
  }

//public void Initialize(String Name)
//{
//new DrawGrid(null);
//}
//
//
//public void Initialize1(BA pBA, DrawGrid aMapView)
//public void Initialize1(BA pBA)
//{
//new DrawGrid(pBA.context);
//}

        ...

**** some classes
       ....

  public void onDraw(Canvas paramCanvas)
  {
    super.onDraw(paramCanvas);
    Paint localPaint1 = new Paint();
    localPaint1.setColor(-1);
    localPaint1.setTextSize(zoomLevel * textSize);
    Paint localPaint2 = new Paint();
    localPaint2.setStyle(Paint.Style.STROKE);
    localPaint2.setColor(0);
    paramCanvas.drawPaint(localPaint2);
    this.width = (getWidth() - 2 * canvasSpace);
    this.width = (this.width / gridPixel * gridPixel);
    this.height = (getHeight() - 2 * canvasSpace);
    this.height = (this.height / gridPixel * gridPixel);
    localPaint2.setColor(gridColor);
    for (int i = 0;; i++)
    {
      int j = this.width / gridPixel;
      if (i > j) {
        for (int k = 0;; k++)
        {
          int m = this.height / gridPixel;
          if (k > m)
          {
            localPaint1.setColor(-65536);
            for (int n = 0;; n++)
            {
              int i1 = countLine;
              if (n >= i1)
              {
                int i4;
                if (visibleTextLayer)
                {

              //    new  String [15];  original ***************************************

                  i4 = 0;
                  int i5 = countText;
                  if (i4 >= i5) {
                    localPaint1.setTextSize(zoomLevel * textSize);
                  }
                }
                else
                {
                  invalidate();
                  return;
                }
                if (textArray[i4][4] > 0) {
                  localPaint1.setColor(65280);
                } else {
                  localPaint1.setColor(textArray[i4][6]);
                }
                localPaint1.setTextSize(zoomLevel * textArray[i4][7]);
                String[] arrayOfString1 = null; // se agrego   *************************************
                int i6 = 0;  // se agrego                      *************************************
                if (textArray[i4][4] >= 0)
                {
                  if ((textArray[i4][0] == textArray[i4][2]) && (textArray[i4][1] == textArray[i4][3]))
                  {
                    String[] arrayOfString2 = textStringArray[i4].split("\n");
                    int i9;
                    if (textArray[i4][3] < textArray[i4][1]) {
                      i9 = -5 - (int)((arrayOfString2.length - 1) * (2.0F + localPaint1.getTextSize()));
                    } else {
                      i9 = 5 + (int)localPaint1.getTextSize();
                    }
                    for (int i10 = 0;; i10++)
                    {
                      int i11 = arrayOfString2.length;
                      if (i10 >= i11)
                      {
                        paramCanvas.drawCircle(startX + zoomLevel * (textArray[i4][0] - canvasSpace) + canvasSpace, startY + zoomLevel * (textArray[i4][1] - canvasSpace) + canvasSpace, 3.0F, localPaint1);
                        break;
                      }
                      paramCanvas.drawText(arrayOfString2[i10], startX + zoomLevel * (textArray[i4][2] - canvasSpace) + canvasSpace, i9 + (startY + zoomLevel * (textArray[i4][3] - canvasSpace) + canvasSpace) + (int)(i10 * (2.0F + localPaint1.getTextSize())) - 5, localPaint1);
                    }
                  }
                  arrayOfString1 = textStringArray[i4].split("\n");
                  if (textArray[i4][3] < textArray[i4][1]) {
                    i6 = -5 - (int)((arrayOfString1.length - 1) * (2.0F + localPaint1.getTextSize()));
                  } else {
                    i6 = 5 + (int)localPaint1.getTextSize();
                  }
                }
                for (int i7 = 0;; i7++)
                {
                  int i8 = arrayOfString1.length;
                  if (i7 >= i8)
                  {
                    paramCanvas.drawLine(startX + zoomLevel * (textArray[i4][0] - canvasSpace) + canvasSpace, startY + zoomLevel * (textArray[i4][1] - canvasSpace) + canvasSpace, startX + zoomLevel * (textArray[i4][2] - canvasSpace) + canvasSpace, startY + zoomLevel * (textArray[i4][3] - canvasSpace) + canvasSpace, localPaint1);
                    paramCanvas.drawCircle(startX + zoomLevel * (textArray[i4][0] - canvasSpace) + canvasSpace, startY + zoomLevel * (textArray[i4][1] - canvasSpace) + canvasSpace, 3.0F, localPaint1);
                    i4++;
                    break;
                  }
                  paramCanvas.drawText(arrayOfString1[i7], startX + zoomLevel * (textArray[i4][2] - canvasSpace) + canvasSpace, i6 + (startY + zoomLevel * (textArray[i4][3] - canvasSpace) + canvasSpace) + (int)(i7 * (2.0F + localPaint1.getTextSize())), localPaint1);
                }
              }
              if (lineArray[n][4] > 0) {
                localPaint2.setColor(65280);
              } else {
                localPaint2.setColor(lineArray[n][6]);
              }
              if (lineArray[n][7] == -2)
              {
                localPaint2.setPathEffect(new DashPathEffect(new float[] { 10.0F, 5.0F }, 0.0F));
                localPaint2.setStrokeWidth(-lineArray[n][7]);
              }
              else if (lineArray[n][7] == -1)
              {
                localPaint2.setPathEffect(new DashPathEffect(new float[] { 10.0F, 5.0F, 1.0F, 5.0F }, 0.0F));
                localPaint2.setStrokeWidth(-lineArray[n][7]);
              }
              else
              {
                localPaint2.setPathEffect(null);
                localPaint2.setStrokeWidth(lineArray[n][7]);
              }
              if (lineArray[n][4] >= 0)
              {
                int i2;
                if (lineArray[n][5] == 0) {
                  i2 = 1;
                } else {
                  i2 = 0;
                }
                int i3;
                if (lineArray[n][5] == 1) {
                  i3 = 1;
                } else {
                  i3 = 0;
                }
                if ((i2 | i3) != 0)
                {
                  paramCanvas.drawLine(startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace, startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace, startX + zoomLevel * (lineArray[n][2] - canvasSpace) + canvasSpace, startY + zoomLevel * (lineArray[n][3] - canvasSpace) + canvasSpace, localPaint2);
                  if ((visibleMeasuredDimension) && (lineArray[n][8] != 0))
                  {
                    if (lineArray[n][5] == 0)
                    {
                      localPaint1.setColor(-16776961);
                      paramCanvas.drawText(String.valueOf(lineArray[n][8] / 1000.0D) + "m", 2 + ((startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace + startX + zoomLevel * (lineArray[n][2] - canvasSpace) + canvasSpace) / 2 + lineArray[n][7] / 2), (startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace + startY + zoomLevel * (lineArray[n][3] - canvasSpace) + canvasSpace) / 2 - (2 + lineArray[n][7] / 2), localPaint1);
                    }
                  }
                  else if ((visibleUnmeasuredDimension) && (lineArray[n][8] == 0) && (lineArray[n][5] == 0))
                  {
                    localPaint1.setColor(-65536);
                    paramCanvas.drawText(String.valueOf(lineArray[n][8] / 1000.0D) + "m", (startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace + startX + zoomLevel * (lineArray[n][2] - canvasSpace) + canvasSpace) / 2, (startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace + startY + zoomLevel * (lineArray[n][3] - canvasSpace) + canvasSpace) / 2, localPaint1);
                  }
                }
                else if (lineArray[n][5] == 2)
                {
                  Path localPath = new Path();
                  Point localPoint1 = new Point(startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace, startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace);
                  Point localPoint2 = new Point(startX + zoomLevel * (pointArray[getFirstPointOfSelectedLine(n)][1] - canvasSpace) + canvasSpace, startY + zoomLevel * (pointArray[getFirstPointOfSelectedLine(n)][2] - canvasSpace) + canvasSpace);
                  Point localPoint3 = new Point(startX + zoomLevel * (lineArray[n][2] - canvasSpace) + canvasSpace, startY + zoomLevel * (lineArray[n][3] - canvasSpace) + canvasSpace);
                  localPath.moveTo(localPoint1.x, localPoint1.y);
                  localPath.cubicTo(localPoint2.x, localPoint2.y, localPoint2.x, localPoint2.y, localPoint3.x, localPoint3.y);
                  paramCanvas.drawPath(localPath, localPaint2);
                }
                else if (lineArray[n][5] == 3)
                {
                  paramCanvas.drawCircle(startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace, startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace, (float)calculatePointToPointDistance(zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace, zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace, zoomLevel * (lineArray[n][2] - canvasSpace) + canvasSpace, zoomLevel * (lineArray[n][3] - canvasSpace) + canvasSpace), localPaint2);
                  if ((visibleMeasuredDimension) && (lineArray[n][8] != 0))
                  {
                    localPaint1.setColor(-16776961);
                    paramCanvas.drawText(String.valueOf(lineArray[n][8] / 1000.0D) + "m", (startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace + startX + zoomLevel * (lineArray[n][2] - canvasSpace) + canvasSpace) / 2, (startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace + startY + zoomLevel * (lineArray[n][3] - canvasSpace) + canvasSpace) / 2, localPaint1);
                    localPaint1.setPathEffect(new DashPathEffect(new float[] { 10.0F, 5.0F }, 0.0F));
                    paramCanvas.drawLine(startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace, startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace, startX + zoomLevel * (lineArray[n][2] - canvasSpace) + canvasSpace, startY + zoomLevel * (lineArray[n][3] - canvasSpace) + canvasSpace, localPaint1);
                    localPaint1.setPathEffect(null);
                  }
                  else if ((visibleUnmeasuredDimension) && (lineArray[n][8] == 0))
                  {
                    localPaint1.setColor(-65536);
                    paramCanvas.drawText(String.valueOf(lineArray[n][8] / 1000.0D) + "m", (startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace + startX + zoomLevel * (lineArray[n][2] - canvasSpace) + canvasSpace) / 2, (startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace + startY + zoomLevel * (lineArray[n][3] - canvasSpace) + canvasSpace) / 2, localPaint1);
                    localPaint1.setPathEffect(new DashPathEffect(new float[] { 10.0F, 5.0F }, 0.0F));
                    paramCanvas.drawLine(startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace, startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace, startX + zoomLevel * (lineArray[n][2] - canvasSpace) + canvasSpace, startY + zoomLevel * (lineArray[n][3] - canvasSpace) + canvasSpace, localPaint1);
                    localPaint1.setPathEffect(null);
                  }
                }
                else if (lineArray[n][5] == 4)
                {
                  float f = (float)calculatePointToPointDistance(zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace, zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace, zoomLevel * (lineArray[n][2] - canvasSpace) + canvasSpace, zoomLevel * (lineArray[n][3] - canvasSpace) + canvasSpace);
                  RectF localRectF = new RectF();
                  localRectF.set(startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace - f, startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace - f, f + (startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace), f + (startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace));
                  paramCanvas.drawArc(localRectF, pointArray[getFirstPointOfSelectedLine(n)][1], pointArray[getFirstPointOfSelectedLine(n)][2], false, localPaint2);
                }
                else
                {
                  paramCanvas.drawLine(startX + zoomLevel * (lineArray[n][0] - canvasSpace) + canvasSpace, startY + zoomLevel * (lineArray[n][1] - canvasSpace) + canvasSpace, startX + zoomLevel * (lineArray[n][2] - canvasSpace) + canvasSpace, startY + zoomLevel * (lineArray[n][3] - canvasSpace) + canvasSpace, localPaint2);
                }
              }
            }
          }
          paramCanvas.drawLine(canvasSpace, canvasSpace + k * gridPixel, this.width + canvasSpace, canvasSpace + k * gridPixel, localPaint2);
        }
      }
      paramCanvas.drawLine(canvasSpace + i * gridPixel, canvasSpace, canvasSpace + i * gridPixel, this.height + canvasSpace, localPaint2);
    }
  }


Attachments

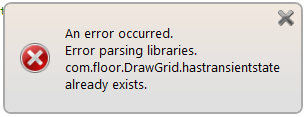

  • ERROR.png
    7.1 KB · Views: 454
PABLO2013

PABLO2013

Well-Known Member
Licensed User
Longtime User
Greetings and many thanks.

Reviewing, I see that the problem is given when compiling the file of the xml library.
1. I select the class I want, however this does not have any method called com.floor.DrawGrid.hastransientstate, this is added in the xml compiling process.

2. While this class is accompanied by two others, they are not exposed to B4A.

3. To test remove all DrawGrid classes and dependency of the other two classes, leave only the shell. And when I compile the xlm "Javadoc generation" add the data that are giving me problem (see pictures).

4. how could you avoid this? And just put the desired data from my library in the xml.

5. how could you define this if my library class is : public class DrawGrid extends View: (I put this)


Public DrawGrid (Context var1) {
Super (var1);
}

Public void _initialize (BA ba, Object activityClass, String EventName) {
This.eventName = EventName.toLowerCase (BA.cul);
This.ba = ba;
}


Thank you


Attachments

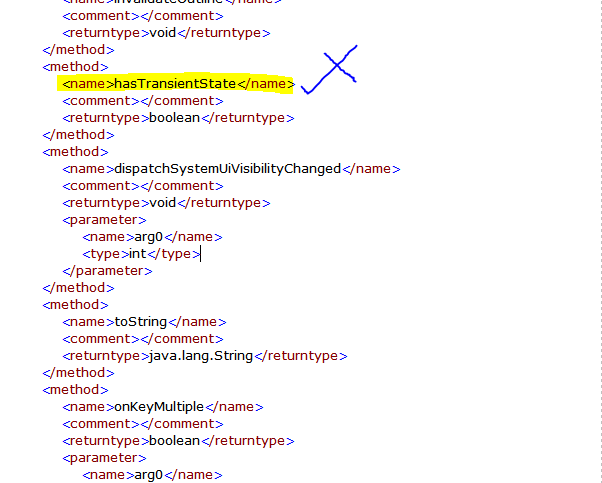

  • 1error.PNG
    44.9 KB · Views: 380
  • 2error.PNG
    25.4 KB · Views: 358
Last edited:
