Android Question Every new Panel a new Color

[Alexander Stolte]

Greetings from Germany,

I have a Problem, i have 4 Color, and 1 Panel.
I add the Panel in my ListView and by adding the next panel into the ListView i will a new Color for my Panel.

I need a Loop, after the 4. Color return to the first color.

I have no Idia how to programm it :/

My Code:

Sub CreateListItem(Text As String, Width As Int, Height As Int) As Panel
    Dim p As Panel
    p.Initialize("")
    'we need to add the panel to a parent to set its dimensions. It will be removed after the layout is loaded.
    Activity.AddView(p, 0, 0, Width, Height)
    p.LoadLayout("frm_content")
    p.RemoveView
    'label1 and button1 will point to the last added views.

    Return p
End Sub

Sub Activity_Create(FirstTime As Boolean)
    'Do not forget to load the layout file created with the visual designer. For example:
    'Activity.LoadLayout("Layout1")
    Activity.LoadLayout("frm_main")

    For i = 1 To 10
        clv1.Add(CreateListItem($"Item #${i}"$, clv1.AsView.Width, 150dip), 150dip, $"Item #${i}"$)
    Next
End Sub

Sub Globals
     Private pnl_content001 As Panel
   End Sub



[DonManfred]

Code 90% Erel, one method from me

Create a new code Module "tools" with the code

'Code module
'Subs in this code module will be accessible from all modules.
Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'These variables can be accessed from all modules.
    Private data As List
End Sub
Public Sub Initialize
    data.Initialize
End Sub
Public Sub nextitem As Object
    Dim o As Object = data.Get(0)
    data.RemoveAt(0)
    data.Add(o)
    Return o
End Sub

Public Sub Push(o As Object)
    data.Add(o)
End Sub

Public Sub Pop As Object
    Dim o As Object = data.Get(data.Size - 1)
    data.RemoveAt(data.Size - 1)
    Return o
End Sub

Public Sub Peak As Object
    Return data.Get(data.Size - 1)
End Sub

Public Sub getSize As Int
    Return data.Size
End Sub

Example use:

    tools.Initialize
    tools.Push(Colors.Black)
    tools.Push(Colors.Red)
    tools.Push(Colors.Yellow)
    tools.Push(Colors.Transparent)

    For i = 0 To 99
        Log(tools.nextitem)
    Next

So, basically in your Create item method you do a

dim color as int = tools.nextitem
' Use this color to set it to the active panel



[Erel]

I add the Panel in my ListView

You must be more accurate. CustomListView and ListView are two different things.

Sub Process_Globals
 Private MyColors() As Int = Array As Int(Colors.Red, Colors.Green, Colors.Blue, Colors.Black)
 Private ColorIndex As Int
End Sub

Sub CreateListItem
 ...
 p.Color = MyColors(ColorIndex)
 ColorIndex = (ColorIndex + 1) Mod MyColors.Length
 Return p
End Sub



[RandomCoder]

Incrementing a pointer to get the colour from an array is how I would have approached the problem. But I would have used an If statement to determine when the array length was exceeded and thus reset the pointer back to zero.

ColorIndex = (ColorIndex + 1) Mod MyColors.Length

@Erel very nice code, I'll have to try and remember to use the Mod function in the future! Very neat!!



[Alexander Stolte]

Thanks for comments

I mean the CustomListView sry i forget it.

I'll give it a try



[Alexander Stolte]

@Erel

The Color is the same with your code.

Private MyColors() As Int = Array As Int(Colors.RGB(74,74,82), Colors.RGB(132,121,121), Colors.RGB(152,99,122), Colors.RGB(162,116,92))
    Private ColorIndex As Int

Sub CreateListItem(Text As String, Width As Int, Height As Int) As Panel
    Dim p As Panel
    p.Initialize("")
    'we need to add the panel to a parent to set its dimensions. It will be removed after the layout is loaded.
    Activity.AddView(p, 0, 0, Width, Height)
    p.LoadLayout("frm_content")
    p.RemoveView
    'label1 and button1 will point to the last added views.

    p.Color = MyColors(ColorIndex)
    ColorIndex = (ColorIndex + 1) Mod MyColors.Length

    Return p
End Sub

I´m VisualBasic Developer, this language ist new for me



[ilan]

You load a layout file to the panel (p) "frm_content". Make sure the layout has a transparent backround.

EDIT: does your layout contains a panel? do you want to change that panel color? the code you posted above will change the CLV item background color.
each item in a CLV is basically a panel and you change the color of it but if you load a layout that contains another view then you need to change the color of that view.



[DonManfred]

Private ColorIndex As Int

sure you want to use a PRIVATE variable? If the variable is declared outside of our sub then your sub does not have access to the right variable.
I suggest to use a Global PUBLIC valiable for the list and the indexvariable.



[ilan]

If the variable is declared outside of our sub th

???

You probably mean outside activity, class or code module. But as long as you use it in the same activity/code module/class it can be private.



[Alexander Stolte]

It Works

Dim pnl_content As  Panel

ppnl_content.Color = MyColors(ColorIndex)

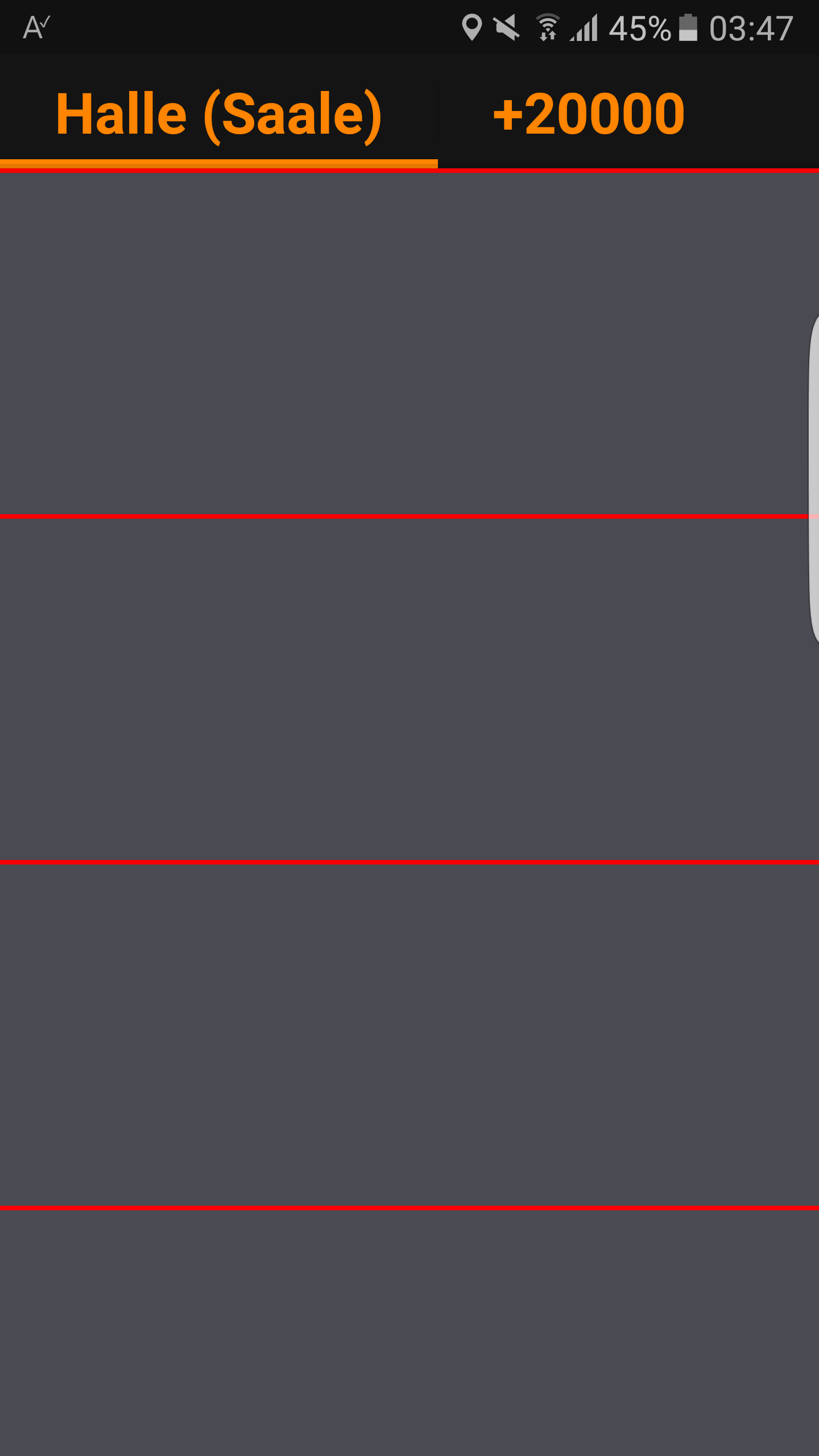

So now i have a Problem, i will on the ground a imageview like the Picture, but the Problem is, the CustomListView is on Top and my ImageView in the background.
How can i fix it?



[ilan]

It Works

Dim pnl_content As  Panel

ppnl_content.Color = MyColors(ColorIndex)

So now i have a Problem, i will on the ground a imageview like the Picture, but the Problem is, the CustomListView is on Top and my ImageView in the background.
How can i fix it?

you can add an imageview to the activity via designer or via code and then call

imageview.BringtoFront and it will be in z order on the top place.

btw, "will" in english means something different then in german. will in english means "werde..." like "ich werde morgen..." i will tomorrow...
the right word is "want", "i want..." (ich will...)



[Alexander Stolte]

Dann werde ich das mal Probieren, danke

Ja Englisch ist so eine Sache wenn man es nur in der Programmierung braucht oder hier im Forum



[Alexander Stolte]

I use:

ImageView_addcontent.Initialize("frm_chatrooms")
    ImageView_addcontent.BringtoFront

the CustomListView is on top, and the ImageView is still in back...



[ilan]

I use:

ImageView_addcontent.Initialize("frm_chatrooms")
    ImageView_addcontent.BringtoFront

the CustomListView is on top, and the ImageView is still in back...

have you added a image to the imageview?
note that if you are adding the imageview via designer you should not intialize it.



[Alexander Stolte]

Thanks, its works

Happy New Year.
