B4R Question Flash/program ESP-01/ESP-01S using Arduino UNO

aeric

aeric

Expert
Licensed User
Longtime User
Hi,

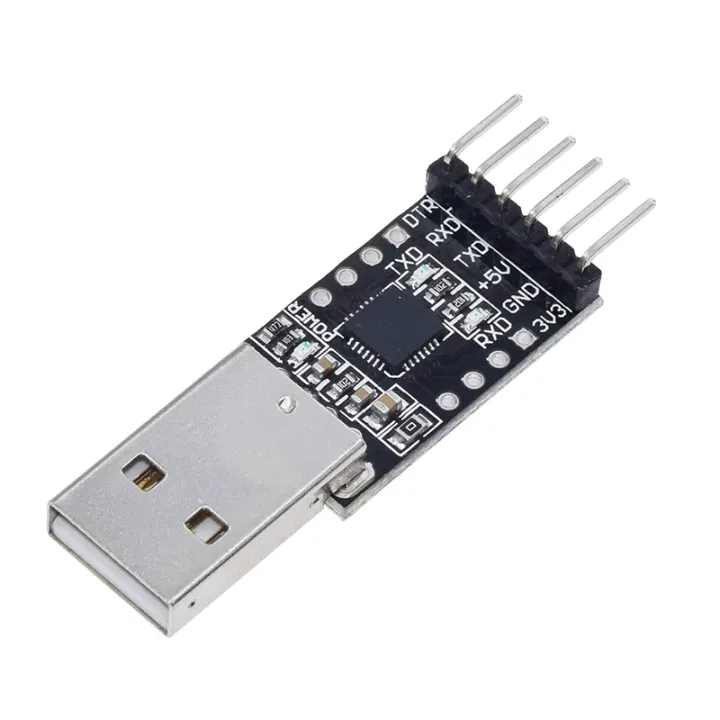

As far as I know the usual way to program an ESP-01(S) is using a USB to TTL/Serial Port Adapter/Programmer either
  • CH340G (I read that it is not very stable) - 2x4 pins female perfect for ESP-01 - I have ordered one but not yet arrived
  • CP2102 or CP2104 (more reliable) - 5 pins male
  • FT232RL - 5 pins male
  • PL2303 (not stable) - 4 pins male
Have anyone tried to program ESP-01(S) using Arduino UNO?

I found this: https://www.hackster.io/pratikdesai/how-to-program-esp8266-esp-01-module-with-arduino-uno-598166

I am wondering is this working with B4R? Which board should I choose in B4R?


Sort by date Sort by votes
T

thetrueman

Active Member
Your research is on the right path...
All the modules in your pictures will work but just focus on correct connections.
ESP01 (third pic) will directly fit on the USB with yellow color header (first picture).

Upvote 0

aeric

Expert
Licensed User
Longtime User
Yes, I know but my adapter is not yet reached so I thought I find another way to program the ESP with just jump cables.

It is possible but it may need more time to research so I decided just wait for the adapter to arrive and save my time doing more research unless I have free time to do more testings.

Upvote 0

aeric

Expert
Licensed User
Longtime User
My friend just passed me an LED fan with a programmer adapter. Maybe it can be used to program the ESP but still I need to find out the Pins connections.


Upvote 0

XorAndOr

Active Member
Licensed User
Longtime User
aeric said:
Have anyone tried to program ESP-01(S) using Arduino UNO?

I am wondering is this working with B4R? Which board should I choose in B4R?
Click to expand...
I often use this method, I don't have a serial FTD module
I used Arduino uno, B4R IDE (Board Type - NodeMCU 1.0 ......)
I programmed ESP01/ESP-03/ESP12E with no problems.
Arduino has a serial converter on board, (ATmega 16u2)
It's not a very simple method

Upvote 0
