B4R Question Flash/program ESP-01/ESP-01S using Arduino UNO

[aeric]

Hi,

As far as I know the usual way to program an ESP-01(S) is using a USB to TTL/Serial Port Adapter/Programmer either

• CH340G (I read that it is not very stable) - 2x4 pins female perfect for ESP-01 - I have ordered one but not yet arrived
• CP2102 or CP2104 (more reliable) - 5 pins male
• FT232RL - 5 pins male
• PL2303 (not stable) - 4 pins male

Have anyone tried to program ESP-01(S) using Arduino UNO?

I found this: https://www.hackster.io/pratikdesai/how-to-program-esp8266-esp-01-module-with-arduino-uno-598166

I am wondering is this working with B4R? Which board should I choose in B4R?



[thetrueman]

Your research is on the right path...
All the modules in your pictures will work but just focus on correct connections.
ESP01 (third pic) will directly fit on the USB with yellow color header (first picture).



[aeric]

Yes, I know but my adapter is not yet reached so I thought I find another way to program the ESP with just jump cables.

It is possible but it may need more time to research so I decided just wait for the adapter to arrive and save my time doing more research unless I have free time to do more testings.



[thetrueman]

I found this: https://www.hackster.io/pratikdesai/how-to-program-esp8266-esp-01-module-with-arduino-uno-598166

This is good link showing detailed pics to wire the UNO and ESP01...
Also on your other post, there is video link, that is also good to follow.



[aeric]

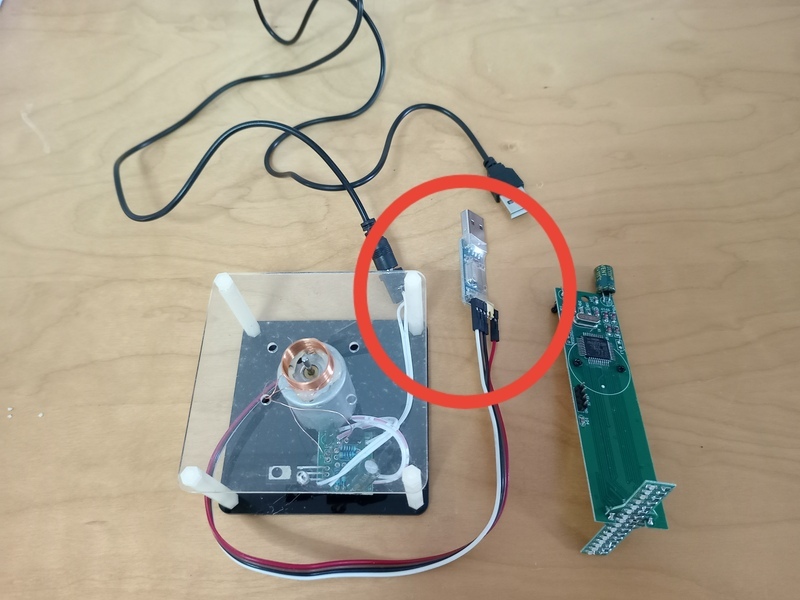

My friend just passed me an LED fan with a programmer adapter. Maybe it can be used to program the ESP but still I need to find out the Pins connections.



[thetrueman]

Yes it can work but be sure to use 3.3V on this USB-Serial Module. Better check voltage with meter before wire to ESP01 module.



[XorAndOr]

Have anyone tried to program ESP-01(S) using Arduino UNO?

I am wondering is this working with B4R? Which board should I choose in B4R?

I often use this method, I don't have a serial FTD module
I used Arduino uno, B4R IDE (Board Type - NodeMCU 1.0 ......)
I programmed ESP01/ESP-03/ESP12E with no problems.
Arduino has a serial converter on board, (ATmega 16u2)
It's not a very simple method



[aeric]

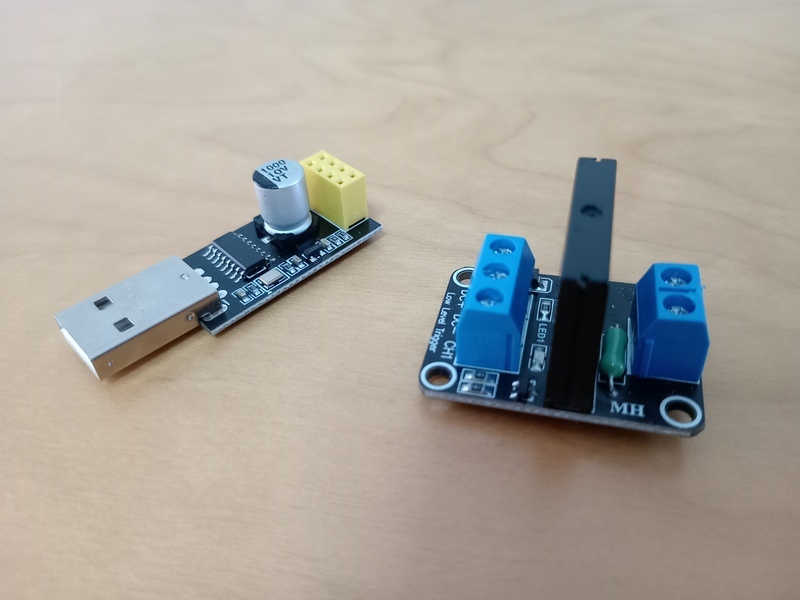

My usb programmer adapter and solid state relay arrived.
