Sub Class_Globals
Private fx As JFX
Dim nativeMe As JavaObject
End Sub
'Initializes the object. You can add parameters to this method if needed.
Public Sub Initialize
nativeMe = Me
End Sub
public Sub makethecube (wdth As Int, hght As Int) As JavaObject
Return nativeMe.RunMethod("start1", Array(wdth, hght))
End Sub
public Sub setDefaultMeanRadius (value As Double)
nativeMe.RunMethod("setDefaultMeanRadius", Array(value))
End Sub
public Sub setWireRadius (value As Double)
nativeMe.RunMethod("setWireRadius", Array(value))
End Sub
public Sub setPitch (value As Double)
nativeMe.RunMethod("setPitch", Array(value))
End Sub
public Sub setLength (value As Double)
nativeMe.RunMethod("setLength", Array(value))
End Sub
public Sub setLengthDivisions (value As Int)
nativeMe.RunMethod("setLengthDivisions", Array(value))
End Sub
public Sub setWireDivisions (value As Int)
nativeMe.RunMethod("setWireDivisions", Array(value))
End Sub
#if Java
import java.util.function.BiFunction;
import java.util.function.Function;
import javafx.animation.KeyFrame;
import javafx.animation.Timeline;
import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.geometry.Point2D;
import javafx.scene.Group;
import javafx.scene.PerspectiveCamera;
import javafx.scene.PointLight;
import javafx.scene.Scene;
import javafx.scene.SubScene;
import javafx.scene.SceneAntialiasing;
import javafx.scene.paint.Color;
import javafx.scene.shape.CullFace;
import javafx.scene.transform.Rotate;
import javafx.stage.Stage;
import javafx.util.Duration;
import org.fxyz3d.scene.paint.Patterns.CarbonPatterns;
import org.fxyz3d.shapes.primitives.SurfacePlotMesh;
import org.fxyz3d.utils.CameraTransformer;
import org.fxyz3d.shapes.primitives.SpringMesh;
import javafx.beans.property.DoubleProperty;
import javafx.beans.property.SimpleDoubleProperty;
import javafx.scene.Camera;
import javafx.scene.Group;
import javafx.scene.PerspectiveCamera;
import javafx.scene.paint.Color;
import javafx.scene.paint.PhongMaterial;
import javafx.scene.shape.Box;
import javafx.scene.transform.Rotate;
import javafx.geometry.Point3D;
import javafx.scene.transform.Affine;
XformBox cameraXform = new XformBox();
XformBox ballXForm = new XformBox();
private double time = 0;
PerspectiveCamera camera;
SubScene scene;
Group group;
SpringMesh spring;
private double anchorX, anchorY;
private double anchorAngleX = 0;
private double anchorAngleY = 0;
private DoubleProperty angleX = new SimpleDoubleProperty(0);
private DoubleProperty angleY = new SimpleDoubleProperty(0);
private double DEFAULT_MEAN_RADIUS = 10.0D;
private double DEFAULT_WIRE_RADIUS = 0.2D;
private double DEFAULT_PITCH = 5.0D;
private double DEFAULT_LENGTH = 100.0D;
private int DEFAULT_LENGTH_DIVISIONS = 200;
private int DEFAULT_WIRE_DIVISIONS = 50;
private int DEFAULT_LENGTH_CROP = 0;
private int DEFAULT_WIRE_CROP = 0;
private double DEFAULT_START_ANGLE = 0.0D;
private double DEFAULT_X_OFFSET = 0.0D;
private double DEFAULT_Y_OFFSET = 0.0D;
private double DEFAULT_Z_OFFSET = 1.0D;
private static double CAMERA_INITIAL_DISTANCE = -450;
private static double CAMERA_INITIAL_X_ANGLE = -10.0;
private static double CAMERA_INITIAL_Y_ANGLE = 0.0;
private static double CAMERA_NEAR_CLIP = 0.1;
private static double CAMERA_FAR_CLIP = 10000.0;
private static double AXIS_LENGTH = 250.0;
private static double MOUSE_SPEED = 0.1;
private static double ROTATION_SPEED = 2.0;
double mouseStartPosX, mouseStartPosY;
double mousePosX, mousePosY;
double mouseOldX, mouseOldY;
double mouseDeltaX, mouseDeltaY;
int wdth = 400;
int hght = 400;
public void setDefaultMeanRadius(double meanRadius) {
spring.setMeanRadius(meanRadius);
}
public void setWireRadius(double wireRadius) {
spring.setWireRadius(wireRadius);
}
public void setPitch(double pitch) {
spring.setPitch(pitch);
}
public void setLength(double length) {
spring.setLength(length);
}
public void setLengthDivisions(int rDivs) {
spring.setLengthDivisions(rDivs);
}
public void setWireDivisions(int tDivs) {
spring.setWireDivisions(tDivs);
}
public SubScene start1(int wdth, int hght) {
this.wdth = wdth;
this.hght = hght;
camera = new PerspectiveCamera(true);
camera.setNearClip(0.1);
camera.setFarClip(10000.0);
camera.setTranslateX(10);
camera.setTranslateZ(-100);
camera.setFieldOfView(40);
CameraTransformer cameraTransform = new CameraTransformer();
cameraTransform.getChildren().add(camera);
cameraTransform.ry.setAngle(-10.0);
cameraTransform.rx.setAngle(-15.0);

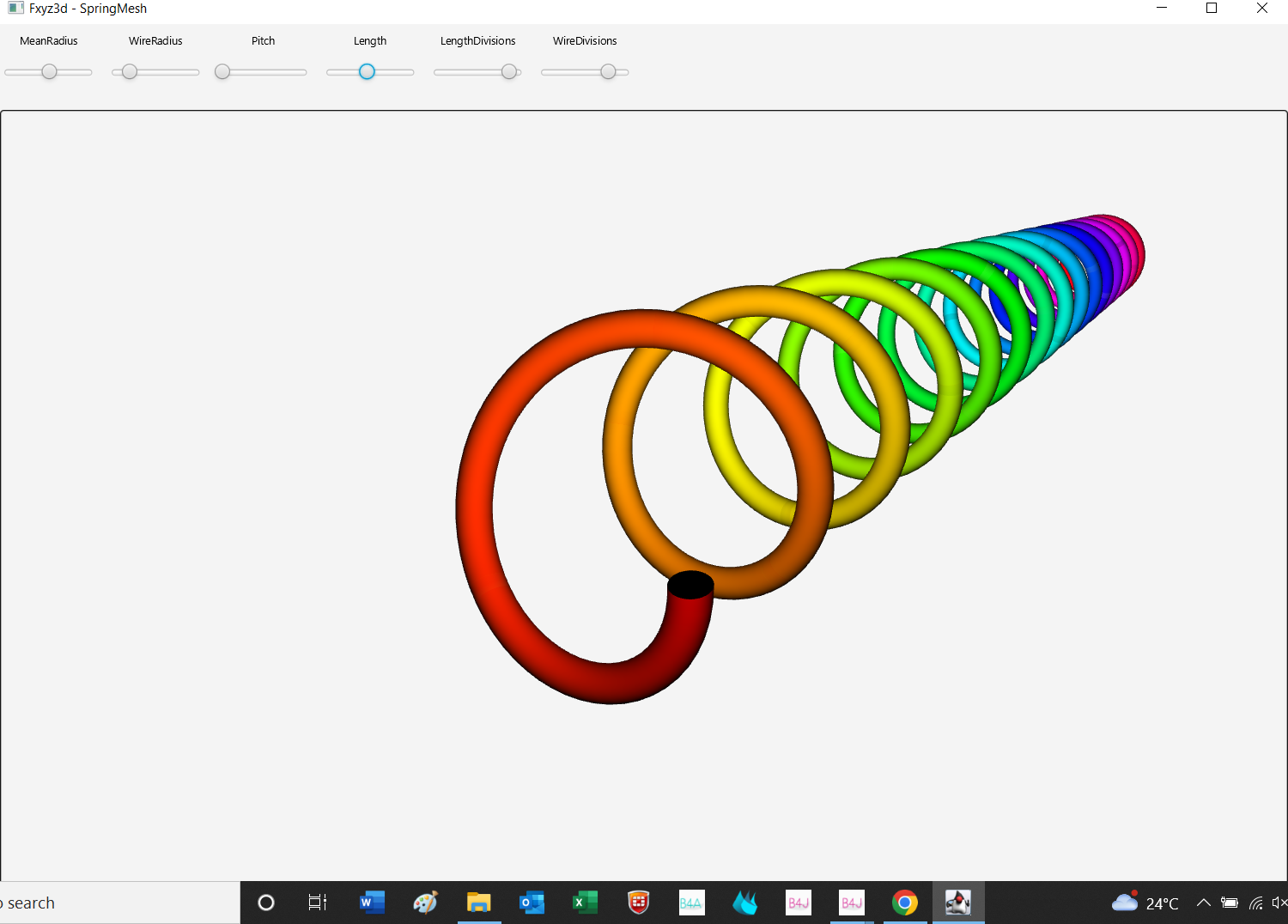

spring = new SpringMesh(DEFAULT_MEAN_RADIUS, DEFAULT_WIRE_RADIUS, DEFAULT_PITCH, DEFAULT_LENGTH, DEFAULT_LENGTH_DIVISIONS, DEFAULT_WIRE_DIVISIONS, DEFAULT_LENGTH_CROP, DEFAULT_WIRE_CROP);
// SpringMesh spring = new SpringMesh(10, 2, 2, 8 * 2 * Math.PI, 200, 100, 0, 0);
spring.setCullFace(CullFace.NONE);
spring.setTextureModeVertices3D(1530, p -> p.f);
ballXForm.getChildren().add(spring);
group = new Group(cameraTransform, ballXForm);
scene = new SubScene(group, wdth, hght, true, SceneAntialiasing.BALANCED);
scene.setFill(Color.TRANSPARENT);
scene.setCamera(camera);
initMouseControl();
return scene;
}
private void initMouseControl() {
scene.setOnMousePressed(me -> {
mouseStartPosX = me.getSceneX();
mouseStartPosY = me.getSceneY();
mousePosX = me.getSceneX();
mousePosY = me.getSceneY();
mouseOldX = me.getSceneX();
mouseOldY = me.getSceneY();
});
scene.setOnMouseDragged(me -> {
mouseOldX = mousePosX;
mouseOldY = mousePosY;
mousePosX = me.getSceneX();
mousePosY = me.getSceneY();
mouseDeltaX = (mousePosX - mouseOldX);
mouseDeltaY = (mousePosY - mouseOldY);
if (me.isPrimaryButtonDown()) {
ballXForm.addRotation(-mouseDeltaX * MOUSE_SPEED * ROTATION_SPEED, Rotate.Y_AXIS);
ballXForm.addRotation(mouseDeltaY * MOUSE_SPEED * ROTATION_SPEED, Rotate.X_AXIS);
}
});
}
class XformBox extends Group {
XformBox() {
super();
getTransforms().add(new Affine());
}
/**
* Accumulate rotation about specified axis
*
* @param angle
* @param axis
*/
public void addRotation(double angle, Point3D axis) {
Rotate r = new Rotate(angle, axis);
/**
* This is the important bit and thanks to bronkowitz in this post
* https://stackoverflow.com/questions/31382634/javafx-3d-rotations for
* getting me to the solution that the rotations need accumulated in
* this way
*/
getTransforms().set(0, r.createConcatenation(getTransforms().get(0)));
}
/**
* Reset transform to identity transform
*/
public void reset() {
getTransforms().set(0, new Affine());
}
}
#End If
