Android Question graph showing the progress between two times

Discussion in 'Android Questions' started by Almora, Aug 1, 2019.

  1. Almora

    Almora Active Member Licensed User

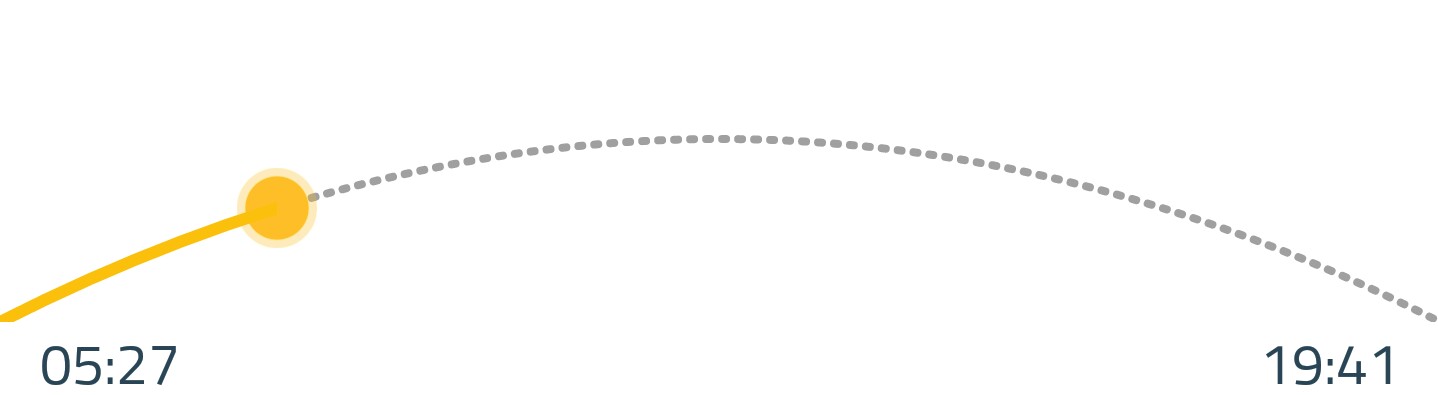

    Is there a similar graphic sample project as in the picture?

    how can I do it..
    thnks..


    Attached Files:

  2. Jeffrey Cameron

    Jeffrey Cameron Active Member Licensed User

  3. Almora

    Almora Active Member Licensed User

    how do i get a look like in the picture ..

    chart is very difficult for me.


    Attached Files:

  4. emexes

    emexes Well-Known Member Licensed User

    Well, the math behind it is simple enough.

    Dim X1 As Float = 123 'left
    Dim X2 As Float = 987 'right
    Dim Y1 As Float = 135 'top
    Dim Y2 As Float = 357 'bottom

    Dim T1 As Float = 5 * 60 + 27 'eg time-of-day in minutes
    Dim T2 As Float = 19 * 60 + 41

    and then you just need something to calculate the X and Y of the sun position or path at time T

    Dim P As Float = (T - T1) / (T2 - T1) 'P is proportion 0..half..1 of T within time range T1..midday..T2
    Dim X As Float = X1 + P * (X2 - X1)
    Dim Y As Float = Y2 + SinD(P * 180) * (Y1 - Y2) 'shape good enough; if you really need a circular arc, it can be done with a bit more math

    so all you have to do now is put coloured pixels at those locations... how hard could that be?!?!

    A starting point might be to make a small square panel to represent your sun (background = yellow) and set the corner radius sufficiently large to turn the square into a circle (or somewhere in between, to make your app more memorable ;-) You can then move the sun about by changing the panel's Left and Top (aka X and Y) properties.

    Shelby, José J. Aguilar and Almora like this.
  5. Almora

    Almora Active Member Licensed User

    can you turn it into a small project?

  6. emexes

    emexes Well-Known Member Licensed User

    I wasn't going to, but... luckily for you, I ain't got nuthin' better to do over dinner, so... give this a try.

    Plan (Designer) vs Realisation:

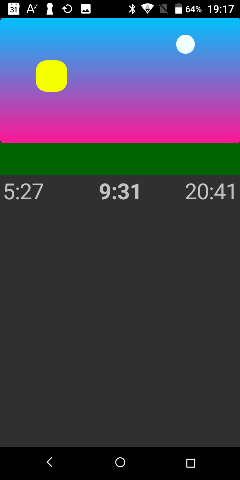

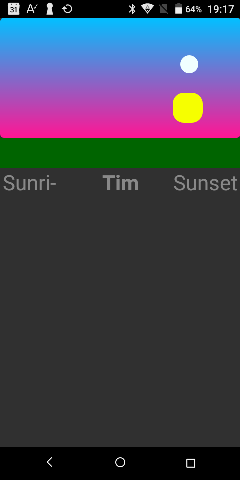

    upload_2019-8-2_18-50-52.png upload_2019-8-2_18-50-5.png


    Attached Files:

    • Sun.zip
      File size:
      9.8 KB
      Views:
      9
  7. Almora

    Almora Active Member Licensed User

    that's great. Thank you very much for your time.

  8. emexes

    emexes Well-Known Member Licensed User

    Just noticed from screenshots that there is a bug in the time-formatting routine: the hours must be getting rounded off to the nearest integer.

    Solution is to Floor the Time / 60 divisions eg:

    NumberFormat2(Floor(SunriseTime / 60), 1, 0, 0, False)

    so that there is no fractional part for NumberFormat2 to round off.

    Almora and Shelby like this.
