Android Question help needed: B4XPreferenceDialog - title & text

Zeev Goldstein

Zeev Goldstein

Well-Known Member
Licensed User
Longtime User
hi,

got great help from José J. Aguilar

now i need one simple thing - how do i add a title & message simple text to B4XPreferenceDialog
i don't need any data entry etc
i use it as simple msgdialog

thank you

Sort by date Sort by votes
M

Mahares

Expert
Licensed User
Longtime User
Zeev Goldstein said:
i use it as simple msgdialog
Click to expand...
There are other simpler ways than using a B4XPreferenceDialog for this, but here is your request fulfilled with a full example:
B4X:
Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private prefdialog As PreferencesDialog
End Sub

Public Sub Initialize
End Sub

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")  'has button1
    prefdialog.Initialize(Root, "Preference Dialog Message", 300dip, 300dip)
    prefdialog.AddMultilineTextItem("First", "", 300dip)
End Sub

Private Sub Button1_Click
    Dim Data As Map = CreateMap("First": "This is an important B4X Preference Dialog message box")
    Dim sf As Object = prefdialog.ShowDialog(Data, "OK", "CANCEL")
    For i = 0 To prefdialog.PrefItems.Size - 1
        Dim pi As B4XPrefItem = prefdialog.PrefItems.Get(i)
        If pi.ItemType = prefdialog.TYPE_MULTILINETEXT Then
            Dim ft As B4XFloatTextField = prefdialog.CustomListView1.GetPanel(i).GetView(0).Tag
            ft.TextField.SetTextAlignment("CENTER", "CENTER")
            Dim xfont As B4XFont=xui.CreateFont(Typeface.DEFAULT_BOLD,32)
            ft.textfield.Font = xfont
            ft.TextField.TextColor =xui.Color_Magenta
            ft.TextField.Enabled = False
        End If
    Next

    Wait For (sf) Complete (Result As Int)
    If Result = xui.DialogResponse_Positive Then
        Dim f As String = Data.Get("First")
        Log(f)
    End If
Zeev, you do not need to start your thread title with: 'help needed'. It is obvious when you post you are going to need help. So there is no need to be redundant.

Last edited:
Upvote 0
aeric

aeric

Expert
Licensed User
Longtime User

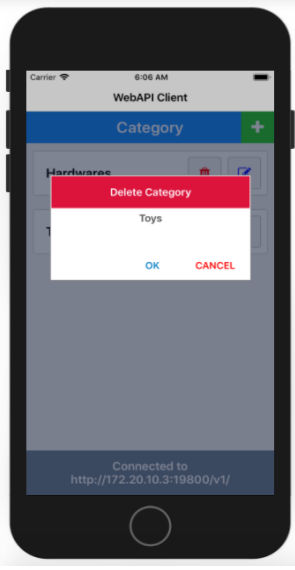

Look like this?


B4X:
Private Sub CreateDialog3
    PrefDialog3.Initialize(Root, "Delete", 300dip, 70dip)
    PrefDialog3.Dialog.TitleBarColor = xui.Color_RGB(220, 20, 60)
    PrefDialog3.AddSeparator("default")
End Sub

Private Sub ShowDialog3 (Item As Map)
    PrefDialog3.Title = "Delete Item"
    Dim sf As Object = PrefDialog3.ShowDialog(Item, "OK", "CANCEL")
    #If B4A or B4i
    PrefDialog3.Dialog.Base.Top = 100dip ' Make it lower
    #Else
    Sleep(0)
    PrefDialog3.CustomListView1.sv.Height = PrefDialog3.CustomListView1.sv.ScrollViewInnerPanel.Height + 10dip
    #End If
    PrefDialog3.CustomListView1.GetPanel(0).GetView(0).Text = Item.Get("Item")
    PrefDialog3.CustomListView1.GetPanel(0).GetView(0).Color = xui.Color_Transparent
    PrefDialog3.CustomListView1.sv.ScrollViewInnerPanel.Color = xui.Color_Transparent
    Wait For (sf) Complete (Result As Int)
    If Result = xui.DialogResponse_Positive Then
        xui.MsgboxAsync("Item deleted!", "Delete")
    End If
End Sub

or refer to CreateDialog3 and ShowDialog3 in my Web API Client project.

Upvote 0
Zeev Goldstein

Zeev Goldstein

Well-Known Member
Licensed User
Longtime User
aeric said:
Look like this?

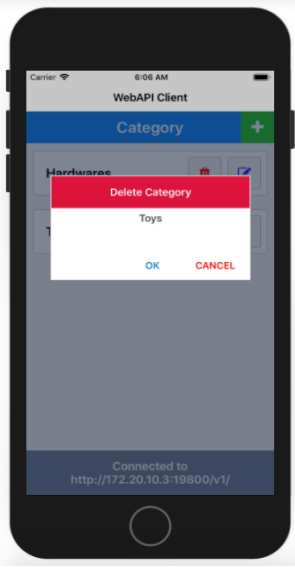

View attachment 146620

B4X:
Private Sub CreateDialog3
    PrefDialog3.Initialize(Root, "Delete", 300dip, 70dip)
    PrefDialog3.Dialog.TitleBarColor = xui.Color_RGB(220, 20, 60)
    PrefDialog3.AddSeparator("default")
End Sub

Private Sub ShowDialog3 (Item As Map)
    PrefDialog3.Title = "Delete Item"
    Dim sf As Object = PrefDialog3.ShowDialog(Item, "OK", "CANCEL")
    #If B4A or B4i
    PrefDialog3.Dialog.Base.Top = 100dip ' Make it lower
    #Else
    Sleep(0)
    PrefDialog3.CustomListView1.sv.Height = PrefDialog3.CustomListView1.sv.ScrollViewInnerPanel.Height + 10dip
    #End If
    PrefDialog3.CustomListView1.GetPanel(0).GetView(0).Text = Item.Get("Item")
    PrefDialog3.CustomListView1.GetPanel(0).GetView(0).Color = xui.Color_Transparent
    PrefDialog3.CustomListView1.sv.ScrollViewInnerPanel.Color = xui.Color_Transparent
    Wait For (sf) Complete (Result As Int)
    If Result = xui.DialogResponse_Positive Then
        xui.MsgboxAsync("Item deleted!", "Delete")
    End If
End Sub

or refer to CreateDialog3 and ShowDialog3 in my Web API Client project.
Click to expand...
your sample looks exactly what i need
however i couldn't get it to work
any chance to get a working sample?
many thanks

Upvote 0
Zeev Goldstein

Zeev Goldstein

Well-Known Member
Licensed User
Longtime User
Mahares said:
There are other simpler ways than using a B4XPreferenceDialog for this, but here is your request fulfilled with a full example:
B4X:
Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private prefdialog As PreferencesDialog
End Sub

Public Sub Initialize
End Sub

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")  'has button1
    prefdialog.Initialize(Root, "Preference Dialog Message", 300dip, 300dip)
    prefdialog.AddMultilineTextItem("First", "", 300dip)
End Sub

Private Sub Button1_Click
    Dim Data As Map = CreateMap("First": "This is an important B4X Preference Dialog message box")
    Dim sf As Object = prefdialog.ShowDialog(Data, "OK", "CANCEL")
    For i = 0 To prefdialog.PrefItems.Size - 1
        Dim pi As B4XPrefItem = prefdialog.PrefItems.Get(i)
        If pi.ItemType = prefdialog.TYPE_MULTILINETEXT Then
            Dim ft As B4XFloatTextField = prefdialog.CustomListView1.GetPanel(i).GetView(0).Tag
            ft.TextField.SetTextAlignment("CENTER", "CENTER")
            Dim xfont As B4XFont=xui.CreateFont(Typeface.DEFAULT_BOLD,32)
            ft.textfield.Font = xfont
            ft.TextField.TextColor =xui.Color_Magenta
            ft.TextField.Enabled = False
        End If
    Next

    Wait For (sf) Complete (Result As Int)
    If Result = xui.DialogResponse_Positive Then
        Dim f As String = Data.Get("First")
        Log(f)
    End If
Zeev, you do not need to start your thread title with: 'help needed'. It is obvious when you post you are going to need help. So there is no need to be redundant.

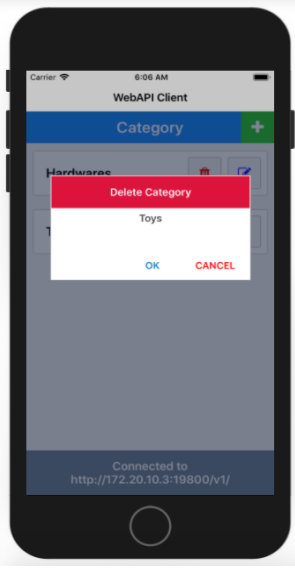

View attachment 146621
Click to expand...
thanks
what other ways you mean?
i need a msgdialog that will not disapear when the app is interrupted so when i get back to it the msgdialog will still be showing

Upvote 0
aeric

aeric

Expert
Licensed User
Longtime User
Zeev Goldstein said:
a working sample?
Click to expand...
You just need to add CreateDialog3 in B4XPage_Created and call it by passing a Map.

B4X:
Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")
    CreateDialog3
End Sub

Private Sub Button1_Click
    ShowDialog3(CreateMap("Item": "This is a message"))
End Sub


Attachments

  • MessageDialog.zip
    14.2 KB · Views: 137
Upvote 0
Zeev Goldstein

Zeev Goldstein

Well-Known Member
Licensed User
Longtime User
dear Pals

i managed to resolve the issues i had
now it is time to implement the solution within my app
that's going to be quite a long time work but i hope it will do the job i need it to do
many thanks to all of you who came to my assistance and gave me such a brilliant ideas
thank you

Upvote 0
