Android Question How to avoid different 9Patch appearance on views Label and Button?

[fredo]

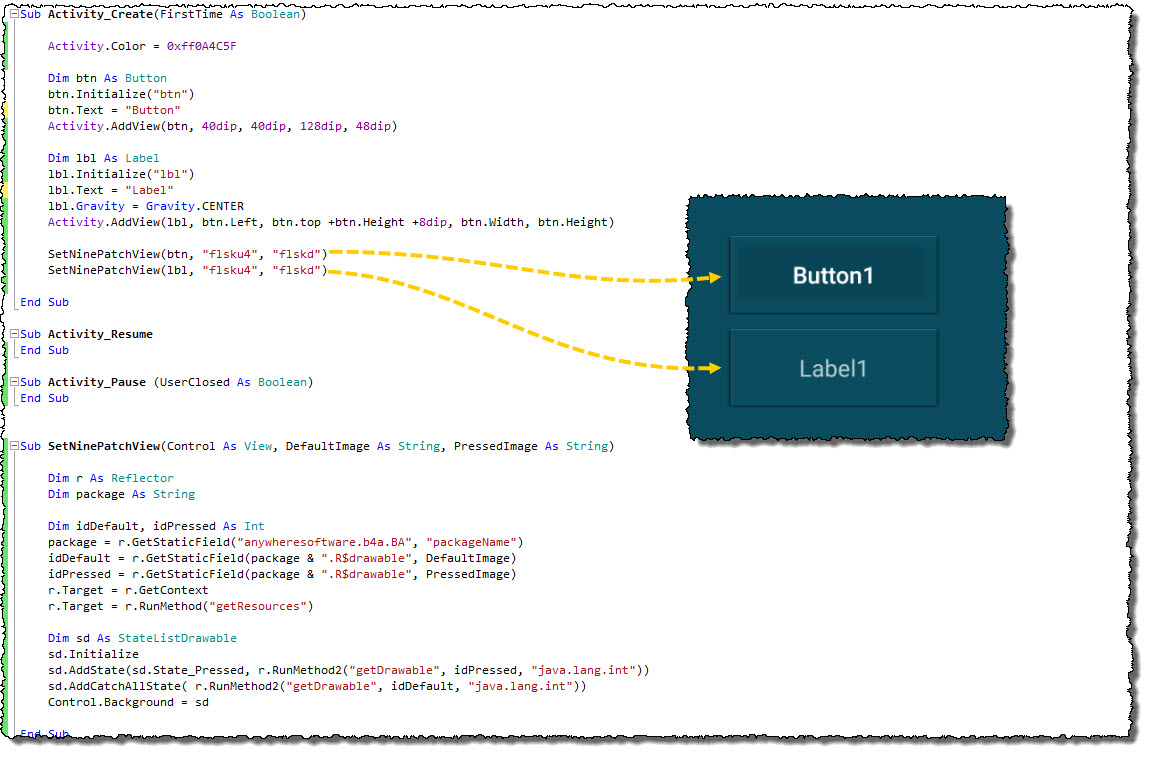

If the same 9Patch is applied to a Label and a Button it gives a different appearance on a "Nougat" device.



Can this somehow be avoided?



[Erel]

Are you using B4A v6.50? Try to set the button's padding to 0, 0, 0, 0.



[fredo]

...using B4A...?

B4A v6.50 BETA #1 is used on a Dev with sdk=24 and targetSdkVersion="19"

Try ...

No change with using

    Dim jo = btn As JavaObject
    jo.RunMethod("setPadding", Array As Object(0, 0, 0, 0))

before and after the "SetNinePatchView(...)"



[Erel]

I see it too. Not sure why it happens. Do you want it to look like the button or the label?



[fredo]

Thanks for your efforts on this.

..to look like..

..the Label.

While trying to find a grip on this I tried using different 9patch sizes at it seems that this effect occours when the 9patch-image is bigger than the view.



It simply is neccessary to have the 9patch dimensions smaller than the receiving view to avoid the effect.

I think this is ok so far.



[An Schi]

Sorry for off-topicing - but i would like to say that i realy like the way you are screenshooting!



[fredo]

...screenshooting...

Thank you.
I think visualization of technical issues helps a lot to get issues solved and avoids timeconsuming misunderstandings.
