Android Question How to save conversation on the chat

Makumbi

Well-Known Member
Licensed User
Please help i have two table the sent messages table and the recieved messages table how can i be in position to save the conversation on the chat also be in position to delete some conversation
sent sms table has fields below how can i be in position to save the conversation on this chat. so that when i click on chat i can be in position to view the previous communication. Note: for example on whatsup you can be in position to see previous conversation and last reply from that conversation on one layout thanks.
Please members help me out on this question iam still stack with this kind of chat messaging solution

B4X:
Dim rs As ResultSet = Starter.SQL1.ExecQuery("SELECT DISTINCT Datesent,Sms as SentMessage,ID FROM Sentmessages")

Recieved sms table has the fields below
B4X:
    Dim rs As ResultSet = Starter.SQL1.ExecQuery("SELECT DISTINCT Daterecieved,Sms as RecievedMessage,ID FROM Recievedsms")

B4X:
#Region  Project Attributes
    #ApplicationLabel: B4A Example
    #VersionCode: 1
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: portrait
    #CanInstallToExternalStorage: False
#End Region

#Region  Activity Attributes
    #FullScreen: False
    #IncludeTitle: True
#End Region

Sub Process_Globals

End Sub

Sub Globals
    Private chat1 As Chat
    Private ime As IME
End Sub

Sub Activity_Create(FirstTime As Boolean)
    chat1.Initialize(Activity)
    Activity.Title = "Chat Example"
    ime.Initialize("ime")
    ime.AddHeightChangedEvent
End Sub

Sub IME_HeightChanged (NewHeight As Int, OldHeight As Int)
    chat1.HeightChanged(NewHeight)
End Sub

Sub Activity_Resume

End Sub

Sub Activity_Pause (UserClosed As Boolean)

End Sub

B4X:
#IgnoreWarnings: 6
Sub Class_Globals
    Private xui As XUI
    Private TextField As B4XFloatTextField
    Private CLV As CustomListView
    Private BBCodeView1 As BBCodeView
    Private Engine As BCTextEngine
    Private bc As BitmapCreator
    Private ArrowWidth As Int = 10dip
    Private Gap As Int = 6dip
    Private pnlBottom As B4XView
    Private LastUserLeft As Boolean = True
End Sub

Public Sub Initialize (Parent As B4XView)
    Parent.LoadLayout("1")
    Engine.Initialize(Parent)
    bc.Initialize(300, 300)
    TextField.NextField = TextField
End Sub

Private Sub lblSend_Click
    If TextField.Text.Length > 0 Then
        LastUserLeft = Not(LastUserLeft)
        AddItem(TextField.Text, LastUserLeft)
    End If
    TextField.RequestFocusAndShowKeyboard
    #if B4J
    Dim ta As TextArea = TextField.TextField
    ta.SelectAll
    #else if B4A
    Dim et As EditText = TextField.TextField
    et.SelectAll
    #else if B4i
    Dim ta As TextView = TextField.TextField
    ta.SelectAll
    #end if
End Sub

'Modifies the layout when the keyboard state changes.
Public Sub HeightChanged (NewHeight As Int)
    Dim c As B4XView = CLV.AsView
    c.Height = NewHeight - pnlBottom.Height
    CLV.Base_Resize(c.Width, c.Height)
    pnlBottom.Top = NewHeight - pnlBottom.Height
    ScrollToLastItem
End Sub

Private Sub AddItem (Text As String, Right As Boolean)
    Dim p As B4XView = xui.CreatePanel("")
    p.Color = xui.Color_Transparent
    Dim User As String
    If Right Then User = "User 2" Else User = "User 1"
    BBCodeView1.ExternalRuns = BuildMessage(Text, User)
    BBCodeView1.ParseAndDraw
    Dim ivText As B4XView = CreateImageView
    'get the bitmap from BBCodeView1 foreground layer.
    Dim bmpText As B4XBitmap = GetBitmap(BBCodeView1.ForegroundImageView)
    'the image might be scaled by Engine.mScale. The "correct" dimensions are:
    Dim TextWidth As Int = bmpText.Width / Engine.mScale
    Dim TextHeight As Int = bmpText.Height / Engine.mScale
    'bc is not really used here. Only the utility method.
    bc.SetBitmapToImageView(bmpText, ivText)
    Dim ivBG As B4XView = CreateImageView
    'Draw the bubble.
    Dim bmpBG As B4XBitmap = DrawBubble(TextWidth, TextHeight, Right)
    bc.SetBitmapToImageView(bmpBG, ivBG)
    p.SetLayoutAnimated(0, 0, 0, CLV.sv.ScrollViewContentWidth - 2dip, TextHeight + 3 * Gap)
    If Right Then
        p.AddView(ivBG, p.Width - bmpBG.Width * xui.Scale, Gap, bmpBG.Width * xui.Scale, bmpBG.Height * xui.Scale)
        p.AddView(ivText, p.Width - Gap - ArrowWidth - TextWidth, 2 * Gap, TextWidth, TextHeight)
    Else
        p.AddView(ivBG, 0, Gap, bmpBG.Width * xui.Scale, bmpBG.Height * xui.Scale)
        p.AddView(ivText, Gap + ArrowWidth, 2 * Gap, TextWidth, TextHeight)
    End If
    CLV.Add(p, Null)
    ScrollToLastItem
End Sub

Private Sub ScrollToLastItem
    Sleep(50)
    If CLV.Size > 0 Then
        If CLV.sv.ScrollViewContentHeight > CLV.sv.Height Then
            CLV.ScrollToItem(CLV.Size - 1)
        End If
    End If
End Sub

Private Sub DrawBubble (Width As Int, Height As Int, Right As Boolean) As B4XBitmap
    'The bubble doesn't need to be high density as it is a simple drawing.
    Width = Ceil(Width / xui.Scale)
    Height = Ceil(Height / xui.Scale)
    Dim ScaledGap As Int = Ceil(Gap / xui.Scale)
    Dim ScaledArrowWidth As Int = Ceil(ArrowWidth / xui.Scale)
    Dim nw As Int = Width + 2 * ScaledGap + ScaledArrowWidth
    Dim nh As Int = Height + 2 * ScaledGap
    If bc.mWidth < nw Or bc.mHeight < nh Then
        bc.Initialize(Max(bc.mWidth, nw), Max(bc.mHeight, nh))
    End If
    bc.DrawRect(bc.TargetRect, xui.Color_Transparent, True, 0)
    Dim r As B4XRect
    Dim path As BCPath
    Dim clr As Int
    If Right Then clr = 0xFFEFEFEF Else clr = 0xFFC1F7A3
    If Right Then
        r.Initialize(0, 0, nw - ScaledArrowWidth, nh)
        path.Initialize(nw - 1, 1)
        path.LineTo(nw - 1 - (10 + ScaledArrowWidth), 1)
        path.LineTo(nw - 1 - ScaledArrowWidth, 10)
        path.LineTo(nw - 1, 1)
    Else
        r.Initialize(ScaledArrowWidth, 1, nw, nh)
        path.Initialize(1, 1)
        path.LineTo((10 + ScaledArrowWidth), 1)
        path.LineTo(ScaledArrowWidth, 10)
        path.LineTo(1, 1)
    End If
    bc.DrawRectRounded(r, clr, True, 0, 10)
    bc.DrawPath(path, clr, True, 0)
    bc.DrawPath(path, clr, False, 2)
    Dim b As B4XBitmap = bc.Bitmap
    Return b.Crop(0, 1, nw, nh)
End Sub

Private Sub BuildMessage (Text As String, User As String) As List
    Dim title As BCTextRun = Engine.CreateRun(User & CRLF)
    title.TextFont  = BBCodeView1.ParseData.DefaultBoldFont
    Dim TextRun As BCTextRun = Engine.CreateRun(Text & CRLF)
    Dim time As BCTextRun = Engine.CreateRun(DateTime.Time(DateTime.Now))
    time.TextFont = xui.CreateDefaultFont(10)
    time.TextColor = xui.Color_Gray
    Return Array(title, TextRun, time)
End Sub

Private Sub GetBitmap (iv As ImageView) As B4XBitmap
    #if B4J
    Return iv.GetImage
    #Else If B4A or B4i
    Return iv.Bitmap
    #End If
End Sub

Private Sub CLV_ItemClick (Index As Int, Value As Object)
    #if B4i
    Dim tf As View = TextField.TextField
    tf.ResignFocus
    #End If
End Sub

Private Sub CreateImageView As B4XView
    Dim iv As ImageView
    iv.Initialize("")
    Return iv
End Sub

#if B4J
Sub lblSend_MouseClicked (EventData As MouseEvent)
    lblSend_Click
    EventData.Consume
End Sub
#end if


Attachments

  • Backup Chat 2019-12-31 16.31.zip
    11.1 KB · Views: 66
Last edited:

asales

Well-Known Member
Licensed User
Maybe you can use one table instead two tables..
You can put one field in the table to identified if the message is sent or received.

And create an small example of that you made until now and post the project here.

Upvote 0

Makumbi

Well-Known Member
Licensed User
I would go with two tables. One for sent messages and one for receives messages, the messages would be linked to the correct conversations via an Id number, just use the INNER JOIN clause and make sure to index the relevant fields.

Hmm, what are you doing about images???

Please help i have created
B4X:
query = "CREATE TABLE Sentmessages (Datesent Text, Sms text,ID INTEGER NOT NULL PRIMARY KEY AUTOINCREMENT UNIQUE)"
    SQL1.ExecNonQuery(query)

    query = "CREATE TABLE Recievedsms (Daterecieved Text, Sms text,ID INTEGER)"
how can i retrieve the conversation and load it to the chat please help me pass it to the customlistview i have failed completely i can insert it but retrive the conversation is proving to be an up hill task

Upvote 0

Peter Simpson

Expert
Licensed User
Your should add SentmessagesID in Recievedsmsand vise versa.

Actually you should make Recievedsms ID INTEGER NOT NULL PRIMARY KEY AUTOINCREMENT UNIQUE, then you can easily cross reference the two tables using each tables ID. You can either reference each tables the meaty way directly, or you could use INNER JOIN.

Start off with updating the ID column of Recievedsms as I stated above.

Upvote 0

Makumbi

Well-Known Member
Licensed User
Your should add SentmessagesID in Recievedsmsand vise versa.

Actually you should make Recievedsms ID INTEGER NOT NULL PRIMARY KEY AUTOINCREMENT UNIQUE, then you can easily cross reference the two tables using each tables ID. You can either reference each tables the meaty way directly, or you could use INNER JOIN.

Start off with updating the ID column of Recievedsms as I stated above.

Thank you for the quick response
I have created them as well as
B4X:
    query = "CREATE TABLE Sentmessages (Datesent Text, Sms text,ID INTEGER)"
    SQL1.ExecNonQuery(query)

    query = "CREATE TABLE Recievedsms (Daterecieved Text, Sms text,ID INTEGER)"

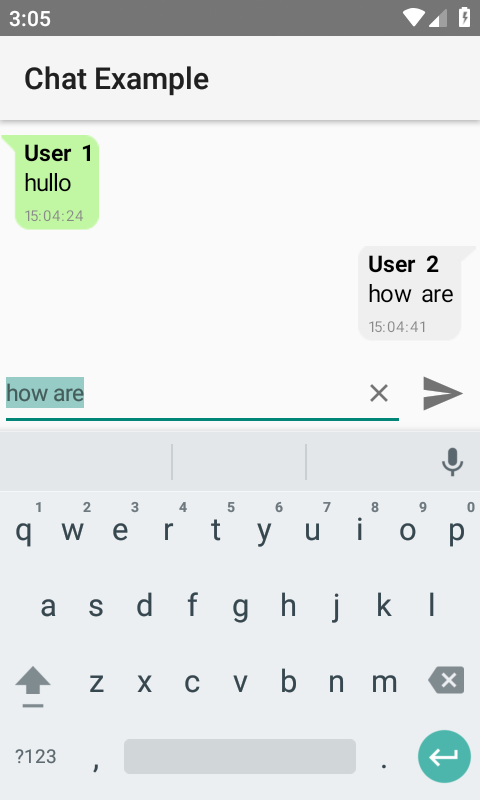

My problem is now here how load the whole conversation and display it on the customlistview so that it can be followed

B4X:
#IgnoreWarnings: 6
Sub Class_Globals
    Private xui As XUI
    Private TextField As B4XFloatTextField
    Private CLV As CustomListView
    Private BBCodeView1 As BBCodeView
    Private Engine As BCTextEngine
    Private bc As BitmapCreator
    Private ArrowWidth As Int = 10dip
    Private Gap As Int = 6dip
    Private pnlBottom As B4XView
    Private LastUserLeft As Boolean
End Sub

Public Sub Initialize (Parent As B4XView)
    Parent.LoadLayout("1")
    Engine.Initialize(Parent)
    bc.Initialize(300, 300)
    TextField.NextField = TextField
End Sub

Private Sub lblSend_Click
    If TextField.Text.Length > 0 Then
        LastUserLeft = Not(LastUserLeft)
        AddItem(TextField.Text, LastUserLeft)


    End If
    TextField.RequestFocusAndShowKeyboard
    #if B4J
    Dim ta As TextArea = TextField.TextField
    ta.SelectAll
    #else if B4A
    Dim et As EditText = TextField.TextField
    et.SelectAll
    #end if
    Dim sx As String
    sx="User"
    'Starter.SQL1.ExecNonQuery2("INSERT INTO smsdata VALUES(?,?,?,?)", Array As Object(LTrim(RTrim(TextField.Text)), LTrim(RTrim(LastUserLeft))),LTrim(RTrim(DateTime.now)) ,sx))

    Starter.SQL1.ExecNonQuery2("INSERT INTO smsmessages VALUES(?, ?, ?,?)", Array As Object(LTrim(RTrim(TextField.Text)), LTrim(RTrim(LastUserLeft)),LTrim(RTrim(DateTime.now)),sx))
End Sub


Sub LTrim(s As String) As String
    Dim m As Matcher = Regex.Matcher("^(\s+)", s)
    If m.Find Then
        Return s.SubString(m.GetEnd(1))
    Else
        Return s
    End If
End Sub

Sub RTrim(s As String) As String
    Dim m As Matcher = Regex.Matcher("(\s+)$", s)
    If m.Find Then
        Return s.SubString(m.GetEnd(1))
    Else
        Return s
    End If
End Sub
Public Sub HeightChanged (NewHeight As Int)
    Dim c As B4XView = CLV.AsView
    c.Height = NewHeight - pnlBottom.Height
    CLV.Base_Resize(c.Width, c.Height)
    pnlBottom.Top = NewHeight - pnlBottom.Height
    ScrollToLastItem
End Sub

Private Sub AddItem (Text As String, Right As Boolean)
    Dim p As B4XView = xui.CreatePanel("")
    Dim User As String
    If Right Then User = "User 2" Else User = "User 1"
    BBCodeView1.ExternalRuns = BuildMessage(Text, User)
    BBCodeView1.ParseAndDraw
    Dim ivText As B4XView = CreateImageView
    Dim bmpText As B4XBitmap = GetBitmap(BBCodeView1.ForegroundImageView)
    bc.SetBitmapToImageView(bmpText, ivText)
    Dim ivBG As B4XView = CreateImageView
    Dim bmpBG As B4XBitmap = DrawBubble(bmpText.Width, bmpText.Height, Right)
    bc.SetBitmapToImageView(bmpBG, ivBG)
    p.SetLayoutAnimated(0, 0, 0, CLV.AsView.Width, bmpText.Height + 3 * Gap)
    p.AddView(ivBG, 0, Gap, bmpBG.Width * xui.Scale, bmpBG.Height * xui.Scale)
    p.AddView(ivText, Gap + ArrowWidth, 2 * Gap, bmpText.Width, bmpText.Height)
    CLV.Add(p, Null)
    ScrollToLastItem
End Sub

Private Sub ScrollToLastItem
    Sleep(100)
    If CLV.Size > 0 Then
        CLV.ScrollToItem(CLV.Size - 1)
    End If
End Sub

Private Sub DrawBubble (Width As Int, Height As Int, Right As Boolean) As B4XBitmap
    Width = Ceil(Width / xui.Scale)
    Height = Ceil(Height / xui.Scale)
    Dim ScaledGap As Int = Ceil(Gap / xui.Scale)
    Dim ScaledArrowWidth As Int = Ceil(ArrowWidth / xui.Scale)
    Dim nw As Int = Width + 3 * ScaledGap + ScaledArrowWidth
    Dim nh As Int = Height + 2 * ScaledGap
    If bc.mWidth < nw Or bc.mHeight < nh Then
        bc.Initialize(Max(bc.mWidth, nw), Max(bc.mHeight, nh))
    End If
    bc.DrawRect(bc.TargetRect, xui.Color_Transparent, True, 0)
    Dim r As B4XRect
    r.Initialize(ScaledArrowWidth, 1, nw, nh)
    Dim clr As Int
    If Right Then clr = 0xFFEFEFEF Else clr = 0xFFC1F7A3
    bc.DrawRectRounded(r, clr, True, 0, 10)
    Dim path As BCPath
    path.Initialize(nw - 1, 1)
    path.LineTo(nw - 1 - (10 + ScaledArrowWidth), 1)
    path.LineTo(nw - 1 - ScaledArrowWidth, 10)
    path.LineTo(nw - 1, 1)
    bc.DrawPath(path, clr, True, 0)
    bc.DrawPath(path, clr, False, 2)
    Dim b As B4XBitmap = bc.Bitmap
    Return b.Crop(0, 1, nw, nh)
End Sub

Private Sub BuildMessage (Text As String, User As String) As List
    Dim title As BCTextRun = Engine.CreateRun(User & CRLF)
    title.TextFont  = BBCodeView1.ParseData.DefaultBoldFont
    Dim TextRun As BCTextRun = Engine.CreateRun(Text & CRLF)
    Dim time As BCTextRun = Engine.CreateRun(DateTime.Time(DateTime.Now))
    time.TextFont = xui.CreateDefaultFont(10)
    time.TextColor = xui.Color_Gray
    Return Array(title, TextRun, time)
End Sub

Private Sub GetBitmap (iv As ImageView) As B4XBitmap
    #if B4J
    Return iv.GetImage
    #Else If B4A
    Return iv.Bitmap
    #End If
End Sub

Private Sub CreateImageView As B4XView
    Dim iv As ImageView
    iv.Initialize("")
    Return iv
End Sub

#if B4J
Sub lblSend_MouseClicked (EventData As MouseEvent)
    lblSend_Click
    EventData.Consume
End Sub
#end if


Attachments

  • Screenshot_1581681903.png
    45.1 KB · Views: 49
Upvote 0
Top
