HTC Screen resolution problem

Discussion in 'Questions (Windows Mobile)' started by jgm, Aug 14, 2009.

  1. jgm

    jgm Member Licensed User

    Hi,

    I recently acquired a HTC Touch Diamond2 PDA which has a 3.2" screen with 480x800.

    I copied to the HTC a simple program I did in my iPaq (240x320 screen) and was expecting to see the space corresponding to 240x320 fitting in a small area of my HTC.

    I found that the screen I got is unreadable with Labels and TextBoxes that seem to have been moved and are now overlapping.

    The two attached files show the screen as it appeared on the desktop and on the HTC.

    Couldn't find out what is happening ...


    Attached Files:

  2. Ariel_Z

    Ariel_Z Active Member Licensed User

    Could you please upload the source code?

  3. jgm

    jgm Member Licensed User

    I've attached the file FlexsimT_.sbp with the source code.


    Attached Files:

  4. agraham

    agraham Expert Licensed User

    There is nothing wrong with your code. You don't say if the screenshot is running in the device IDE or is compiled so -

    Device IDEs

    There are two device IDEs called "Basic4ppc.exe" and "Basic4ppc-VGA.exe".

    "Basic4ppc" is for code written for a screen size of 240 x 320 and this IDE will display such an application correctly even on a non-QVGA device. Your program running in this IDE looks OK on my HTC Diamond (original, not 2) as it is being upscaled to the device resolution.

    "Basic4ppc-VGA" is for code written assuming the native resolution of the device. Your program running in this IDE looks like your screenshot as it is being drawn in a 240 x 320 area of the screen. It looks odd because controls are specified in pixels but fonts are specified as an actual size so the controls are small but the fonts are normal size so it looks odd.

    Optimised compiling

    If you optimised compiled your application for the device using File->Compile->Device EXE then when run on your device it will also look like your screenshot as it is being drawn at 240 x 320 resolution. This compilation mode draws the application at whatever resolution it was designed for. To take advantage of your VGA screen you would need to code your application assuming the screen resolution of your device.

    If you optimised compiled your application for the device using File->Compile->Device (Auto Scale) EXE then when run on your device it should look OK as this compilation mode takes an application coded for 240 x 320 resolution and adapts it to whatever screen it runs on.

  5. klaus

    klaus Expert Licensed User

    You should compile your program with the Device (Auto Scale) EXE option, then you get the right display.

    Attached 2 screenshots from my HTC Touch HD.

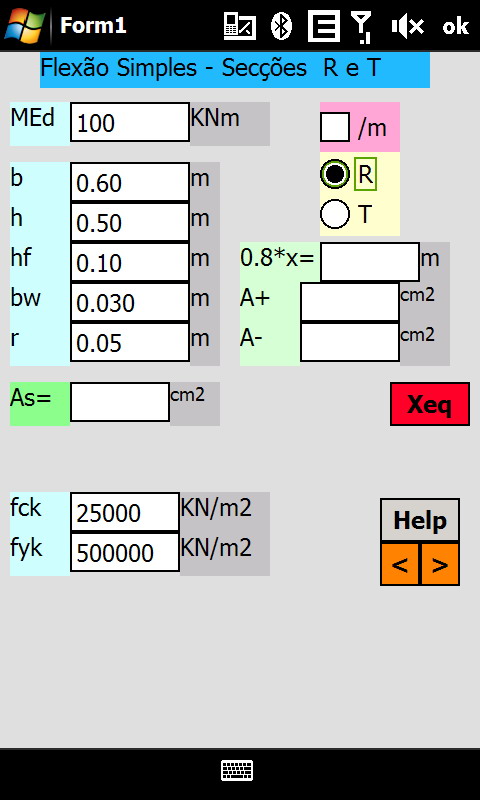

    First : Device (Auto Scale) EXE compiled
    Second : Device EXE compiled

    Best regards.


    Attached Files:

  6. jgm

    jgm Member Licensed User

    Autoscale worked fine.
    Thank you for your help.

    JM

  7. cdeane

    cdeane Member

    I recantly bought a iPAQ 211 with same problem.
    I have B4PPC 6.3 with no Device (Auto Scale) EXE option,do I need to upgrade?

  8. klaus

    klaus Expert Licensed User
