B4A Library Huawei SDK + Analytics

Ferdari

Active Member
Licensed User
This library is very simple, it connects to the HMS SDK and then sends Stats to Analytics services like:
Which Activity open, users actions, etc.

Author: Huawei + Ferdari
Version: 1.0

Add the AppGallery Connect configuration file of the app to your B4A project.
  1. Sign in to AppGallery Connect and click My projects.
  2. Find your app project and click the app that needs to integrate the HMS Core SDK.
  3. Go to Project Setting > App information. In the App information area, download the agconnect-services.json file.
  4. Copy the agconnect-services.json file your Files directory of your project.

Huawei Dependencies SDK + Analytics
  • Unpack to Additional Libraries and try to Jetify if needed.
  • Unpack atachment:: DependenciesToFilesFolder.Zip to Files folder of project.



It uses HMS Analytics version 4.0.2.300 and SDK 1.0.0.300, Works on every brand phone, Needs HMS core installed, if not will not throw error.

Currently it only connects to Analytics but cannot send Actions or preset events.

NOTE: If your a not using in your project OkHttpUtils or Other libr that uses Okio and/or Okhttp you need to add:
B4X:
#AdditionalJar: okhttp-3.11.0.jar
#AdditionalJar: okio-1.14.0.jar
Check the version in your Libraries folder, it should be the same or greater version in order to work, change to your version.


On Manifest
Manifest:
'-------------HUAWEI--------------------
AddManifestText(
    <uses-permission android:name="android.permission.REQUEST_INSTALL_PACKAGES" />
    <uses-permission android:name="com.huawei.appmarket.service.commondata.permission.GET_COMMON_DATA" />
)

SetApplicationAttribute(android:name, "hms.analytics.MainApplication")
AddApplicationText(<meta-data android:name="com.huawei.hms.client.service.name:hianalytics" android:value="hianalytics:4.0.2.300"/>
        <meta-data android:name="com.huawei.hms.min_api_level:hianalytics:hianalytics" android:value="1"/>
        <receiver android:exported="false" android:name="com.huawei.hms.analytics.receiver.HiAnalyticsSvcEvtReceiver">
            <intent-filter>
                <action android:name="com.huawei.hms.analytics.pps.event"/>
            </intent-filter>
        </receiver>
        <service android:exported="false" android:name="com.huawei.agconnect.core.ServiceDiscovery">
            <meta-data android:name="com.huawei.agconnect.credential.CredentialServiceRegistrar" android:value="com.huawei.agconnect.core.ServiceRegistrar"/>
        </service>
        <provider android:authorities="${applicationId}.aaidinitprovider" android:exported="false" android:name="com.huawei.hms.aaid.InitProvider"/>
        <meta-data android:name="com.huawei.hms.client.service.name:opendevice" android:value="opendevice:4.0.1.301"/>
        <meta-data android:name="com.huawei.hms.min_api_level:opendevice:push" android:value="1"/>
        <meta-data android:name="com.huawei.hms.client.service.name:base" android:value="base:4.0.2.300"/>
        <meta-data android:name="com.huawei.hms.min_api_level:base:hmscore" android:value="1"/>
        <activity android:configChanges="locale|fontScale|layoutDirection|orientation|screenLayout|screenSize|smallestScreenSize" android:excludeFromRecents="true" android:exported="false" android:hardwareAccelerated="true" android:name="com.huawei.hms.activity.BridgeActivity" android:theme="@android:style/Theme.Translucent">
            <meta-data android:name="hwc-theme" android:value="androidhwext:style/Theme.Emui.Translucent"/>
        </activity>
        <activity android:configChanges="keyboardHidden|orientation|screenLayout|screenSize|smallestScreenSize" android:name="com.huawei.hms.activity.EnableServiceActivity"/>
        <provider android:authorities="${applicationId}.hms.update.provider" android:exported="false" android:grantUriPermissions="true" android:name="com.huawei.hms.update.provider.UpdateProvider"/>
        <provider android:authorities="${applicationId}.AGCInitializeProvider" android:exported="false" android:name="com.huawei.agconnect.core.provider.AGConnectInitializeProvider"/>
        <activity android:configChanges="orientation|screenSize" android:exported="false" android:name="com.huawei.updatesdk.service.otaupdate.AppUpdateActivity" android:theme="@style/upsdkDlDialog">
            <meta-data android:name="hwc-theme" android:value="androidhwext:style/Theme.Emui.Translucent.NoTitleBar"/>
        </activity>
        <activity android:configChanges="keyboardHidden|orientation|screenSize" android:exported="false" android:name="com.huawei.updatesdk.support.pm.PackageInstallerActivity" android:theme="@style/upsdkDlDialog">
            <meta-data android:name="hwc-theme" android:value="androidhwext:style/Theme.Emui.Translucent"/>
        </activity>)
'-------------HUAWEI--------------------
On Process_ Globals
B4X:
Dim analytics As Analytics
On Activity_create
B4X:
analytics.initAnalytics

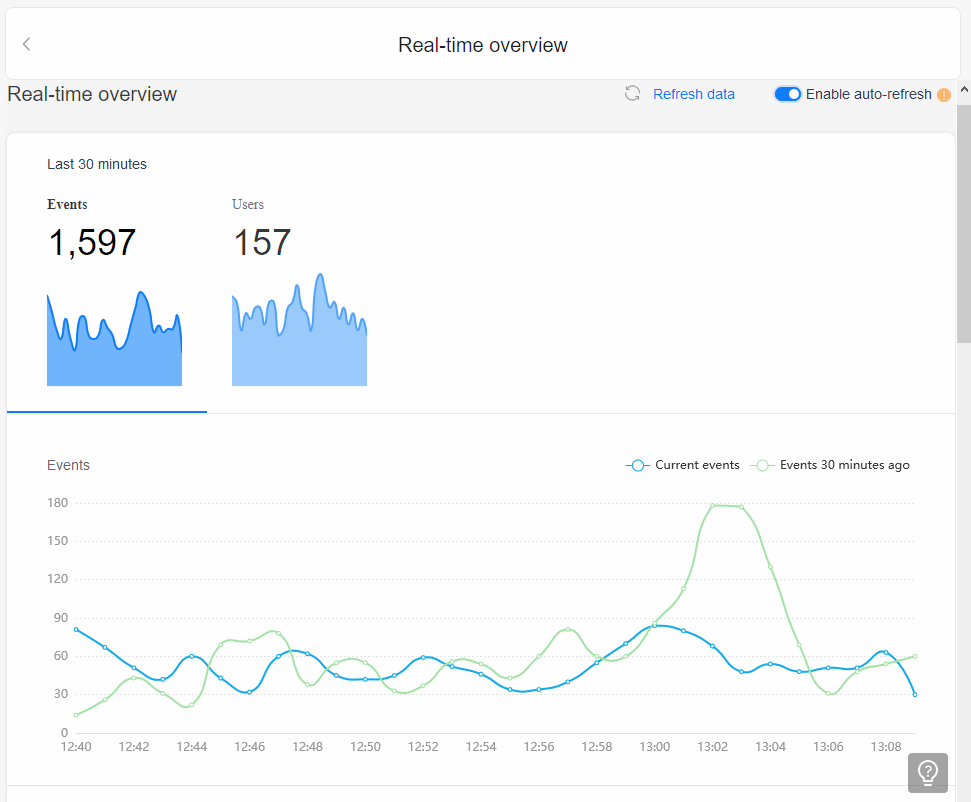

Check your Realtime Analytics Dashboard stats to see if it are connecting successfully.


Check the Unfiltered log to check the connection status and info


Attachments

Last edited:

Almora

Active Member
Licensed User
I get this error when compiling.

Uncaught translation error: java.lang.IllegalArgumentException: already added: Lokhttp3/internal/platform/JdkWithJettyBootPlatform$JettyNegoProvider;
Uncaught translation error: java.lang.IllegalArgumentException: already added: Lokio/package-info;
Uncaught translation error: java.lang.IllegalArgumentException: already added: Lokio/AsyncTimeout;
Uncaught translation error: java.lang.IllegalArgumentException: already added: Lokio/AsyncTimeout$1;
Uncaught translation error: java.lang.IllegalArgumentException: already added: Lokio/AsyncTimeout$2;
Uncaught translation error: java.lang.IllegalArgumentException: already added: Lokio/AsyncTimeout$Watchdog;
Uncaught translation error: java.lang.IllegalArgumentException: already added: Lokio/Base64;
Uncaught translation error: java.lang.IllegalArgumentException: already added: Lokio/Buffer;
Uncaught translation error: java.lang.IllegalArgumentException: already added: Lokio/Buffer$1;
UNEXPECTED TOP-LEVEL EXCEPTION:
java.lang.RuntimeException: Translation has been interrupted
at com.android.dx.command.dexer.Main.processAllFiles(Main.java:692)
at com.android.dx.command.dexer.Main.runMultiDex(Main.java:366)
at com.android.dx.command.dexer.Main.runDx(Main.java:291)
at com.android.dx.command.dexer.Main.main(Main.java:249)
at com.android.dx.command.Main.main(Main.java:94)
Caused by: java.lang.InterruptedException: Too many errors
at com.android.dx.command.dexer.Main.processAllFiles(Main.java:684)
... 4 more


Ferdari

Active Member
Licensed User
I get this error when compiling.
Please Check the:
NOTE: If your a not using in your project OkHttpUtils you need to add:

It appears you are already using the Jars from OkHttpUtils or from other library, no need to add Additional Jar, delete it.

Last edited:

Almora

Active Member
Licensed User
Please Check the:
NOTE: If your a not using in your project OkHttpUtils you need to add:

It appears you are already using the Jars from OkHttpUtils or from other library, no need to add Additional Jar, delete it.
I am using OkHttpUtils2.

#AdditionalJar: okhttp-3.11.0.jar
#AdditionalJar: okio-1.14.0.jar
When I delete them, compilation occurs but the application does not open.
I do not use a huawei device. but HMS is installed. Could the problem be from him

Last edited:

Ferdari

Active Member
Licensed User
I am using OkHttpUtils2.


When I delete them, compilation occurs but the application does not open.
I do not use a huawei device. but HMS is installed. Could the problem be from him
Have you did the additional steps in Thread?

Add the AppGallery Connect configuration file of the app to your B4A project.

  1. Sign in to AppGallery Connect and click My projects.
  2. Find your app project and click the app that needs to integrate the HMS Core SDK.
  3. Go to Project Setting > App information. In the App information area, download the agconnect-services.json file.
  4. Copy the agconnect-services.json file your Files directory of your project.

Huawei Dependencies SDK + Analytics
  • Unpack to Additional Libraries and try to Jetify if needed.
HuaweiDependencies.zip - Box
  • Unpack atachment:: DependenciesToFilesFolder.Zip to Files folder of project.
Check if your okio and okhttp are the same or greater version than recommended on Additional Jar, and check your Unfiltered logs.
