iOS Question ImageToBytes

[iCAB]

Hi All

I am trying to save a barcode image to a file, so I can read it back.

The code below is returning array size = 0.
I also tried the equivalent code for Bitmap instead of B4XBitmap

Any ideas?

Dim StringToDisplay as String = "112233445566"

      'This call returns a bitmap as expected.
 Dim bB4XBitmap As B4XBitmap = CreateCode128Barcode(StringToDisplay)
     'This returns array size = 0
 Dim bImgAsBytes() As Byte = ImageToBytes(bB4XBitmap)



Public Sub ImageToBytes(Image As B4XBitmap) As Byte()
   Dim out As OutputStream
   out.InitializeToBytesArray(0)
   Image.WriteToStream(out, 100, "JPEG")
   out.Close
   Return out.ToBytesArray
End Sub

Public Sub BytesToImage(bytes() As Byte) As B4XBitmap
   Dim In As InputStream
   In.InitializeFromBytesArray(bytes, 0, bytes.Length)
#if B4A or B4i
   Dim bmp As Bitmap
   bmp.Initialize2(In)
#else
   Dim bmp As Image
   bmp.Initialize2(In)
#end if
   Return bmp
End Sub



[Erel]

I also tried the equivalent code for Bitmap instead of B4XBitmap

B4XBitmap = Bitmap

Are you sure that the bitmap is valid? Check its width and height.



[iCAB]

Are you sure that the bitmap is valid? Check its width and height.

Hi Erel,
Thanks for your reply.

The actual code has this block

                If ImageView1.IsInitialized Then
                    ImageView1.Bitmap = bB4XBitmap
                End If

The barcode is returned in ImageView1 and get displayed as expected.

Also, just to confirm, I added this

Log(bB4XBitmap.Width & " " &  bB4XBitmap.Height)

The log prints: "575 230"

Thanks
iCAB



[Erel]

Might be something to do with the way the image is created. Try to take a snapshot of ImageView:

Dim x As B4XView = ImageView1 'if it is not B4XView
Dim bmp As B4XBitmap = x.Snapshot



[iCAB]

This one step closer. The array now has some bytes, however, the code below doesn't work for some reason.

Please see the comment inside the code

                    ImageView1.ContentMode = ImageView1.MODE_FIT
                    ImageView1.Bitmap = CreateCode39(StringToDisplay, ImageView1.Width , (ImageView1.Height/1.3))

                    OutputImageName = "Code39.png"

                        'Comment the lines below and the image will show the bar code properly
                        'if I Uncomment the code below, the image doesn't display the barcode
                    Dim x As B4XView = ImageView1 'if it is not B4XView

                    Dim bmp As B4XBitmap = x.Snapshot
                    Dim bImgAsBytes() As Byte = ImageToBytes(bmp)
                    File.WriteBytes(GeneralLib.GL_GetInternalFolder, OutputImageName, bImgAsBytes)

                    Dim bImgBytes1() As Byte = File.ReadBytes(GeneralLib.GL_GetInternalFolder, OutputImageName)
                    Dim bmp1 As B4XBitmap = BytesToImage(bImgBytes1)
                    ImageView1.Bitmap = bmp1



[Erel]

I think that it will be best if you upload a small example.



[iCAB]

Please see attached, and look for this comment
''Comment /uncomment to perform the test

Thank you



[Erel]

This code works properly here:

Sub LoadBarCodeInImage( BarCodeToLoad As String )
    If ImageView1.IsInitialized Then
        ImageView1.ContentMode = ImageView1.MODE_CENTER
        ImageView1.Bitmap = CreateCode39(BarCodeToLoad, ImageView1.Width , (ImageView1.Height))
        Dim OutputImageName As String = "Code39.png"
        Dim bImgAsBytes() As Byte = ImageToBytes(ImageView1.Bitmap)
        File.WriteBytes(File.DirLibrary, OutputImageName, bImgAsBytes)
        Dim bImgBytes1() As Byte = File.ReadBytes(File.DirLibrary, OutputImageName)
        Log(bImgBytes1.Length)
        Dim bmp1 As B4XBitmap = BytesToImage(bImgBytes1)
        ImageView1.Bitmap = bmp1
    End If
End Sub

Doesn't it work for you?



[iCAB]

Hi Erel

I think between the back and forth, we added this change

 Dim bmp As B4XBitmap = x.Snapshot

which caused the sample project code to fail with the newly added CreateCode39

Removing "x.Snapshot" will make it work.


However, if we go back to the original code and use CreateCode128Barcode, you will see the original issue that I reported

Sub LoadBarCodeInImage( BarCodeToLoad As String )


    If ImageView1.IsInitialized Then
        ImageView1.ContentMode = ImageView1.MODE_CENTER
#if CODE_39
        ImageView1.Bitmap = CreateCode39(BarCodeToLoad, ImageView1.Width , (ImageView1.Height))
        Dim OutputImageName As String = "Code39.png"

        Dim bImgAsBytes() As Byte = ImageToBytes(ImageView1.Bitmap)
        File.WriteBytes(File.DirLibrary, OutputImageName, bImgAsBytes)
        Dim bImgBytes1() As Byte = File.ReadBytes(File.DirLibrary, OutputImageName)
        Log(bImgBytes1.Length)
        Dim bmp1 As B4XBitmap = BytesToImage(bImgBytes1)
        ImageView1.Bitmap = bmp1


#else
        Dim bB4XBitmap As B4XBitmap = CreateCode128Barcode(BarCodeToLoad)
        Dim OutputImageName As String = "Code128.png"

        Dim bImgAsBytes() As Byte = ImageToBytes(bB4XBitmap)
        File.WriteBytes(File.DirLibrary, OutputImageName, bImgAsBytes)
        Dim bImgBytes1() As Byte = File.ReadBytes(File.DirLibrary, OutputImageName)
        Log(bImgBytes1.Length)
        Dim bmp1 As B4XBitmap = BytesToImage(bImgBytes1)
        ImageView1.Bitmap = bmp1

#end if
    End If


End Sub



#if B4I
Sub CreateCode128Barcode (Text As String) As B4XBitmap
   Dim filter As NativeObject
   filter = filter.Initialize("CIFilter").RunMethod("filterWithName:", Array("CICode128BarcodeGenerator"))
   filter.RunMethod("setDefaults", Null)
   filter.SetField("inputMessage", filter.ArrayToNSData(Text.GetBytes("UTF8")))
   Dim no As NativeObject = Me
   Return no.RunMethod("convertToUIImage:", Array(filter.GetField("outputImage")))
End Sub
#end if

#if OBJC
- (UIImage*) convertToUIImage:(CIImage*)img {
   return [[UIImage alloc]initWithCIImage:[img imageByApplyingTransform:CGAffineTransformMakeScale(5.0, 5.0)]];
}
#End If

Thanks for all your efforts



[Erel]

You are trying to save the file, right?

The code I posted in post #8 saved the file properly. Where is the problem?



[iCAB]

Hi Erel



Here is the issue. The code below returns a proper image

        Dim bB4XBitmap As B4XBitmap = CreateCode128Barcode(BarCodeToLoad)
        Dim OutputImageName As String = "Code128.png"

The code below returns Array size = 0

Dim bImgAsBytes() As Byte = ImageToBytes(bB4XBitmap)

Thanks for your reply.



[Erel]

What is the output of the code I posted? It logs the array size. It didn't print 0 here.



[iCAB]

What is the output of the code I posted? It logs the array size. It didn't print 0 here.

Erel, the code that you posted is all good as I mentioned (problem solved after removing x.snapshot)

The original problem we faced when we tried to save the image generated by CreateCode128Barcode (not code39) to a file.

if you replace LoadBarCodeInImage in the sample project with the one I posted in #9, you will see the problem right away

Thanks
iCAB



[Erel]

I now understand. However you should create a small project with CreateCode128Barcode and upload it.



[iCAB]

Please see attached



[Erel]

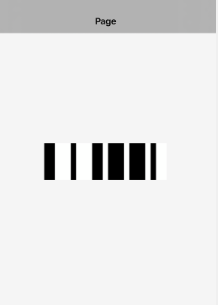

I've ran your code on both the simulator and a real device and this is what I see:

Logs:
Copying updated assets files (1)
Application_Start
76796
Application_Active



[iCAB]

Hi Erel.

Is it possible to give me quick access to the hosted builder to see if I get the same results as you are getting

I am definitely getting an error with the exact same code. I am using:
B4I = 6.0
Xcode: 10.1

Thanks
iCAB



[iCAB]

Hi Erel

I updated to the latest B4I (just in case) and I tried with the hosted builder.
I got the same results.

Just in case, I redownload the sample project that I uploaded in post #15, and I ran it.
Got the same results.

I added Log to the code below

        Dim bB4XBitmap As B4XBitmap = CreateCode128Barcode(BarCodeToLoad)
        Dim OutputImageName As String = "Code128.png"
        Log("Image Dimensions: " & bB4XBitmap.Width & " " & bB4XBitmap.Height )

            'Problem here: this returns an array with 0 bytes
        Dim bImgAsBytes() As Byte = ImageToBytes(bB4XBitmap)
        Log("Array Size: " & bImgAsBytes.Length )

Here is the output
Application_Start
Image Dimensions: 575 230
Array Size: 0

It is not that critical for my application at this point, as I can bypass this code.
We will wait until someone else reports the same issue (unless if you are interested in pursuing this further)

Thanks for all your efforts.
iCAB



[Erel]

Which device are you using? I've tested it on an iOS 13 (real) device.



[iCAB]

I have testing on an iPhone 6plus, iOS 12.4.4 I also tested on the simulator XR Version 12.1
