B4R Question Inline C for DHT11

Discussion in 'B4R Questions' started by pokhraj_d, Sep 9, 2018.

  1. pokhraj_d

    pokhraj_d Member

    Hello All,
    I am facing error while trying to compile DHT11 sensor for humidity.
    I have copied DHT11 sensor library to "C:\Program Files (x86)\Arduino\libraries\DHT-sensor-library-master"

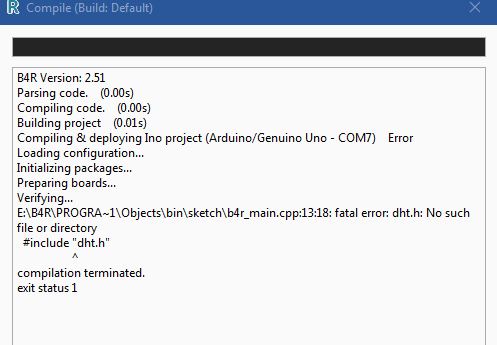

    Then I try to compile to compile the below code. But I am facing error :

    Code:
    #Region Project Attributes

    #AutoFlushLogs: True

    #CheckArrayBounds: True

    #StackBufferSize: 300
    #End Region

    Sub Process_Globals

    Public Serial1 As Serial

    Public Humid,temperature As Float

    Private pin10 As Pin

    Private timer1 As Timer
    End Sub

    Private Sub AppStart
        Serial1.Initialize(
    115200)

    Log("AppStart")
        pin10.Initialize(
    10,pin10.MODE_OUTPUT)
        timer1.Initialize(
    "timer1_Tick",1000)
        timer1.Enabled=
    True
        RunNative(
    "setup",Null)
    End Sub

    Private Sub timer1_tick()
        RunNative(
    "read"Null)

    Log("Humidity :",Humid)

    End Sub


    #if C
    #include "dht.h"
    DHT dht
    void setup(B4R::Object* o){
    dht.begin();
    }
    void read (B4R::Object* o) {
       b4r_main::_humid = dht.readHumidity();
       b4r_main::_temperature =dht.readTemperature();
    }
    #End if


    Attached Files:

  2. pokhraj_d

    pokhraj_d Member

    I have changed some codes and now the different error is coming up.
    Please find below my new sketch....
    Code:
    #Region Project Attributes

    #AutoFlushLogs: True

    #CheckArrayBounds: True

    #StackBufferSize: 300
    #End Region

    Sub Process_Globals

    Public Serial1 As Serial

    Public Humid,temperature As Float

    Private pin10 As Pin

    Private timer1 As Timer
    End Sub

    Private Sub AppStart
        Serial1.Initialize(
    115200)

    Log("AppStart")
        pin10.Initialize(
    10,pin10.MODE_OUTPUT)
        timer1.Initialize(
    "timer1_Tick",1000)
        timer1.Enabled=
    True
        RunNative(
    "setup",Null)
    End Sub

    Private Sub timer1_tick()
        RunNative(
    "read"Null)

    Log("Humidity :",Humid)

    End Sub


    #if C
    #include "DHT.h"
    #define DHTTYPE DHT11
    DHT dht;
    void setup(B4R::Object* o){
    dht.begin();
    }
    void read (B4R::Object* o) {
       b4r_main::_humid = dht.readHumidity();
       b4r_main::_temperature =dht.readTemperature();
    }
    #End if
    Please advice on this...

    Thanks-
    Pokhraj Das


    Attached Files:

  3. pokhraj_d

    pokhraj_d Member

    Hello,
    Please find the Library file from Arduino libraries...


    Thanks-
    Pokhraj Das


    Attached Files:

  4. rbghongade

    rbghongade Active Member Licensed User

    DHT pin connection is not passed to inline code.

  5. pokhraj_d

    pokhraj_d Member

    Hello All,
    The issue has been fixed and Sketch is running fine. But the confusion is whether the Temperature is at F or C that I am not sure.
    As per the manual the default is at F. Now how can I change it to C [Celcius].

    Please advice.

    Thanks-
    Pokhraj Das

  6. pokhraj_d

    pokhraj_d Member

    Yes... @rbghongade .. This is absolutely correct. I have fixed the issue. Now How can I change the temperature value from F to C [Celcius].

    Please advice.

    Thanks,
    Pokhraj Das

  7. pokhraj_d

    pokhraj_d Member

    My Modified code that is running...

    Code:
    #Region Project Attributes

    #AutoFlushLogs: True

    #CheckArrayBounds: True

    #StackBufferSize: 300
    #End Region

    Sub Process_Globals

    Public Serial1 As Serial

    Public Humid,temperature As Float

    Private pin10 As Pin

    Private timer1 As Timer
    End Sub

    Private Sub AppStart
        Serial1.Initialize(
    115200)

    Log("AppStart")
        pin10.Initialize(
    10,pin10.MODE_OUTPUT)
        timer1.Initialize(
    "timer1_Tick",1000)
        timer1.Enabled=
    True
        RunNative(
    "setup",Null)
    End Sub

    Private Sub timer1_tick()
        RunNative(
    "read"Null)

    Log("Humidity :",Humid)

    If Humid > 70 Then

    Log("Maximum Humidity")

    End If

    Log("Temperature :", temperature)

    End Sub


    #if C
    #include "DHT.h"
    #define DHTPIN 10
    #define DHTTYPE DHT11
    DHT dht(DHTPIN, DHTTYPE);
    void setup(B4R::Object* o){
    dht.begin();
    }
    void read (B4R::Object* o) {
       b4r_main::_humid = dht.readHumidity();
       b4r_main::_temperature =dht.readTemperature();
    }
    #End if
    Thanks-
    Pokhraj Das

  8. mark35at

    mark35at Well-Known Member Licensed User

    Do you have the DHT library? See Here.

  9. pokhraj_d

    pokhraj_d Member

    @mark35at .... NO... Iam not using the DHT lib you mentioned.... I m using adafruit DHT11 liab.... I already attached the lib at my previous post... just wanted to convert the temp from F to C (celcius). How to convert that...
    Please advice

    Thanks
    Pokhraj Das

  10. mark35at

    mark35at Well-Known Member Licensed User

    Looking at the code in DHTtester.ino, as in your post:

    Code:
    Line 41 temperature =dht.readTemperature()
    gives Celcius

    Code:
    Line 43 temperature =dht.readTemperature(TRUE)
    returns Fahrenheit.
