B4R Question Install 4.0 now cannot find timelib and other errors

Robert Valentino

Robert Valentino

Well-Known Member
Licensed User
Longtime User
after upgrading to version 4.0 I am getting error about not finding timelib
Code: Copy
cli: compile -b esp8266:esp8266:nodemcuv2 D:\B4R\LEDStar\Objects\src\src.ino -v  --board-options led=2,baud=115200,xtal=80,eesz=4M2M,dbg=Disabled,lvl=None____,ip=lm2f,vt=flash,exception=legacy,wipe=none,ssl=all
Error initializing instance: Error loading hardware platform: discovery builtin:serial-discovery not found
Error initializing instance: Error loading hardware platform: discovery builtin:mdns-discovery not found
Error initializing instance: Error loading hardware platform: discovery builtin:serial-discovery not found
Error initializing instance: Error loading hardware platform: discovery builtin:mdns-discovery not found
Error initializing instance: Error loading hardware platform: discovery builtin:serial-discovery not found
Error initializing instance: Error loading hardware platform: discovery builtin:mdns-discovery not found
FQBN: esp8266:esp8266:nodemcuv2
Using board 'nodemcuv2' from platform in folder: C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3
Using core 'esp8266' from platform in folder: C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3
Detecting libraries used...
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\2.5.0-4-b40a506/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\D865EF9F6AD7F6C9771A49D41AD67E5D/core -c -w -Os -g -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++11 -ffunction-sections -fdata-sections -fno-exceptions -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU" -DLED_BUILTIN=2 -DFLASHMODE_DIO -DESP8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\variants\nodemcu C:\Users\Robert Valentino\AppData\Local\arduino\sketches\D865EF9F6AD7F6C9771A49D41AD67E5D\sketch\src.ino.cpp -o nul
Alternatives for ESP8266WiFi.h: [[email protected]]
ResolveLibrary(ESP8266WiFi.h)
  -> candidates: [[email protected]]
In file included from D:\B4R\LEDStar\Objects\src\B4RDefines.h:27:0,
                 from D:\B4R\LEDStar\Objects\src\src.ino:1:
D:\B4R\LEDStar\Objects\src\rESP8266TimeTools.h:3:21: fatal error: TimeLib.h: No such file or directory
 #include <TimeLib.h>
                     ^
compilation terminated.
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\2.5.0-4-b40a506/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\D865EF9F6AD7F6C9771A49D41AD67E5D/core -c -w -Os -g -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++11 -ffunction-sections -fdata-sections -fno-exceptions -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU" -DLED_BUILTIN=2 -DFLASHMODE_DIO -DESP8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\variants\nodemcu -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\libraries\ESP8266WiFi\src C:\Users\Robert Valentino\AppData\Local\arduino\sketches\D865EF9F6AD7F6C9771A49D41AD67E5D\sketch\src.ino.cpp -o nul
Alternatives for TimeLib.h: []
ResolveLibrary(TimeLib.h)
  -> candidates: []
[92mUsed library[0m [92mVersion[0m [90mPath[0m
Error during build: exit status 1
[93mESP8266WiFi[0m  1.0     [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\libraries\ESP8266WiFi[0m
[92mUsed platform[0m   [92mVersion[0m [90mPath[0m
[93mesp8266:esp8266[0m 2.6.3   [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3[0m

Sort by date Sort by votes
Robert Valentino said:
after upgrading to version 4.0 I am getting error about not finding timelib
Code: Copy
cli: compile -b esp8266:esp8266:nodemcuv2 D:\B4R\LEDStar\Objects\src\src.ino -v  --board-options led=2,baud=115200,xtal=80,eesz=4M2M,dbg=Disabled,lvl=None____,ip=lm2f,vt=flash,exception=legacy,wipe=none,ssl=all
Error initializing instance: Error loading hardware platform: discovery builtin:serial-discovery not found
Error initializing instance: Error loading hardware platform: discovery builtin:mdns-discovery not found
Error initializing instance: Error loading hardware platform: discovery builtin:serial-discovery not found
Error initializing instance: Error loading hardware platform: discovery builtin:mdns-discovery not found
Error initializing instance: Error loading hardware platform: discovery builtin:serial-discovery not found
Error initializing instance: Error loading hardware platform: discovery builtin:mdns-discovery not found
FQBN: esp8266:esp8266:nodemcuv2
Using board 'nodemcuv2' from platform in folder: C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3
Using core 'esp8266' from platform in folder: C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3
Detecting libraries used...
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\2.5.0-4-b40a506/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\D865EF9F6AD7F6C9771A49D41AD67E5D/core -c -w -Os -g -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++11 -ffunction-sections -fdata-sections -fno-exceptions -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU" -DLED_BUILTIN=2 -DFLASHMODE_DIO -DESP8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\variants\nodemcu C:\Users\Robert Valentino\AppData\Local\arduino\sketches\D865EF9F6AD7F6C9771A49D41AD67E5D\sketch\src.ino.cpp -o nul
Alternatives for ESP8266WiFi.h: [[email protected]]
ResolveLibrary(ESP8266WiFi.h)
  -> candidates: [[email protected]]
In file included from D:\B4R\LEDStar\Objects\src\B4RDefines.h:27:0,
                 from D:\B4R\LEDStar\Objects\src\src.ino:1:
D:\B4R\LEDStar\Objects\src\rESP8266TimeTools.h:3:21: fatal error: TimeLib.h: No such file or directory
 #include <TimeLib.h>
                     ^
compilation terminated.
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\2.5.0-4-b40a506/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\D865EF9F6AD7F6C9771A49D41AD67E5D/core -c -w -Os -g -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++11 -ffunction-sections -fdata-sections -fno-exceptions -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU" -DLED_BUILTIN=2 -DFLASHMODE_DIO -DESP8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\variants\nodemcu -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\libraries\ESP8266WiFi\src C:\Users\Robert Valentino\AppData\Local\arduino\sketches\D865EF9F6AD7F6C9771A49D41AD67E5D\sketch\src.ino.cpp -o nul
Alternatives for TimeLib.h: []
ResolveLibrary(TimeLib.h)
  -> candidates: []
[92mUsed library[0m [92mVersion[0m [90mPath[0m
Error during build: exit status 1
[93mESP8266WiFi[0m  1.0     [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3\libraries\ESP8266WiFi[0m
[92mUsed platform[0m   [92mVersion[0m [90mPath[0m
[93mesp8266:esp8266[0m 2.6.3   [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\2.6.3[0m
Click to expand...

Besides @Erel solution have also a look at this (it might be useful to read the thread from the beginning) :

[SOLVED] <LiquidCrystal.h> not found - How to change libraries folder in arduino-cli

Good evening everyone, I kept postponing this but now that I have to correct something and I cannot do it, we have reached the node... What happens is that I had Arduino 1.8.19 installed in my computer and I had created an app that used Liquid Crystal Display. I completely removed the Arduino...
www.b4x.com www.b4x.com

Upvote 0
I already had the dependencies Erel recommended and tried what was recommended in the LiquidCrystal posting.

No change. So I went back to an old version of B4R I had v3.90 and the older version of Arduino I was using and the whole app compiles without problem.

In the old Arduino I was using the portable mode. The new version wants to compile using my user name which is "Robert Valentino" I wonder if the space between Robert and Valentino is causing the problem.

v3.90 is fine for what I am doing. Wouldn't mind moving to 4.0

Thanks for trying to help

Upvote 0
If you choose to move to the new Arduino/B4R you might also consider changing the sketch folder in the Arduino IDE to a path without spaces and unicode characters and place the same path in the arduino-cli config as described above. Also do not forget to copy all the incredients of the previous sketchbook folder to the new one.

Last edited:
Upvote 0
Hi,

I have just successfully ran the NTP library example in my setup of B4R 4.0.0 and Arduino 2.3.4.

The procedure is the following:
1) For better results do a fresh installation of Arduino IDE and B4R (select a brand new folder for the sketchbook in Arduino > File > Preferences and add the same folder to the arduino-cli configuration as described above).
2) Go to @Erel's posted link and download in the fresh installation the dependencies by clicking in each of them > Download as zip > Go to Arduino > Sketch > Include Library > Add .ZIP library > Select each of the two downloaded ZIP > It responds with "Libary installed"
3) Obviously you have the B4R library in Additional Libraries so you must be already in a position to run it.

Optional step:
4) Check the structure of the folder for libraries in the new arduino sketchbook folder and copy your previous libraries of Arduino 1.8.19 to this new folder.


It worked perfectly for me.

P.S. I have the 2.7.4 version of ESP8266 boards installed.

Last edited:
Upvote 0
I will try if I can.

Doing a fresh install of the Arduino IDE it starts and just hangs never get to see a menu

Just a blinking infinity sign with a minus / plus sign for eyes

Upvote 0
Getting better and worse.

Finally got Arduino IDE installed and up and working

But now I cannot locate a proper board

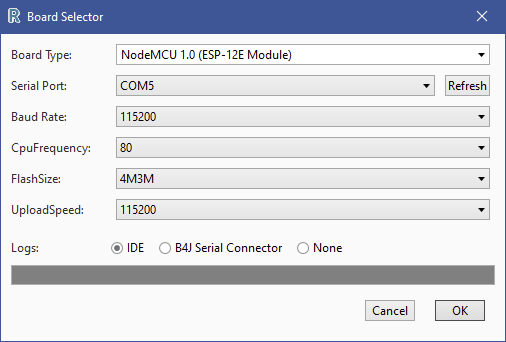

In B4R 3.90 I used this for my ESP-12E


I have installed a lot of different board types hoping to fine it in one but do not see it

Upvote 0
Got the proper board installed.

Still compiling problem. Hard to believe this all works perfectly using B4R v3.9

Code: Copy
cli: compile -b esp8266:esp8266:nodemcuv2 D:\B4R\ChristmasTree\Objects\src\src.ino -v  --board-options led=2,baud=115200,xtal=80,eesz=4M2M,dbg=Disabled,lvl=None____,ip=lm2f,vt=flash,exception=disabled,stacksmash=disabled,wipe=none,ssl=all,mmu=3232,non32xfer=fast
FQBN: esp8266:esp8266:nodemcuv2
Using board 'nodemcuv2' from platform in folder: C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2
Using core 'esp8266' from platform in folder: C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2
"C:\\Users\\Robert Valentino\\AppData\\Local\\Arduino15\\packages\\esp8266\\tools\\python3\\3.7.2-post1/python3" -I "C:\\Users\\Robert Valentino\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.1.2/tools/mkbuildoptglobals.py" "C:\\Program Files\\Arduino CLI" 10607 "C:\\Users\\Robert Valentino\\AppData\\Local\\arduino\\sketches\\CECFAB8CC46408107A19C6404FD95F9C" "C:\\Users\\Robert Valentino\\AppData\\Local\\arduino\\sketches\\CECFAB8CC46408107A19C6404FD95F9C/core/build.opt" "D:\\B4R\\ChristmasTree\\Objects\\src/src.ino.globals.h" "C:\\Users\\Robert Valentino\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.1.2\\cores\\esp8266/CommonHFile.h"
default_encoding:       cp1252
Assume aggressive 'core.a' caching enabled.
Clean build, created dir C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C\core
Note: optional global include file 'D:\B4R\ChristmasTree\Objects\src\src.ino.globals.h' does not exist.
  Read more at https://arduino-esp8266.readthedocs.io/en/latest/faq/a06-global-build-options.html
Detecting libraries used...
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.1.0-gcc10.3-e5f9fec/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE -DESP8266 @C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core/build.opt -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core -c @C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/warnings/none-cppflags -Os -g -free -fipa-pta -Werror=return-type -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU_ESP12E -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU_ESP12E" -DARDUINO_BOARD_ID="nodemcuv2" -DLED_BUILTIN=2 -DFLASHMODE_DIO -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\variants\nodemcu C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C\sketch\src.ino.cpp -o nul
Alternatives for ESP8266httpUpdate.h: [[email protected]]
ResolveLibrary(ESP8266httpUpdate.h)
  -> candidates: [[email protected]]
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.1.0-gcc10.3-e5f9fec/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE -DESP8266 @C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core/build.opt -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core -c @C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/warnings/none-cppflags -Os -g -free -fipa-pta -Werror=return-type -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU_ESP12E -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU_ESP12E" -DARDUINO_BOARD_ID="nodemcuv2" -DLED_BUILTIN=2 -DFLASHMODE_DIO -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\variants\nodemcu -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266httpUpdate\src C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C\sketch\src.ino.cpp -o nul
Alternatives for ESP8266WiFi.h: [[email protected]]
ResolveLibrary(ESP8266WiFi.h)
  -> candidates: [[email protected]]
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.1.0-gcc10.3-e5f9fec/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE -DESP8266 @C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core/build.opt -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core -c @C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/warnings/none-cppflags -Os -g -free -fipa-pta -Werror=return-type -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU_ESP12E -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU_ESP12E" -DARDUINO_BOARD_ID="nodemcuv2" -DLED_BUILTIN=2 -DFLASHMODE_DIO -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\variants\nodemcu -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266httpUpdate\src -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266WiFi\src C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C\sketch\src.ino.cpp -o nul
Alternatives for ESP8266HTTPClient.h: [[email protected]]
ResolveLibrary(ESP8266HTTPClient.h)
  -> candidates: [[email protected]]
In file included from D:\B4R\ChristmasTree\Objects\src\B4RDefines.h:29,
                 from D:\B4R\ChristmasTree\Objects\src\src.ino:1:
D:\B4R\ChristmasTree\Objects\src\rESP8266TimeTools.h:3:10: fatal error: TimeLib.h: No such file or directory
    3 | #include <TimeLib.h>
      |          ^~~~~~~~~~~
compilation terminated.
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.1.0-gcc10.3-e5f9fec/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE -DESP8266 @C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core/build.opt -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core -c @C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/warnings/none-cppflags -Os -g -free -fipa-pta -Werror=return-type -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU_ESP12E -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU_ESP12E" -DARDUINO_BOARD_ID="nodemcuv2" -DLED_BUILTIN=2 -DFLASHMODE_DIO -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\variants\nodemcu -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266httpUpdate\src -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266WiFi\src -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266HTTPClient\src C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C\sketch\src.ino.cpp -o nul
Alternatives for TimeLib.h: []
ResolveLibrary(TimeLib.h)
  -> candidates: []
[92mUsed library[0m      [92mVersion[0m [90mPath[0m
Error during build: exit status 1
[93mESP8266httpUpdate[0m 1.3     [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266httpUpdate[0m
[93mESP8266WiFi[0m       1.0     [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266WiFi[0m
[93mESP8266HTTPClient[0m 1.2     [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266HTTPClient[0m
[92mUsed platform[0m   [92mVersion[0m [90mPath[0m
[93mesp8266:esp8266[0m 3.1.2   [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2[0m

Upvote 0
Robert Valentino said:
Got the proper board installed.

Still compiling problem. Hard to believe this all works perfectly using B4R v3.9

Code: Copy
cli: compile -b esp8266:esp8266:nodemcuv2 D:\B4R\ChristmasTree\Objects\src\src.ino -v  --board-options led=2,baud=115200,xtal=80,eesz=4M2M,dbg=Disabled,lvl=None____,ip=lm2f,vt=flash,exception=disabled,stacksmash=disabled,wipe=none,ssl=all,mmu=3232,non32xfer=fast
FQBN: esp8266:esp8266:nodemcuv2
Using board 'nodemcuv2' from platform in folder: C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2
Using core 'esp8266' from platform in folder: C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2
"C:\\Users\\Robert Valentino\\AppData\\Local\\Arduino15\\packages\\esp8266\\tools\\python3\\3.7.2-post1/python3" -I "C:\\Users\\Robert Valentino\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.1.2/tools/mkbuildoptglobals.py" "C:\\Program Files\\Arduino CLI" 10607 "C:\\Users\\Robert Valentino\\AppData\\Local\\arduino\\sketches\\CECFAB8CC46408107A19C6404FD95F9C" "C:\\Users\\Robert Valentino\\AppData\\Local\\arduino\\sketches\\CECFAB8CC46408107A19C6404FD95F9C/core/build.opt" "D:\\B4R\\ChristmasTree\\Objects\\src/src.ino.globals.h" "C:\\Users\\Robert Valentino\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.1.2\\cores\\esp8266/CommonHFile.h"
default_encoding:       cp1252
Assume aggressive 'core.a' caching enabled.
Clean build, created dir C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C\core
Note: optional global include file 'D:\B4R\ChristmasTree\Objects\src\src.ino.globals.h' does not exist.
  Read more at https://arduino-esp8266.readthedocs.io/en/latest/faq/a06-global-build-options.html
Detecting libraries used...
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.1.0-gcc10.3-e5f9fec/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE -DESP8266 @C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core/build.opt -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core -c @C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/warnings/none-cppflags -Os -g -free -fipa-pta -Werror=return-type -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU_ESP12E -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU_ESP12E" -DARDUINO_BOARD_ID="nodemcuv2" -DLED_BUILTIN=2 -DFLASHMODE_DIO -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\variants\nodemcu C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C\sketch\src.ino.cpp -o nul
Alternatives for ESP8266httpUpdate.h: [[email protected]]
ResolveLibrary(ESP8266httpUpdate.h)
  -> candidates: [[email protected]]
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.1.0-gcc10.3-e5f9fec/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE -DESP8266 @C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core/build.opt -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core -c @C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/warnings/none-cppflags -Os -g -free -fipa-pta -Werror=return-type -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU_ESP12E -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU_ESP12E" -DARDUINO_BOARD_ID="nodemcuv2" -DLED_BUILTIN=2 -DFLASHMODE_DIO -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\variants\nodemcu -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266httpUpdate\src C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C\sketch\src.ino.cpp -o nul
Alternatives for ESP8266WiFi.h: [[email protected]]
ResolveLibrary(ESP8266WiFi.h)
  -> candidates: [[email protected]]
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.1.0-gcc10.3-e5f9fec/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE -DESP8266 @C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core/build.opt -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core -c @C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/warnings/none-cppflags -Os -g -free -fipa-pta -Werror=return-type -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU_ESP12E -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU_ESP12E" -DARDUINO_BOARD_ID="nodemcuv2" -DLED_BUILTIN=2 -DFLASHMODE_DIO -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\variants\nodemcu -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266httpUpdate\src -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266WiFi\src C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C\sketch\src.ino.cpp -o nul
Alternatives for ESP8266HTTPClient.h: [[email protected]]
ResolveLibrary(ESP8266HTTPClient.h)
  -> candidates: [[email protected]]
In file included from D:\B4R\ChristmasTree\Objects\src\B4RDefines.h:29,
                 from D:\B4R\ChristmasTree\Objects\src\src.ino:1:
D:\B4R\ChristmasTree\Objects\src\rESP8266TimeTools.h:3:10: fatal error: TimeLib.h: No such file or directory
    3 | #include <TimeLib.h>
      |          ^~~~~~~~~~~
compilation terminated.
C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.1.0-gcc10.3-e5f9fec/bin/xtensa-lx106-elf-g++ -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE -DESP8266 @C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core/build.opt -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/lwip2/include -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/sdk/libc/xtensa-lx106-elf/include -IC:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C/core -c @C:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2/tools/warnings/none-cppflags -Os -g -free -fipa-pta -Werror=return-type -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10607 -DARDUINO_ESP8266_NODEMCU_ESP12E -DARDUINO_ARCH_ESP8266 -DARDUINO_BOARD="ESP8266_NODEMCU_ESP12E" -DARDUINO_BOARD_ID="nodemcuv2" -DLED_BUILTIN=2 -DFLASHMODE_DIO -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\cores\esp8266 -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\variants\nodemcu -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266httpUpdate\src -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266WiFi\src -IC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266HTTPClient\src C:\Users\Robert Valentino\AppData\Local\arduino\sketches\CECFAB8CC46408107A19C6404FD95F9C\sketch\src.ino.cpp -o nul
Alternatives for TimeLib.h: []
ResolveLibrary(TimeLib.h)
  -> candidates: []
[92mUsed library[0m      [92mVersion[0m [90mPath[0m
Error during build: exit status 1
[93mESP8266httpUpdate[0m 1.3     [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266httpUpdate[0m
[93mESP8266WiFi[0m       1.0     [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266WiFi[0m
[93mESP8266HTTPClient[0m 1.2     [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2\libraries\ESP8266HTTPClient[0m
[92mUsed platform[0m   [92mVersion[0m [90mPath[0m
[93mesp8266:esp8266[0m 3.1.2   [90mC:\Users\Robert Valentino\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.1.2[0m
Click to expand...

Try reverting to ESP8266 2.7.4...

I see also that you have your sketches folder in:
C:\Users\Robert Valentino\AppData\Local\arduino\sketches

Get it out of there and put in a folder like f.e. C:\B4X\ArduinoSketches (no spaces no unicode characters)

A third thing that could be happening is with an OneDrive problem - make all files available offline.

When you will create the above folder, and set it in Arduino>File>Preferences and arduino-cli configuration as described above, you must reinstall in Arduino IDE as stated in thread #6 all the necessary Arduino libraries because the libraries in the new Arduino IDE are located in the sketches folder.

Last edited:
Upvote 0
