Android Question JavaObject - Seem to i don't understand much here

[Culjko]

In attach SDK for Ciontek C10 android!

Dim jo As JavaObject = Me
jo.InitializeContext
Dim jo1 As JavaObject = jo.InitializeNewInstance("vpos.apipackage.PosApiHelper", Null) 'This work normaly

*Solution for printing UTF-8 on each printer without converting fonts, work faster then SDK converting
Dim newFont As Typeface
Dim textPrint As String = "Any text"
Dim stingheight As Int = 19

Dim bmp As Bitmap
bmp.InitializeMutable(360,stingheight+5)
Dim DravPage As Canvas
Dim fontsize As Int = 10


bmp.InitializeMutable(360,stingheight+5)
DravPage.Initialize2(bmp)
DravPage.DrawColor(Colors.White)
DravPage.DrawText(textPrint,0.1,stingheight+0.5,Typeface.MONOSPACE,fontsize,Colors.RGB(0,0,0),"LEFT")
Dim bitmap As B4XBitmap = DravPage.Bitmap

Log(jo1.RunMethod("PrintBmp", Array(bitmap)))
When i try like this app crash.
How to use this DSK?



[Culjko]

library wetranswer

WeTransfer | Send Large Files Fast

The simple, quick and secure way to send your files around the world without an account. Share your files, photos, and videos today for free.

we.tl



[Erel]

1. You posted it in B4R libraries forum. I moved it to Android questions.
2. Please use [code]code here...[/code] tags when posting code.
3. Post logs as text.



[Culjko]

Logger connected to: Ciontek CS10
--------- beginning of main
Copying updated assets files (2)
*** Service (starter) Create ***
--------- beginning of system
** Service (starter) Start **
** Activity (main) Create (first time) **
bluetoothadapter
CS10
Call B4XPages.GetManager.LogEvents = True to enable logging B4XPages events.
** Activity (main) Resume **
/storage/emulated/0/Android/data/com.ciontek/files
java.lang.UnsatisfiedLinkError: dlopen failed: /data/app/com.ciontek-2/lib/arm/libAndroid.so: has text relocations
at java.lang.Runtime.loadLibrary0(Runtime.java:977)
at java.lang.System.loadLibrary(System.java:1530)
at vpos.apipackage.Print.<clinit>(Print.java:13)
at java.lang.Class.classForName(Native Method)
at java.lang.Class.forName(Class.java:400)
at java.lang.Class.forName(Class.java:326)
at anywheresoftware.b4j.object.JavaObject.getCorrectClassName(JavaObject.java:274)
at anywheresoftware.b4j.object.JavaObject.InitializeNewInstance(JavaObject.java:84)
at com.ciontek.b4xmainpage._button1_click(b4xmainpage.java:142)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:348)
at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
at anywheresoftware.b4a.BA.raiseEvent(BA.java:201)
at anywheresoftware.b4a.objects.ViewWrapper$1.onClick(ViewWrapper.java:80)
at android.view.View.performClick(View.java:5675)
at android.view.View$PerformClick.run(View.java:22641)
at android.os.Handler.handleCallback(Handler.java:836)
at android.os.Handler.dispatchMessage(Handler.java:103)
at android.os.Looper.loop(Looper.java:203)
at android.app.ActivityThread.main(ActivityThread.java:6251)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:1063)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:924)
** Activity (main) Pause event (activity is not paused). **
** Service (starter) Start **
** Activity (main) Create (first time) **
bluetoothadapter
CS10
Call B4XPages.GetManager.LogEvents = True to enable logging B4XPages events.
** Activity (main) Resume **
/storage/emulated/0/Android/data/com.ciontek/files
java.lang.UnsatisfiedLinkError: dlopen failed: /data/app/com.ciontek-2/lib/arm/libAndroid.so: has text relocations
at java.lang.Runtime.loadLibrary0(Runtime.java:977)
at java.lang.System.loadLibrary(System.java:1530)
at vpos.apipackage.Print.<clinit>(Print.java:13)
at java.lang.Class.classForName(Native Method)
at java.lang.Class.forName(Class.java:400)
at java.lang.Class.forName(Class.java:326)
at anywheresoftware.b4j.object.JavaObject.getCorrectClassName(JavaObject.java:274)
at anywheresoftware.b4j.object.JavaObject.InitializeNewInstance(JavaObject.java:84)
at com.ciontek.b4xmainpage._button1_click(b4xmainpage.java:142)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:348)
at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
at anywheresoftware.b4a.BA.raiseEvent(BA.java:201)
at anywheresoftware.b4a.objects.ViewWrapper$1.onClick(ViewWrapper.java:80)
at android.view.View.performClick(View.java:5675)
at android.view.View$PerformClick.run(View.java:22641)
at android.os.Handler.handleCallback(Handler.java:836)
at android.os.Handler.dispatchMessage(Handler.java:103)
at android.os.Looper.loop(Looper.java:203)
at android.app.ActivityThread.main(ActivityThread.java:6251)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:1063)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:924)
*** Service (starter) Create ***
** Service (starter) Start **
** Activity (main) Create (first time) **
bluetoothadapter
CS10
Call B4XPages.GetManager.LogEvents = True to enable logging B4XPages events.
** Activity (main) Resume **
/storage/emulated/0/Android/data/com.ciontek/files
java.lang.UnsatisfiedLinkError: dlopen failed: /data/app/com.ciontek-2/lib/arm/libAndroid.so: has text relocations
at java.lang.Runtime.loadLibrary0(Runtime.java:977)
at java.lang.System.loadLibrary(System.java:1530)
at vpos.apipackage.Print.<clinit>(Print.java:13)
at java.lang.Class.classForName(Native Method)
at java.lang.Class.forName(Class.java:400)
at java.lang.Class.forName(Class.java:326)
at anywheresoftware.b4j.object.JavaObject.getCorrectClassName(JavaObject.java:274)
at anywheresoftware.b4j.object.JavaObject.InitializeNewInstance(JavaObject.java:84)
at com.ciontek.b4xmainpage._button1_click(b4xmainpage.java:142)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:348)
at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
at anywheresoftware.b4a.BA.raiseEvent(BA.java:201)
at anywheresoftware.b4a.objects.ViewWrapper$1.onClick(ViewWrapper.java:80)
at android.view.View.performClick(View.java:5675)
at android.view.View$PerformClick.run(View.java:22641)
at android.os.Handler.handleCallback(Handler.java:836)
at android.os.Handler.dispatchMessage(Handler.java:103)
at android.os.Looper.loop(Looper.java:203)
at android.app.ActivityThread.main(ActivityThread.java:6251)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:1063)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:924)



[Culjko]

Thank you



[Culjko]

I am new, I start to programming in B4A from oct 27 2023



[Culjko]

I find this in arr

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="vpos.apipackage"
android:versionCode="1"
android:versionName="1.0" >

<uses-sdk
android:minSdkVersion="16"
android:targetSdkVersion="25" />

<application
android:allowBackup="true"
android:label="@string/app_name"
android:supportsRtl="true" >
</application>

</manifest>
How to add in manifest



[Culjko]

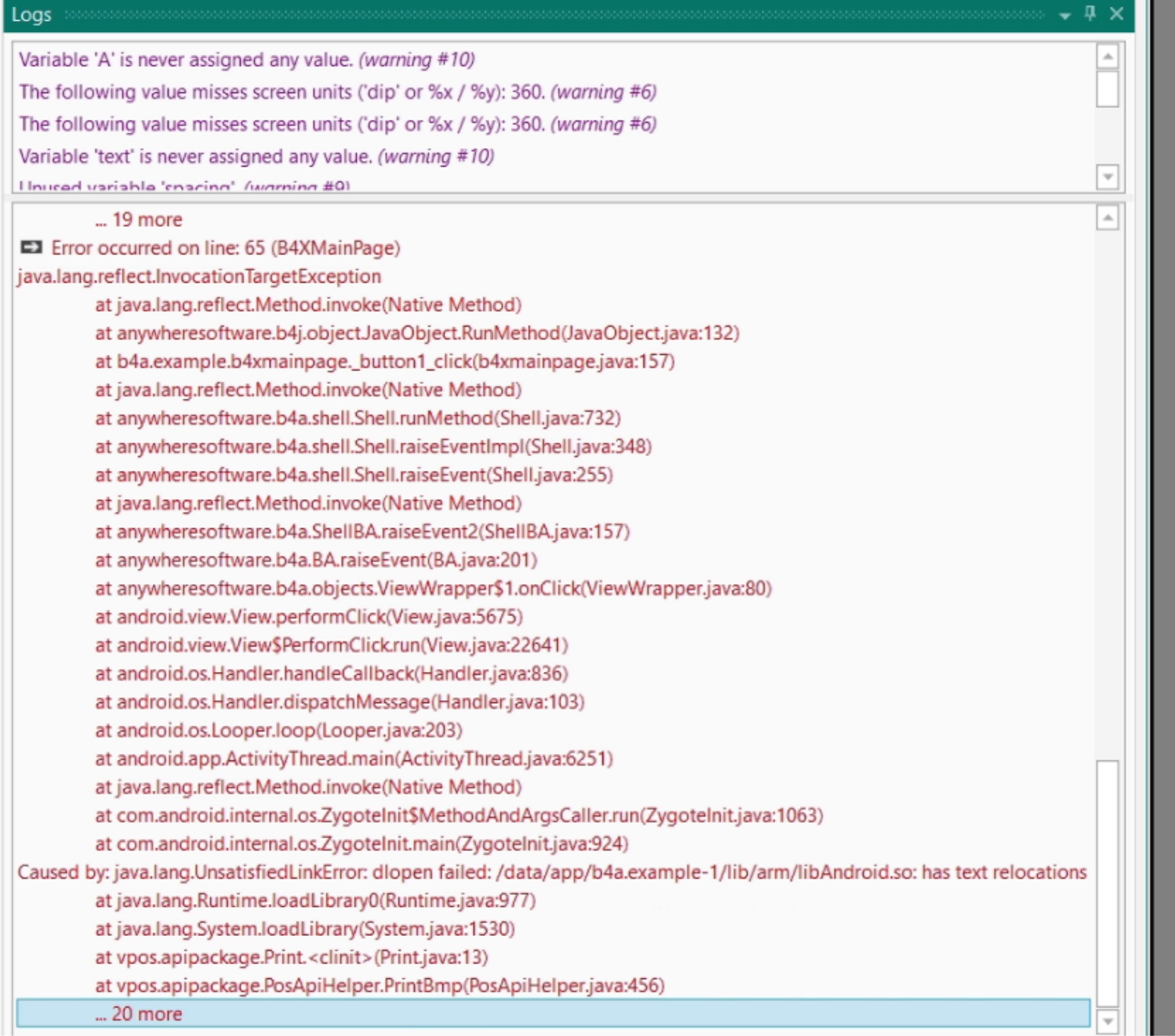

I think I find what is problem, I get this message
java.lang.UnsatisfiedLinkError: dlopen failed: /data/app/com.ciontek.ePos-2/lib/arm/libAndroid.so: has text relocations
but when i open apk that library is not in that folder
Ciontek_RAPID_DEBUG.apk\llib\armeabi\libAndroid.so
is that is problem how to place librarly on right place?



[Erel]

Based on the error message, it does find the so file but the so file needs to be updated.

Try to set the targetSdkVersion to 22 and see if it makes any difference.



[Culjko]

It looks like this will work like this, my next question is related to variables how to send them to methods?


Dim vposHelper As JavaObject
Dim IconsFont As B4XFont
Log(vposHelper.InitializeStatic("vpos.apipackage.PosApiHelper")) ' log = (Class) class vpos.apipackage.PosApiHelper
Log(vposHelper.RunMethod("getInstance",Null)) ' log = vpos.apipackage.PosApiHelper@4360004


Log(vposHelper.RunMethod("PrintSetVoltage", Array(75)))

'Dim initPtinter As JavaObject = vposHelper.InitializeNewInstance("java.lang.PrintInitException" ,Array(2,24,24,0x33))
Log(vposHelper.RunMethod("PrintInit", Null)) ' log = 0
Log(vposHelper.RunMethod("PrintCheckStatus", Null)) ' log = 0

Dim textstr As String = "This is single line"
Dim stingheight As Int = 19
Dim bmp As Bitmap

bmp.InitializeMutable(360,stingheight+5)
Dim DravPage As Canvas
Dim fontsize As Int = 10
bmp.InitializeMutable(360,stingheight+5)
DravPage.Initialize2(bmp)
DravPage.DrawColor(Colors.White)
DravPage.DrawText(textstr,0.1,stingheight+0.5,Typeface.MONOSPACE,fontsize,Colors.RGB(0,0,0),"LEFT")
Dim SingleLine As Bitmap = DravPage.Bitmap
vposHelper.RunMethod("PrintBmp", Array As Object(SingleLine)) ' log = java.lang.IllegalArgumentException:
' Expected receiver of type vpos.apipackage.PosApiHelper,
' but got java.lang.Class<vpos.apipackage.PosApiHelper>
'Log(vposHelper.RunMethod("PrintStr", Array("Proba\n")))
'Log(vposHelper.RunMethod("PrintStart",Null))



[Culjko]

Manufactur reference:

PrintInit:
Function prototype public int PrintInit(int gray, int fontHeight, int fontWidth, int fontZoom)

Parameter description Gray: the grad density. 1-high density, 2-medium,3-low
Fontheight: font height. 16 or 24
Fontwidth: font width. 16 or 24
Fontzoom: bolt font, 0x00 or 0x33

and
PrintBmp:
Function prototype public int PrintBmp(Bitmap bitmap)
Parameter description bitmap：BMP photo data



[Culjko]

Thanks for helping



[Culjko]

(Class) class vpos.apipackage.PosApiHelper
vpos.apipackage.PosApiHelper@4360004
0
0
0
0
Error occurred on line: 131 (B4XMainPage)
java.lang.IllegalArgumentException: Expected receiver of type vpos.apipackage.PosApiHelper, but got java.lang.Class<vpos.apipackage.PosApiHelper>
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4j.object.JavaObject.RunMethod(JavaObject.java:132)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.shell.Shell.runVoidMethod(Shell.java:777)
at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:354)
at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
at anywheresoftware.b4a.BA.raiseEvent(BA.java:201)
at anywheresoftware.b4a.objects.ViewWrapper$1.onClick(ViewWrapper.java:80)
at android.view.View.performClick(View.java:5675)
at android.view.View$PerformClick.run(View.java:22641)
at android.os.Handler.handleCallback(Handler.java:836)
at android.os.Handler.dispatchMessage(Handler.java:103)
at android.os.Looper.loop(Looper.java:203)
at android.app.ActivityThread.main(ActivityThread.java:6251)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:1063)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:924)



[Erel]

Please use [code]code here...[/code] tags when posting code.



[Culjko]

1
init
successfully
successfully

In the meantime, I started with simpler functions, such as sending a string to the print, but the program remains unresponsive for a while and then reports an error -1002 receive timeout

Dim printer As ciontekPrinter
printer.Initialize(Me,"printer")
printer.PrintString("- - - - - - - - - - - - - - - - - - - - - - - -\n")
printer.PrintStart

user manual reference:
public int PrintInit(int gray, int fontHeight, int fontWidth, int fontZoom)
public int PrintStr(String str)
public int PrintStart()



[Culjko]

Now i find aboud

next time i will use it
