B4R Question Key was not present

[Yuddi Aja]

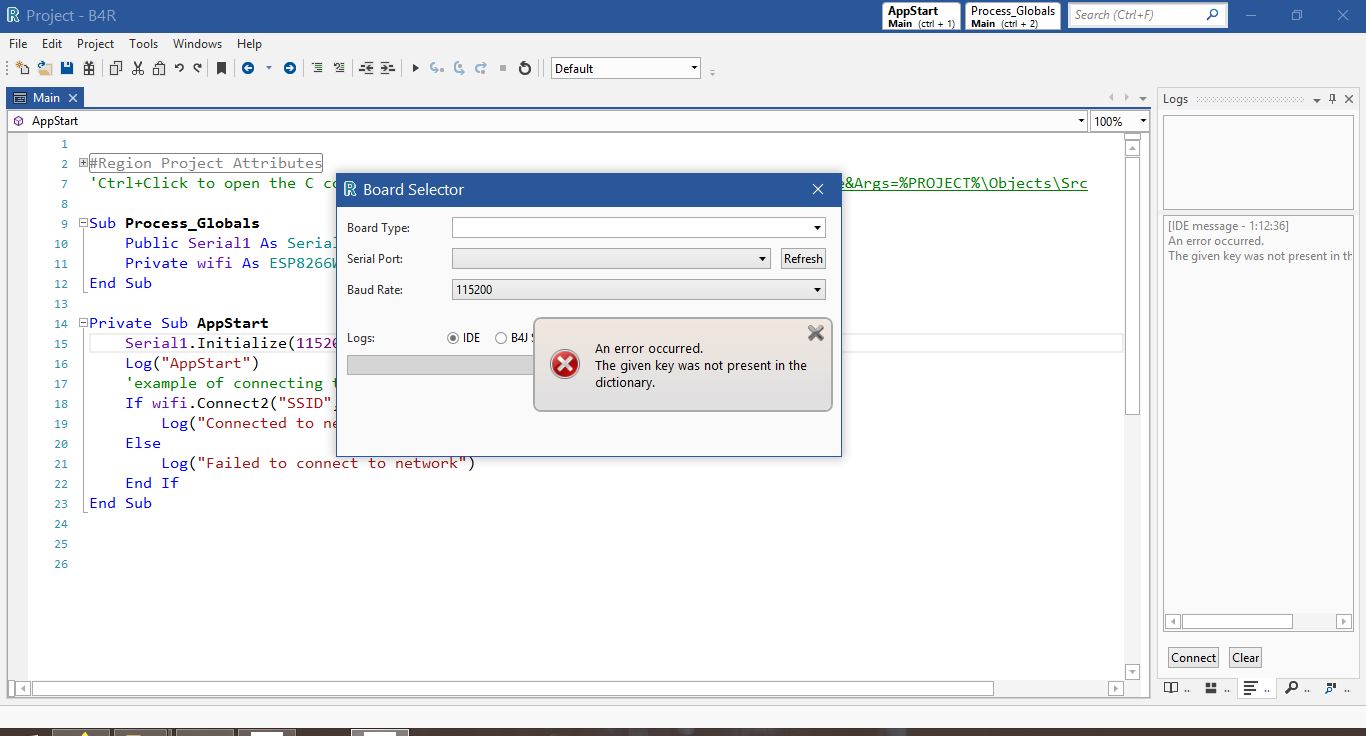

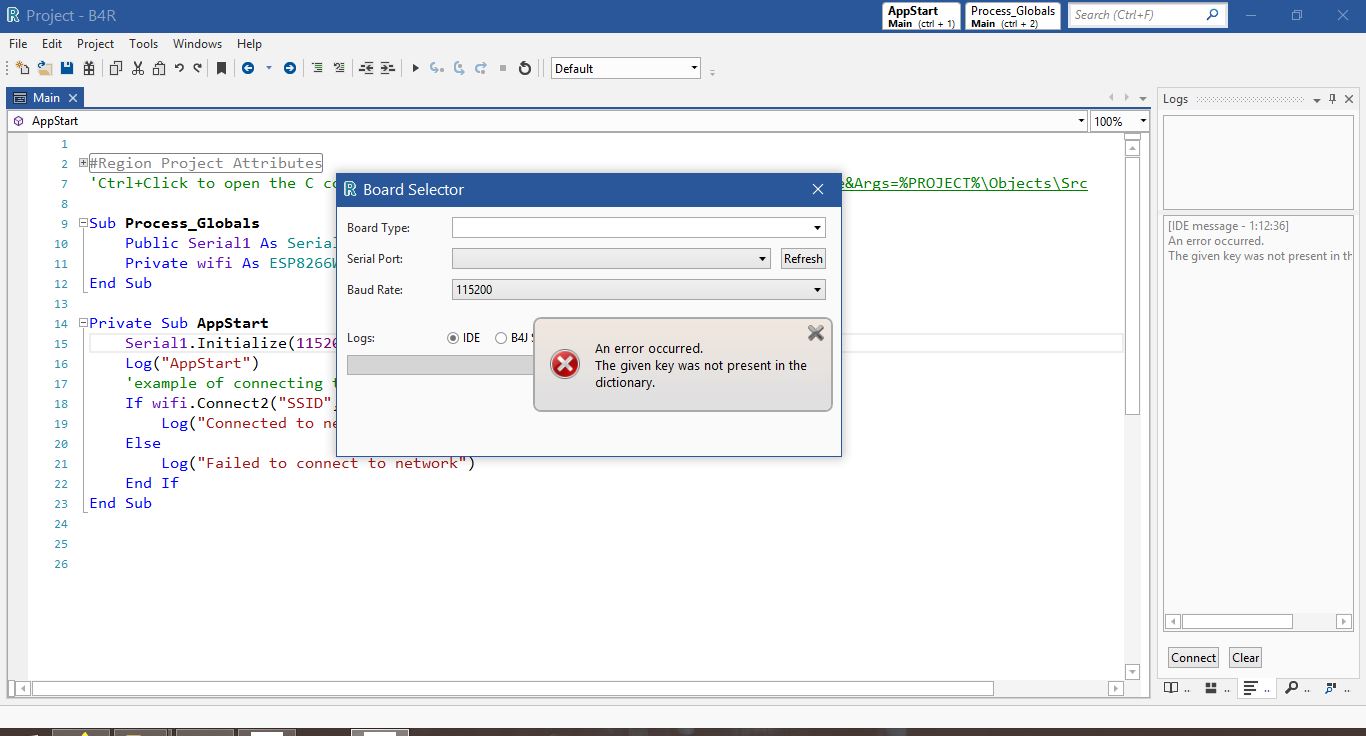

Hi, im new using b4r. When i try to select board from tools menu then i get this message

"The given key was not present in the dictionary"

What should i do?

Thanks



[Erel]

Can you post a screenshot of Tools - Configure Paths?



[Yuddi Aja]

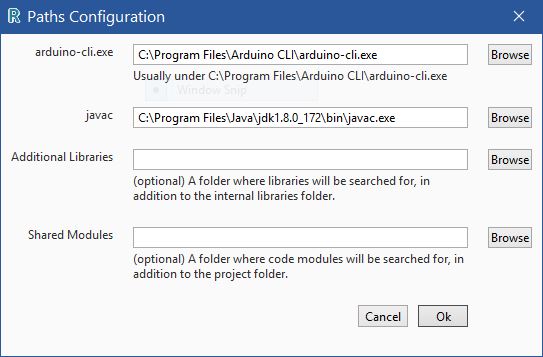

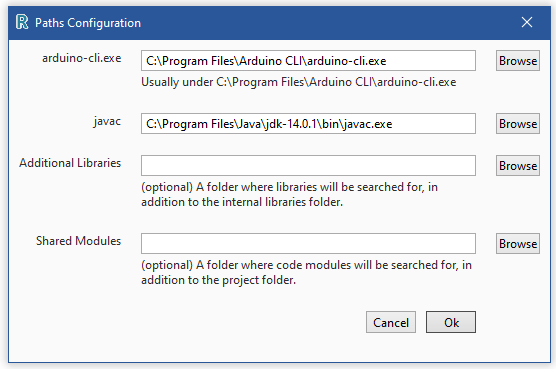

Here the screenshots



[Yuddi Aja]

I solved the problem, i have to install board from arduino-cli first.

I follow instructions in this link

How to get started with the Arduino CLI for beginners and power users (Comprehensive tutorial) | Dumblebots

dumblebots.com

Thanks



[sanjog shakya]

I solved the problem, i have to install board from arduino-cli first.

I follow instructions in this link

How to get started with the Arduino CLI for beginners and power users (Comprehensive tutorial) | Dumblebots

dumblebots.com

Thanks

I have the same problem. Could you please help me to solve this?

I have followed the link you have provided and all goes as directed, but board type doesn't show ESP8266.



[Daestrum]

I have followed the link you have provided and all goes as directed, but board type doesn't show ESP8266.

Open the arduino IDE, goto boards manager and search for 8266 (community version) and install it.



[sanjog shakya]

Open the arduino IDE, goto boards manager and search for 8266 (community version) and install it.

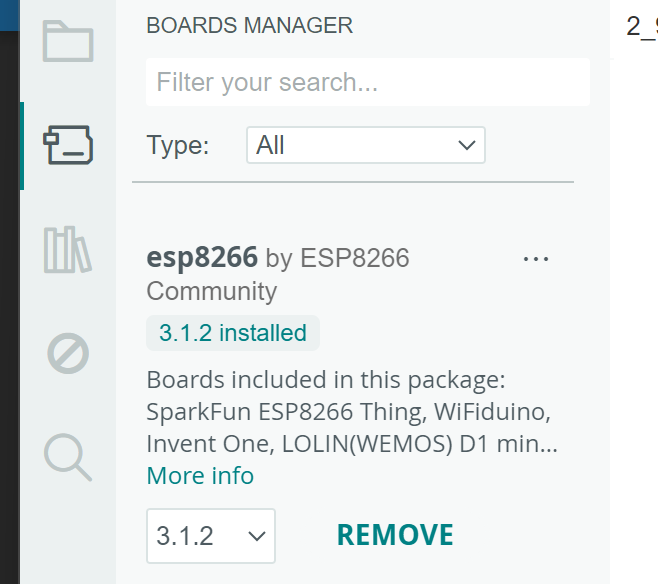

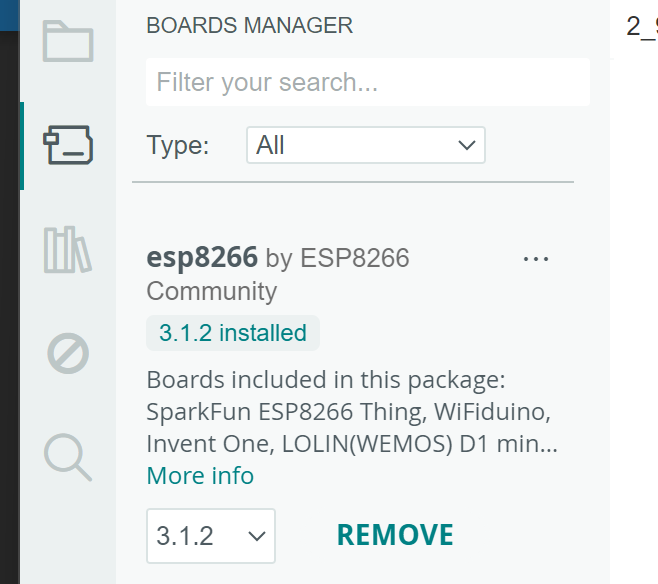

View attachment 153288

Thank you for your help. Before this i need to add http://arduino.esp8266.com/stable/package_esp8266com_index.json in Additional Board Manager URLs field in Arduino IDEs after that only ESP8266 will be shown in Boards Manager.
