B4R Code Snippet M5 Stick-C

Hi,

I am playing a little bit with this device:

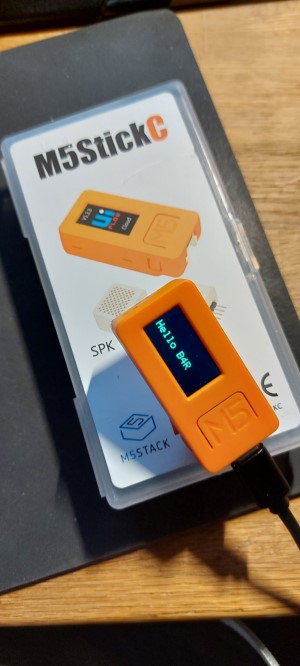

M5StickC is a ESP32 development board for rapid prototying .

• ESP32-based
• Built-in 6-Axis IMU
• Red LED
• IR transmitter
• Microphone
• Buttons, LCD(0.96 inch)
• Built-in Lipo Battery
• Extendable Socket

M5Stick-C

Official Site:
https://m5stack.com/
GitHub Project with Arduino Library and some cool examples:
https://github.com/m5stack/M5Stack

The Arduino examples are running good and i startet to use the Device with B4R.
in the Arduino IDE you have to install the M5-Stick library

I'm build my first wrapper's and learn a lot about librarys.
Thanks to the forum members.
Atteched some examples how to use it with B4R.

Update...
in the M5stack Community Forum i have add a link to b4x.com
for more information about M5 visit https://forum.m5stack.com/


Michael



[Michael1968]

M5StickC AXP192 Power managment

the AXP192 is a highly integrated power system management chip

you need the library for battery charge and to switch the Display and RTC

thanks to candite for his help and his great tool:
https://www.b4x.com/android/forum/threads/a-tool-to-help-a-wrapper-creation.120543/



[Michael1968]

M5StickC 0.96 inch, 80*160 TFT LCD, ST7735S

to use the TFT Display i have to make some changes in the original Adafruit ST7735 library to get it work



[Michael1968]

M5StickC Built-in 6-Axis IMU MPU6886

I was not able to wrap the library.
There is a problem to pass the float variable to B4R an get a result.
https://www.b4x.com/android/forum/threads/how-to-pass-float-variables.125062/

after a few days and a lot of reading about variables and pointers....i use inline-C without any problem



[Michael1968]

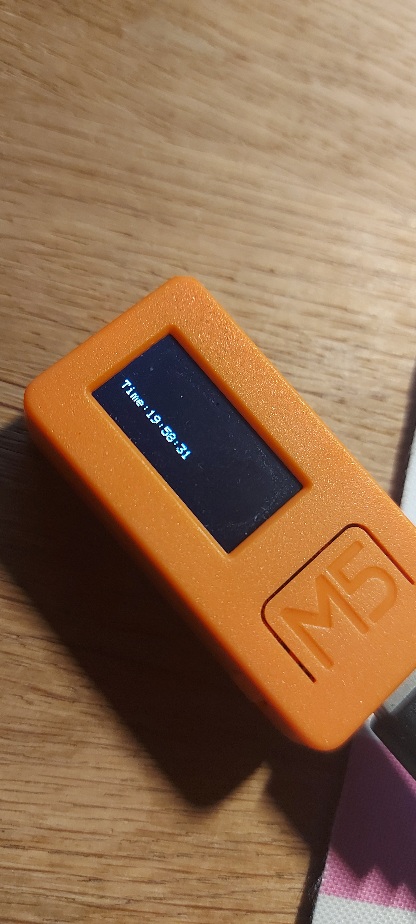

M5StickC Built-in RTC BM8563

I have wrap the I2C_BM8563 library to use the built in RTC clock



[Michael1968]

M5StickC I2C bus

the device has two I2C bus

bus0 for the built in I2c devices IMU-RTC-Power
bus1 can be used with the grove connector.

rwblinn has written a helper program to scan the I2c bus.
https://www.b4x.com/android/forum/threads/i2c-address-scanner.75815/

this works with M5Stick too.
to scan bus1 you have to change in Erel's wire library

Wire.begin(); //standart Bus0
to
Wire.begin(21,22,10000); //BUS1 ATOM/M5-Stick at Grove connector pin21/22



[Michael1968]

M5StickC Hardware UART
On ESP32 there are 3 Hardware UART available.

attache a simple code to use it.

see:

https://www.b4x.com/android/forum/threads/additional-hardware-serial-ports.67150/
https://circuits4you.com/2018/12/31/esp32-hardware-serial2-example/



[phillipsback]

Dear Michael1968,
I'd learn lots from your creation. Trying to make my own warper.
M5StickC also my favorite Dev. toy. I made this and attached some examples for it.



[thetrueman]

Dear Michael1968,

Thanks for sharing such a good work... Please keep update it as many learn here. Thanks.
