Android Question "MeasureStringWidth" gives incorrect values with density = 233

[Petrus]

I have a device with Density = 233 (LG Optimus L5 II (E460)). MeasureStringWidth gives incorrect values:

    'Sample text:
    Text = "This is only a sample text. This is only a sample text. This is only a sample text."

    'Text width:
    Dim TextWidth As Float
    TextWidth = CanvasCalc.MeasureStringWidth(Text, Typeface.DEFAULT, TSize)
    ImgL.Left = TextWidth

    '1.) Variant with Label:
    Label1.Text = Text

    '2.) Variant with DrawText: (with a string)
    Dim C As Canvas
    C.Initialize(Panel1)
    C.DrawText(Text, 0, 30, Typeface.DEFAULT, TSize, Colors.Black, "LEFT")
    Panel1.Invalidate

    '3.) Variant with DrawText: (split string)
    Dim C As Canvas
    C.Initialize(Panel2)
    Dim t() As String, x As Float
    t = Regex.Split(" ", Text)
    For i = 0 To t.Length -1
        C.DrawText(t(i) & " ", x, 30, Typeface.DEFAULT, TSize, Colors.Black, "LEFT")
        x = x + C.MeasureStringWidth(t(i) & " ", Typeface.DEFAULT, TSize)
    Next
    Panel2.Invalidate

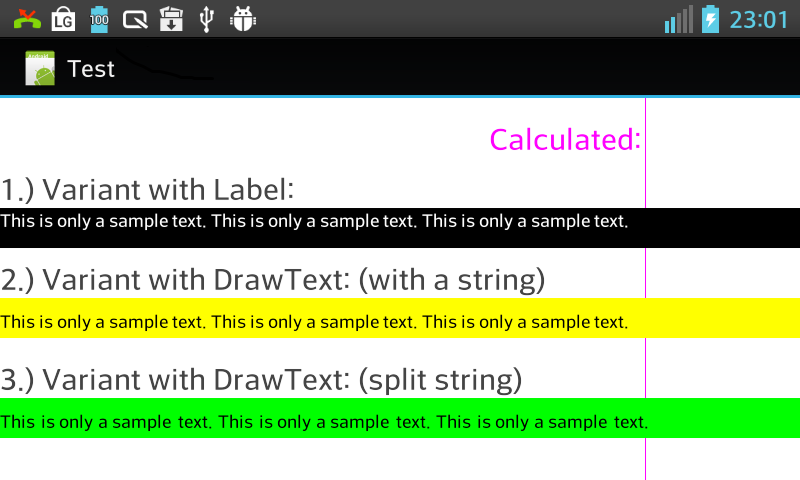

Result:

With small font, the text is smaller than calculated. With large font, the text is wider than calculated. In the example gives variant 2 and 3 different widths.

Is there a solution to the problem?

regards
Petrus



[Erel]

I don't think that it is related to the scale. How do you draw the purple line?

Did you see this example: [custom view] AutoTextSizeLabel ?



[Petrus]

The purple lin x-position is the calculated width (variable "TextWidth") - the line is a ImageView with width = 1.

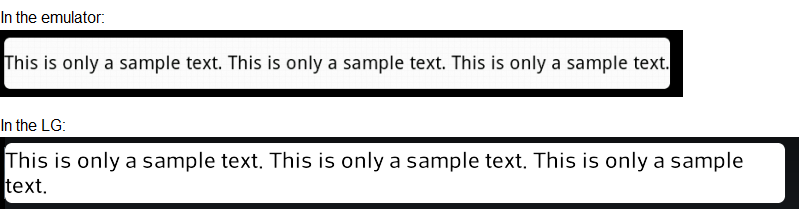

With the AutoTextSizeLabel the problem also:

regards
Petrus



[Erel]

Canvas.MeasureStringWidth is based on a native method. It seems like your device returns an inaccurate result.
