Android Question move camera position x y change

[scsjc]

It is possible to detect if the camera moves up, down, or left, right when it is taking the picture.

that is to say, set an initial position and what moves indicates position variables x and y

thanks



[DonManfred]

I guess only by capturing and analizing the sensor-data.



[scsjc]

I guess only by capturing and analizing the sensor-data.

thanks for you fast reply.
my idea is send a laser point and analizing the picture to get the position.

can you tell me any idea about code to start investigate that

thanks



[DonManfred]

No. I have no idea how to solve this. Never wirked with a sensor at all (except testing).



[scsjc]

OK I attempt to find some example to analyst image to find a red point



[josejad]

You could make some test with OpenCV

Maybe @JordiCP can give you some clue, he has been "playing" with OpenCV. Even maybe you live quite close



[scsjc]

You could make some test with OpenCV

Maybe @JordiCP can give you some clue, he has been "playing" with OpenCV. Even maybe you live quite close

thanks friend great idea ....



[josejad]

Check the Color Blob detection sample... it could be a starting point.
If you donate, Jordi provides more advanced samples as I can see



[William Lancee]

what moves indicates position variables x and y

It is easy to detect the location of a bright spot in a image using BitmapCreator.
By comparing two images, you can know if the camera (or target) moved up/down/left/right

However, how much it moved (accurately) is complicated and dependent on distance from target, zoom level, focal length, initial position red point, and distance along the sweeping arc. Although if most of these are constant, and you do some experimentation with the dot and camera, it will be possible.

So it depends on your context.

@JordiCP 's system is masterful and much more general.



[William Lancee]

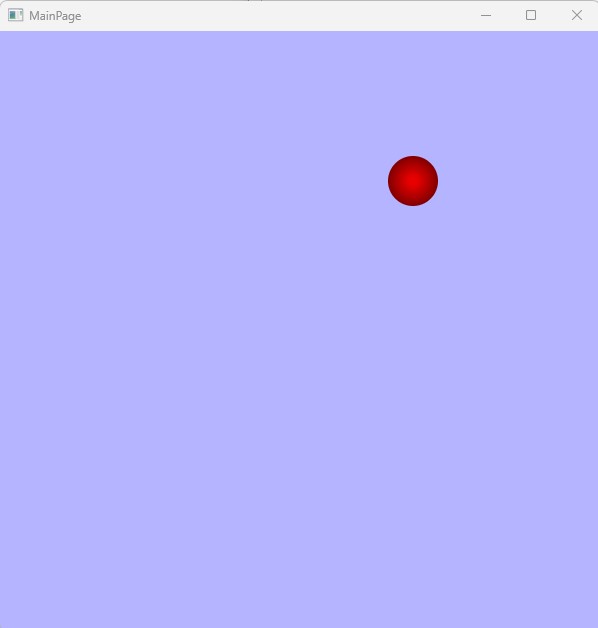

To detect a red dot...

Center is at 300 300
Dot is at 413 150

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI

    Private cv As B4XCanvas
    Private bc As BitmapCreator
End Sub

Public Sub Initialize
End Sub

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    cv.Initialize(Root)
    Dim cvRect As B4XRect
    cvRect.Initialize(0, 0, Root.Width, Root.Height)
    bc.Initialize(cvRect.Width, cvRect.Height)

    cv.DrawRect(cvRect, xui.Color_RGB(180, 180, 255), True, 0)

    'Dim position() As Int = Array As Int(cvRect.centerX, cvRect.centerY)    'try different positions
    'Dim position() As Int = Array As Int(120, 300)
    Dim position() As Int = Array As Int(413, 150)

    For i = 25 To 5 Step - 1
        cv.DrawCircle(position(0), position(1), i, xui.Color_RGB(255 - 5 * i, 0, 0), True, 0)
    Next
    Dim xy() As Int = whereIsDot
    Log("Center is at " & TAB & cvRect.CenterX & TAB & cvRect.CenterY)
    Log("Dot is at " & TAB & xy(0) & TAB & xy(1))
End Sub

'I tweaked the color threshold, but you need to do it also for your situation
Private Sub whereIsDot As Int()
    'Find centroid of all points matching color
    bc.CopyPixelsFromBitmap(cv.CreateBitmap)
    Dim Sumx, Sumy, N As Float
    Dim arg As ARGBColor
    For i = 0 To bc.mWidth - 1
        For j = 0 To bc.mHeight - 1
            bc.GetARGB(i, j, arg)
            If arg.g < 200 And arg.b < 200 And arg.r > 200 Then
                Sumx = Sumx + i
                Sumy = Sumy + j
                N = N + 1
            End If
        Next
    Next
    If N = 0 Then Return Array As Int(-1, -1) Else Return Array As Int(Ceil(Sumx / N), Ceil(Sumy / N))  '-1 is unknown
End Sub



[William Lancee]

It is a stormy day here and I have time on my hands. I did some time trials.
It took 11 milliseconds to find the red dot on a 600x600 screen. For 50 dots it took about 550 milliseconds.

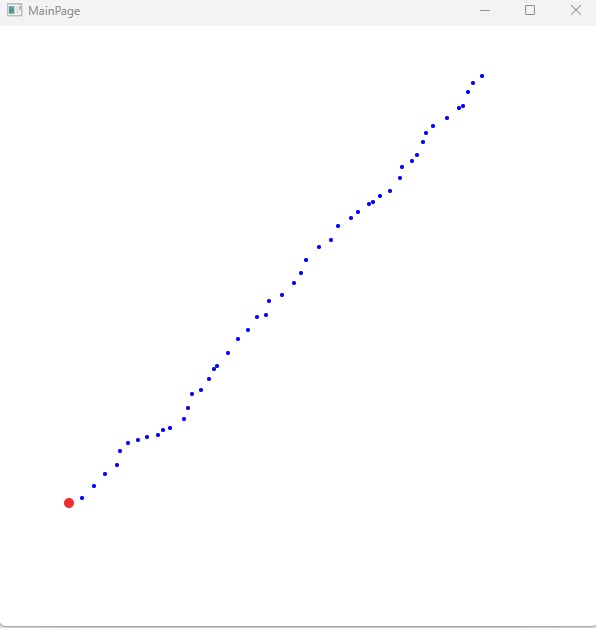

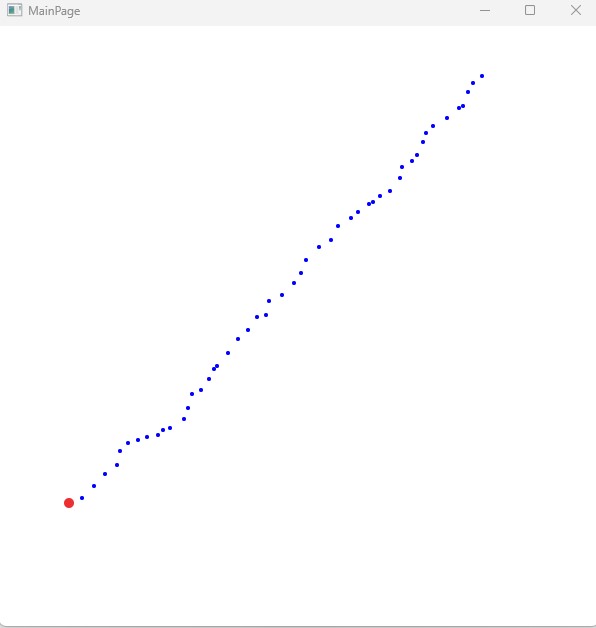

The blue dots mark the path of the red dot. Run the attached to see the animation.

In real life the image is much more complicated but I would think that it would be easy to define what a red laser dot is.
I Googled, and RGB(237, 47, 50) seems to be accepted. Also, the image is probably compressed, that means that the edges of the dot are messy.
Using the centroid corrects for that.



[scsjc]

It is a stormy day here and I have time on my hands. I did some time trials.
It took 11 milliseconds to find the red dot on a 600x600 screen. For 50 dots it took about 550 milliseconds.
The blue dots mark the path of the red dot. Run the attached to see the animation.

In real life the image is much more complicated but I would think that it would be easy to define what a red laser dot is.
I Googled, and RGB(237, 47, 50) seems to be accepted. Also, the image is probably compressed, that means that the edges of the dot are messy.
Using the centroid corrects for that.

View attachment 143698

really nice
you think that's is possible with a camera on real time?



[TILogistic]

?

find Area in Image

Hello, im searching for a solution to find a given Area in an Image. I want to make screenshots and simulate Mousclicks on specific areas when something is found. the Area bitmap is fix in my assets, and i need the coordinates where this little Area image is shown in the screenshot. this area...

www.b4x.com



[William Lancee]

It depends on how you capture the images and on the speed of your device.
The time trials I did are on my fairly fast desktop.

I guess you can always take multiple still pictures - say 5 per second or less - which may give you enough time to track the dot.
It really depends in what you need.



[William Lancee]

@TILogistic

I am familiar with that post. The thing the algorithm is looking for must be in the image pixel for pixel.

Since the code above eliminates most pixels as the wrong color and since it doesn't care about the exact shape of the dot,
it can accurately find the dot's position fast, even when the image is reconstituted from a compressed state - making the shape inexact.

It also doesn't depend too much on the camera's position, since we can compute relative movement.



[scsjc]

?

find Area in Image

Hello, im searching for a solution to find a given Area in an Image. I want to make screenshots and simulate Mousclicks on specific areas when something is found. the Area bitmap is fix in my assets, and i need the coordinates where this little Area image is shown in the screenshot. this area...

www.b4x.com

ohhhhhhhhhhhh



[DonManfred]

ohhhhhhhhhhhh

it only works if the image to find in a picture is an exact copy of an Image available. Size, colors.

I guess it will not work with a camerapicture showing a pointer on a wall. The pointyou see must be an exact copy of an image. Guess it will not work if the dimensions are not exact.



[scsjc]

it only works if the image to find in a picture is an exact copy of an Image available. Size, colors.

I guess it will not work with a camerapicture showing a pointer on a wall. The pointyou see must be an exact copy of an image. Guess it will not work if the dimensions are not exact.

Yes, I already understood, but I really liked the code



[William Lancee]

@Johan Schoeman uses a timer to scan bar codes with the camera. He manages to get more than 3 images per second, and checks for valid bar codes.
That task is much more complex than finding the position of a laser dot. So yes, I think it is possible to do what you want. You may also eliminate the timer and just get as many pictures as you can and process them, one after the other, and track the time when a change occurs.

https://www.b4x.com/android/forum/t...g-for-live-scan-of-1d-and-2d-barcodes.116227/



[kimstudio]

It took 11 milliseconds to find the red dot on a 600x600 screen. For 50 dots it took about 550 milliseconds.

For this special case, if the first red pixel is found then exit the loop and only find other pixels in a small area around the first found pixel could be faster.
