Android Question MQTT payload type

August Jimenez

Member
Licensed User
Hi,

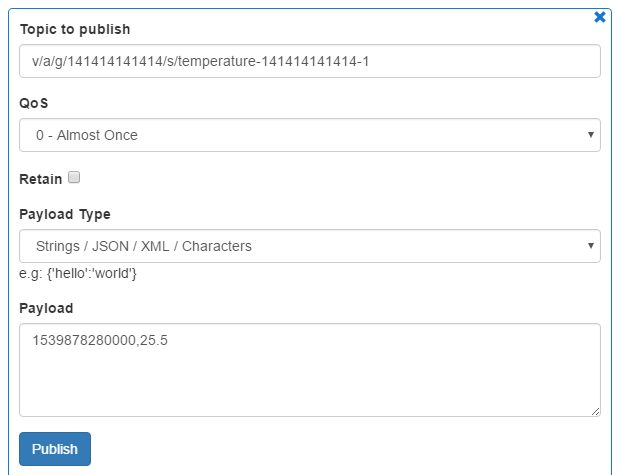

I'm doing some test with a MQTT broker, using the MQTTBox tool, to verify all is working well, before use my APP. The topic to publish and the payload used are in the following screenshot:



With this tool, all is working fine. When I use the APP, I can connect to the broker perfectly, but the publish topic does not arrive correctly. My piece of code is the following:

B4X:
Sub Activity_Create(FirstTime As Boolean)

    If FirstTime Then

        mqtt.Initialize("mqtt", serverURI, "xxxxxxx")

        Dim mo As MqttConnectOptions

        mo.Initialize("xxxxxxxx", "yyyyyyyy")

        Dim jo As JavaObject = mo

        jo.RunMethod("setSocketFactory", Array(CreateTrustAllSSLSocketFactory))

        mqtt.Connect2(mo)

    End If

End Sub

Sub CreateTrustAllSSLSocketFactory As Object

    Dim tm As CustomTrustManager

    tm.InitializeAcceptAll

    Dim SSLContext As JavaObject

    SSLContext = SSLContext.InitializeStatic("javax.net.ssl.SSLContext").RunMethod("getInstance", Array("TLS"))

    SSLContext.RunMethod("init", Array(Null, tm, Null))

    Dim Factory As JavaObject = SSLContext.RunMethod("getSocketFactory", Null)

    Return Factory

End Sub

Sub mqtt_Connected (Success As Boolean)

    If Success = False Then

        Log("Error connecting: " & LastException)

    Else

        log("Connected")

        mqtt.Publish("v/a/g/141414141414/s/temperature-141414141414-1", serializator.ConvertObjectToBytes("1539878280000,25.5"))

    End If

End Sub

As can be seen in the screenshot, the payload should be "Strings / JSON / XML / Characters", but in the "Publish" method of the jMQTT library, the payload must be "Byte".

How can I send this kind of payload?

Thanks and regards


Attachments

  • upload_2018-10-18_18-5-24.png
    24.8 KB · Views: 333
