B4A Library MusicBobber (Audio Widget Overlay View)

Enjoy this beautiful widget Overlay https://github.com/Cleveroad/MusicBobber from our beautiful B4A

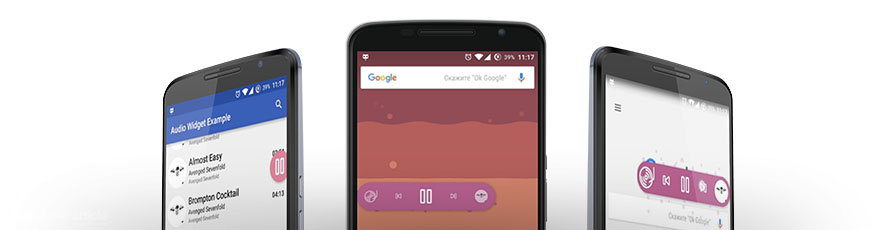

Awesome Audio Widget for any Android Music App

@DependsOn(values={"android-support-v4","audiowidget.aar"})

MusicBobber
Author: SMM
Version: 0.01

• MusicBobber
  Events:
  • _albumclicked
  • _nextlongclicked
  • _playlistlongclicked
  • _previouslongclicked
  • _albumlongclicked
  • _nextclicked
  • _playpauseclicked
  • _playpauselongclicked
  • _previousclick
  • _statechanged (state As String)
  • _widgetpositionchanged (x As Int, y As Int)
  Methods:
  • Initialize (EventName As String)
  • Initialize2 (EventName As String, lightcolor As Int, darkcolor As Int, expandwidgetColor As Int, progresscolor As Int, progressStrokewidth As Float, crosscolor As Int, crossoverlappedColor As Int, crossStrokewidth As Float, buttonpadding As Int, bubblesminSize As Float, bubblesmaxSize As Float, shadowcolor As Int, shadowradius As Float, shadowdx As Float, shadowdy As Float, playdrawable As Drawable, pausedrawable As Drawable, playlistdrawable As Drawable, prevtrackDrawale As Drawable, nexttrackDrawable As Drawable, defaultalbumDrawable As Drawable, edgeoffsetXCollapsed As Int, edgeoffsetYCollapsed As Int, edgeoffsetXExpanded As Int, edgeoffsetYExpanded As Int)
  • IsInitialized As Boolean
  • collapse
  • expand
  • hide
  • isShown As Boolean
  • show (x As Int, y As Int)
  Permissions:
  • android.permission.SYSTEM_ALERT_WINDOW
  • android.permission.VIBRATE

Sample Service

#Region  Service Attributes
    #StartAtBoot: False

#End Region

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'These variables can be accessed from all modules.
    Dim mb As MusicBobber
End Sub

Sub Service_Create
    'I am too lazy to fully test Initialize2 :D
'    mb.Initialize2("mb",Colors.LightGray,Colors.Black,Colors.LightGray,Colors.Black,2,Colors.Black,Colors.LightGray,3,1dip,30dip,100dip,Colors.Black,1dip,0,0,Null,Null,Null,Null,Null,Null,1dip,1dip,2dip,2dip)
    mb.Initialize("mb")
    mb.show(0,0)
End Sub

Sub Service_Start (StartingIntent As Intent)

End Sub

Sub Service_Destroy

End Sub



Sub mb_widgetpositionchanged(x As Int,y As Int)
    Log("("&x&","&y&")")
End Sub
Sub mb_playpauseclicked
    Log("mb_playpauseclicked")
End Sub

Version 3 just correcting a typo reported here thanks NJDude I hope there are no more typos .

Version 2 adds two parameters to Initialize methods so you can customize these options from original library

• OnControlsClickListener.onPlaylistClicked should return true to consume the action or false to use default behavior (collapse the widget)
• OnControlsClickListener.onPlayPauseClicked should return true to consume the action or false to use default behavior (change play/pause state)

thank you MarcoRome



[MarcoRome]

Great work. But button "Pause". Wha i do for see this ?
I read:

• OnControlsClickListener.onPlayPauseClicked should return true to consume the action or false to use default behavior (change play/pause state)



[somed3v3loper]

Great work. But button "Pause". Wha i do for see this ?
I read:

I will add it to next update



[somed3v3loper]

Great work. But button "Pause". Wha i do for see this ?
I read:

Please check first post and test version 2



[MarcoRome]

Here a example with this great library
Thanks @somed3v3loper



[NJDude]

Nice!

You have a typo in one of the parameters in Initialize2:

You have: prevtrackDrawale
It should be: prevtrackDrawable
