Android Question Need help with camera

[Alexander Stolte]

Hello Community,

I use this Library from Erel: cameraex

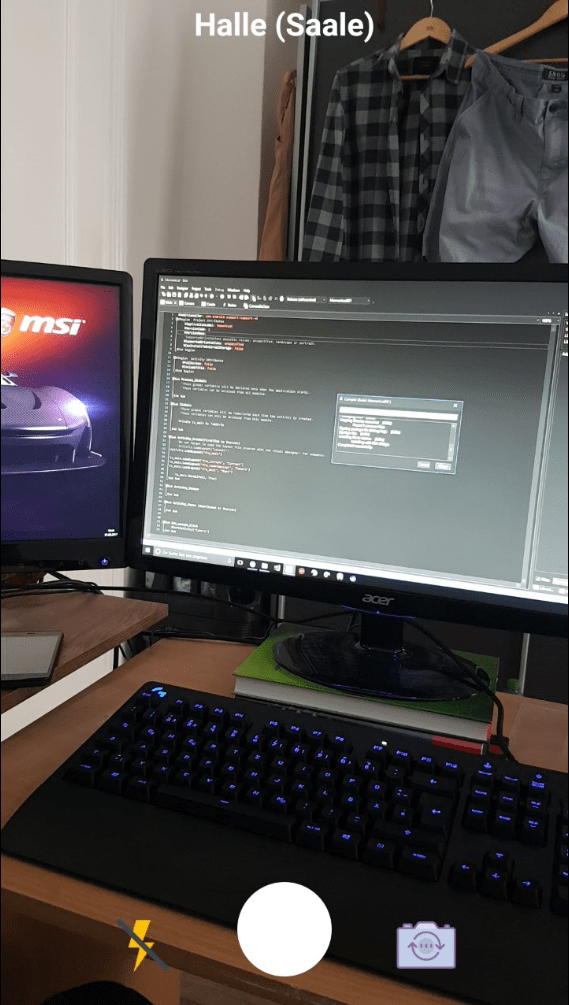

In the preview view, I see the live camerapicture.

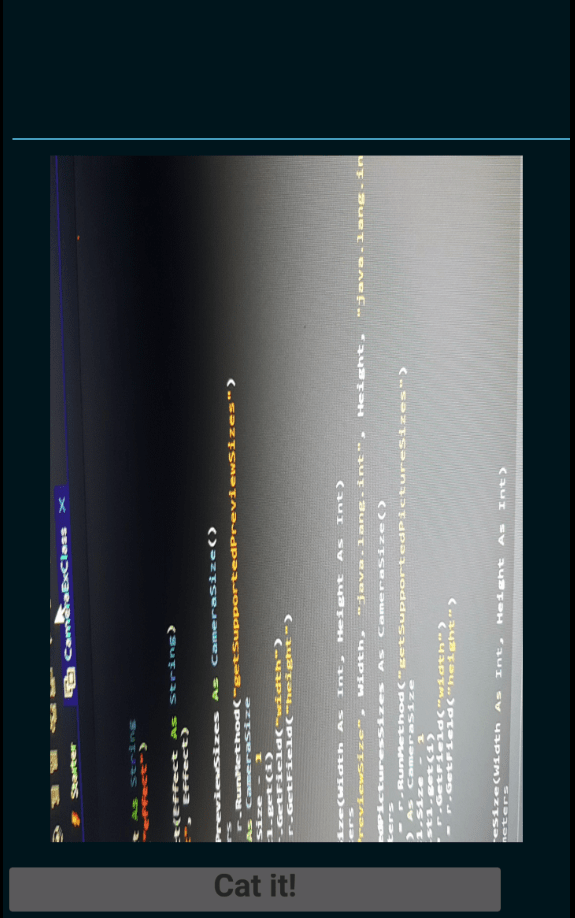

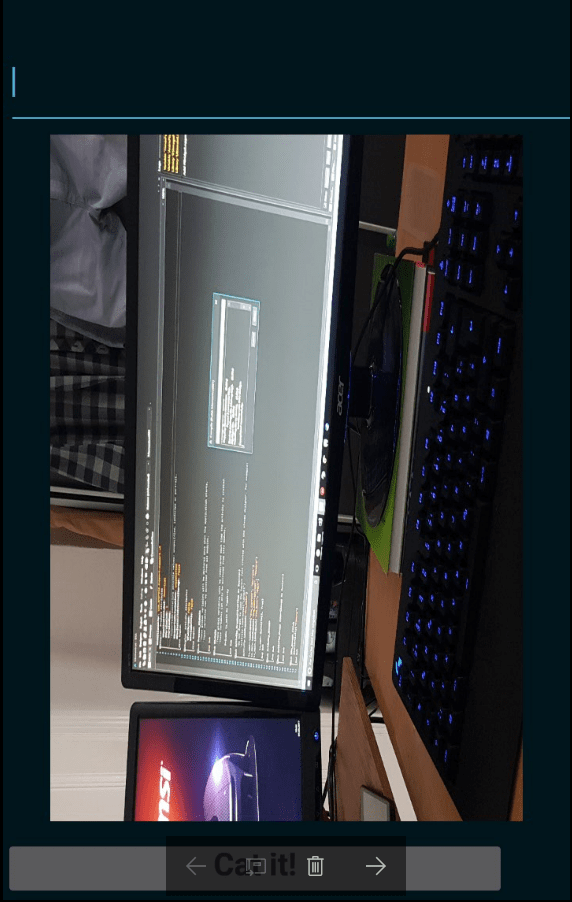

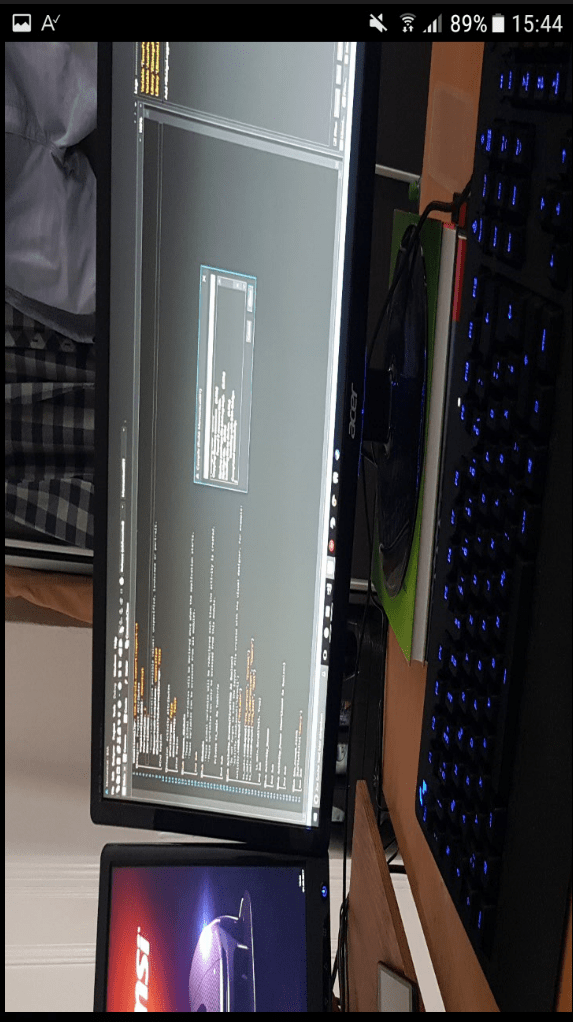

When I press the shutter button, it saves the image. Where can I set the resolution? Because after I let it display to me it looks turned.



Or it is possible to save the image as in the Preview?



[DonManfred]

Where can I set the resolution?

You need to change Parameters to set the Resolution.
See GetSupportedPicturesSizes to get a List of Supported sizes. And use SetPictureSize to set it to one of this sizes...



[Alexander Stolte]

Thanks, the log says:

[Height=1080, IsInitialized=false, Width=1920

and the picture say: 4032x3024

why?

"SetPictureSize" and "SetPreviewSize" have the same code.

EDIT: same result after change the parameter

Public Sub SetPictureSize(Width As Int, Height As Int)
    r.target = parameters
    r.RunMethod3("setPictureSize", 1920, "java.lang.int", 1080, "java.lang.int")
    'r.RunMethod3("setPictureSize", Width, "java.lang.int", Height, "java.lang.int")
End Sub

mhh



[fixit30]

Did you call CommitParameters after changing the parameters?



[Alexander Stolte]

oh, no. Where can I find it? or whats is this?



[fixit30]

CamEx.CommitParameters



[Alexander Stolte]

After that, same result.



[Alexander Stolte]

stop, it works, but the next problem is still that here:



[Erel]

The orientation is related to the EXIF data. Use this code: https://www.b4x.com/android/forum/t...ibrary-functionality.23801/page-4#post-151355



[Alexander Stolte]

Many thanks, it works!

Sub LoadbitmapSample2(Dir As String,Filename As String,MaxWidth As Int,MaxHeight As Int,AutoRotate As Boolean) As Bitmap
    Dim bm As Bitmap
    bm=LoadBitmapSample(Dir,Filename,100%x,100%y)
    If AutoRotate Then
        Dim bm2 As BitmapExtended
        Dim exifdata1 As ExifData
        Try
            exifdata1.Initialize(Dir,Filename)
            'http://sylvana.net/jpegcrop/exif_orientation.html
            ' 1) transform="";;
            ' 2) transform="-flip horizontal";;
            ' 3) transform="-rotate 180";;
            ' 4) transform="-flip vertical";;
            ' 5) transform="-transpose";;
            ' 6) transform="-rotate 90";;
            ' 7) transform="-transverse";;
            ' 8) transform="-rotate 270";;
            Select Case exifdata1.getAttribute(exifdata1.TAG_ORIENTATION)
                Case exifdata1.ORIENTATION_ROTATE_180 '3
                    bm=bm2.rotateBitmap(bm,180)
                Case exifdata1.ORIENTATION_ROTATE_90 '6
                    bm=bm2.rotateBitmap(bm,90)
                Case exifdata1.ORIENTATION_ROTATE_270 '8
                    bm=bm2.rotateBitmap(bm,270)
            End Select
        Catch
        End Try
    End If
    Return bm
End Sub


Sub img_newcat_Click
    img_previewbig.Bitmap    = LoadbitmapSample2(File.DirRootExternal, "momentcatpicture.jpg", 1920, 1080, True)
    img_previewbig.SetVisibleAnimated(2000, True)
End Sub



[Alexander Stolte]

Many thanks, it works!

I have a little problem with this code. What is when my data comes from the reqManager like that:

Dim picture2 As Bitmap = reqManager.BytesToImage(picture)
     ImageView1.Bitmap = LoadbitmapSample2("", "",1920, 1080, True)

and i dont have the "dir" name and "Filename"? what is the workaround for this?



[Erel]

Change the sub to accept a Bitmap instead of the file.



[Alexander Stolte]

Change the sub to accept a Bitmap instead of the file.

I had work on it few hours, but i have no idea how to run it.

exifdata1.Initialize need Dir and File, and without coming always error.



[Erel]

You are correct. You will need to save the image to a temporary file.
