Android Question Problem with "SetNinePatchButton"

[Deleted member 103]

Hi,

in Crashlytics always comes back this crash report:

Fatal Exception: android.content.res.Resources$NotFoundException: Resource ID #0x12e40030
at android.content.res.ResourcesImpl.getValueForDensity(ResourcesImpl.java:225)
at android.content.res.Resources.getDrawableForDensity(Resources.java:890)
at android.content.res.Resources.getDrawable(Resources.java:833)
at android.content.res.Resources.getDrawable(Resources.java:808)
at java.lang.reflect.Method.invoke(Method.java)
at anywheresoftware.b4a.agraham.reflection.Reflection.runmethod(Reflection.java:216)
at anywheresoftware.b4a.agraham.reflection.Reflection.RunMethod2(Reflection.java:817)
at fg.test1.clskeyboard._vvvvvvvvvvvvvvvvvvvvvvv5(clskeyboard.java:487)
at fg.test1.clskeyboard._vvvvvvvvvvvvvvvvvvvvvvvvvvvvvvvvvv3(clskeyboard.java:380)
at fg.test1.clskeyboard._initialize(clskeyboard.java:345)
at fg.test1.main._activity_create(main.java:580)
at java.lang.reflect.Method.invoke(Method.java)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:196)
at fg.test1.main.afterFirstLayout(main.java:104)
at fg.test1.main.access$000(main.java:17)
at fg.test1.main$WaitForLayout.run(main.java:82)
at android.os.Handler.handleCallback(Handler.java:789)
at android.os.Handler.dispatchMessage(Handler.java:98)
at android.os.Looper.loop(Looper.java:164)
at android.app.ActivityThread.main(ActivityThread.java:6944)
at java.lang.reflect.Method.invoke(Method.java)
at com.android.internal.os.Zygote$MethodAndArgsCaller.run(Zygote.java:327)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1374)

The crash always happens at the procedure:

Private Sub SetNinePatchButton(Btn As Button, DefaultImage As String, PressedImage As String)
    Dim r As Reflector
    Dim package As String
    Dim idDefault, idPressed As Int
    package = r.GetStaticField("anywheresoftware.b4a.BA", "packageName")
    idDefault = r.GetStaticField(package & ".R$drawable", DefaultImage)
    idPressed = r.GetStaticField(package & ".R$drawable", PressedImage)
    r.Target = r.GetContext
    r.Target = r.RunMethod("getResources")
    Dim sd As StateListDrawable
    sd.Initialize
    sd.AddState(sd.State_Pressed, r.RunMethod2("getDrawable", idPressed, "java.lang.int"))
    sd.AddCatchAllState( r.RunMethod2("getDrawable", idDefault, "java.lang.int"))
    Btn.Background = sd
End Sub

Of course all resources are available under ".. \ Objects \ res \ drawable".

As always, the crash does not happen with all devices, so it is difficult to make the mistake reproducible.
My question is now: can one change this procedure so that one no longer uses the library "Reflector"?



[DonManfred]

this is the english part of the forum. Please write english here.



[Deleted member 103]

this is the english part of the forum. Please write english here.

It's all in English, or not?



[DonManfred]

It's all in English, or not?

not really

in Crashlytics kommt immer wieder dieser Crash-Report:



[Deleted member 103]

not really

That is not true!
Do not you have any glasses on?

But fun side by side, do you perhaps know another solution to this problem?



[DonManfred]

Do not you have any glasses on?

Sure i have! If i would not then it is nearly impossible to read anything on the monitor or better



[DonManfred]

But fun side by side, do you perhaps know another solution to this problem?

sorry, no.



[agraham]

This is a guess, but from the error it would seem to be related to the density of the display which would explain why it doesn't work on some devices. It looks like some density related resource is missing - but there my ignorance starts (and ends!) I'm afraid



[Deleted member 103]

This is a guess, but from the error it would seem to be related to the density of the display which would explain why it doesn't work on some devices. It looks like some density related resource is missing - but there my ignorance starts (and ends!) I'm afraid

Thank you very much agraham.
I hope now that Erel knows something more, otherwise I have to think of something else.



[Erel]

You can use XmlLayoutBuilder instead of the reflection based code (which is fine as well).

I guess that you aren't able to reproduce this error, right?

Is there anything special with the resource files? Maybe they are too large?



[Deleted member 103]

I guess that you aren't able to reproduce this error, right?

Yes, that's always the problem.

Is there anything special with the resource files? Maybe they are too large?

I do not think it's special, it's just these 2 files attached.



[Deleted member 103]

I have now found another solution without having to use the function "SetNinePatchButton".

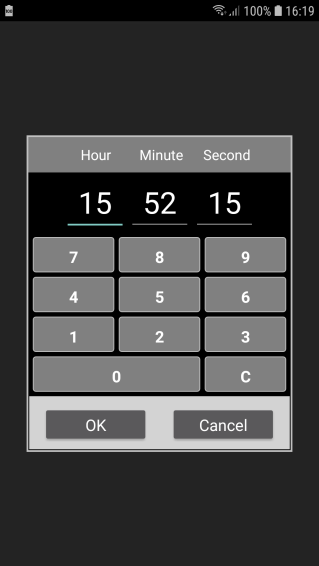

I think my keyboard looks even better now without bitmaps.
