Share My Creation Server room Temperature/Humidity/Smook alarm

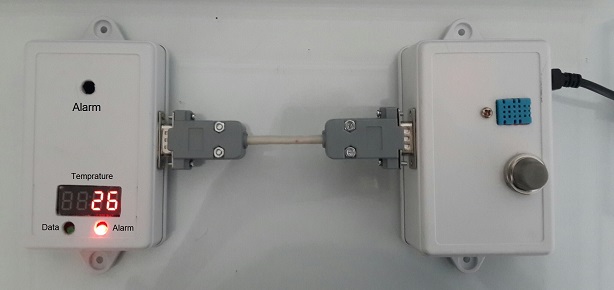

This system have two parts

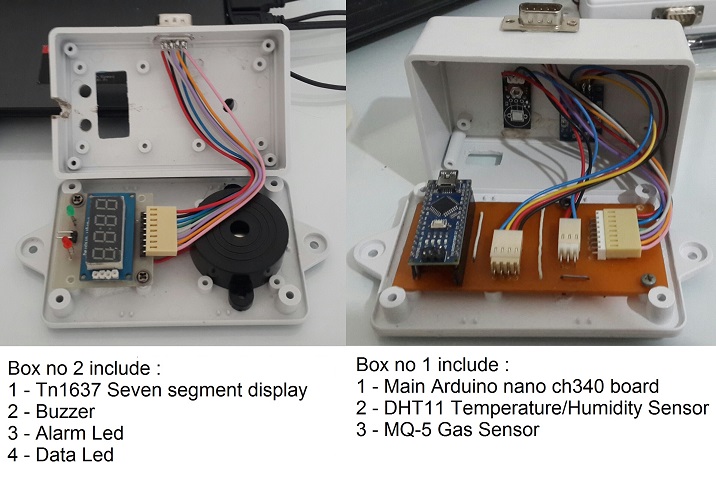

part no 1 include one Dht11 Temperature/Humidity sensor and Mq5 smoke sensor.
part one must be install in server room and connect to one of servers.
part no 2 include Seven segment display , Buzzer and two Led for alarm and data
this parts connect with a RS232 cable.

also
there is a software for settings and show notification in task bar.
we can set value with application for ring the buzzer and turn on the light.
