Android Question Simple Media Manager Image Corner Radius

[jcesar]

Hi

Is there a way to set the corner radius of a image downloaded with Simple Media Manager ?



[PaulMeuris]

A quick search on the forum gave me this link:
b4ximageview-imageview-resize-modes
How can you use it?

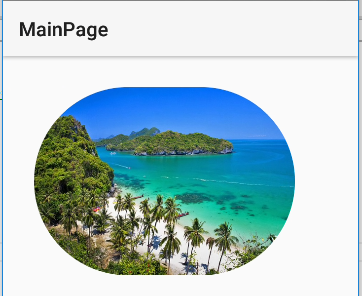

    B4XImageView1.Bitmap = LoadBitmap(File.DirAssets, "koh-samui-thailand.jpg")
    B4XImageView1.RoundedImage = True
    B4XImageView1.CornersRadius = 30
    B4XImageView1.ResizeMode = "FILL"

B4XImageView added to the designer. Don't forget to add the library XUI Views.
An image file in the Files Manager pane of the IDE.

That's it.
Greetings.
Paul



[TILogistic]

?

SimpleMediaManager Round Image and Round Background

How to set round background for SimpleMediaManager I'm using this code, only the image is round not the background Dim extra As Map extra.Initialize extra.Put(MediaManager.REQUEST_ROUNDIMAGE, True) extra.Put(MediaManager.REQUEST_BACKGROUND, XUI.Color_LightGray)...

www.b4x.com

   Extra.Put(MediaManager.REQUEST_FADE_ANIMATION_DURATION, 0)
    Extra.Put(MediaManager.REQUEST_BACKGROUND, xui.Color_Transparent)
    Extra.Put(MediaManager.REQUEST_RESIZE_MODE, "FILL")
    Extra.Put(MediaManager.REQUEST_ROUNDIMAGE, True)

or

SetCircleClip

[B4X] Round clipping panel

Purpose is to create a panel that clips its child views to a circle or rounded rect. 1. Set the round corners with the visual designer. 2. Use this code: Public Sub SetCircleClip (pnl As B4XView) #if B4J Dim circle As JavaObject Dim radius As Double = Max(pnl.Width / 2, pnl.Height / 2)...

www.b4x.com



[TILogistic]

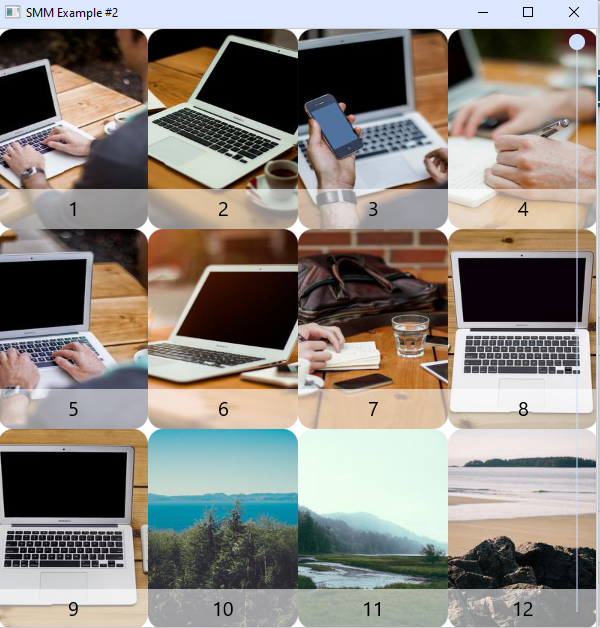

sample 2 SMM

            MediaManager.SetMediaWithExtra(pnl.GetView(x).GetView(0), $"https://picsum.photos/id/${data.IndexOfFirstImage + x}/200/300.jpg"$, "image/*", Extra)
            Wait For (pnl.GetView(x).GetView(0)) SMM_MediaReady (Success As Boolean, Media As SMMedia)
            If Success Then
                pnl.GetView(x).GetView(0).GetView(0).Tag.As(B4XImageView).CornersRadius = 30dip
            End If

see:
