I see on Internet:
https://www.tutorialspoint.com/leafletjs/leafletjs_overlay.htm
Instead of map overlays, you can also use image, video overlays in a Leaflet application. In this chapter, we will see how to use such overlays.
Image Overlay
Follow the steps given below to use an image overlay.
Step 1 − Create a
Map object by passing a <
div> element (String or object) and map options (optional).
Step 2 − Create a
Layer object by passing the URL of the desired tile.
Step 3 − Add the layer object to the map using the
addLayer() method of the
Map class.
Step 4 − Create the image overlay using
L.imageOverlay(). Pass the URL of the image and an object representing image bounds, as shown below.
// Creating Image overlay
var imageUrl = 'tpPoster.jpg';
var imageBounds = [[17.342761, 78.552432], [16.396553, 80.727725]];
var overlay = L.imageOverlay(imageUrl, imageBounds);
Step 5 − Add the overlay to the map using
addTo() method of the
imageOverlay class, as shown below.
// Adding overlay to the map
overlay.addTo(map);

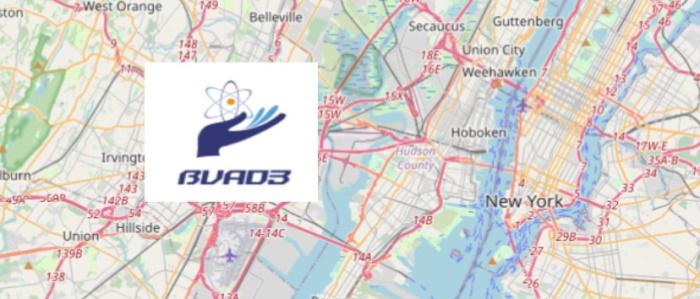

Example
The following code demonstrates the usage of image overlay.
<!DOCTYPE html>
<html>
<head>
<title>Image Overlay Example</title>
<link rel = "stylesheet" href = "
http://cdn.leafletjs.com/leaflet-0.7.3/leaflet.css"/>
<script src = "
http://cdn.leafletjs.com/leaflet-0.7.3/leaflet.js"></script>
</head>
<body>
<div id = "map" style = "width:900px; height:580px"></div>
<script>
// Creating map options
var mapOptions = {
center: [17.342761, 78.552432],
zoom: 8
}
var map = new L.map('map', mapOptions); // Creating a map object
// Creating a Layer object
var layer = new L.TileLayer('http://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png');
map.addLayer(layer); // Adding layer to the map
// Creating Image overlay
var imageUrl = 'tpPoster.jpg';
var imageBounds = [[17.342761, 78.552432], [16.396553, 80.727725]];
var overlay = L.imageOverlay(imageUrl, imageBounds);
overlay.addTo(map);
</script>
</body>
</html>

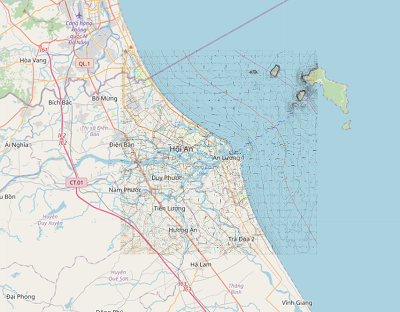

Could you please help me convert to B4J BANanoVueMaterial
github.com
