E embedded Active Member Licensed User Longtime User Nov 7, 2023 #1 Working on a datalogger Project where data is stored in SD Card and sent to the Server Using http post method using esp32 and GSM Modem 4G because wifi is not available at working site....all things are working well. Here I want to add bluetooth to see the logs wirelessly in my phone. When I compile after adding bluetooth flash size gone 117% of available flash size..because of that it cannot be loaded into flash. One of the solution i found that remove the OTA Space or increase the app memory size using partition table. It is a file available in bin folder. I change the parameter according to arduino huge partation csv....but it does not work. Please help me to find out the solution to increase the flash memory size for compile code using partition table.
Working on a datalogger Project where data is stored in SD Card and sent to the Server Using http post method using esp32 and GSM Modem 4G because wifi is not available at working site....all things are working well. Here I want to add bluetooth to see the logs wirelessly in my phone. When I compile after adding bluetooth flash size gone 117% of available flash size..because of that it cannot be loaded into flash. One of the solution i found that remove the OTA Space or increase the app memory size using partition table. It is a file available in bin folder. I change the parameter according to arduino huge partation csv....but it does not work. Please help me to find out the solution to increase the flash memory size for compile code using partition table.
peacemaker Expert Licensed User Longtime User Nov 7, 2023 #2 "huge_app" partitions setting is working OK for me, for big sketch, in the board selection dialog. Upvote 0
E embedded Active Member Licensed User Longtime User Nov 7, 2023 #3 peacemaker said: "huge_app" partitions setting is working OK for me, for big sketch, in the board selection dialog. Click to expand... can you post the board selector menu...it is not appearing when i select DOIT ESP32 BOARD Upvote 0
peacemaker said: "huge_app" partitions setting is working OK for me, for big sketch, in the board selection dialog. Click to expand... can you post the board selector menu...it is not appearing when i select DOIT ESP32 BOARD

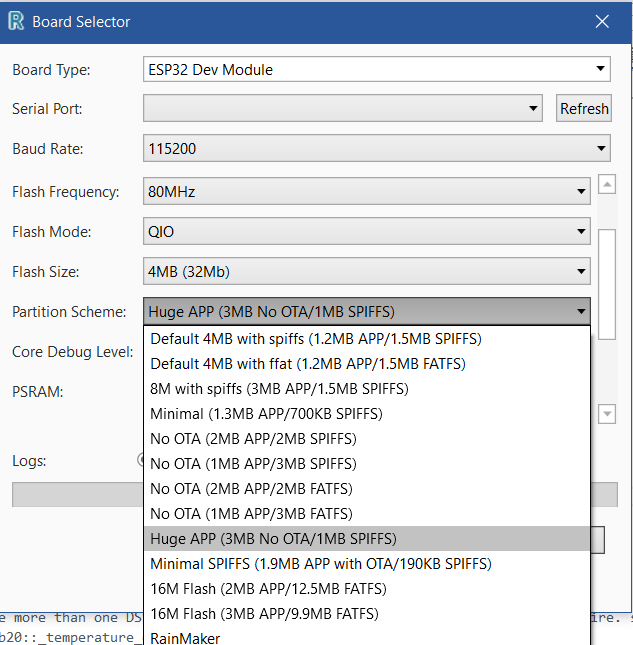

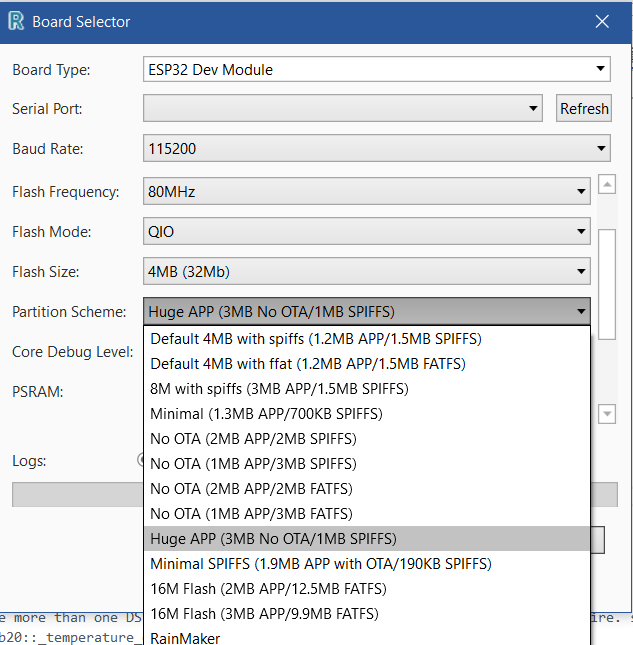

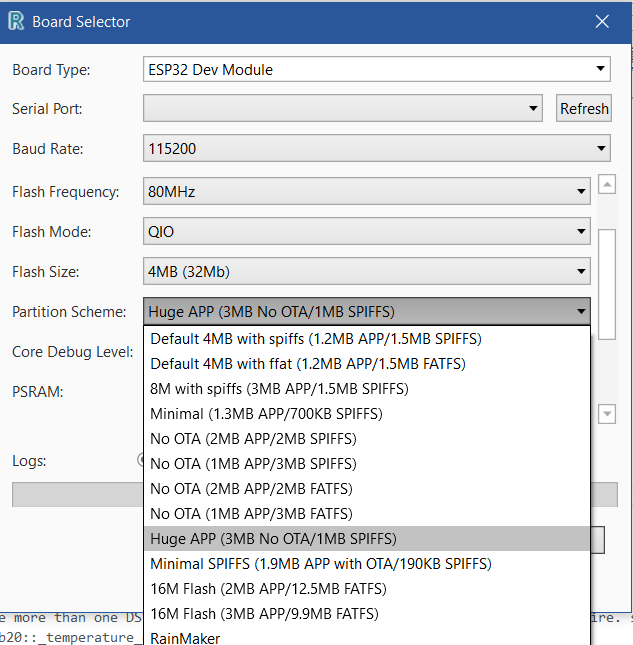

E embedded Active Member Licensed User Longtime User Nov 7, 2023 #5 peacemaker said: View attachment 147602 Click to expand... THANKS Upvote 0
