iOS Question [solved] Using CLVswipe with CustomListView the CLV element wrong positioned on the page.

[mike2ppc]

Hi,

maybe someone could help me to explain me what I'm doing wrong that I receiving this behavior with CLVswipe and wrong positioned CLV on the page.

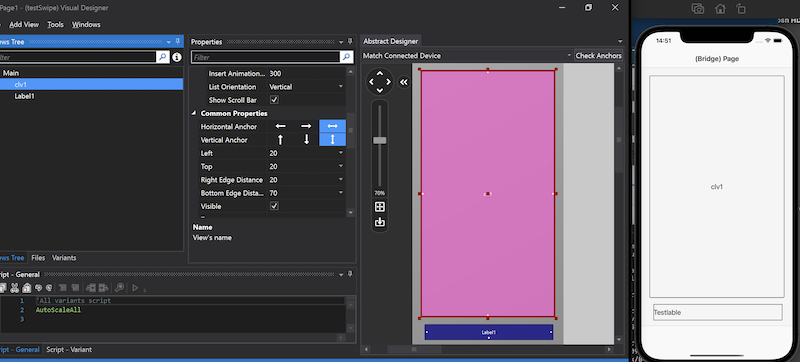

Here the screenshot thru design time, here looks the positioning of the clv element correct.

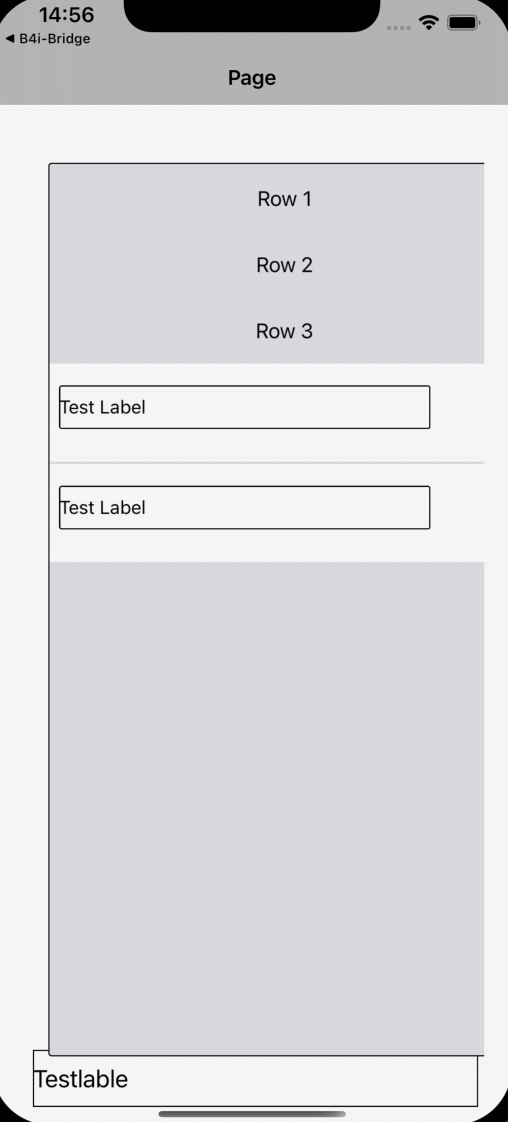

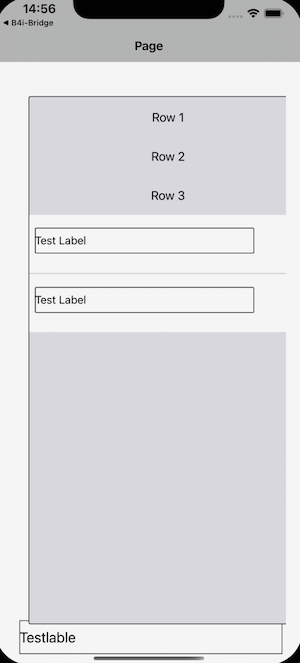

But if I execute it on iPhone emulator its look incorrectly positioned/adjusted.

when I comment out this line of code, then it works fine.

swipe.Initialize(clv1, Me, "swipe")

here my complete example code.

'Code module
#Region  Project Attributes
    #ApplicationLabel: B4i Example
    #Version: 1.0.0
    'Orientation possible values: Portrait, LandscapeLeft, LandscapeRight and PortraitUpsideDown
    #iPhoneOrientations: Portrait, LandscapeLeft, LandscapeRight
    #iPadOrientations: Portrait, LandscapeLeft, LandscapeRight, PortraitUpsideDown
    #Target: iPhone, iPad
    #ATSEnabled: True
    #MinVersion: 8
#End Region

Sub Process_Globals
    Public App As Application
    Public NavControl As NavigationController
    Private Page1 As Page
    Private xui As XUI
    Private swipe As CLVSwipe
    Private lblPullToRefresh As B4XView
    Private ProgressBar1 As B4XView
    Private clv1 As CustomListView
End Sub

Private Sub Application_Start (Nav As NavigationController)
    NavControl = Nav
    Page1.Initialize("Page1")
    Page1.RootPanel.LoadLayout("Page1")
    NavControl.ShowPage(Page1)
    swipe.Initialize(clv1, Me, "swipe")
    swipe.ActionColors = CreateMap("Delete": xui.Color_Red, "Do Something Else": xui.Color_Green, _
        "Action 1": xui.Color_Red, "Action 2": xui.Color_Blue, "Action 3": xui.Color_Yellow)
    Dim PullToRefreshPanel As B4XView = xui.CreatePanel("")
    PullToRefreshPanel.SetLayoutAnimated(0, 0, 0, 100%x, 70dip)
    PullToRefreshPanel.LoadLayout("PullToRefresh")
    swipe.PullToRefreshPanel = PullToRefreshPanel
    fillclv
End Sub

Sub fillclv
'    clv1.AddTextItem("Row 1", 1)
    clv1.AddTextItem("Row 1", swipe.CreateItemValue("", Array("Delete", "Do Something Else")))
    clv1.AddTextItem("Row 2", swipe.CreateItemValue("", Array("Delete", "Do Something Else")))
    clv1.AddTextItem("Row 3", swipe.CreateItemValue("", Array("Delete", "Do Something Else")))
'    clv1.Add(clv1_CreateItem,1)
    clv1.Add(clv1_CreateItem,swipe.CreateItemValue("", Array("Delete", "Duplizieren")))
    clv1.Add(clv1_CreateItem,swipe.CreateItemValue("", Array("Delete", "Duplizieren")))
    Dim ClvSize As Int = clv1.Size
    XUIViewsUtils.AddStubToCLVIfNeeded(clv1, clv1.DefaultTextBackgroundColor)
    If clv1.Size > ClvSize Then
        clv1.ResizeItem(clv1.Size - 1, clv1.GetPanel(clv1.Size - 1).Height + 20dip)
    End If
End Sub


Sub clv1_CreateItem() As B4XView
    Dim varPanel As B4XView = xui.CreatePanel(""), varColor As Int
    varPanel.LoadLayout("line")
    varPanel.Height = 80
    Return varPanel
End Sub



Private Sub Page1_Resize(Width As Int, Height As Int)

End Sub


Sub clv1_ItemClick (Index As Int, Value As Object)
    swipe.CloseLastSwiped
End Sub

Sub clv1_ScrollChanged (Offset As Int)
    If xui.IsB4i Then
        swipe.ScrollChanged(Offset)
    End If
    swipe.CloseLastSwiped
End Sub


Sub swipe_ActionClicked (Index As Int, ActionText As String)
    Log($"Action clicked: ${Index}, ${ActionText}"$)
    If ActionText = "Delete" Then
        clv1.RemoveAt(Index)
    Else If ActionText = "Do Something Else" Then
        Dim p As B4XView = clv1.GetPanel(Index)
        Dim lbl As B4XView = p.GetView(0)
        lbl.Text = "Done!!!"
    End If
End Sub

Sub swipe_RefreshRequested
    lblPullToRefresh.Text = "Loading..."
    ProgressBar1.Visible = True
    'example!!!
    Sleep(3000)
    clv1.Clear
    fillclv
    swipe.RefreshCompleted '<-- call to exit refresh mode
    lblPullToRefresh.Text = "Pull to refresh"
    ProgressBar1.Visible = False
End Sub

And attached the Project.

Best Regard and thanks in advanced for any kind of help
Michael



[Alexander Stolte]

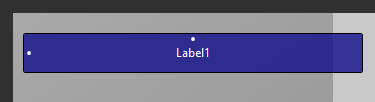

In your projekt in the form "line" the label looks so:

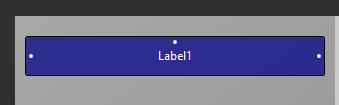

it should be so:

or not?



[Alexander Stolte]

try to put a Wait For Page1_Resize(Width As Int, Height As Int) before you initialize the swipe.

NavControl.ShowPage(Page1)

    #If B4I
    Wait For Page1_Resize(Width As Int, Height As Int)
    #End If

swipe.Initialize(clv1, Me, "swipe")



[mike2ppc]

try to put a Wait For Page1_Resize(Width As Int, Height As Int) before you initialize the swipe.

NavControl.ShowPage(Page1)

    #If B4I
    Wait For Page1_Resize(Width As Int, Height As Int)
    #End If

swipe.Initialize(clv1, Me, "swipe")

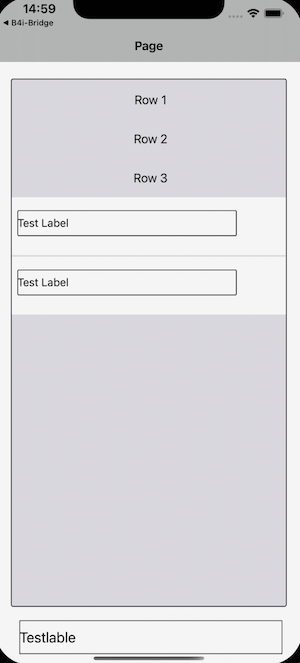

You are my hero for today.
This code line has solved it. Thank you.
