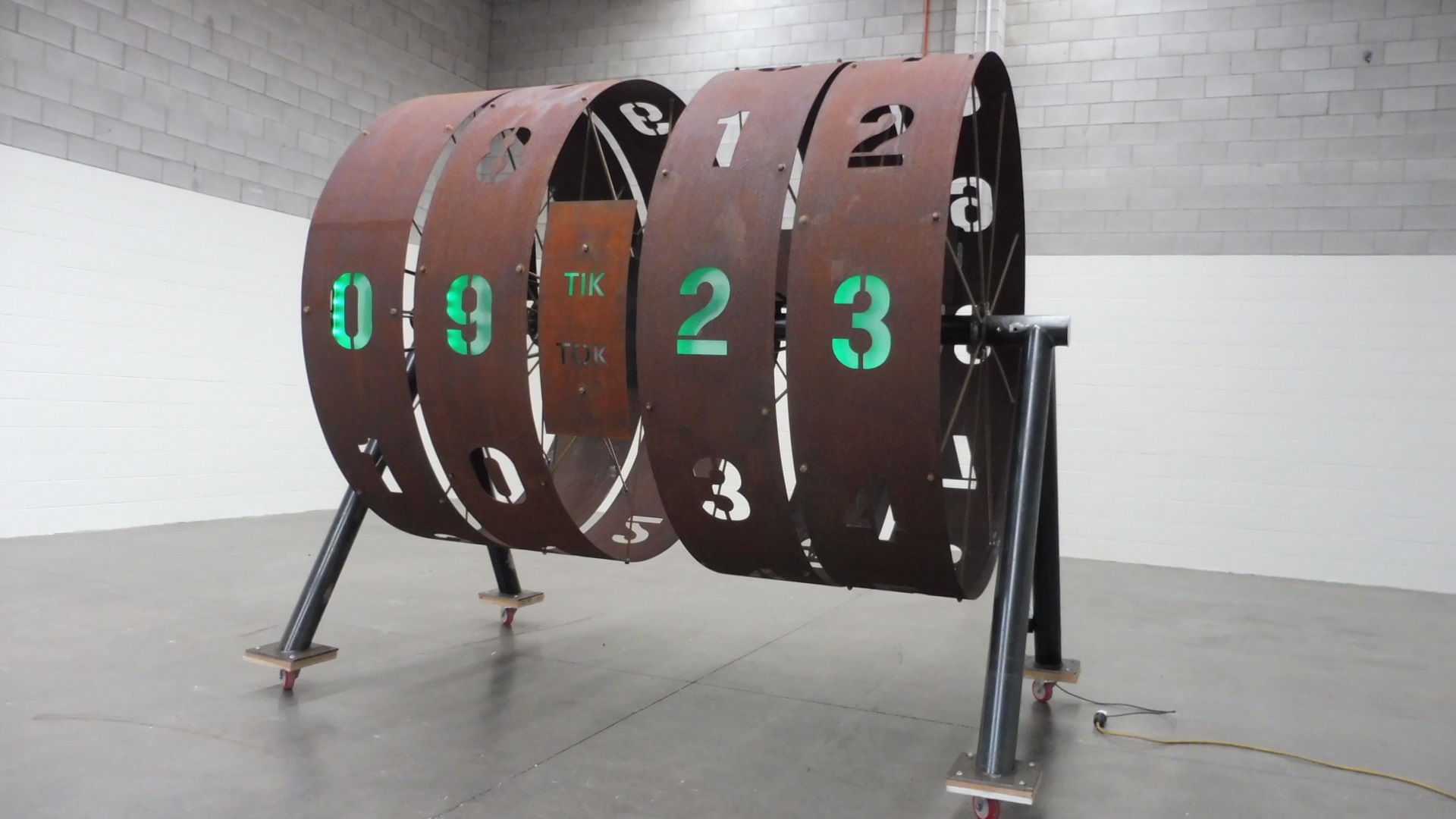

May 6, 2022 Replies: 6 This clock is 2000mm in Diameter, sequencing using B4r and external interface for fault finding is an App using B4r. If you want to see it in action have a look at Turn the sound up Click to expand...
This clock is 2000mm in Diameter, sequencing using B4r and external interface for fault finding is an App using B4r. If you want to see it in action have a look at Turn the sound up
E emexes Expert Licensed User Longtime User May 6, 2022 #2 rodmcm said: This clock is 2000mm in Diameter, sequencing using B4r and external interface for fault finding is an App using B4r. Click to expand... Is the rightmost digit fast enough to be able to display MM:SS instead of HH:MM? For stopwatch and countdown timer eg: or New Year's Eve or countdown until event or sale opens or next iPhone available
rodmcm said: This clock is 2000mm in Diameter, sequencing using B4r and external interface for fault finding is an App using B4r. Click to expand... Is the rightmost digit fast enough to be able to display MM:SS instead of HH:MM? For stopwatch and countdown timer eg: or New Year's Eve or countdown until event or sale opens or next iPhone available
E emexes Expert Licensed User Longtime User May 6, 2022 #3 also, I think I just stumbled across the actual practical reason for NASA choosing program name Apollo: NASA Apollo / Saturn V Clock / Countdown Display Gallery
also, I think I just stumbled across the actual practical reason for NASA choosing program name Apollo: NASA Apollo / Saturn V Clock / Countdown Display Gallery
Erel B4X founder Staff member Licensed User Longtime User May 6, 2022 #4 Amazing!!! Can you share some information about the usage of B4R?
Sandman Expert Licensed User Longtime User May 6, 2022 #5 Impressive stuff! I'm glad I watched the video, I totally missed the size of the clock from your text - I thought it was meant to be placed on a desk!
Impressive stuff! I'm glad I watched the video, I totally missed the size of the clock from your text - I thought it was meant to be placed on a desk!
R rodmcm Active Member Licensed User Longtime User May 6, 2022 #6 Emexes There is a lot of metal to startup, rotate and stop, so doing this every second would not be practical
Emexes There is a lot of metal to startup, rotate and stop, so doing this every second would not be practical
R rodmcm Active Member Licensed User Longtime User May 6, 2022 #7 Erel The B4r program runs on an ESP32 which is connected to proximity switches on each wheel, relay outputs to drive the motors, LED display, and a real time clock to control the time. There are motor alarms from the variable speed drives running the motors The B4r is connected to a small app on my cell phone via BT so I can fault find, reset alarms, and alter the time ( usually only after daylight saving!) I can also run each motor on demand during a maintenance checks and relubrication the axle bearings The clock colours can be changed manually ( usual strip LED controller) The clock resets itself to the correct time after a power failure Its presently installed in a sculpture garden Sculpture Gardens 2026 Exhibition Now On Welcome to Kaipara Coast Sculpture Gardens Escape the city hustle and immerse yourself in a tranquil blend of art and nature at Kaipara Coast Sculpture Gardens, located just… kaiparacoastplantcentre.com
Erel The B4r program runs on an ESP32 which is connected to proximity switches on each wheel, relay outputs to drive the motors, LED display, and a real time clock to control the time. There are motor alarms from the variable speed drives running the motors The B4r is connected to a small app on my cell phone via BT so I can fault find, reset alarms, and alter the time ( usually only after daylight saving!) I can also run each motor on demand during a maintenance checks and relubrication the axle bearings The clock colours can be changed manually ( usual strip LED controller) The clock resets itself to the correct time after a power failure Its presently installed in a sculpture garden Sculpture Gardens 2026 Exhibition Now On Welcome to Kaipara Coast Sculpture Gardens Escape the city hustle and immerse yourself in a tranquil blend of art and nature at Kaipara Coast Sculpture Gardens, located just… kaiparacoastplantcentre.com
