Share My Creation SQLite Viewer

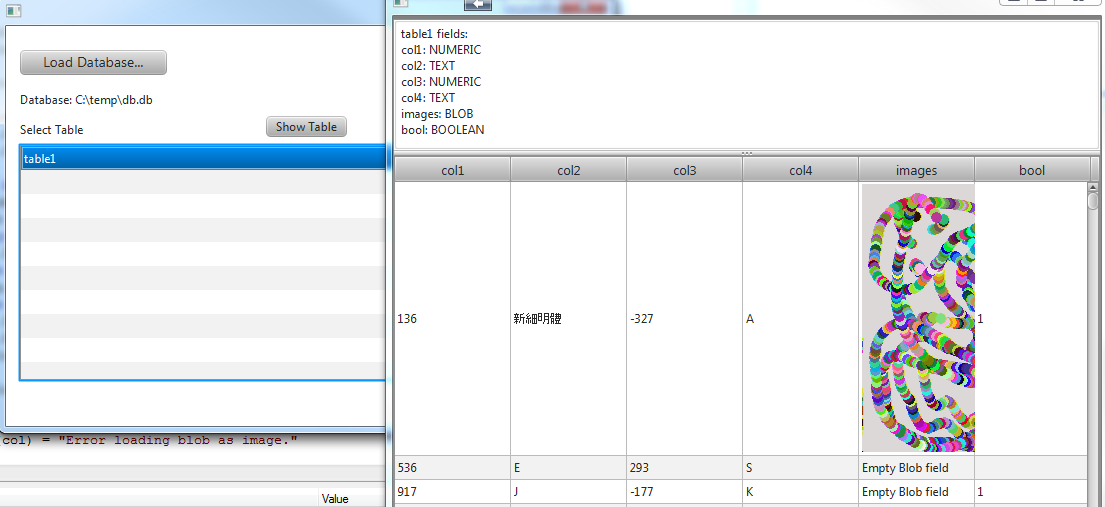

A small example that lets you load a SQLite database and see its contents. The program tries to load BLOB fields as images.


Updated file is attached to post #4.



[billzhan]

An Error found on xp sp3+b4j beta4.
When open file R:/data.db
LoadDatabase("", f)-> f ="R:\data.db" which is right
LoadDatabase(Dir As String, FileName As String)-> sql initialize to open "\R:\data.db" so it can not be opened.



[Erel]

This issue is fixed in beta 5 which will be released today.



[Informatix]

Here's the fixed version that works with beta 6.



[rwblinn]

Here's the fixed version that works with beta 6.

Hi All,

have tested with latest B4J 1.06. The blob fields are not shown.
Please find the sqlite3 testdatabase attached.



[Erel]

There is some problem with the image itself.

It cannot load it even if you save it to a file. How did you create this image?



[rwblinn]

Hi Erel,

found the issue with the BLOBS. The BLOBS loaded had BMP format, which seems to be not supported?

Retested with GIF and PNG files works fine. Inserting using:

Sub InsertBlob(blobname As String)
    Log("SQL Insert BLOB :: Start")
    If File.Exists(File.DirApp, blobname) = False Then
        Log("BLOB File NOT Exists: " & File.DirApp & ", " & blobname)
        Return
    End If
    Log("BLOB File Exists: " & File.DirApp & ", " & blobname)
    'convert the image file to a bytes array
    Dim InputStream1 As InputStream
    InputStream1 = File.OpenInput(File.DirApp, blobname)
    Dim OutputStream1 As OutputStream
    OutputStream1.InitializeToBytesArray(1000)
    File.Copy2(InputStream1, OutputStream1)
    Dim Buffer() As Byte 'declares an empty array
    Buffer = OutputStream1.ToBytesArray
    'write the image to the database
    Log("SQL Insert ...")
    SQL.ExecNonQuery2("INSERT INTO images VALUES(NULL, ?, ?)", Array As Object(blobname, Buffer))
    Log("SQL Insert BLOB :: End")
End Sub



[Erel]

BMP should be supported. Something with this specific image causes a problem.



[tsteward]

How can I modify this app to have webview to show the text fields?
Most of my text fields contain html code. Or is this not feasible?



[Erel]

Do you want to use a WebView for the table? You can take the code from DBUtils.ExecuteHtml to build such a table.



[JOTHA]

Hi Erel,

i got this errror-message:

java.lang.NoClassDefFoundError: javafx/scene/control/Dialog

Is there a Library missing?

THX in advance ...



[Erel]

Are you using Java 8.40+ ?



[JOTHA]

Hi Erel,

no, i use Java 8.0650.17.
Should i upgrade?



[JOTHA]

... I've installed B4J on another PC with WIN7 ... there it works!
But on my Laptop with WIN10 there is the following Log after compilation:

Program started.
main._process_globals (java line: 143)
java.lang.NoClassDefFoundError: javafx/scene/control/Dialog
at b4j.example.main._process_globals(main.java:143)
at b4j.example.main.initializeProcessGlobals(main.java:131)
at b4j.example.main.start(main.java:33)
at com.sun.javafx.application.LauncherImpl.lambda$launchApplication1$153(LauncherImpl.java:821)
at com.sun.javafx.application.LauncherImpl$$Lambda$51/1996990761.run(Unknown Source)
at com.sun.javafx.application.PlatformImpl.lambda$runAndWait$166(PlatformImpl.java:323)
at com.sun.javafx.application.PlatformImpl$$Lambda$45/1349277854.run(Unknown Source)
at com.sun.javafx.application.PlatformImpl.lambda$null$164(PlatformImpl.java:292)
at com.sun.javafx.application.PlatformImpl$$Lambda$47/851662109.run(Unknown Source)
at java.security.AccessController.doPrivileged(Native Method)
at com.sun.javafx.application.PlatformImpl.lambda$runLater$165(PlatformImpl.java:291)
at com.sun.javafx.application.PlatformImpl$$Lambda$46/1147985808.run(Unknown Source)
at com.sun.glass.ui.InvokeLaterDispatcher$Future.run(InvokeLaterDispatcher.java:95)
at com.sun.glass.ui.win.WinApplication._runLoop(Native Method)
at com.sun.glass.ui.win.WinApplication.lambda$null$141(WinApplication.java:102)
at com.sun.glass.ui.win.WinApplication$$Lambda$37/728890494.run(Unknown Source)
at java.lang.Thread.run(Thread.java:745)
Caused by: java.lang.ClassNotFoundException: javafx.scene.control.Dialog
at java.net.URLClassLoader$1.run(URLClassLoader.java:372)
at java.net.URLClassLoader$1.run(URLClassLoader.java:361)
at java.security.AccessController.doPrivileged(Native Method)
at java.net.URLClassLoader.findClass(URLClassLoader.java:360)
at java.lang.ClassLoader.loadClass(ClassLoader.java:424)
at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:308)
at java.lang.ClassLoader.loadClass(ClassLoader.java:357)
... 17 more

... any ideas what to do?
THX



[Erel]

Should i upgrade?

Yes.
