iOS Question StatusBar Background transparent

F.Campanella

Member
Licensed User
Longtime User
Hi,
I've need to make Statusbar in transparent background.
I follow your instructions for various threads but the results is not good.

I've used this code:

B4X:
NavControl = Nav

   Dim no As NativeObject = App
   no.RunMethod("setStatusBarStyle:", Array(1))

   Dim no As NativeObject = NavControl
   no.GetField("navigationBar").RunMethod("setBarStyle:", Array(1))

   Page1.RootPanel.Color = Colors.Transparent

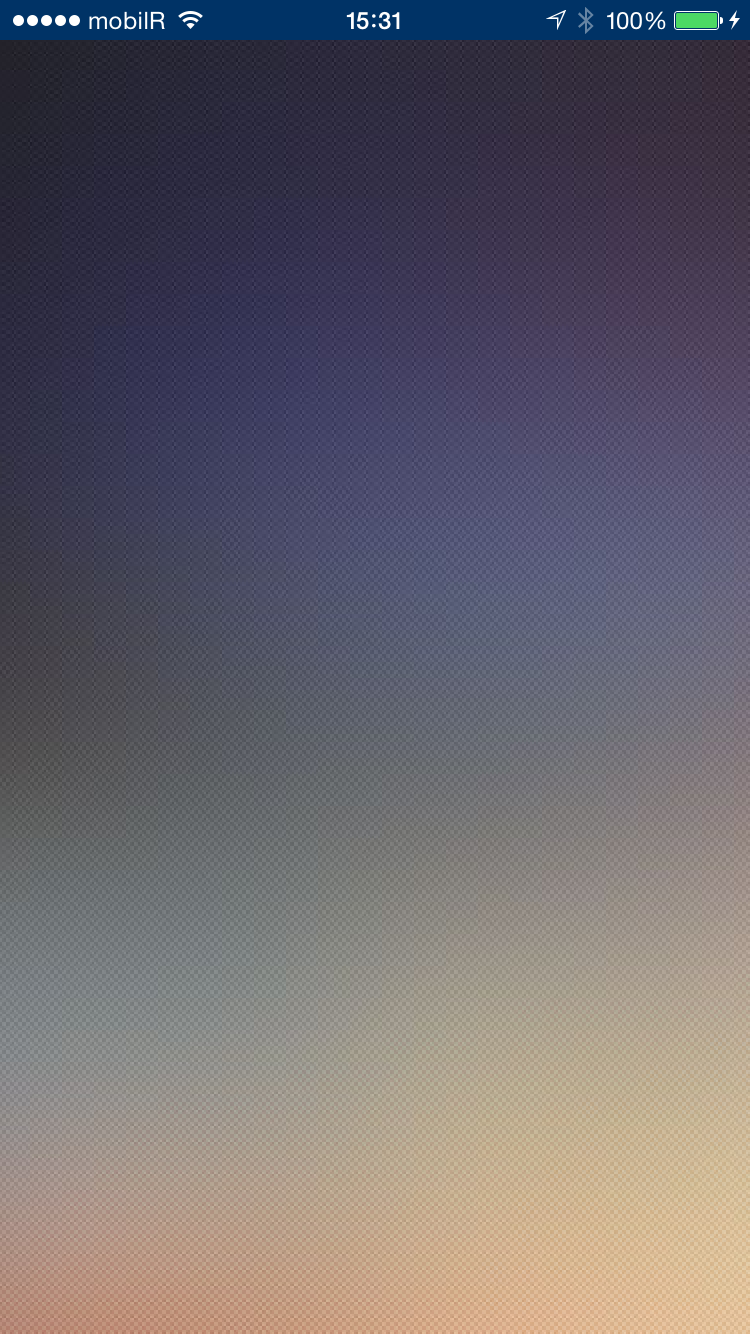

the results is displayed in the image. The status bar remain opaque with black color

Can you help me?



F.Campanella

Member
Licensed User
Longtime User

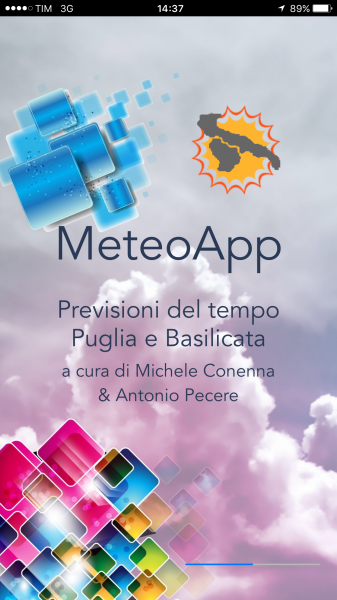

When an app is launched panel appears splash, I hide the statusbar ... when the app finishes loading all the information, I hide the splash panel and make visible the statusbar again (thanks Narek);)

Upvote 0

F.Campanella

Member
Licensed User
Longtime User
Hi Alberto, this is very simple...

Put this code in the Project attributes region

B4X:
#PlistExtra: <key>UIViewControllerBasedStatusBarAppearance</key><false/>

At begin of the Application_Start put the following code:

B4X:
...
...
...
Private Sub Application_Start (Nav As NavigationController)

NavControl = Nav
   NavControl.NavigationBarVisible = False

Dim no As NativeObject = App
     no.RunMethod("setStatusBarStyle:", Array(1))

   Dim no As NativeObject = NavControl
     no.GetField("navigationBar").RunMethod("setBarStyle:", Array(1))

   Dim no As NativeObject = App
   no.RunMethod("setStatusBarHidden:animated:", Array(True, False))

Is All,

tell me if you are solved!
....

Upvote 0

F.Campanella

Member
Licensed User
Longtime User

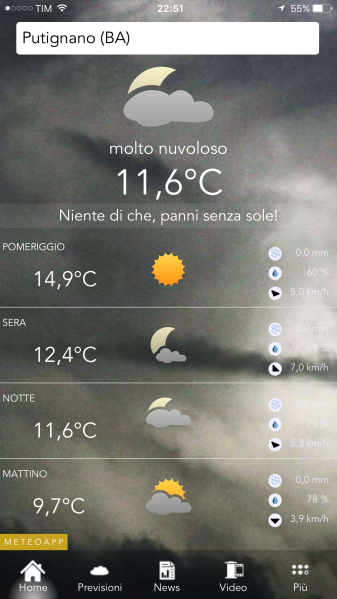

This is the code that I used for show my work-example that I posted here:

B4X:
Private Sub Application_Start (Nav As NavigationController)

#region Prime Inizializzazioni

   GPS.Initialize("GPS")

   LoadConf

   CaricaCitta

   NavControl = Nav

   Dim no As NativeObject = App
     no.RunMethod("setStatusBarStyle:", Array(1))

   Dim no As NativeObject = NavControl
     no.GetField("navigationBar").RunMethod("setBarStyle:", Array(1))

   Dim no As NativeObject = App
   no.RunMethod("setStatusBarHidden:animated:", Array(True, False))

   Page1.Initialize("Page1")
   Page1.RootPanel.Color = Colors.Transparent
   PageActOrarie.Initialize("PageActOrarie")
   PageActOrarie.RootPanel.Color = Colors.RGB(0,51,102) ' POI FAREMO IL COLORE GRADIENTATO UGUALE A QUELLO DELLA VERSIONE ANDROID
   PageActAltro.Initialize("PageActAltro")
   PageActAltro.RootPanel.Color = Colors.RGB(0,51,102)
   PageActConf.Initialize("PageActConf")
   PageActConf.RootPanel.Color = Colors.RGB(0,51,102)
   ClassActOrarie.Initialize(Nav)
   ClassActAltro.Initialize(Nav)
   ClassActConf.Initialize(Nav)

   BManager.Initialize

#end region

#region Immagine di Sfondo

   igvSfondo.Initialize("IV")
   igvSfondo.Bitmap = LoadBitmap(File.DirAssets, "sf_sereno1.jpg")
   igvSfondo.ContentMode = igvSfondo.MODE_TOPLEFT
   Page1.RootPanel.AddView(igvSfondo, 0,0,100%x, 100%y)

#end region

...
...
...
...

This code worked for me...

P.S. The background image igvSfondo is the first View that I load in the RootPanel for the page.

Upvote 0

narek adonts

Well-Known Member
Licensed User
Longtime User
Upvote 0
