Android Question Thousands of markers ...

[javiers]

Hi, I have about 13,000 records in a table. What is the best way to create them as markers without slowing down the application?

Related to this, would it be better to create only markers in the visible part of the map and when you have a certain zoom?

Is this posible?

Thanks in advance!



[DonManfred]

I would not show any marker which is not at a minimum zoomlevel. 14+
I would not show them too if outside the screenarea.

Is this posible?

Sure. But showing this amount of Markers will slow down.



[DonManfred]

I know i can use a ClusterManager. Wrote one for a customer. I used 200k+ Markers in my Tests ;-)



[javiers]

I would not show any marker which is not at a minimum zoomlevel. 14+
I would not show them too if outside the screenarea.

Sure. But showing this amount of Markers will slow down.

Thank you for your answers!.
I will try to create only the markers when the zoom is at least +14, and only those within the visible area of the map.

I understand that GetProjection (Gmap) .GetVisibleRegion.LatLngBounds can help me ... I would have to query the table to select the markers that are within the visible area, and then create them.


Let's see if I can do it ...



[javiers]

Thanks!



[Erick_Asas]

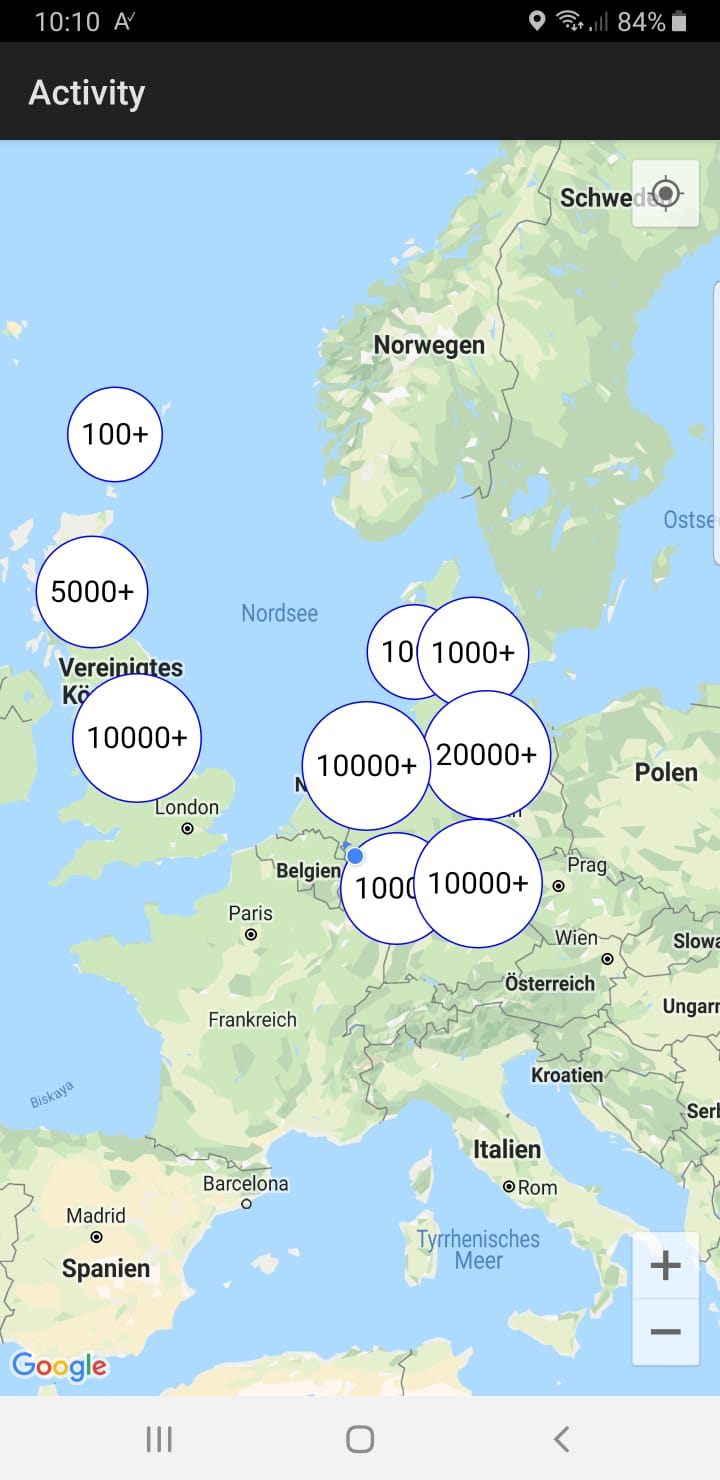

I know i can use a ClusterManager. Wrote one for a customer. I used 200k+ Markers in my Tests ;-)
View attachment 86384

Hi Don,

Can you possible share your code for marker clustering?



[DonManfred]

Can you possible share your code for marker clustering?

no. I wrote it for a customer and he don´t want to publish the code.



[Erick_Asas]

no. I wrote it for a customer and he don´t want to publish the code.

Ok. Thanks by the way.



[kgf]

Im sure there is a much better way to do this, but haven't investigated further. Was going to look at grouping points based on tile bounds at each zoom.

This queries a sqlite view that has lat and lon columns., and groups waypoints by rounding the decimal places based on the zoom.

Sub DrawWaypointsClustered(gmap As GoogleMap, swLat As Double, swLong As Double, neLat As Double, neLong As Double, mapzoom As Int)

'    1° = 111 km  (Or 60 nautical miles)
'    0.1° = 11.1 km
'    0.01° = 1.11 km (2 decimals, km accuracy)
'    0.001° =111 m
'    0.0001° = 11.1 m
'    0.00001° = 1.11 m
'    0.000001° = 0.11 m (7 decimals, cm accuracy)

'    Dim lStart As Long = DateTime.Now

    If mapzoom < 10 Then Return ' dont draw at larger scales

    Dim MarkerCluster As Marker 'ignore
    ListClusterMarker.Initialize

    Dim ranges As Map = CreateMap(10: 0, 11: 0, 12: 1, 13: 1, 14: 1, 15: 1, 16: 2, 17: 3, 18: 3)
    Dim zoomRound As Int = ranges.Get(mapzoom)

    Dim strsql As String
    strsql = $"Select count(id) As n, avg(lon) As lon, avg(lat) As lat "$ & _
    "FROM vw_waypoint " & _
    "WHERE " & _
    $"(Case WHEN ${swLat} < ${neLat} Then lat BETWEEN ${swLat} And ${neLat} Else lat BETWEEN ${neLat} And ${swLat} End) "$ & _
    "AND " & _
    $"(Case WHEN ${swLong} < ${neLong} Then lon BETWEEN ${swLong} And ${neLong} Else lon BETWEEN ${neLong} And ${swLong} End) "$ & _
    $"GROUP BY Round(lat,${zoomRound}) , Round(lon,${zoomRound})"$
    Dim rs As ResultSet = Starter.sql.ExecQuery(strsql)
'    Log("draw " & rs.RowCount & " pins")

    Do While rs.NextRow = True
        MarkerCluster = gmap.AddMarker3(rs.GetDouble("lat"),rs.GetDouble("lon"), "", CreateClusterBitmap(rs.GetString("n")))
        ListClusterMarker.Add(MarkerCluster)
    Loop
    rs.Close
'    Dim lEnd As Long = DateTime.Now - lStart
'    Log("addWaypointsClustered took " & lEnd & " m seconds") 'ms to seconds
End Sub

Sub CreateClusterBitmap(text As String) As B4XBitmap
    Dim xui As XUI
    Dim p As B4XView = xui.CreatePanel("")
    p.SetLayoutAnimated(0, 0, 0, 200dip, 200dip)
    Dim c As B4XCanvas
    c.Initialize(p)
    c.DrawCircle(c.TargetRect.CenterX, c.TargetRect.Bottom - 50, 50 ,xui.Color_ARGB(200,255,255,255), True, 1)
    c.DrawText(text, c.TargetRect.CenterX, c.TargetRect.Bottom - 40, xui.CreateDefaultBoldFont(20), xui.Color_Black, "CENTER")
    c.Invalidate
    Return c.CreateBitmap
End Sub



[Erick_Asas]

Thanks @kgf.

Will try to implement this.
