Android Question Using Loop Counter as part label name

Discussion in 'Android Questions' started by Roger Daley, Jun 18, 2015.

  1. Roger Daley

    Roger Daley Well-Known Member Licensed User

    Hi All,

    I have a number of labels [lblF0 - lblF15], the TextColor of these labels is changed programatically.
    When I build a LIST of these labels I want the list Textcolor to match the laabel text color.
    When I try to build the list using a loop I can't figure out how to make the Label name using the loop counter. [IE lblF&i doesn't work.] I suspect that it could be done using a java object haven' been able to find anything is searching.

    Any help much appreciated.


    Code:
    Sub FNumSelect
    'Brings up ListView to allow selection of F0-F15 as assigned function.
    'Called by Formula_click
        ListFlag = 1

    Dim FNumLabel As Label                            'Set the parameters for displaying the Items of the ListView
        FNumLabel = FNumView.SingleLineLayout.Label    '
        FNumLabel.TextSize = 18*FontScale                        '
        'FNumLabel.TextColor = Colors.White                '
        FNumLabel.Color = Colors.DarkGray                '
        FNumLabel.Height = 5.6%y                         'Label height and Item Height should match to avoid gsps & overlaps
           FNumView.SingleLineLayout.ItemHeight = FNumView.SingleLineLayout.Label.Height
        FNumView.Color =
    Colors.DarkGray                'ListView color matches Label color as labels don't fill ListView
        FNumView.Clear                                    'Clear Listview before populating or else you get duplicates


    ' This is the bit where I need help
        For i = 0 To 15                                    'Builds the viewable list RecallView from the List "storelist"
            FNumLabel.TextColor = lblF&i.TextColor        'Assign LIST Label textcolour from existing label textcolour???????????????
           FNumView.AddSingleLine("F" & i)

    Next




    Activity.AddView(FNumView, 010%y100%x90%y)   'Displays the list built by the previous loop.
        lblTitle.Text = "Select a Function Key to Program"
        lblTitle.TextSize =
    14*FontScale
        lblTitle.BringToFront
        lblTitle.Height =
    10%y
        ListBack.BringToFront
        ListBack.Height =
    10%y
        FNumView.BringToFront
    End Sub

    Regards Roger

    Last edited: Jun 18, 2015
  2. eurojam

    eurojam Well-Known Member Licensed User

    Roger,
    I think it better to work with an Array of labels to achieve what you want. something like
    Code:
    Dim lblF(16As Label

    For i = 0 To 15
           FNumLabel.TextColor = lblF(i).TextColor
    'can you see the difference?
           FNumView.AddSingleLine("F" & i)

    Next

    Peter Simpson and Roger Daley like this.
  3. Roger Daley

    Roger Daley Well-Known Member Licensed User

    Thanks eurojam this looks good.
    I guess I painted myself in to a corner not dimensioning as an array at the start. I will need to back track but well worth the effort and less complex than I was expecting.

    Thanks for the enlightenment.

    Regards Roger

  4. Roger Daley

    Roger Daley Well-Known Member Licensed User

    Well it looked good but I have fallen in to another pit.
    Changed from DIMensioning individual labels to an array, modified code to suite and tried to compile with the attached result. The Save Settings in Activity Pause has the same green stripe.

    I've tried researching and changing things, found nothing, achieved nothing. Any ideas?


    Regards Roger

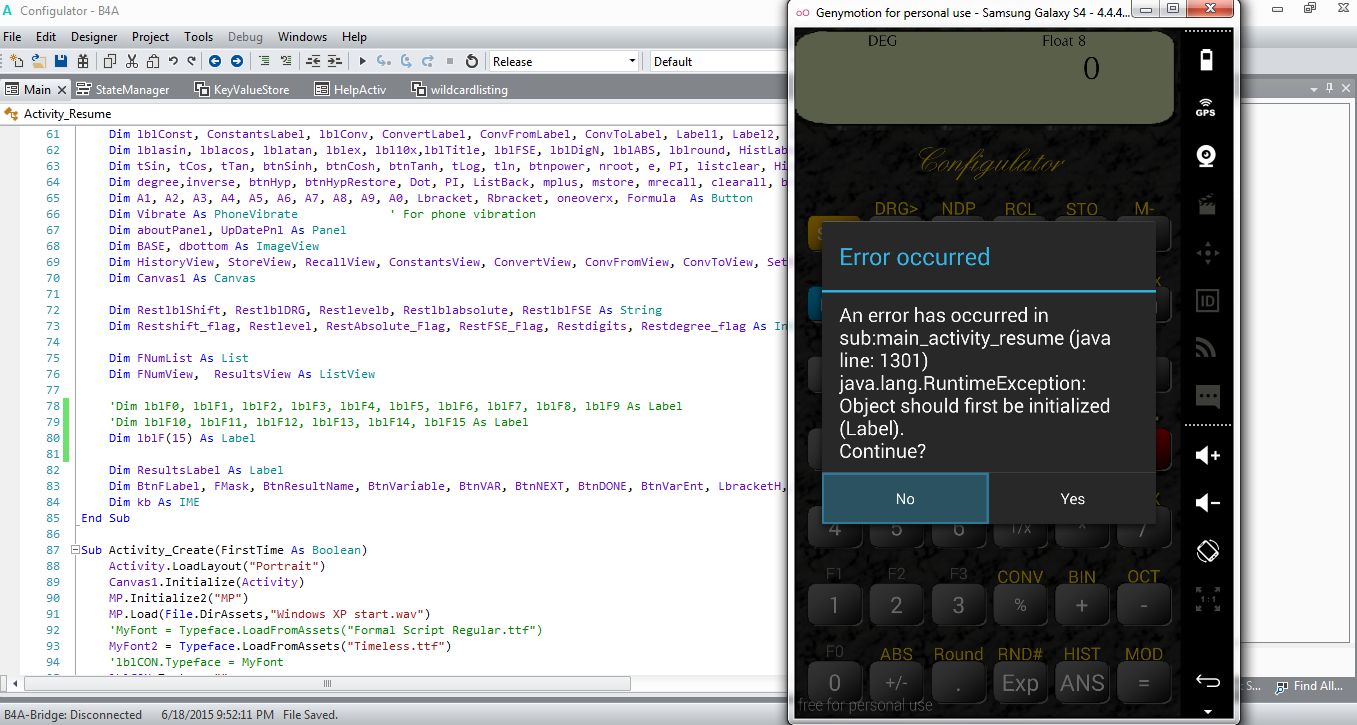

    Error screen.jpg

  5. JordiCP

    JordiCP Well-Known Member Licensed User

    Which error do you get?

    The labels should be previously initialized if they have not been added in the designer.

  6. MaFu

    MaFu Well-Known Member Licensed User

    Another suggestion:
    Code:
    For i = 0 To 10
        lblF(i).Initialize(
    "")
        lblF(i).Text = StateManager.GetSetting2(
    "lblF" & i & ".Text""F" & i)
        lblF(i).TextColor = StateManager.GetSetting2(
    "lblF" & i & ".TextColor"Colors.Gray)
    Next

  7. Roger Daley

    Roger Daley Well-Known Member Licensed User

    JordiCP

    Attached screenshot is best description.
    The labels were created in the designer. As shown in the screenshot labels F0-F15 were originally DIMed individually but now as an array, attempting to solve problem above.
    I have tried to initialize [lblF(15).Initialize] which gives me a "Missing Parameter" error. I have always created labels in the designer so missing something in initializing.

    Regards Roger

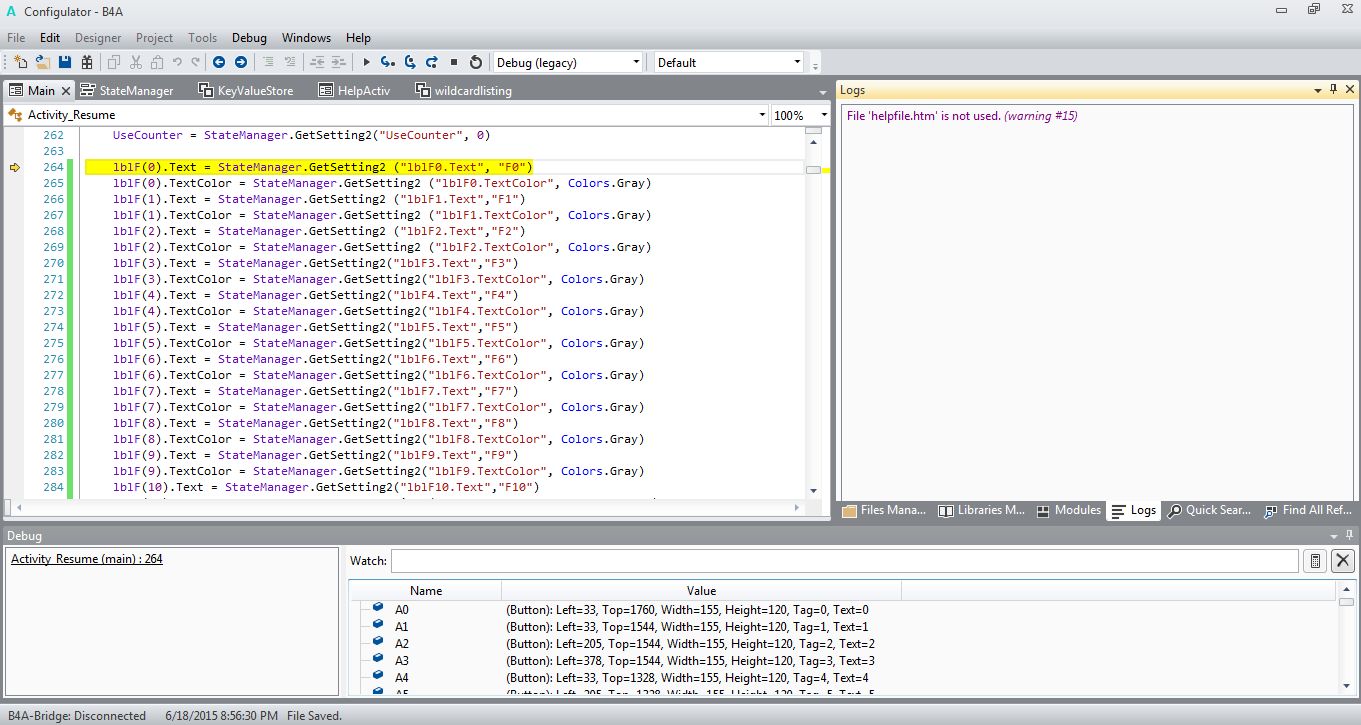

    Error screen2.jpg

  8. MaFu

    MaFu Well-Known Member Licensed User

    If you create the layout in designer the label variables must have the same name as the labels in designer.
    Try this:
    Code:
    Sub Globals
        ...

    Dim lblF0, lblF1, lblF2, lblF3, lblF4, lblF5, lblF6, lblF7, lblF8, lblF9 As Label

    Dim lblF10, lblF11, lblF12, lblF13, lblF14, lblF15 As Label

    Dim lblF(16As Label
    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    Activity.LoadLayout("Portrait")
        lblF(
    0) = lblF0
        lblF(
    1) = lblF1
        lblF(
    2) = lblF2
        lblF(
    3) = lblF3
        lblF(
    4) = lblF4
        lblF(
    5) = lblF5
        lblF(
    6) = lblF6
        lblF(
    7) = lblF7
        lblF(
    8) = lblF8
        lblF(
    9) = lblF9
        lblF(
    10) = lblF10
        lblF(
    11) = lblF11
        lblF(
    12) = lblF12
        lblF(
    13) = lblF13
        lblF(
    14) = lblF14
        lblF(
    15) = lblF15

    For i = 0 To 15
            lblF(i).Text = StateManager.GetSetting2(
    "lblF" & i & ".Text""F" & i)
            lblF(i).TextColor = StateManager.GetSetting2(
    "lblF" & i & ".TextColor"Colors.Gray)

    Next
        ...
    End Sub

    DonManfred and JordiCP like this.
  9. JordiCP

    JordiCP Well-Known Member Licensed User

    As MaFu's answer points, you don't need to initialize the array as new label objects if they are already created with the designer. All you need to do is reference its index elements to the ones created with the designer. By doing this you can keep working with the designer but also have a convenient way to handle them as arrays.

    Roger Daley and DonManfred like this.
  10. RandomCoder

    RandomCoder Well-Known Member Licensed User

    But doing it this way it means that you are declaring 32 labels when in reality you only want 16. The way that I do this is use a map. The key of the map can be the label name but in my case I just use the labels tag and make sure my tags are unique and the value is the actual label reference.

  11. MaFu

    MaFu Well-Known Member Licensed User

    It's 32 variables but only 16 labels. If i use lblF(0) = lblF0 then both variables points to the same label object.

  12. RandomCoder

    RandomCoder Well-Known Member Licensed User

    I always struggle to get my head around this! :oops:

    Code:
    Sub Globals
        ...

    Dim lblF0, lblF1, lblF2, lblF3, lblF4, lblF5, lblF6, lblF7, lblF8, lblF9 As Label

    Dim lblF10, lblF11, lblF12, lblF13, lblF14, lblF15 As Label

    Dim lblF(16As Label
    End Sub
    The declaration above would suggest declaring 32 Labels. I realise that in the code you later reference one Label to another but that is still 32 actual Labels is it not? Whereas using a map would be 16 Labels and one Map holding just the reference to those Labels.
    But like I said, this is always a little confusing to me no matter how many times I read up on it. :(

  13. MaFu

    MaFu Well-Known Member Licensed User

    "Dim lblA, lblB As Label" declares two variables, not the objects.
    "lblA.Initialize("")" creates the label object and the variable holds a reference to it.
    "lblB = lblA" assigns the same object to the second variable. It's only one object and two references to it.

    RandomCoder likes this.
  14. Roger Daley

    Roger Daley Well-Known Member Licensed User

    Hi All,

    Solution to my original problem is below. [Almost]. Using the Labels Tag instead of the Label name allows use of the loop counter.
    Belatedly I realized that you can't change the text colour of individual items in a Listview [FNumView], I will need to re-do as a CustomListView however due other priorities I will be offline for a few days son that is next weeks job.
    The code below shows how the loop can take the text from the label and use it in the items of the listview, something similar should work for textcolor when using a customlistview.


    Thanks for the many sugestions

    Regards Roger

    Code:
    Sub FNumSelect
    'Brings up ListView to allow selection of F0-F15 as assigned function.
    'Called by Formula_click
        ListFlag = 1

    Dim FNumLabel As Label                            'Set the parameters for displaying the Items of the ListView
        Dim lblText As String
        FNumLabel = FNumView.SingleLineLayout.Label
    '
        FNumLabel.TextSize = 18*FontScale                        '
        FNumLabel.TextColor = Colors.White                '
        FNumLabel.Color = Colors.DarkGray                '
        FNumLabel.Height = 5.6%y                         'Label height and Item Height should match to avoid gsps & overlaps
           FNumView.SingleLineLayout.ItemHeight = FNumView.SingleLineLayout.Label.Height

    'FNumView.Color = Colors.DarkGray                'ListView color matches Label color as labels don't fill ListView
        FNumView.Clear                                    'Clear Listview before populating or else you get duplicates



    For i = 0 To 15                                    'Builds the viewable list RecallView from the List "storelist"
            For Each v As View In Activity.GetAllViewsRecursive

    If v Is Label Then

    Dim lbl As Label = v

    If v.Tag = "F"&i Then
                         lblText = lbl.Text

    'FNumView.TextColor = lbl.TextColor  ---  Does not work because FNumView is Listview, needs to be a CustomListView
                     End If

    End If

    Next

           FNumView.AddSingleLine(lblText)
    '      FNumView.AddSingleLine("F" & i)
          Next



    Activity.AddView(FNumView, 010%y100%x90%y)   'Displays the list built by the previous loop.
        lblTitle.Text = "Select a Function Key to Program"
        lblTitle.TextSize =
    14*FontScale
        lblTitle.BringToFront
        lblTitle.Height =
    10%y
        ListBack.BringToFront
        ListBack.Height =
    10%y
        FNumView.BringToFront
    End Sub
