iOS Question White bar on iPhone Xs

Discussion in 'iOS Questions' started by schimanski, Jul 10, 2019.

  1. schimanski

    schimanski Well-Known Member Licensed User

    Does anybody know, why the tabstrip shows a white bar under the pages on iPhone Xs? This doesn't happens on iPhone 8:

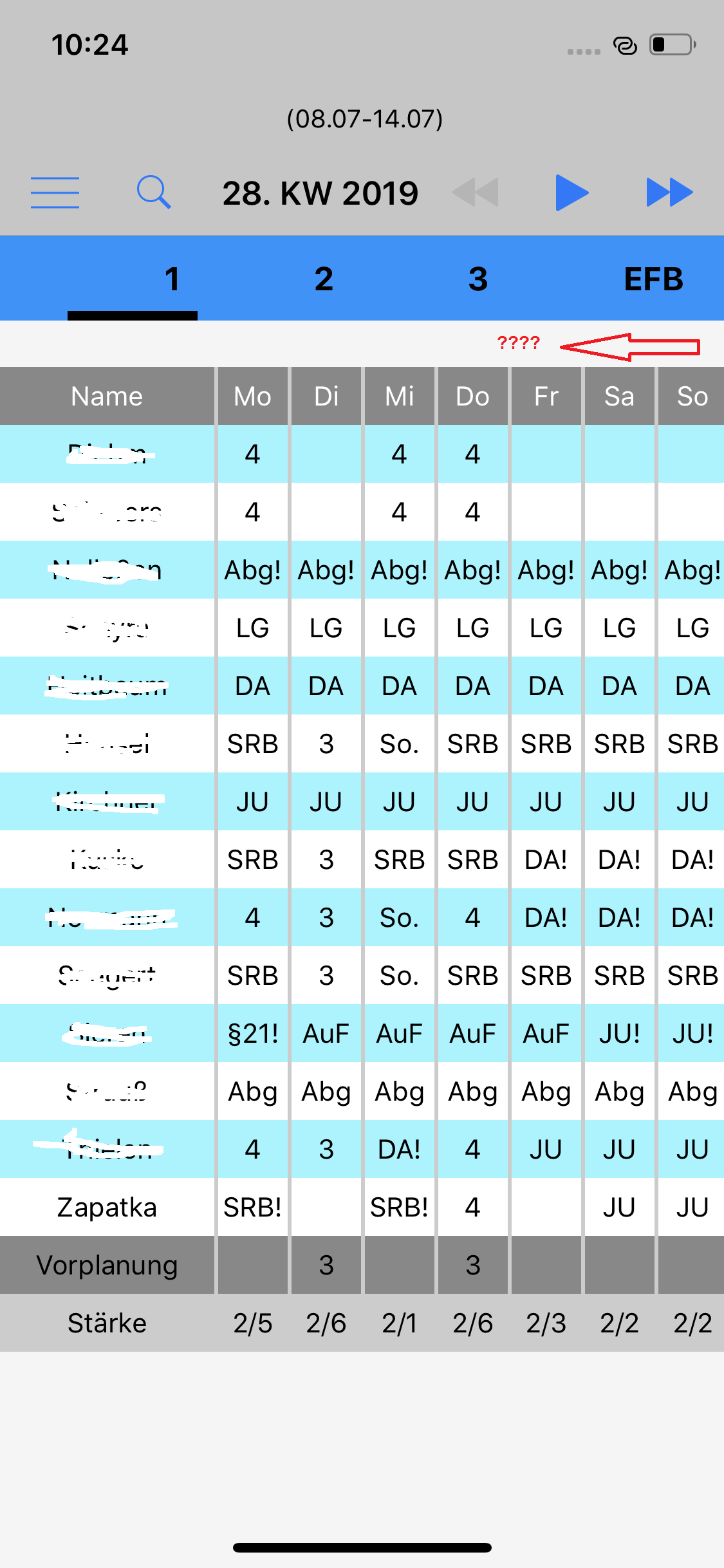

    iphone xs.PNG

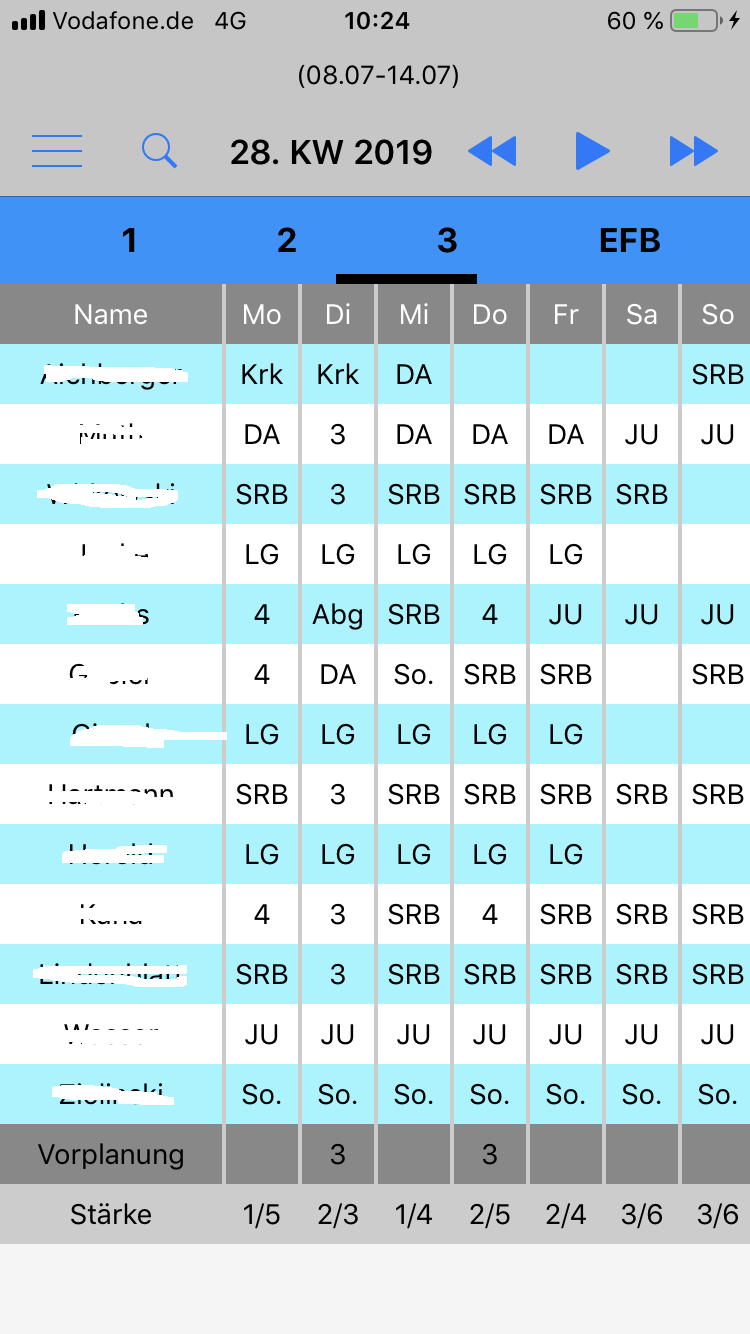

    iphone 8.PNG

  2. Erel

    Erel Administrator Staff Member Licensed User

    Is the table anchored vertically to both sides?

  3. schimanski

    schimanski Well-Known Member Licensed User

    I'm adding the table to the pages with the following code. The bar is only shown in portrait, not in landscape-mode:
    Code:
    for i=1 to Count

    tabpage(i).Initialize("tabpage" & i)

    tabpage(i).Title = Name(i)
       table(i).Initialize(Me,
    "Table" & i, 8)
       table(i).AddToParent(
    tabpage(i).RootPanel, 00,100%x100%y)
    ..
    next

  4. Erel

    Erel Administrator Staff Member Licensed User

    Please try to reproduce it in a small project and upload it.

  5. schimanski

    schimanski Well-Known Member Licensed User

    I will try to make a short project. For this moment, there is also a behavior, that can help: On IPhone 8, the white bar also exists, when the iphone shows some informations like number of devices which are connected to the hotspot in the blue statusbar on top.

  6. schimanski

    schimanski Well-Known Member Licensed User

    Here a small project of my app.

    Thanks for help!


    Attached Files:

  7. Erel

    Erel Administrator Staff Member Licensed User

    I see it as well. It looks like a limitation of the underlying library related to devices with notch.

    This code should fix it:
    Code:
    Sub MainPage_Resize (Width As Float, Height As Float)

    If TabStrip1.IsInitialized And App.OSVersion >= 11 Then

    Dim no As NativeObject = TabStrip1

    Dim window As NativeObject = App
           window = window.GetField(
    "keyWindow")

    Dim f() As Float = window.ArrayFromEdgeInsets(window.RunMethod("safeAreaInsets"Null))

    If f(1) > 0 Then

    Dim Container As View = no.GetField("containerView")
               Sleep(
    50)

    Dim PrevTop As Int = Container.Top
               Container.Top =
    44 - f(1)
               Container.Height = Container.Height + PrevTop - Container.top

    End If

    End If
    End Sub

    techknight, angel_ and Johan Hormaza like this.
  8. schimanski

    schimanski Well-Known Member Licensed User

    Works perfect. Thank you very much!
