B4J Question XCustomListView height issue

Discussion in 'B4J Questions' started by Chris Lee, Jun 4, 2019.

  1. Chris Lee

    Chris Lee Member Licensed User

    Hi,

    I'm working on a project where I need to dynamically create an Xcustomlistview in code. It's in horizontal layout and I have got it to scale the size of the items in the list to fit the height.

    It's working well except that if I reduce the height of the Xcustomlistview below about 38dip a strange grey area appears. I've tried various things to try and understand what's going on but I'm struggling.

    It seems like something within the XCustomListview won't reduce below a height of 38dip?

    I'm using the library based version of the XCustomListview on B4J 7.31

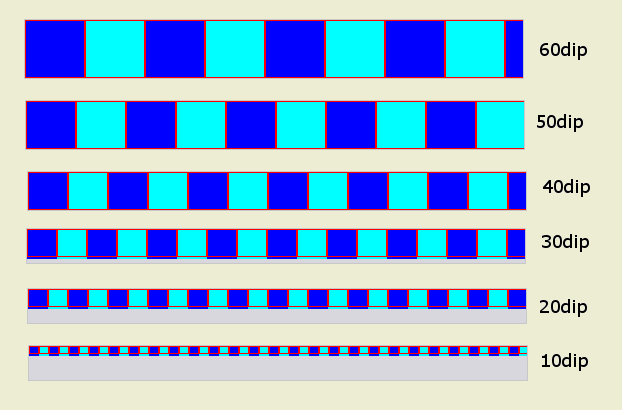

    The attached image and B4J project demonstrate the issue.

    Here is the main code, this shows the basic approach I'm using. The attached project includes everything.


    Code:
    Dim XI As XUI


    'Doesn't work?
        Dim TargetHeight As Int = 10dip


    'Works ok.
        'Dim TargetHeight As Int = 40dip


    Dim pControl As CustomListView


    Dim PropList As CustomListViewProp
        PropList.Initialize
        PropList.InsertAnimationDuration=
    100
        PropList.ShowScrollBar=
    False
        PropList.ListOrientation=PropList.XLIST_ORIENTATION_HORIZONTAL
        PropList.PressedColor=XI.Color_Blue
        PropList.DividerHeight=
    0

        pControl.Initialize(Me,
    "pControl")


    Dim TestPane As Pane
        TestPane.Initialize(
    "TestPane")

    Dim View As B4XView=TestPane

    View.Color=XI.Color_Green


    Dim TempLabel As Label
        TempLabel.Initialize(
    "TempLabel")

    Dim View As B4XView=TempLabel

    View.Color=XI.Color_Magenta
        TempLabel.Visible=
    False



        MainForm.RootPane.AddNode(TestPane,
    30dip,30dip,500dip,TargetHeight-2)

        pControl.DesignerCreateView(TestPane,TempLabel,PropList.Map)


    Dim sv As ScrollPane=pControl.sv

        sv.FitToHeight=
    True

        sv.PrefHeight=TargetHeight


    Dim ShowCyan As Boolean


    For i = 1 To 100

    Dim newItemPane2 As Pane
            newItemPane2.Initialize(
    "newItemPane2")
            newItemPane2.PrefWidth=TargetHeight
            newItemPane2.Style=
    "-fx-border-color: red;-fx-border-width: 1;"

    Dim View3 As B4XView=newItemPane2


    If ShowCyan Then
                View3.Color=XI.Color_Cyan
                ShowCyan=
    False

    Else
                View3.Color=XI.Color_Blue
                ShowCyan=
    True

    End If

            pControl.Add(View3,i)

    Next


    Attached Files:

  2. Erel

    Erel Administrator Staff Member Licensed User

    Please use File - Export as zip when uploading projects. The layout file is missing.

  3. Chris Lee

    Chris Lee Member Licensed User

    Hi Erel, I used the export feature, good to know for future posts. Updated file is attached.

    I'm not using a layout file in this case, as I'm dynamically creating the CustomListView in code.


    Attached Files:

  4. Erel

    Erel Administrator Staff Member Licensed User

    There are so many bad practices here that it is difficult for me to help you.

    This is a big mistake. Especially in B4J. Why not add the list with the designer and anchor it to both sides?

    This is also a mistake:
    Code:
    newItemPane2.Style="-fx-border-color: red;-fx-border-width: 1;"
    Set it with the designer. Very simple.

    You are also modifying properties of the internal ScrollPane which you shouldn't.

    I've replaced your code with:
    Code:
    Sub AppStart (Form1 As Form, Args() As String)
       MainForm = Form1

    Dim TargetWidth As Int = 10dip
       MainForm.RootPane.LoadLayout(
    "1")

    Dim ShowCyan As Boolean

    For i = 1 To 100

    Dim newItemPane2 As B4XView = xui.CreatePanel("")
           newItemPane2.SetLayoutAnimated(
    000, TargetWidth, CustomListView1.sv.ScrollViewContentHeight)

    If ShowCyan Then
               newItemPane2.Color= xui.Color_Cyan

    Else
               newItemPane2.Color= xui.Color_Blue

    End If
           ShowCyan =
    Not(ShowCyan)
           CustomListView1.Add(newItemPane2,
    "")

    Next
       MainForm.Show
    End Sub
    Works fine.

    DonManfred likes this.
