ZEBRA Printer library

ZEBRA printer library

  • I do not care

    Votes: 2 11.1%

  • I'm interested

    Votes: 11 61.1%

  • I'd pay for it

    Votes: 5 27.8%

  • I'd pay to stop you from creating it

    Votes: 0 0.0%
  • Total voters
    18
Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
Good morning everyone,

I was thinking of creating a library for printing with ZEBRA printers via LAN (or WiFI) or Bluetooth.

Do you think it might be of interest?

TILogistic

TILogistic

Expert
Licensed User
Longtime User
If you want I can help, I have a B4X library that I developed for a company, and I'm still adding new features from other models.

pd:
I was working on the preview of the labels, but due to a lot of work I left it, now I return to it.

Like this example:

Labelary Online ZPL Viewer

An online ZPL viewer that allows you to easily edit and preview ZPL labels.
labelary.com labelary.com

Last edited:
Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
Omar Parra A. said:
If you want I can help, I have a B4X library that I developed for a company, and I'm still adding new features from other models.

pd:
I was working on the preview of the labels, but due to a lot of work I left it, now I return to it.

Like this example:

Labelary Online ZPL Viewer

An online ZPL viewer that allows you to easily edit and preview ZPL labels.
labelary.com labelary.com
Click to expand...
Thanks Omar you are always available and friendly. šŸ˜Š

I already have something myself, but at the moment I would like to understand if the project is worth expanding.

The idea is to have a library that connects its via lan that ble. That allows you to have a preview of the image and that makes it easy to send tests, images, graphics and barcodes without having to know the language.

Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
I wish I could interpret the models and populate the labels according to the models. In short, I have many ideas, but only one question: does anyone need it?

Xfood

Xfood

Expert
Licensed User
Omar Parra A. said:
If you want I can help, I have a B4X library that I developed for a company, and I'm still adding new features from other models.

pd:
I was working on the preview of the labels, but due to a lot of work I left it, now I return to it.

Like this example:

Labelary Online ZPL Viewer

An online ZPL viewer that allows you to easily edit and preview ZPL labels.
labelary.com labelary.com
Click to expand...
the library can be downloaded from b4x forum, you could kindly pass the link thanks a lot

D

dw_b4x

Member
I would be interested in a Zebra library. Zebra printers are an industrial standard used in most industries.
Having a feature like the Labelary (print preview) would be awesome.

Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
It seems that very few people don't care.
Let's give a preview maybe it stimulates interest.


SD_Kebra

Author: Star-Dust
Version: 0.01
  • LanZebraPrinter
    • Events:
      • Opened (Success As Boolean)
      • Preview (Success As Boolean, bmp As B4XBitmap)
    • Functions:
      • AddBarCode (X As Int, Y As Int, Height As Int, Code As String, TextSize As Int)
        BarCode(50,50,"1234567890",5)
      • AddHorizLine (X As Int, Y As Int, Width As Int, StrokeWidth As Int)
        PrintHorizLine(50,50,700,3)
      • AddRaw (Text As String)
      • AddRectangle (X As Int, Y As Int, Width As Int, Height As Int, StrokeWidth As Int, InvertBrush As Boolean)
        PrintRectangle(50,50,100,100,3)
      • AddRectangleFilled (X As Int, Y As Int, Width As Int, Height As Int, InvertBrush As Boolean)
      • AddText (X As Int, Y As Int, Text As String, TextSize As Int, Bold As Boolean)
        PrintLine(50,50,"Text",50, false)
      • AddVertLine (X As Int, Y As Int, Height As Int, StrokeWidth As Int)
        PrintVertLine(400,100,300,3)
      • Clear
      • Close
      • Initialize (Callback As Object, Event As String)
        Initializes the object. You can add parameters to this method if needed.
      • Open (Host As String)
      • Preview
      • Print
      • PrintAndClose
  • BtZebraPrinter
    • secret

Last edited:
Star-Dust

Star-Dust

Expert
Licensed User
Longtime User

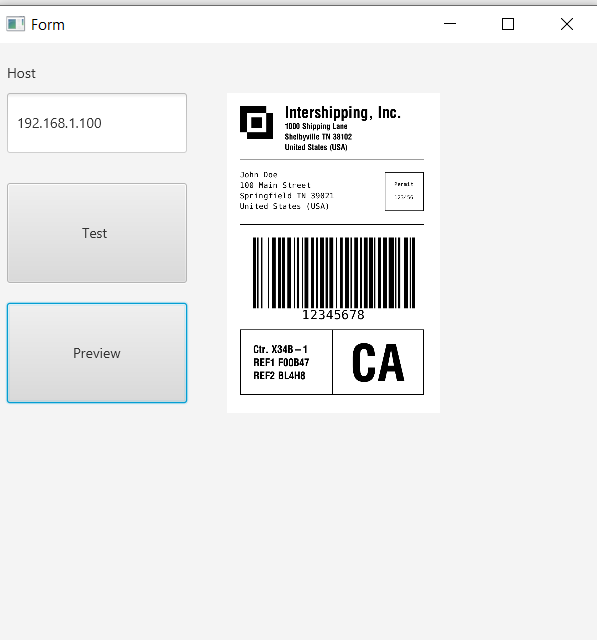

Preview B4J

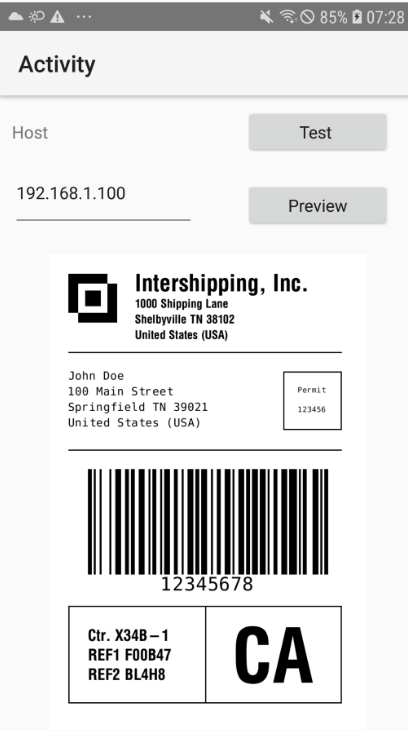

Preview B4A

Last edited:
M

micro

Well-Known Member
Licensed User
Longtime User
Hi to all
The following is a simple class I wrote some time ago to test the ZPL Viewer API online

B4X:
Sub Class_Globals
    Private fx As JFX
    Private imgw As B4XImageView
    Private xui As XUI
    Public label As String '<
    Public Refresh As Timer
    Public w As Double    = 3.93'larghezza etichetta
    Public h As Double    = 2.65 'lunghezza etichetta
End Sub

'Initializes the object. You can add parameters to this method if needed.
Public Sub Initialize (target As Object)
    imgw = target
    Start
End Sub

Sub Start
    imgw.Clear
    imgw.ResizeMode = "FIT"
    imgw.CornersRadius = 4
    Refresh.Initialize("Refresh", 2500)
    Refresh.Enabled = True
End Sub

Sub LoadView
    Refresh.Enabled = False
    Dim j As HttpJob
    j.Initialize("", Me)
    'Dim labelstr As String = File.ReadString(File.DirApp, "Prod_coop.prn")
    'j.PostString("http://api.labelary.com/v1/printers/8dpmm/labels/3.937x2.755/0/",labelstr)
    j.PostString($"http://api.labelary.com/v1/printers/8dpmm/labels/${w}x${h}/0/"$,label)
    j.GetRequest.SetHeader("Accept", "image/png")
    Wait For(j) JobDone(j As HttpJob)
    Dim b As Boolean = j.Success
    If b Then
        Dim out As OutputStream = File.OpenOutput(File.DirApp, "label.png", False)
        File.Copy2(j.GetInputStream, out)
        out.Close
        imgw.Load(File.DirApp, "label.png")
    End If
    j.Release
    Refresh.Enabled = True
End Sub

Sub Refresh_Tick
    If label.Length > 0 Then CallSub(Me,"LoadView")
End Sub

TILogistic

TILogistic

Expert
Licensed User
Longtime User
you server label zebra:

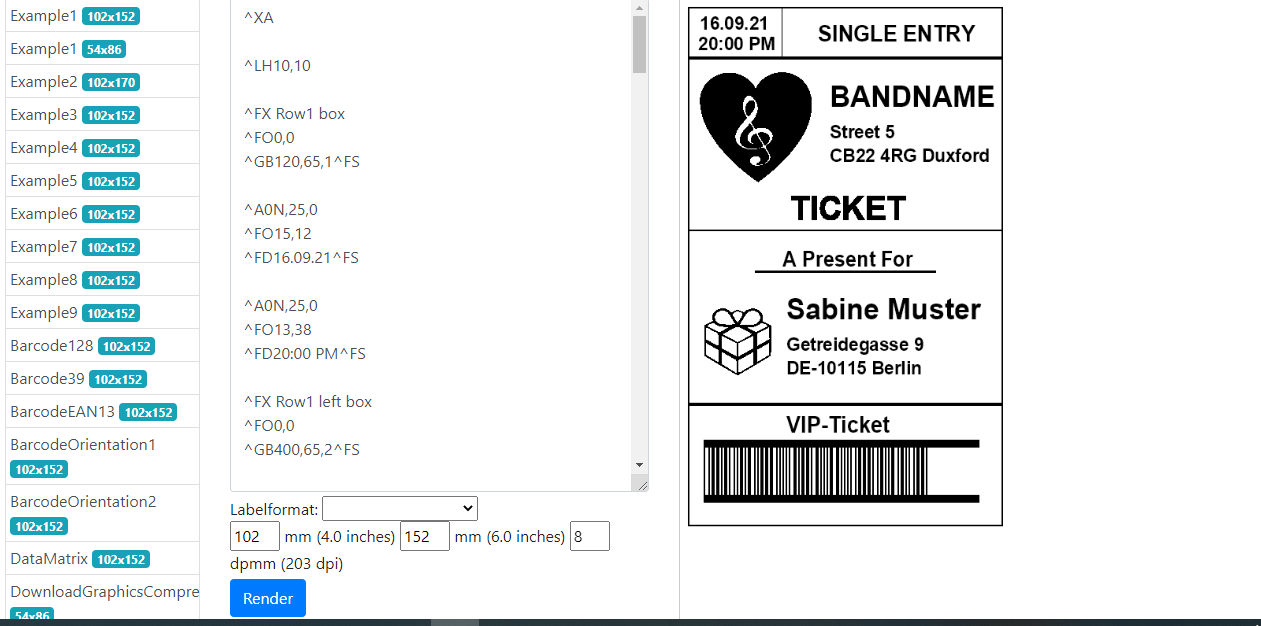

Preview and Other
github.com

GitHub - BinaryKits/BinaryKits.Zpl: BinaryKits.Zpl a set of .net libraries. The project supports you in the simple creation of zebra labels. It generates the ZPL data, it is a printer description language from Zebra Technologies. ZPL II is now emulat

BinaryKits.Zpl a set of .net libraries. The project supports you in the simple creation of zebra labels. It generates the ZPL data, it is a printer description language from Zebra Technologies. ZPL...
github.com github.com

Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
I'm glad this topic is coming to life.

There are several who have already produced code, but I am amazed that no one has tried to share until today.

I tried my hand at last Wednesday and I was already thinking of sharing a library since I didn't find one on the forum.

Here is my invitation why not share a library?

TILogistic

TILogistic

Expert
Licensed User
Longtime User
Star-Dust said:
I'm glad this topic is coming to life.

There are several who have already produced code, but I am amazed that no one has tried to share until today.

I tried my hand at last Wednesday and I was already thinking of sharing a library since I didn't find one on the forum.

Here is my invitation why not share a library?
Click to expand...
I have NOT shared and have put the B4X library up for sale, because it was developed for a company that distributes Zebra brands, but I give the links for which I base myself on the project.

This last link is the most complete, since it has the client and server environments.

Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
Omar Parra A. said:
I have NOT shared and have put the B4X library up for sale, because it was developed for a company that distributes Zebra brands, but I give the links for which I base myself on the project.

This last link is the most complete, since it has the client and server environments.
Click to expand...
Thanks my friend.
I was referring in general not to you whose spirit of mutual aid I know, nor to others developers in particular.

But in general I have heard that others have done the same job and I am practically the newcomer. Maybe they've had some brighter ideas as often happens.

amorosik

amorosik

Expert
Licensed User
What exactly does a 'library for a barcode printer' do?
I ask this because I often use the Zebra or other brands and have always driven them by creating the single label as a text file with the commands and copying this file on the port corresponding to the printer using the operating system commands.
And so I can't understand exactly what is meant by 'barcode printer driver'

Leandro Vaufran Stievano

Leandro Vaufran Stievano

Member
Licensed User
Star-Dust said:
Good morning everyone,

I was thinking of creating a library for printing with ZEBRA printers via LAN (or WiFI) or Bluetooth.

Do you think it might be of interest?
Click to expand...
I find it very interesting,
coincidentally I'm starting research to print to an Argox OS-214 printer with USB connection, if your lib works for that case too, I'm very interested in buying a license

Star-Dust

Star-Dust

Expert
Licensed User
Longtime User
Leandro Vaufran Esteves said:
I find it very interesting,
coincidentally I'm starting research to print to an Argox OS-214 printer with USB connection, if your lib works for that case too, I'm very interested in buying a license
Click to expand...
At least it only prints LAN and Wifi and I'm working with Bluetooth ... the last step will be USB.
Follow the conversation for updates
