B4J Library [ABMaterial] Exploring jsGanttImproved

Discussion in 'B4J Libraries & Classes' started by Mashiane, May 7, 2018.

  1. Mashiane

    Mashiane Expert Licensed User

    Ola

    Spent some time exploring another Gantt framework, sadly not responsive but kicks a few punches. I guess for desktops it can do.

    https://jsganttimproved.github.io/jsgantt-improved/



    Code:
    Dim g As MashJSGantt
        g.Initialize(
    page,"g")
        g.GanttFormat = g.JSGanttFormat.day
        g.AddTask1(
    1,  "Define Chart API",     "",           "",          "ggroupblack",  "",       False"Brian",    0,  g.JSGanttTaskType.StandardGroupTask, 0,  True"",      "",      "Some Notes text")
        g.AddTask1(
    11,  "Chart Object",         "2016-02-20","2016-02-20""gmilestone",   "",       False"Shlomy",   100,  g.JSGanttTaskType.normaltask, 1,  True"",      "",      "")
        g.AddTask1(
    12,  "Task Objects",         "",           "",          "ggroupblack",  "",       False"Shlomy",   40,  g.JSGanttTaskType.StandardGroupTask, 1,  True"",      "",      "")
        g.AddTask1(
    121"Constructor Proc",     "2016-02-21","2016-03-09""gtaskblue",    "",       False"Brian T."60,  g.JSGanttTaskType.normaltask, 12True"",      "",      "")
        g.AddTask1(
    122"Task Variables",       "2016-03-06","2016-03-11""gtaskred",     "",       False"Brian",    60,  g.JSGanttTaskType.normaltask, 12True121,     "",      "")
        g.AddTask1(
    123"Task by Minute/Hour",  "2016-03-09","2016-03-14 12:00""gtaskyellow""",  False"Ilan",     60,  g.JSGanttTaskType.normaltask, 12True"",      "",      "")
        g.AddTask1(
    124"Task Functions",       "2016-03-09","2016-03-29""gtaskred",     "",       False"Anyone",   60,  g.JSGanttTaskType.normaltask, 12True"123SS""This is a caption""")
        g.AddTask1(
    2,   "Create HTML Shell",    "2016-03-24","2016-03-24""gtaskyellow",  "",       False"Brian",    20,  g.JSGanttTaskType.normaltask, 0,  True"122",     "",      "")
        g.AddTask1(
    3,   "Code Javascript",      "",           "",          "ggroupblack",  "",       False"Brian",    0,   g.JSGanttTaskType.StandardGroupTask, 0,  True"",      "",      "")
        g.AddTask1(
    31,  "Define Variables",     "2016-02-25","2016-03-17""gtaskpurple",  "",       False"Brian",    30,  g.JSGanttTaskType.normaltask, 3,  True"",      "Caption 1","")
        g.AddTask1(
    32,  "Calculate Chart Size""2016-03-15","2016-03-24""gtaskgreen",   "",       False"Shlomy",   40,  g.JSGanttTaskType.normaltask, 3,  True"",      "",      "")
        g.AddTask1(
    33,  "Draw Task Items",      "",           "",          "ggroupblack",  "",       False"Someone",  40,  g.JSGanttTaskType.CombinedGroupTask, 3,  True"",      "",      "")
        g.AddTask1(
    332"Task Label Table",     "2016-03-06","2016-03-09""gtaskblue",    "",       False"Brian",    60,  g.JSGanttTaskType.normaltask, 33True"",      "",      "")
        g.AddTask1(
    333"Task Scrolling Grid",  "2016-03-11","2016-03-20""gtaskblue",    "",       False"Brian",    0,   g.JSGanttTaskType.normaltask, 33True"332",   "",      "")
        g.AddTask1(
    34,  "Draw Task Bars",       "",           "",          "ggroupblack",  "",       False"Anybody",  60,  g.JSGanttTaskType.StandardGroupTask, 3,  False"",      "",     "")
        g.AddTask1(
    341"Loop each Task",       "2016-03-26","2016-04-11""gtaskred",     "",       False"Brian",    60,  g.JSGanttTaskType.normaltask, 34True"",      "",      "")
        g.AddTask1(
    342"Calculate Start/Stop""2016-04-12","2016-05-18""gtaskpink",    "",       False"Brian",    60,  g.JSGanttTaskType.normaltask, 34True"",      "",      "")
        g.AddTask1(
    343"Draw Task Div",        "2016-05-13","2016-05-17""gtaskred",     "",       False"Brian",    60,  g.JSGanttTaskType.normaltask, 34True"",      "",      "")
        g.AddTask1(
    344"Draw Completion Div",  "2016-05-17","2016-06-04""gtaskred",     "",       False"Brian",    60,  g.JSGanttTaskType.normaltask, 34True"342,343","",     "")
        g.AddTask1(
    35,  "Make Updates",         "2016-07-17","2017-09-04""gtaskpurple",  "",       False"Brian",    30,  g.JSGanttTaskType.normaltask, 3,  True"333",   "",      "")

    page.Cell(2,1).AddComponent(g.ABMComp)

  2. Mashiane

    Mashiane Expert Licensed User

    Exploring further properties, e.g. DateFormat for both table and tooltip display.


    Code:
    Dim g As MashJSGantt
        g.Initialize(
    page,"g")
        g.GanttFormat = g.JSGanttFormat.month
        g.RowHeight =
    32
        g.DateTaskTableDisplayFormat = g.JSGanttDateOutputFormat.yyyy_mm_dd
        g.DateTaskDisplayFormat = g.JSGanttDateOutputFormat.dd_mon_yyyy_day
    g.CaptionType = g.JSGanttCaptionType.Resource
        g.ShowResource =
    False 'default true
        g.ShowDuration = True  ' default true
        g.ShowPercentComplete = True ' default true
        g.ShowStartDate = True ' default true
        g.ShowEndDate = True ' dfault true
        g.ShowEndWeekDate = False ' default false
        g.WeekMinorDateDisplayFormat = "dd mon"
        g.DayMajorDateDisplayFormat =
    "mon yyyy - Week ww"
        g.DateInputFormat =
    "yyyy-mm-dd"
    Would be nice if the columns to be resizable..

    Hide Columns (click on the image to enlarge it)

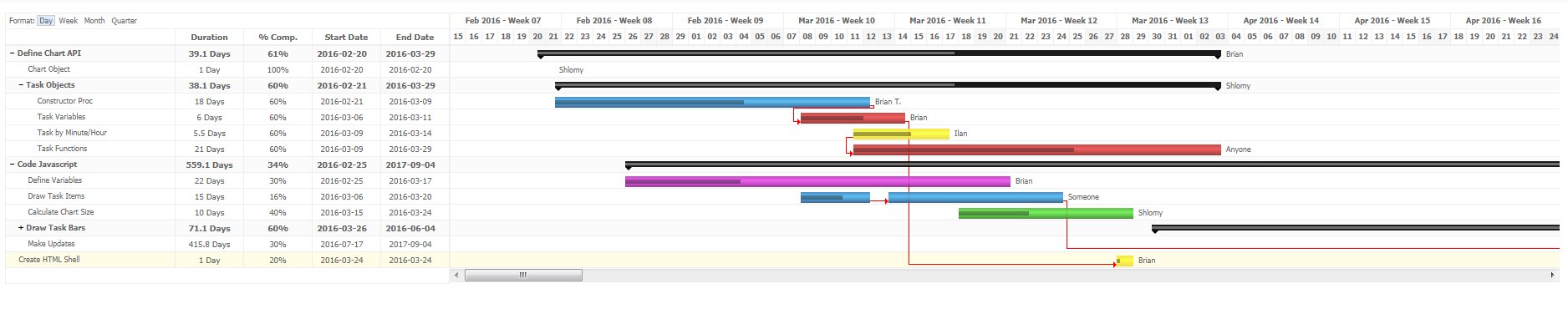

    Other Settings (click on the image to enlarge it)


    Last edited: May 7, 2018
  3. Mashiane

    Mashiane Expert Licensed User

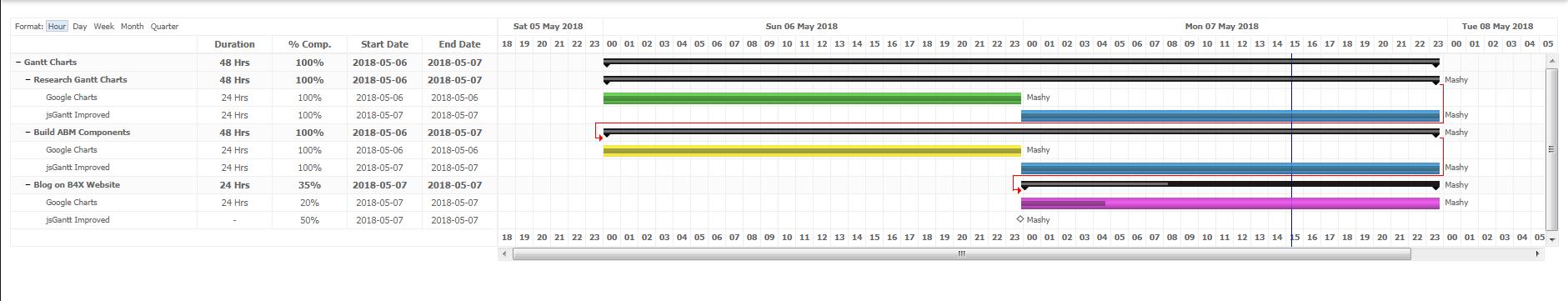

    Final Version: I think I can use this (click image to enlarge)

    1. Set Colors
    2. Set Milestones
    3. Set Resources
    4. Auto Calculation of dates and % Complete


    Code:
    Dim g As MashJSGantt
        g.Initialize(
    page,"g")
        g.GanttFormat = g.JSGanttFormat.day
        g.RowHeight =
    32
        g.DateTaskTableDisplayFormat = g.JSGanttDateOutputFormat.yyyy_mm_dd
        g.DateTaskDisplayFormat = g.JSGanttDateOutputFormat.dd_mon_yyyy_day
        g.CaptionType = g.JSGanttCaptionType.Resource
        g.ShowResource =
    False 'default true
        g.AddProject("Gantt Charts")
        g.AddTask(
    1,2,"Research Gantt Charts","2018-05-05","2018-05-05",80,"Mashy","")
        g.AddTask(
    2,3,"Google Charts","2018-05-06","2018-05-06",100,"Mashy","").SetGreen(3)
        g.AddTask(
    2,4,"jsGantt Improved","2018-05-07","2018-05-07",100,"Mashy","")

        g.AddTask(
    1,5,"Build ABM Components","2018-05-05","2018-05-05",80,"Mashy","2")
        g.AddTask(
    5,6,"Google Charts","2018-05-06","2018-05-06",100,"Mashy","").SetYellow(6)
        g.AddTask(
    5,7,"jsGantt Improved","2018-05-07","2018-05-07",100,"Mashy","")

        g.AddTask(
    1,8,"Blog on B4X Website","2018-05-05","2018-05-05",100,"Mashy","5")
        g.AddTask(
    8,9,"Google Charts","2018-05-07","2018-05-07",20,"Mashy","").SetPurple(9)
        g.AddTask(
    8,10,"jsGantt Improved","2018-05-07","2018-05-07",50,"Mashy","").SetMileStone(10,True)
    Source code attached for exploration...


    Attached Files:

  4. joulongleu

    joulongleu Member

    Hi:Mashiane:Thank You,is very cool,but I run is Collapse can be expanded ?
    The following screen is Collapse:

    Mashiane likes this.
  5. Mashiane

    Mashiane Expert Licensed User

    If you click the + sign on the task it will expand/collapse the child items.

    Last edited: May 8, 2018
    joulongleu likes this.
  6. Mashiane

    Mashiane Expert Licensed User

    I have added a method called SetOpen, you pass it the taskid and a boolean variable.

    Code:
    SetOpen(1,True)
    Will expand the project task, its ID is always 1.

    Code:
    'set a task open / not
    Sub SetOpen(TaskID As Int, Open As Boolean) As MashJSGantt

    Dim tKey As String = "task-" & TaskID

    If tasks.ContainsKey(tKey) Then

    Dim tt As JSGanttTask = tasks.Get(tKey)
            tt.pOpen = MashPlugIns.iif(Open,
    1,0)
            tasks.Put(tKey,tt)

    End If

    Return Me
    End Sub


    Attached Files:

    inakigarm and joulongleu like this.
  7. joulongleu

    joulongleu Member

    Run is ok ,Thank you for your assistance,MashJSGantt is very good Gantt framework

    Mashiane likes this.
