B4J Question [ABMaterial] How to center the text on ABMCard

[Anser]

Hi,

Is it possible to Horizontal Center the text on ABMCard. Would be nice if we could center the text Horizontally as well as Vertically too
For Eg.

' basic card
Dim year As ABMCard
year.InitializeAsCard(page, "year", "{B}This Year{/B}", "0", ABM.CARD_SMALL,"whitetitle")
year.Image = "../images/sample-1.png"
year.Size = 20

This is how it is appearing now

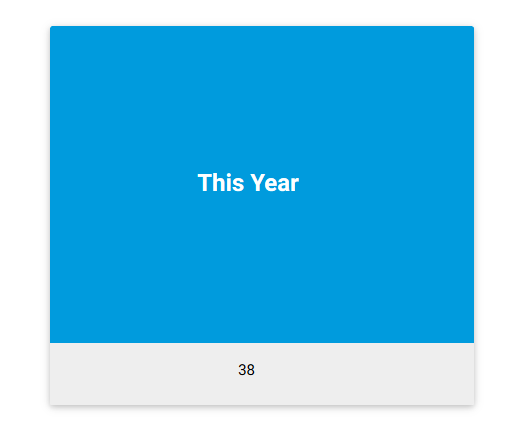

I want this to appear as given below (Horizontally and Vertically Centered)

Any help will be appreciated.

Regards

Anser



[Anser]

Any help ?



[alwaysbusy]

A normal card has a fixed layout. It is probably possible by making an ABMCustomCard.



[Anser]

I am trying to get the above done via ABMCustomCard, but I am stuck at having a transparent Label on top of the ABMImage.

This is actually a DashBoard which picks data from the database and then display on the DashBoard

The Blue colored background seen above is an Image. I would like to place a text on top of the Image ie the text "This Year". The contents of this text label would change progrmatically during run time.

In the ABMCustomCard's properties, I found that, to place views on the ABMCustomCard, the following METHODS are available

Card.SetFrontTopComponent()
Card.SetFrontTitleComponent()
Card.SetBackComponent() 'This is for different purpose

Dim year As ABMCustomCard
year.Initialize(page, "year", ABM.COLOR_BLUE)
year.UseTheme("whitetitle")

Dim Image As ABMImage
Image.Initialize(page, "Image", "../images/sample-1.png",1)
year.SetFrontTopComponent(Image)

'Creating a transparent label
Dim FrontTitle As ABMLabel
FrontTitle.Initialize(page,  "fronttitle", "{B}This Year{/B}", ABM.SIZE_H6, True, "lbltranparent")

'Do not know how to place this label over the ABMImage
day.SetFrontTopComponent(FrontTitle)

Another thing that I am looking for is a click event on the ABMCustomCard. Of course I can add a Action Button to simulate a click event, but then the user has to click on that button, instead of the Card
