B4J Tutorial [ABMaterial]: Me like Donuts

Discussion in 'B4J Tutorials' started by Mashiane, Jun 12, 2018.

  1. Mashiane

    Mashiane Expert Licensed User

    Ola

    So me runs into this nice charting library, morris chart. Me see a nice donut. Me likes donut.


    Their examples are quite nice and straight forward and easy to implement using Custom Component. The hovering effects on the charts are also impressive. So I start testing the implementation with the various options. Mind you still need to finish the rest and add some colors.

    Let's look at some of the charts doable below..., I like the ease of just feeding this a list of records, especially from a DBUtils.ExecuteMaps call, and yes, you can add individual records.

    Usage:
    BuildPage

    Code:
    page.AddExtraCSSFile("custom/morris.css")
    page.AddExtraJavaScriptFile("custom/raphael.min.js")
    page.AddExtraJavaScriptFile("custom/morris.js")

    Then in [B]ConnectPage[/B], you can define the chart etc.
    Explore Components Source Code

    Last edited: Jun 12, 2018
    JohnCody, prajinpraveen, jmon and 4 others like this.
  2. Mashiane

    Mashiane Expert Licensed User

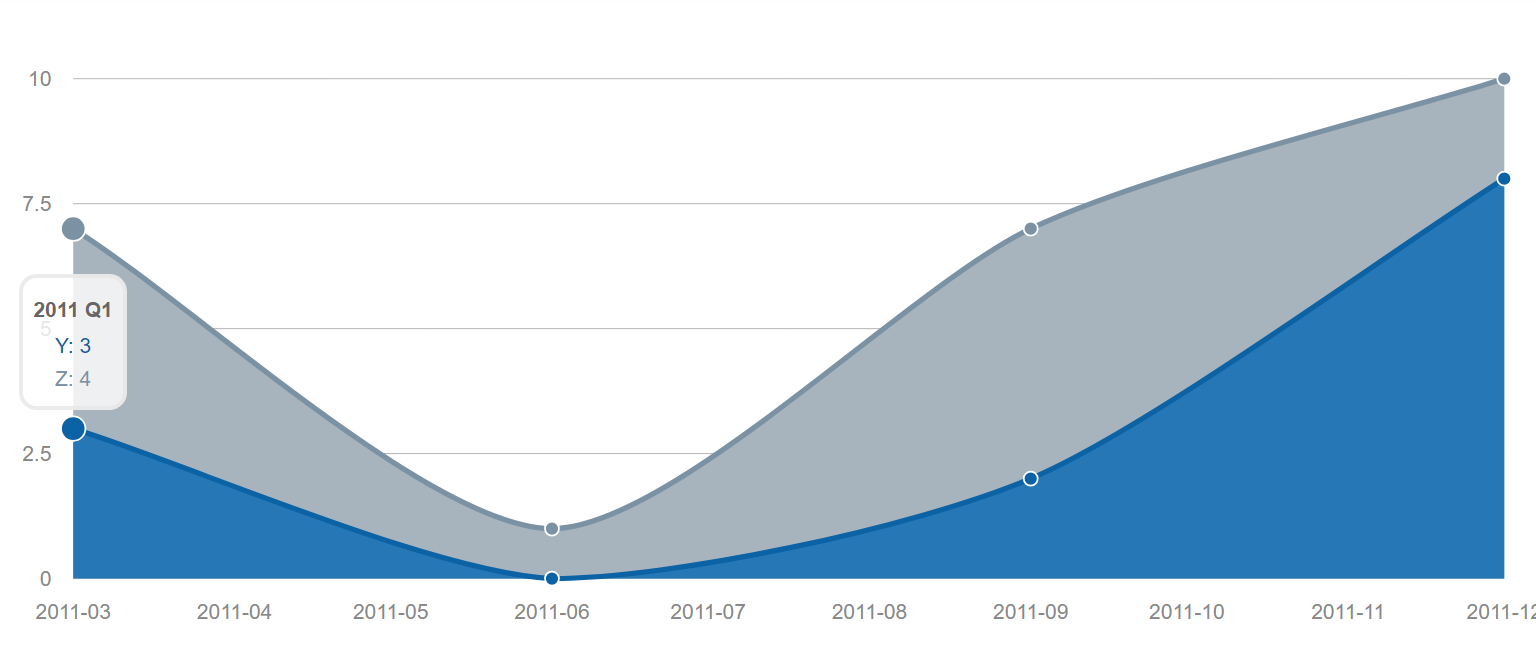

    A simple area chart... (Basic example that explains everything)


    Code:
    'you can get this with DbUtils.ExecuteMaps
        Dim records As List
        records.Initialize

    'records.Add(CreateMap("x": "2010 Q4", "y": 3, "z": 7))
        records.Add(CreateMap("x""2011 Q1""y"3"z"4))
        records.Add(CreateMap(
    "x""2011 Q2""y"Null"z"1))
        records.Add(CreateMap(
    "x""2011 Q3""y"2"z"5))
        records.Add(CreateMap(
    "x""2011 Q4""y"8"z"2))

    'records.Add(CreateMap("x": "2012 Q1", "y": 4, "z": 4))


    'define the morrischart
        Dim mmc As MashMorrisChart
        mmc.Initialize(
    page,"mmc","250px")

    'define the chart type
        mmc.ChartType = mmc.EnumMorrisChartType.Area

    'define the x axis, the column to read x values, the angle of the x values and whether the x values are numberic/not
        mmc.SetXAxis("x",0,False)

    'add a series, we want to plot y and z values
        mmc.AddSeries("y","Y","")
        mmc.AddSeries(
    "z","Z","")

    'add the values to plot to the chart
        mmc.SetData(records)

    page.cell(3,1).AddComponent(mmc.ABMComp)

    Johan Hormaza and joulongleu like this.
  3. Mashiane

    Mashiane Expert Licensed User

    An area chart as a line chart..

    You can easily make an area chart to act as a line chart by turning behaveLikeLine = True

    Code:
    mmc.behaveLikeLine = True

    Johan Hormaza and joulongleu like this.
  4. Mashiane

    Mashiane Expert Licensed User

    A bar chart...

    Just change the chart type to Bar, whalla!!!

    Code:
    mmc.ChartType = mmc.EnumMorrisChartType.Bar

    Johan Hormaza and joulongleu like this.
  5. Mashiane

    Mashiane Expert Licensed User

    Hidding the axes values

    Code:
    mmc.axes = False

    Johan Hormaza and joulongleu like this.
  6. Mashiane

    Mashiane Expert Licensed User

    Line Charts (demonstrating single chart record addition)


    Code:
    'formatting dates
        Dim mmc4 As MashMorrisChart
        mmc4.Initialize(
    page,"mmc4""250px")

    'define the x axis, the column to read x values, the angle of the x values and whether the x values are numberic/not
        mmc4.SetXAxis("period",0,False)
        mmc4.AddSeries(
    "licensed","Licensed","")
        mmc4.AddSeries(
    "sorned","SORN","")
        mmc4.AddData(CreateMap(
    "period""2012-10-01""licensed"3407"sorned"660))
        mmc4.AddData(CreateMap(
    "period""2012-09-30""licensed"3351"sorned"629))
        mmc4.AddData(CreateMap(
    "period""2012-09-29""licensed"3269"sorned"618))
        mmc4.AddData(CreateMap(
    "period""2012-09-20""licensed"3246"sorned"661))
        mmc4.AddData(CreateMap(
    "period""2012-09-19""licensed"3257"sorned"667))
        mmc4.AddData(CreateMap(
    "period""2012-09-18""licensed"3248"sorned"627))
        mmc4.AddData(CreateMap(
    "period""2012-09-17""licensed"3171"sorned"660))
        mmc4.AddData(CreateMap(
    "period""2012-09-16""licensed"3171"sorned"676))
        mmc4.AddData(CreateMap(
    "period""2012-09-15""licensed"3201"sorned"656))
        mmc4.AddData(CreateMap(
    "period""2012-09-10""licensed"3215"sorned"622))

    page.cell(5,1).AddComponent(mmc4.ABMComp)

    Johan Hormaza and joulongleu like this.
  7. Mashiane

    Mashiane Expert Licensed User

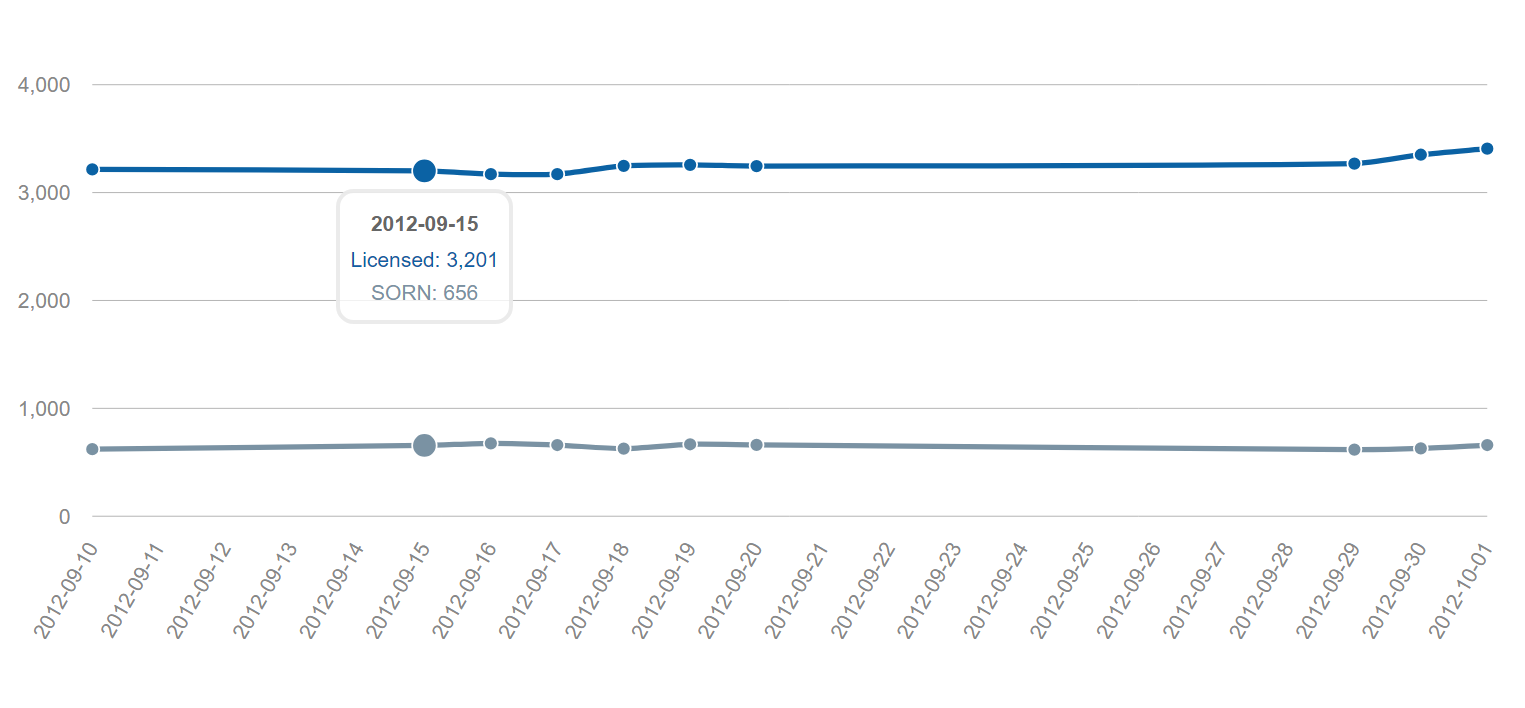

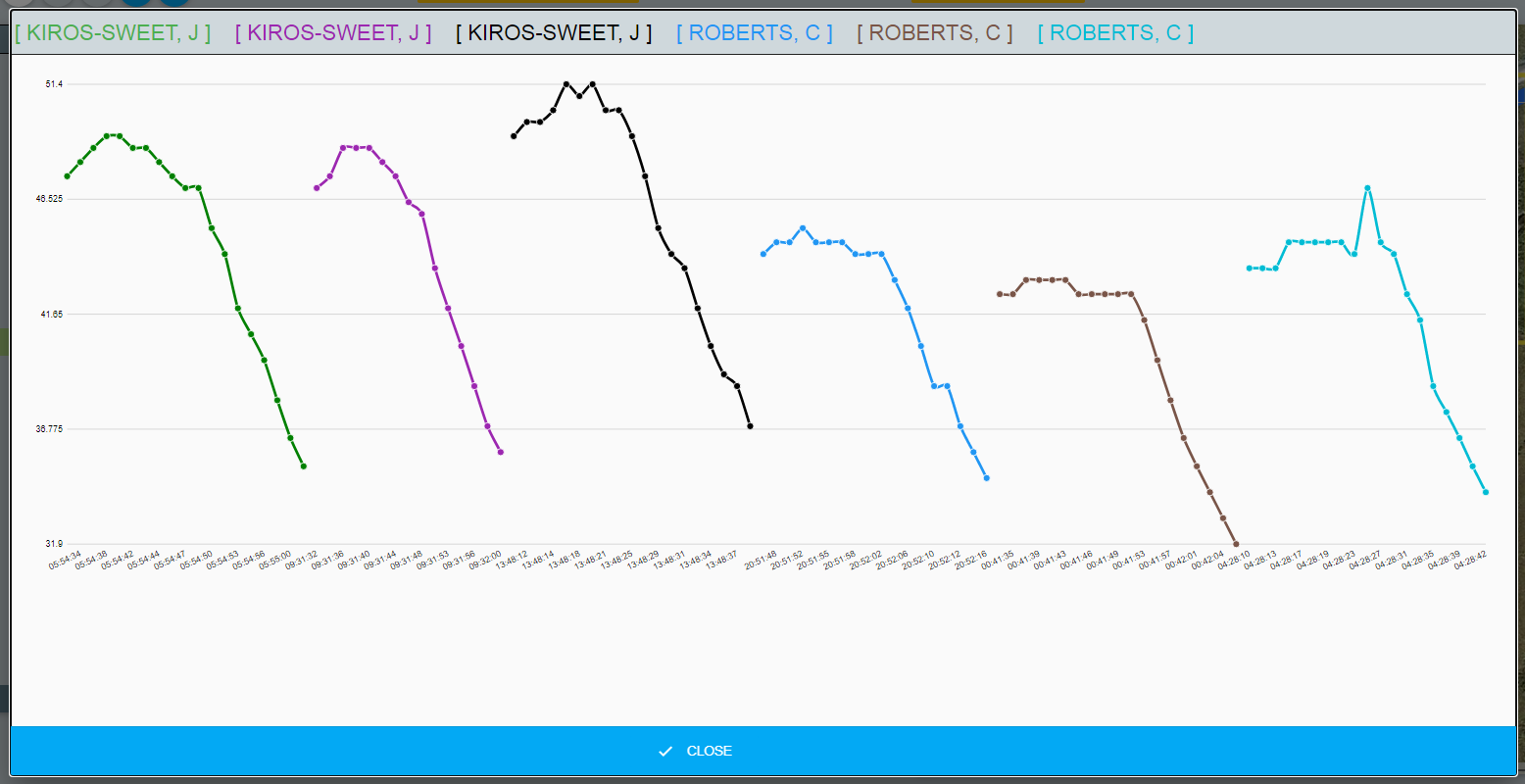

    X Axis Label Angle

    You can easily change the angle of the X Axis Labels by just updating it in the SetXAxis Method.

    Lets make the angle 60 degrees by (replace 0 (zero) in SetXAxis with 60

    Code:
    mmc5.SetXAxis("period",60,False)

    Johan Hormaza likes this.
  8. Mashiane

    Mashiane Expert Licensed User

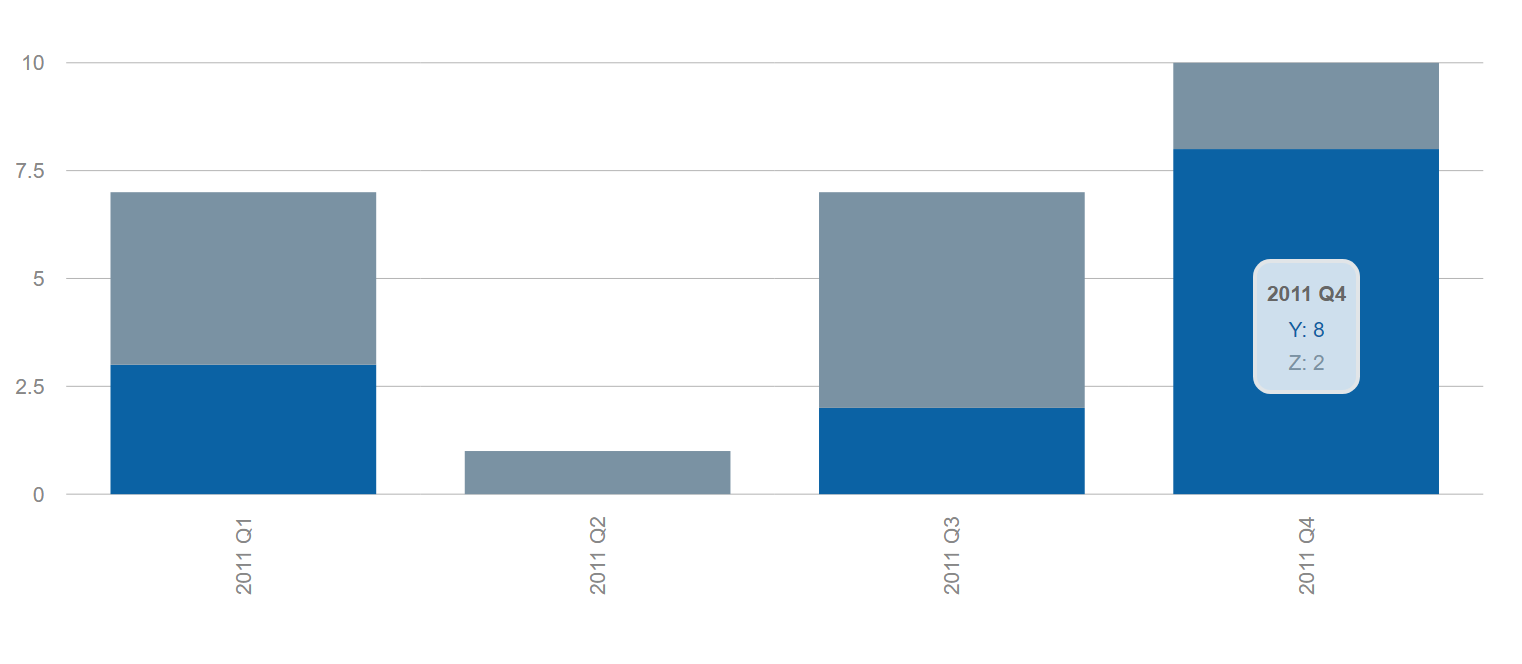

    Stacked Bar Chart...


    We have done two major things here..

    1. Made the angle of the X Axis to be 90 degress and then
    2. Turned the stacked property to true.

    Code:
    'bar chart
        Dim mmc6 As MashMorrisChart
        mmc6.Initialize(
    page,"mmc6""250px")

    'define the chart type
        mmc6.ChartType = mmc6.EnumMorrisChartType.Bar

    'define the x axis, the column to read x values, the angle of the x values and whether the x values are numberic/not
        mmc6.SetXAxis("x",90,False)

    'add a series, we want to plot y and z values
        mmc6.AddSeries("y","Y","")
        mmc6.AddSeries(
    "z","Z","")

    'add the values to plot to the chart
        mmc6.SetData(records)
        mmc6.stacked =
    True

    page.cell(6,1).AddComponent(mmc6.ABMComp)

    Johan Hormaza likes this.
  9. Mashiane

    Mashiane Expert Licensed User

    Plotting Time

    Code:
    Dim mmc7 As MashMorrisChart
        mmc7.Initialize(
    page,"mmc7""250px")
        mmc7.ChartType = mmc7.EnumMorrisChartType.Area
        mmc7.SetXAxis(
    "x",0,False)
        mmc7.AddSeries(
    "y","Y","")
        mmc7.AddSeries(
    "z","Z","")
        mmc7.AddData(CreateMap(
    "x""2013-03-30 22:00:00""y"3"z"3))
        mmc7.AddData(CreateMap(
    "x""2013-03-31 00:00:00""y"2"z"0))
        mmc7.AddData(CreateMap(
    "x""2013-03-31 02:00:00""y"0"z"2))
        mmc7.AddData(CreateMap(
    "x""2013-03-31 04:00:00""y"4"z"4))

    page.cell(6,2).AddComponent(mmc7.ABMComp)
    Whilst you can plot quarters, weeks ('2011 W07'), days (as demonstrated above), you can also plot time related charts as demonstrated below. Below is an area chart showing DST.


    Johan Hormaza and joulongleu like this.
  10. Mashiane

    Mashiane Expert Licensed User

    Text Labels

    By turning off parseTime = false, the x axis values are not DateTime based.

    Code:
    Dim mmc8 As MashMorrisChart
        mmc8.Initialize(
    page,"mmc8""250px")
        mmc8.SetXAxis(
    "elapsed",0,False)
        mmc8.AddSeries(
    "value","Value","")
        mmc8.AddData(CreateMap(
    "elapsed""I""value"34))
        mmc8.AddData(CreateMap(
    "elapsed""II""value"24))
        mmc8.AddData(CreateMap(
    "elapsed""III""value"3))
        mmc8.AddData(CreateMap(
    "elapsed""IV""value"12))
        mmc8.AddData(CreateMap(
    "elapsed""V""value"13))
        mmc8.AddData(CreateMap(
    "elapsed""VI""value"22))
        mmc8.AddData(CreateMap(
    "elapsed""VII""value"5))
        mmc8.AddData(CreateMap(
    "elapsed""VIII""value"26))
        mmc8.AddData(CreateMap(
    "elapsed""IX""value"12))
        mmc8.AddData(CreateMap(
    "elapsed""X""value"19))
        mmc8.parseTime =
    False

    page.cell(7,1).AddComponent(mmc8.ABMComp)


    Johan Hormaza and joulongleu like this.
  11. Mashiane

    Mashiane Expert Licensed User

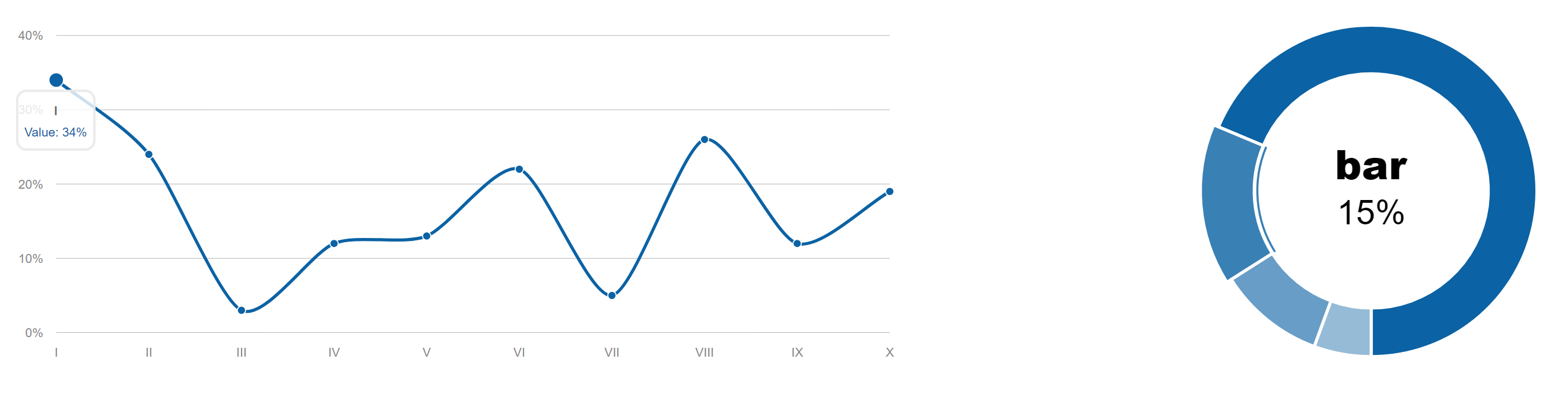

    The example below, by just setting units = "%" ensures that your labels are are percentages.


    Code:
    Dim mmc9 As MashMorrisChart
        mmc9.Initialize(
    page,"mmc9""250px")
        mmc9.ChartType = mmc7.EnumMorrisChartType.Donut
        mmc9.AddSlice(
    "foo",70)
        mmc9.AddSlice(
    "bar"15)
        mmc9.AddSlice(
    "baz"10)
        mmc9.AddSlice(
    "A really really long labe"5)
        mmc9.OutputPercentage =
    True

    page.cell(7,2).AddComponent(mmc9.ABMComp)
    The OutputPercentage property only works with the Donut to put the % sign on the label. For the line charch, we used..

    Code:
    mmc8.units = "%"

    Johan Hormaza likes this.
  12. Mashiane

    Mashiane Expert Licensed User

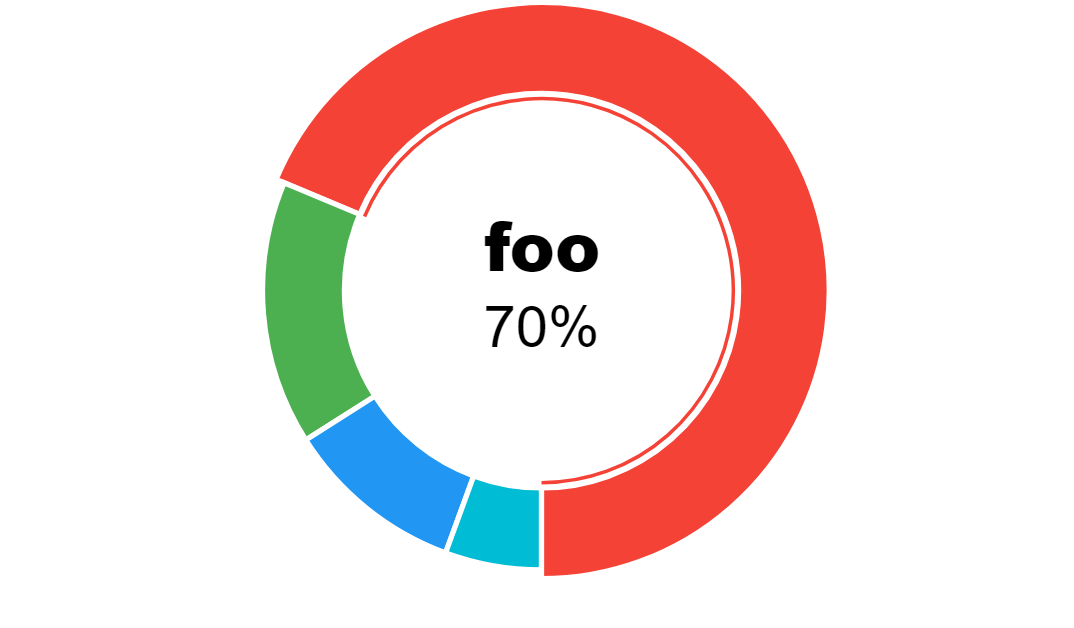

    Decided to add some bling to the Donut..

    This adds some different colors, ability to set the color of the label and the background for each item.


    Code:
    Dim mmc9 As MashMorrisChart
        mmc9.Initialize(
    page,"mmc9""250px")
        mmc9.ChartType = mmc7.EnumMorrisChartType.Donut
        mmc9.AddSlice(
    "foo",70,mmc9.EnumColor.red)
        mmc9.AddSlice(
    "bar"15, mmc9.EnumColor.green)
        mmc9.AddSlice(
    "baz"10, mmc9.EnumColor.blue)
        mmc9.AddSlice(
    "A really really long labe"5, mmc9.EnumColor.cyan)
        mmc9.OutputPercentage =
    True
        mmc9.labelColor = mmc9.EnumColor.black
        mmc9.backgroundColor = mmc9.EnumColor.white

    page.cell(7,2).AddComponent(mmc9.ABMComp)

    joulongleu and Johan Hormaza like this.
  13. Mashiane

    Mashiane Expert Licensed User

    Complete Example Code: (Component Code In First Post)

    NB: Colors for series are compulsory...

    Code:
    'you can get this with DbUtils.ExecuteMaps
        Dim records As List
        records.Initialize

    'records.Add(CreateMap("x": "2010 Q4", "y": 3, "z": 7))
        records.Add(CreateMap("x""2011 Q1""y"3"z"4))
        records.Add(CreateMap(
    "x""2011 Q2""y"Null"z"1))
        records.Add(CreateMap(
    "x""2011 Q3""y"2"z"5))
        records.Add(CreateMap(
    "x""2011 Q4""y"8"z"2))

    'records.Add(CreateMap("x": "2012 Q1", "y": 4, "z": 4))


    'define the morrischart
        Dim mmc As MashMorrisChart
        mmc.Initialize(
    page,"mmc","250px")

    'define the chart type
        mmc.ChartType = mmc.EnumMorrisChartType.Area

    'define the x axis, the column to read x values, the angle of the x values and whether the x values are numberic/not
        mmc.SetXAxis("x",0)

    'add a series, we want to plot y and z values
        mmc.AddSeries("y","Y",mmc.EnumColor.amber)
        mmc.AddSeries(
    "z","Z",mmc.EnumColor.blue)

    'add the values to plot to the chart
        mmc.SetData(records)

    page.cell(3,1).AddComponent(mmc.ABMComp)



    Dim mmc1 As MashMorrisChart
        mmc1.Initialize(
    page,"mmc1""250px")

    'define the chart type
        mmc1.ChartType = mmc.EnumMorrisChartType.Area

    'define the x axis, the column to read x values, the angle of the x values and whether the x values are numberic/not
        mmc1.SetXAxis("x",0)

    'add a series, we want to plot y and z values
        mmc1.AddSeries("y","Y",mmc1.EnumColor.cyan)
        mmc1.AddSeries(
    "z","Z",mmc1.EnumColor.deeporange)

    'add the values to plot to the chart
        mmc1.SetData(records)

    'chart behave like a line chart
        mmc1.behaveLikeLine = True

    page.cell(3,2).AddComponent(mmc1.ABMComp)


    'bar chart
        Dim mmc2 As MashMorrisChart
        mmc2.Initialize(
    page,"mmc2""250px")

    'define the chart type
        mmc2.ChartType = mmc.EnumMorrisChartType.Bar

    'define the x axis, the column to read x values, the angle of the x values and whether the x values are numberic/not
        mmc2.SetXAxis("x",0)

    'add a series, we want to plot y and z values
        mmc2.AddSeries("y","Y",mmc2.EnumColor.green)
        mmc2.AddSeries(
    "z","Z",mmc2.EnumColor.purple)

    'add the values to plot to the chart
        mmc2.SetData(records)

    page.cell(4,1).AddComponent(mmc2.ABMComp)


    'bar chart
        Dim mmc3 As MashMorrisChart
        mmc3.Initialize(
    page,"mmc3""250px")

    'define the chart type
        mmc3.ChartType = mmc.EnumMorrisChartType.Bar

    'define the x axis, the column to read x values, the angle of the x values and whether the x values are numberic/not
        mmc3.SetXAxis("x",0)

    'add a series, we want to plot y and z values
        mmc3.AddSeries("y","Y",mmc3.EnumColor.amber)
        mmc3.AddSeries(
    "z","Z",mmc3.EnumColor.blue)

    'add the values to plot to the chart
        mmc3.SetData(records)
        mmc3.axes =
    False

    page.cell(4,2).AddComponent(mmc3.ABMComp)


    'formatting dates
        Dim mmc4 As MashMorrisChart
        mmc4.Initialize(
    page,"mmc4""250px")

    'define the x axis, the column to read x values, the angle of the x values and whether the x values are numberic/not
        mmc4.SetXAxis("period",0)
        mmc4.AddSeries(
    "licensed","Licensed",mmc4.EnumColor.brown)
        mmc4.AddSeries(
    "sorned","SORN",mmc4.EnumColor.indigo)
        mmc4.AddData(CreateMap(
    "period""2012-10-01""licensed"3407"sorned"660))
        mmc4.AddData(CreateMap(
    "period""2012-09-30""licensed"3351"sorned"629))
        mmc4.AddData(CreateMap(
    "period""2012-09-29""licensed"3269"sorned"618))
        mmc4.AddData(CreateMap(
    "period""2012-09-20""licensed"3246"sorned"661))
        mmc4.AddData(CreateMap(
    "period""2012-09-19""licensed"3257"sorned"667))
        mmc4.AddData(CreateMap(
    "period""2012-09-18""licensed"3248"sorned"627))
        mmc4.AddData(CreateMap(
    "period""2012-09-17""licensed"3171"sorned"660))
        mmc4.AddData(CreateMap(
    "period""2012-09-16""licensed"3171"sorned"676))
        mmc4.AddData(CreateMap(
    "period""2012-09-15""licensed"3201"sorned"656))
        mmc4.AddData(CreateMap(
    "period""2012-09-10""licensed"3215"sorned"622))

    page.cell(5,1).AddComponent(mmc4.ABMComp)


    'formatting dates
        Dim mmc5 As MashMorrisChart
        mmc5.Initialize(
    page,"mmc5""250px")

    'define the x axis, the column to read x values, the angle of the x values and whether the x values are numberic/not
        mmc5.SetXAxis("period",60)
        mmc5.AddSeries(
    "licensed","Licensed",mmc5.EnumColor.yellow)
        mmc5.AddSeries(
    "sorned","SORN",mmc5.EnumColor.purple)
        mmc5.AddData(CreateMap(
    "period""2012-10-01""licensed"3407"sorned"660))
        mmc5.AddData(CreateMap(
    "period""2012-09-30""licensed"3351"sorned"629))
        mmc5.AddData(CreateMap(
    "period""2012-09-29""licensed"3269"sorned"618))
        mmc5.AddData(CreateMap(
    "period""2012-09-20""licensed"3246"sorned"661))
        mmc5.AddData(CreateMap(
    "period""2012-09-19""licensed"3257"sorned"667))
        mmc5.AddData(CreateMap(
    "period""2012-09-18""licensed"3248"sorned"627))
        mmc5.AddData(CreateMap(
    "period""2012-09-17""licensed"3171"sorned"660))
        mmc5.AddData(CreateMap(
    "period""2012-09-16""licensed"3171"sorned"676))
        mmc5.AddData(CreateMap(
    "period""2012-09-15""licensed"3201"sorned"656))
        mmc5.AddData(CreateMap(
    "period""2012-09-10""licensed"3215"sorned"622))

    page.cell(5,2).AddComponent(mmc5.ABMComp)




    'bar chart
        Dim mmc6 As MashMorrisChart
        mmc6.Initialize(
    page,"mmc6""250px")

    'define the chart type
        mmc6.ChartType = mmc6.EnumMorrisChartType.Bar

    'define the x axis, the column to read x values, the angle of the x values and whether the x values are numberic/not
        mmc6.SetXAxis("x",90)

    'add a series, we want to plot y and z values
        mmc6.AddSeries("y","Y",mmc6.EnumColor.amber)
        mmc6.AddSeries(
    "z","Z",mmc6.EnumColor.blue)

    'add the values to plot to the chart
        mmc6.SetData(records)
        mmc6.stacked =
    True

    page.cell(6,1).AddComponent(mmc6.ABMComp)


    'bar chart
        Dim mmc7 As MashMorrisChart
        mmc7.Initialize(
    page,"mmc7""250px")
        mmc7.ChartType = mmc7.EnumMorrisChartType.Area
        mmc7.SetXAxis(
    "x",0)
        mmc7.AddSeries(
    "y","Y",mmc7.EnumColor.amber)
        mmc7.AddSeries(
    "z","Z",mmc7.EnumColor.blue)
        mmc7.AddData(CreateMap(
    "x""2013-03-30 22:00:00""y"3"z"3))
        mmc7.AddData(CreateMap(
    "x""2013-03-31 00:00:00""y"2"z"0))
        mmc7.AddData(CreateMap(
    "x""2013-03-31 02:00:00""y"0"z"2))
        mmc7.AddData(CreateMap(
    "x""2013-03-31 04:00:00""y"4"z"4))

    page.cell(6,2).AddComponent(mmc7.ABMComp)


    'bar chart
        Dim mmc8 As MashMorrisChart
        mmc8.Initialize(
    page,"mmc8""250px")
        mmc8.SetXAxis(
    "elapsed",0)
        mmc8.AddSeries(
    "value","Value",mmc8.EnumColor.lightblue)
        mmc8.AddData(CreateMap(
    "elapsed""I""value"34))
        mmc8.AddData(CreateMap(
    "elapsed""II""value"24))
        mmc8.AddData(CreateMap(
    "elapsed""III""value"3))
        mmc8.AddData(CreateMap(
    "elapsed""IV""value"12))
        mmc8.AddData(CreateMap(
    "elapsed""V""value"13))
        mmc8.AddData(CreateMap(
    "elapsed""VI""value"22))
        mmc8.AddData(CreateMap(
    "elapsed""VII""value"5))
        mmc8.AddData(CreateMap(
    "elapsed""VIII""value"26))
        mmc8.AddData(CreateMap(
    "elapsed""IX""value"12))
        mmc8.AddData(CreateMap(
    "elapsed""X""value"19))
        mmc8.parseTime =
    False
        mmc8.postunits =
    "%"

    page.cell(7,1).AddComponent(mmc8.ABMComp)


    Dim mmc9 As MashMorrisChart
        mmc9.Initialize(
    page,"mmc9""250px")
        mmc9.ChartType = mmc7.EnumMorrisChartType.Donut
        mmc9.AddSlice(
    "foo",70,mmc9.EnumColor.red)
        mmc9.AddSlice(
    "bar"15, mmc9.EnumColor.green)
        mmc9.AddSlice(
    "baz"10, mmc9.EnumColor.blue)
        mmc9.AddSlice(
    "A really really long labe"5, mmc9.EnumColor.cyan)
        mmc9.OutputPercentage =
    True
        mmc9.labelColor = mmc9.EnumColor.black

    '' mmc9.backgroundColor = mmc9.EnumColor.white
        page.cell(7,2).AddComponent(mmc9.ABMComp)

    joulongleu, amaxco and Johan Hormaza like this.
  14. Johan Hormaza

    Johan Hormaza Active Member Licensed User

    Hello, excellent work. But, how can I test if I do not know in which port I will load the sample page?

  15. Mashiane

    Mashiane Expert Licensed User

    Hi @Johan Hormaza , thanks. Im not sure I get your question. You want to test the component?

    If so, you need to create a normal ABM app, add a page to it and just define the component on the page. It will use the same port as your defined port for the app.

  16. Cableguy

    Cableguy Expert Licensed User

    Great addition to ABM components, as usual

    Mashiane likes this.
  17. Philip Chatzigeorgiadis

    Philip Chatzigeorgiadis Member Licensed User

    Cool work!

    Mashiane likes this.
  18. Johan Hormaza

    Johan Hormaza Active Member Licensed User

    Ok ready, I already understood thanks for this great contribution.

    Mashiane likes this.
  19. Mashiane

    Mashiane Expert Licensed User

    This example draws up a bar chart with two series from different data sets of information. See the SQL statements to extracts the records.

    Code:
    chartcompletedprojects.Initialize(page,"chartcompletedprojects","300px")
        chartcompletedprojects.ChartType = chartcompletedprojects.EnumMorrisChartType.Bar
        chartcompletedprojects.SetXAxis(
    "x",0)
        chartcompletedprojects.behavelikeline =
    False
        chartcompletedprojects.axes =
    True
        chartcompletedprojects.parsetime =
    False
        chartcompletedprojects.smooth =
    True
        chartcompletedprojects.grid =
    True
        chartcompletedprojects.resize =
    True
        chartcompletedprojects.stacked =
    False
        chartcompletedprojects.hideHover =
    False
        chartcompletedprojects.postunits =
    ""
        chartcompletedprojects.outputpercentage =
    False
        chartcompletedprojects.backgroundcolor = chartcompletedprojects.EnumColor.transparent
        chartcompletedprojects.labelcolor = chartcompletedprojects.EnumColor.black
        chartcompletedprojects.preunits =
    ""
        chartcompletedprojects.xLabelFormat =
    ""
        chartcompletedprojects.yLabelFormat =
    ""

    Dim jSQL As SQL = ABMShared.SQLGet
        chartcompletedprojects.AddSeries(
    "a","Total",chartcompletedprojects.EnumColor.blue)
        chartcompletedprojects.AddSeries(
    "b","Completed",chartcompletedprojects.EnumColor.green)

    Dim recm As Map: recm.Initialize
        recm.put(
    "x","Projects (Count)")

    Dim sa As String = ABMShared.SQLSelectSingleResult(jSQL, "select (COUNT(id)) As a from projects"Null)
        recm.put(
    "a",sa)

    Dim sb As String = ABMShared.SQLSelectSingleResult(jSQL, "select count(id) as b from projects where actualprogress = 100"Null)
        recm.put(
    "b",sb)
        chartcompletedprojects.AddData(recm)
        ABMShared.SQLClose(jSQL)

    page.Cell(2,1).AddComponent(chartcompletedprojects.ABMComp)

    Johan Hormaza likes this.
Loading...
  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
