Android Question Access panel in CLV to create another CLV

Roger C

Active Member
Licensed User
Longtime User

Full project supplied.

From the example

I've removed the buttons and placed a CLV there instead.

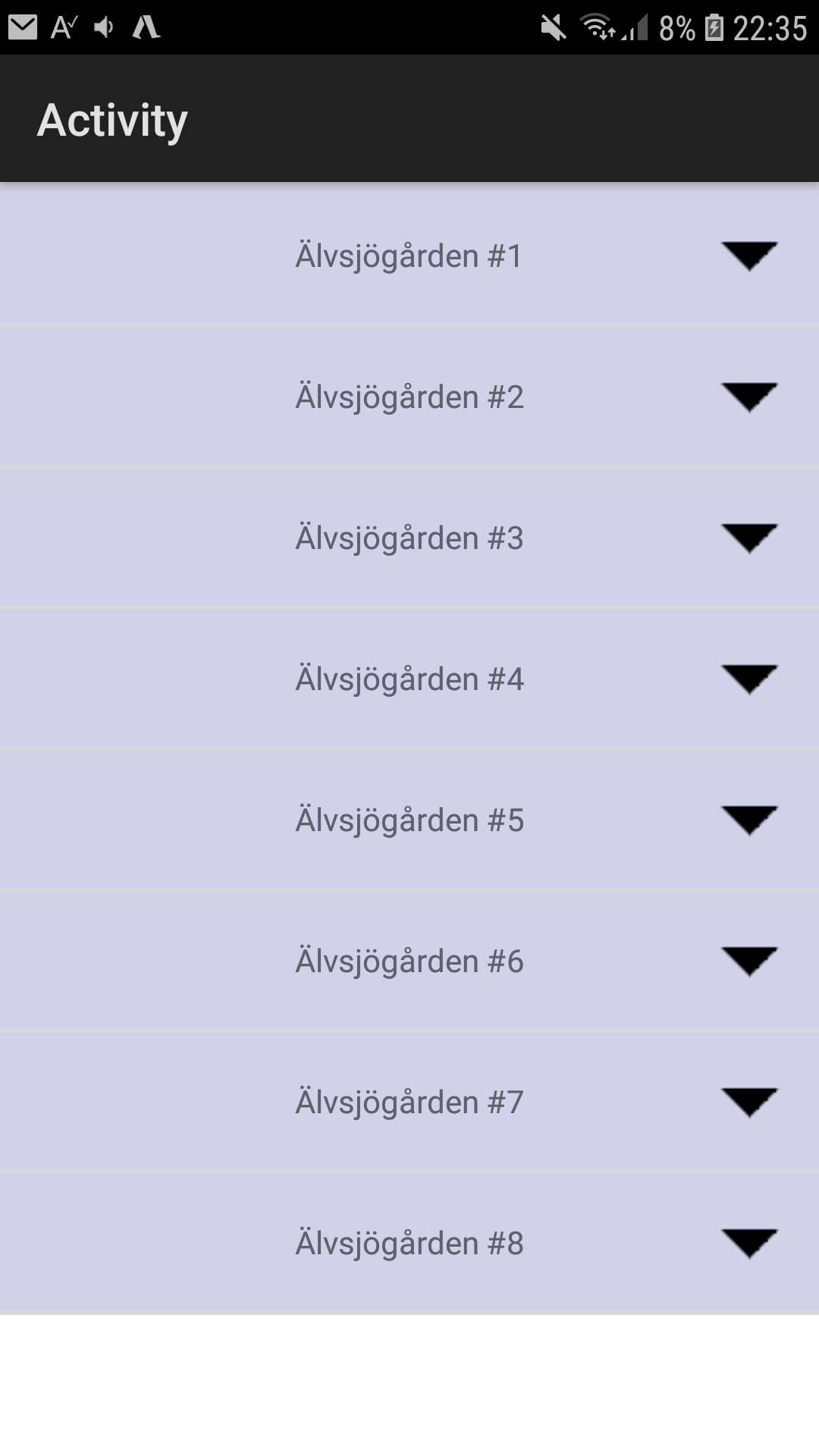

What I need is a list of Headers with a textline and the animated Arrow. as in picture "CLV Closed".
These could be 1 entry or up to 20 entries.

When you open a Header it should load the Layout 'Depart' in different quantities. These could be non or up to 30 new entries.

So from start, I shall only create the Headers with empty information in the hidden CLV. Then when a Header is expanded, the CLV should be filled with information.
As in picture 'CLV Expanded'. There I managed to get one entry but I think I'm doing it wrong since the CLV doesn't get the entry, rather the Panel behind....

I try to access the CustomListView in the Layout 'Item', to be able to add more views inside the CLV.

Sub ExpandItem (index As Int)
    'Dim id As ItemData = clv1.GetValue(index)
    Log("Expand item")
    'Fill CLV
    Dim Icon1 As Bitmap
    Dim id As ItemData = clv1.GetValue(index)    '.GetView(1).GetView(0)
    Dim iv As B4XView = clv1.GetPanel(index).GetView(1)   '.GetView(0)
    Log ("id = " & id)
    Log ("iv = " & iv)
    'CLVdep.Add(CreateItemDep(0xff,"New dep",id),id)
    For i = 1 To 8
        Icon1.Initialize(File.DirAssets, "train.jpg")
        Log("Bitmap = " & Icon1.Width & " x " & Icon1.Height)
        lblDest.text="173 - Liljeholmen"
        lblTime.text= "3 min"

    clv1.ResizeItem(index, id.ExpandedHeight)
    clv1.GetPanel(index).Tag = True
    AnimatedArrow(index, 0, 180)
End Sub

I have tried all possible combinations in this line:
Dim iv As B4XView = clv1.GetPanel(index).GetView(1) '.GetView(0)
...but I can't access the Add-function from CLV.

I have an empty CLV and need to add several posts to that with the Layoutfile "Depart".
I can do it once but I can't create new entries in the CLV called CLVdep.

Any help where I go wrong?


  • Proj
    30.5 KB · Views: 169
  • CLV closed.jpg
    CLV closed.jpg
    155.6 KB · Views: 200
  • CLV expanded.jpg
    CLV expanded.jpg
    136.7 KB · Views: 196
  • Designer.jpg
    95.6 KB · Views: 192
