Android Question AGAIN Can not open SQlite Database

Guenter Becker · Jan 23, 2022

Hello again, I am back with an error I though i solved it but nope.

I am developing with the latest B4A 11.20. My SDKs are checked and OK.
The SQlite Database Version 3 is checked an can be open by a Databasemangement App.
My Problem is that I am not able to open the Sqlite Database Vers. 3. I have this Problem since updating on 11.20 not before!

1. in My Manifest I added: AddPermission(android.permission.WRITE_EXTERNAL_STORAGE)

B4X:

'This code will be applied to the manifest file during compilation.
'You do not need to modify it in most cases.
'See this link for for more information: https://www.b4x.com/forum/showthread.php?p=78136
AddManifestText(
<uses-sdk android:minSdkVersion="20" android:targetSdkVersion="29"/>
<supports-screens android:largeScreens="true"
    android:normalScreens="true"
    android:smallScreens="true"
    android:anyDensity="true"/>)
SetApplicationAttribute(android:icon, "@drawable/icon")
SetApplicationAttribute(android:label, "$LABEL$")
CreateResourceFromFile(Macro, Themes.LightTheme)
'End of default text.
AddPermission(android.permission.RECORD_AUDIO)
AddPermission(android.permission.INTERNET)
AddPermission(android.permission.ACCESS_NOTIFICATION_POLICY)
AddPermission(android.permission.WRITE_EXTERNAL_STORAGE)

2. in Starter.Service_Create I added

B4X:

        DBDir=DBUtils.CopyDBFromAssets("FDM.db")
        SQLite.Initialize(DBUtils.GetDBFolder,"FDM.db",False)

3. I connect my Huawei p20pro with Android 8 via B4xBridge.
4. I checked case sensivity of the database file name.
5. I run the code in Debug and in Release mode.
6. I got the error message

B4X:

Error occurred on line: 42 (DBUtils)
android.database.sqlite.SQLiteCantOpenDatabaseException: unknown error (Sqlite code 14): Could not open database, (OS error - 2:No such file or directory)
    at android.database.sqlite.SQLiteConnection.nativeOpen(Native Method)
    at android.database.sqlite.SQLiteConnection.open(SQLiteConnection.java:225)
    at android.database.sqlite.SQLiteConnection.open(SQLiteConnection.java:209)
    at android.database.sqlite.SQLiteConnectionPool.openConnectionLocked(SQLiteConnectionPool.java:541)
    at android.database.sqlite.SQLiteConnectionPool.open(SQLiteConnectionPool.java:209)
    at android.database.sqlite.SQLiteConnectionPool.open(SQLiteConnectionPool.java:198)
    at android.database.sqlite.SQLiteDatabase.openInner(SQLiteDatabase.java:936)
    at android.database.sqlite.SQLiteDatabase.open(SQLiteDatabase.java:923)
    at android.database.sqlite.SQLiteDatabase.openDatabase(SQLiteDatabase.java:821)
    at android.database.sqlite.SQLiteDatabase.openDatabase(SQLiteDatabase.java:770)
    at anywheresoftware.b4a.sql.SQL.Initialize(SQL.java:44)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runVoidMethod(Shell.java:777)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:354)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
    at anywheresoftware.b4a.BA.raiseEvent(BA.java:193)
    at anywheresoftware.b4a.shell.DebugResumableSub$RemoteResumableSub.resume(DebugResumableSub.java:22)
    at anywheresoftware.b4a.keywords.Common$13.run(Common.java:1714)
    at android.os.Handler.handleCallback(Handler.java:809)
    at android.os.Handler.dispatchMessage(Handler.java:102)
    at android.os.Looper.loop(Looper.java:166)
    at android.app.ActivityThread.main(ActivityThread.java:7367)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:469)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:963)

7. I checked the directory on the phone and I see there is no database file copied!
8. Instead of DBUtils I tried is with file.copy but its running into the same problem.

I am at he end of my knowledge what is wrong and what is the solution. Can anyone help me please. Thank you.

Guenter Becker · Jan 23, 2022

Amendment:
Clean Install of B4A.
New Project and only with start_create: file copy to dir internal and sql.initialize- > same error checked: file was not copied.
Checked DIr and filenames twice.

Erel · Jan 24, 2022

1. This error has nothing to do with B4A version.
2.

Guenter Becker said:
AddPermission(android.permission.WRITE_EXTERNAL_STORAGE)

It will not do anything.

3. What is the output of this code:

B4X:

 DBDir=DBUtils.CopyDBFromAssets("FDM.db")
Log(DBDir)
Log(DBUtils.GetDBFolder)
SQLite.Initialize(DBUtils.GetDBFolder,"FDM.db",False)

Best code:

B4X:

Dim db As String = "FDM.db"
If File.Exists(XUI.DefaultFolder,  db) = False Then
 File.Copy(File.DirAssets, db, XUI.DefaultFolder, db)
End If
SQLite.Initialize(XUI.DefaultFolder, db, False)

Guenter Becker · Jan 24, 2022

Good Morning Erel,

The adding of the permission does nothing because I am writing to the internal directory. This line is just part of a my current trial and error jumping to solve the error.

Log(DBDir) and Log(DBUtils.GetDBFolder) leads to the same output: storage/emulated/0/Android/Data/TDFDM.PRO/Files.

It' s crazy sorry but I am at the end of several hours to change code and try to look into the forum and internet. and I am not able to understand what is wrong. I found that the error message is correct because in case of my different tries the database file is allways NOT copied! If I use True instead of False in the '.initialize' statement an empty database is created. I wonder because this shows me that the app has write access.

I used your code instead of mine and the situation is the same as before getting the same error and the database file is NOT copied!

rboeck · Jan 24, 2022

Try to name your database fdm.db; i remember a problem long time ago, but not exactly...

Guenter Becker · Jan 24, 2022

Thank you I did it also in lower case no change same error!

TILogistic · Jan 24, 2022

It may seem stupid.
Manually copy the database and see if you can access it from your application.
and thus be able to detect where the problem may be.

Guenter Becker · Jan 24, 2022

I tried this:

starter:

DBName = "fdm.db"
        Dim p As Phone
        Log(p.SdkVersion)
        If File.Exists(XUI.DefaultFolder,  DBName) = False Then
            File.Copy(File.DirAssets,DBName, XUI.DefaultFolder, DBName)
            Dim l As List: l.initialize
            l =File.ListFiles(XUI.DefaultFolder)
            Log(l)
        End If
        SQLite.Initialize(XUI.DefaultFolder, DBName, False)

and the Log result is:
Logger verbunden mit: HUAWEI CLT-L29
--------- beginning of crash
--------- beginning of system
--------- beginning of main
*** Service (starter) Create ***
27
(ArrayList) [virtual_assets, fdm.db]

Therefore the file should be in the folder!? But moving ahead same error:
android.database.sqlite.SQLiteCantOpenDatabaseException: unknown error (Sqlite code 14): Could not open database, (OS error - 2:No such file or directory)
raises.

I can not deal with this.

Guenter Becker · Jan 24, 2022

Hell oparra thank you for comming in.
In my trial and error I also copied the database file by filemanger manually into the directory. But there is no change same error!.

klaus · Jan 24, 2022

You should post a small project showing the problem, so we could test it and see what happens.

TILogistic · Jan 24, 2022

One more question, have you tried on another phone?

Guenter Becker · Jan 24, 2022

May be we are comming closer?
I tried this:

B4X:

        ' get folders files don't trust file.exists
        Dim l As List: l.initialize
        l =File.ListFiles(XUI.DefaultFolder)
        Log(XUI.DefaultFolder)
        Log(l)
        Log(l.IndexOf(DBName))
        ' if the file exitst open database
        If l.IndexOf(DBName) > -1 Then
            SQLite.Initialize(XUI.DefaultFolder, DBName, False)
        Else
            XUI.Msgbox2Async("Datenbank wurde nicht kopiert!", _
            "Fehler: Start create","OK","","",Main.imgError)
        End If

and got this logs:
/data/user/0/TDFDM.PRO/files
(ArrayList) [virtual_assets, fdm.db]
1

If I'm correct this shows that the file ist copied and is in the directory but if going to open (initialize) the database I got the same error.
I feel that the error is internally in the SQLite.Initialize(--) statement.

Checked the database with sqliteexpert: no problems - reports sqlite3.dll 3.37.0

Erel · Jan 24, 2022

1. Works fine here.
2. File.Exists works properly.

Tested with this code:

B4X:

Sub Service_Create
    dbname = "fdm.db"
    If File.Exists(XUI.DefaultFolder,  dbname) = False Then
        File.Copy(File.DirAssets,dbname, XUI.DefaultFolder, dbname)
    End If
    SQLite.Initialize(XUI.DefaultFolder, dbname, False)
    Dim rs As ResultSet = SQLite.ExecQuery("SELECT name FROM sqlite_master WHERE type='table'")
    Do While rs.NextRow
        Log(rs.GetString("name"))
    Loop
    rs.Close
End Sub

Add File.Delete(XUI.DefaultFolder, dbname). Maybe there is an old corrupted copy left in the internal folder.

klaus · Jan 24, 2022

Works fine here too !

TILogistic · Jan 24, 2022

Huawei Y9

It tells me this error.

And I've tried other databases with no problems.

B4X:

*** Service (starter) Create ***
starter_service_create (java line: 165)
android.database.sqlite.SQLiteCantOpenDatabaseException: unknown error (Sqlite code 14 SQLITE_CANTOPEN): Could not open database, (OS error - 2:No such file or directory)
    at android.database.sqlite.SQLiteConnection.nativeOpen(Native Method)
    at android.database.sqlite.SQLiteConnection.open(SQLiteConnection.java:226)
    at android.database.sqlite.SQLiteConnection.open(SQLiteConnection.java:210)
    at android.database.sqlite.SQLiteConnectionPool.openConnectionLocked(SQLiteConnectionPool.java:552)
    at android.database.sqlite.SQLiteConnectionPool.open(SQLiteConnectionPool.java:213)
    at android.database.sqlite.SQLiteConnectionPool.open(SQLiteConnectionPool.java:202)
    at android.database.sqlite.SQLiteDatabase.openInner(SQLiteDatabase.java:958)
    at android.database.sqlite.SQLiteDatabase.open(SQLiteDatabase.java:945)
    at android.database.sqlite.SQLiteDatabase.openDatabase(SQLiteDatabase.java:843)
    at android.database.sqlite.SQLiteDatabase.openDatabase(SQLiteDatabase.java:791)
    at anywheresoftware.b4a.sql.SQL.Initialize(SQL.java:44)
    at TDDBTest.PRO.starter._service_create(starter.java:165)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:213)
    at anywheresoftware.b4a.BA.raiseEvent(BA.java:193)
    at TDDBTest.PRO.starter.onCreate(starter.java:56)
    at android.app.ActivityThread.handleCreateService(ActivityThread.java:4150)
    at android.app.ActivityThread.access$2400(ActivityThread.java:273)
    at android.app.ActivityThread$H.handleMessage(ActivityThread.java:2055)
    at android.os.Handler.dispatchMessage(Handler.java:112)
    at android.os.Looper.loop(Looper.java:216)
    at android.app.ActivityThread.main(ActivityThread.java:7625)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:524)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:987)
java.lang.RuntimeException: Unable to create service TDDBTest.PRO.starter: java.lang.RuntimeException: android.database.sqlite.SQLiteCantOpenDatabaseException: unknown error (Sqlite code 14 SQLITE_CANTOPEN): Could not open database, (OS error - 2:No such file or directory)
    at android.app.ActivityThread.handleCreateService(ActivityThread.java:4169)
    at android.app.ActivityThread.access$2400(ActivityThread.java:273)
    at android.app.ActivityThread$H.handleMessage(ActivityThread.java:2055)
    at android.os.Handler.dispatchMessage(Handler.java:112)
    at android.os.Looper.loop(Looper.java:216)
    at android.app.ActivityThread.main(ActivityThread.java:7625)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:524)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:987)
Caused by: java.lang.RuntimeException: android.database.sqlite.SQLiteCantOpenDatabaseException: unknown error (Sqlite code 14 SQLITE_CANTOPEN): Could not open database, (OS error - 2:No such file or directory)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:250)
    at anywheresoftware.b4a.BA.raiseEvent(BA.java:193)
    at TDDBTest.PRO.starter.onCreate(starter.java:56)
    at android.app.ActivityThread.handleCreateService(ActivityThread.java:4150)
    ... 8 more

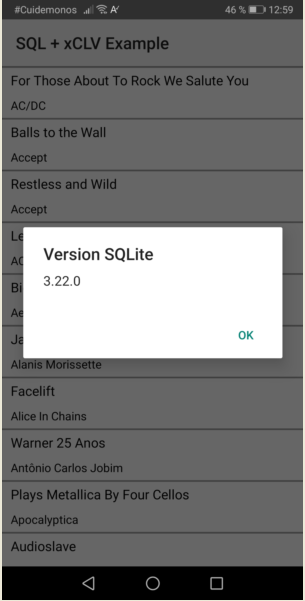

Other data base chinook;

TILogistic · Jan 24, 2022

code:

B4X:

Sub Service_Create
    dbname = "fdm.db"
    If File.Exists(XUI.DefaultFolder,  dbname) Then
        File.Delete(XUI.DefaultFolder, dbname)
    End If
    File.Copy(File.DirAssets, dbname, XUI.DefaultFolder, dbname)
    SQLite.Initialize(XUI.DefaultFolder, dbname, False)
    Dim rs As ResultSet = SQLite.ExecQuery("SELECT name FROM sqlite_master WHERE type='table'")
    Do While rs.NextRow
        Log(rs.GetString("name"))
    Loop
    rs.Close
End Sub

klaus · Jan 24, 2022

I tested it with my Samsung Galaxy S10.

I tried to open the database with an external application, SQLite2009Pro, on the PC and I get a message database encrypted.
Do not know if this could be the problem.

Guenter Becker · Jan 24, 2022

Ok, from another projekt I have an older version of the database.

I deleted the problem version and copied the older one to be used -> it works?
I examined the difference between the databases with sqlitexpert: both databases structures are reported ok.

I'm not able to understand whats going wrong but I will look forward. I hope it will work in future as well. Let's see.
Sometimes ways may be magic/mysterious.

If I have problems again I will be back. Hope not.

Thank you very much to all of your assisstance.

Android Question AGAIN Can not open SQlite Database

Guenter Becker

Active Member

Guenter Becker

Active Member

Erel

B4X founder

Guenter Becker

Active Member

rboeck

Well-Known Member

Guenter Becker

Active Member

TILogistic

Expert

Guenter Becker

Active Member

Guenter Becker

Active Member

klaus

Expert

TILogistic

Expert

Guenter Becker

Active Member

Attachments

Erel

B4X founder

klaus

Expert

TILogistic

Expert

TILogistic

Expert

klaus

Expert

Guenter Becker

Active Member
